Schematic and parts list for: Hoover Model: U4391
This is a list of parts and a diagram and schematic for: Hoover Model: U4391
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 5 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Read more |
| 10 |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 13 |  | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Nozzle Connector Tub (Use W/ 161852Jm) | 013149JM | Not Available |
| 3 | Not Available | Hoover Brush Back (Use W/161852Jm) | 013254BZ | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Dusting Brush Face (Use W/ 161851Jm) | 013263BZ | Not Available |
| 8 | Not Available | Hoover Floor Brush Back (Use W/13077Jm) | 013155JM | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Hoover Furniture Nozzle-Ag | 38614029 | Not Available |
| 10 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Hoover Crevice Tool - Ag | 38617024 | Not Available |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 14 | Not Available | Hoover Hose Tube Assembly | 43466040 | Not Available |
| 15 | Not Available | Hoover Foot Pad - F5047 | 034207AG | Not Available |
| 16 | Not Available | Hoover Latch-U4901-U4903 | 33126001 | Not Available |
| 17 | Not Available | Hoover Spring | 38311006 | Not Available |
| 18 | Not Available | Hoover Washer | 161549 | Not Available |
| 19 | Not Available | Hoover Pads-2910 | 34121001 | Not Available |
| 20 | Not Available | Hoover Converter Body Assembly | 43482097 | Not Available |
| 21 | Not Available | Hoover Seal-End-U4901-U4903 | 34253003 | Not Available |
| 22 | Not Available | Hoover Latch Lever-U4901-U4 | 38452026 | Not Available |
| 23 | Not Available | Hoover Seal-Side-U4901-U490 | 34113005 | Not Available |
| 24 | Not Available | Hoover Converter Body Assembly | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag U3P03 | 58544004 | Not Available |
| 28 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 32 | Not Available | Hoover Hose Conn Label-U490 | 51869006 | Not Available |
| 33 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 35 | Not Available | Hoover Tube Latch | 012846AG | Not Available |
| 36 | Not Available | Hoover Rivet | 12772 | Not Available |
| 37 |  | Handle, Blk Right & Left Snap Together Kit Part Number: R12783K for Rexair | R12783K | $39.73Read more |
| 38 | Not Available | Hoover Rivet | 12763AW | Not Available |
| 39 | Not Available | Hoover Plate | 12824 | Not Available |
| 40 |  | Motor Assembly Part Number 3620012600 for Simplicity Models QS1 | 3620012600 | Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Hoover Washer | 21312704 | Not Available |
| 42 | Not Available | Hoover Tube Latch - Aat | 36152018 | Not Available |
| 43 |  | Mesh Blade Window Tool Bissell repair part number: 1612597 | 1612597 | $15.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Hoover Tube Guide | 12589 | Not Available |
| 45 | Not Available | Hoover Gasket | 012844JM | Not Available |
| 46 | Not Available | Hoover Externion Tube Inner | 12598 | Not Available |
| 47 | Not Available | Hoover Extension Wand - 211 | 43458001 | Not Available |
| 48 | Not Available | Hoover Extension Tube-Ag | 38634078 | Not Available |
| 48 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Support Spring | 38335009 | Not Available |
| 2 | Not Available | Hoover Cloth Bag - Ag | 43667041 | Not Available |
| 3 | Not Available | Hoover Switch Button | 38421012 | Not Available |
| 4 | No Image | SWITCH PLATE SCREWS Part Number: 21465314 for Hoover | 21465314 | $2.14Read more |
| 6 | Not Available | Hoover Cord Retainer-Conver | 34253010 | Not Available |
| 7 | Not Available | Hoover Switch - S2095 | 281770KD | Not Available |
| 8 | Not Available | Hoover Switch Case-C1069 | 37214070 | Not Available |
| 9 | Not Available | Hoover Handle Grip | 023458JM | Not Available |
| 11 | Not Available | Hoover Handle Clamp Bolt | 21631301 | Not Available |
| 12 | Not Available | Hoover Handle-Lower Half-Ax | 48631151 | Not Available |
| 15 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 17 | Not Available | Hoover Attach. Cord-Ag | 46363195 | Not Available |
| 18 | Not Available | Hoover Bag Expander-U7063 | 35173001 | Not Available |
| 19 | Not Available | Hoover Seal | 34112015 | Not Available |
| 20 | Not Available | Hoover Latch - Ag - U7063 | 36155011 | Not Available |
| 21 | Not Available | Hoover Support & Bellows-U7 U4425 | 41427006 | Not Available |
| 22 | Not Available | Hoover Dirt Cup-U7063 | 38775001 | Not Available |
| 23 | Not Available | Hoover Gasket | 34123020 | Not Available |
| 24 |  | Bellows, Blk Top Fill Convertible/Industrial Uprt Part Number: 38673001 for Hoover | 38673001 | $17.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Hoover Bellows-Jr-U4353 | 38673006 | Not Available |
| 27 | Not Available | Hoover Screw | 21481752 | Not Available |
| 28 | Not Available | Hoover Bail Grip 65 | 34192 | Not Available |
| 29 | Not Available | Hoover Handle Retainer Plat | 35463002 | Not Available |
| 30 | Not Available | Hoover Socket Plug | 161208JM | Not Available |
| 32 | Not Available | Hoover Handle Bolt-U7047/45 | 21631302 | Not Available |
| 33 | Not Available | Hoover Hdl Cont Lever | 38456050 | Not Available |
| 34 | Not Available | Hoover Foot Pad-Ag -C1E03 | 38426080 | Not Available |
| 35 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 36 | Not Available | Hoover Cord Cover Tubing-Jm | 31727023 | Not Available |
| 37 | | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 39 | Not Available | Hoover Spring | 048409FW | Not Available |
| 40 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 41 | Not Available | Hoover Cord Clip-Aap-U4519 | 39442030 | Not Available |
| 42 | Not Available | Hoover Washer (Use W/Metal Nozzle Adj. Lever) - U4353 | 161507 | Not Available |
| 43 | Not Available | Hoover Foot Pad-Jm U4353 | 38426072 | Not Available |
| 45 | Not Available | Hoover Lock Ring (Use 3 W/L 6151 1; Use 2 W/38452051) | 13730 | Not Available |
| 46 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 48 | Not Available | Hoover Washer (Use 3 W/33152003; Use 5 W/33141011 ) | 21312772 | Not Available |
| 49 | Not Available | Hoover Rear Wheel-Ag | 38521016 | Not Available |
| 51 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 52 | Not Available | Hoover Spring | 161513 | Not Available |
| 54 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 55 | Not Available | Hoover Screw | 21447003 | Not Available |
| 56 | Not Available | Hoover Rivet | 12997AW | Not Available |
| 57 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 59 | Not Available | Hoover Retainer | 34312011 | Not Available |
| 60 | Not Available | Hoover Screw | 21447020 | Not Available |
| 63 | Not Available | Hoover Screw | 017001FW | Not Available |
| 64 | Not Available | Hoover Lamp | 27313101 | Not Available |
| 65 | Not Available | Hoover Lamp Socket-L.V. | 36912004 | Not Available |
| 66 | No Image | MOTOR, U4403 Part Number: 43574161 for Hoover | 43574161 | $118.20Read more |
| 67 | Not Available | Hoover Furniture Guard | 16974JM | Not Available |
| 68 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 70 |  | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 71 | Not Available | Hoover Main Body Assembly | 42242064 | Not Available |
| 72 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 73 | No Image | SPRING, BOTTOM PLATE Part Number: 012138FW for Hoover | 012138FW | $3.73Read more |
| 74 | Not Available | Hoover Rivet-Semi Tubular | 012503EF | Not Available |
| 75 | Not Available | Hoover Front wheel Shaft | 047457AY | Not Available |
| 76 | Not Available | Hoover Carrier Wheel-Ag | 38522013 | Not Available |
| 77 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 78 | Not Available | Hoover Agitator Assembly | 41435005 | Not Available |
| 79 | | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 80 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 81 | No Image | BOTTOM PLATE, CURRENT CONVERTIBLES LARGE FIN Part Number: 42246038 for Hoover | 42246038 | $37.02Read more |
| 85 | Not Available | Hoover Screw | 21447009 | Not Available |
| 86 | Not Available | Hoover Axle/Bag Flange | 35434040 | Not Available |
| 87 | Not Available | Hoover Nut Shield U4391, U4425, U4495 | 31323001 | Not Available |
| 88 | Not Available | Hoover Bag Cover Nameplate- U4495 | 51639103 | Not Available |
| 89 | Not Available | Hoover Bag Cover - Ke - U44 U4495 | 37959057 | Not Available |
| 90 | Not Available | Hoover Hanger-U3721/29 U4495 | 37959095 | Not Available |
| 91 | Not Available | Hoover Strain Relief Body U4391, U4425 | 12260 | Not Available |
| 91 |  | gasket for kitchendaid mixer | WP12261 | $14.99Read more |
| # | Part image | Description | SKU | Price |
| 48 | Not Available | Hoover Hose End - Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Hose Grip W/Sc-Ag-S1 | 43466068 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter Except 63, 64 (Use W/ Hose 48617) | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM | Not Available |
| 54 | Not Available | Hoover Hose Assembly Complete-U Tufflex (Std. Rear Conversion) | 012864JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 56 | Not Available | Hoover Converter Assembly-Jr Cl 1330, 1348, 1348-002 | 43452503 | Not Available |
| 58 | Not Available | Hoover Hose Complete - 1341 | 019633JM | Not Available |
| 61 | Not Available | Hoover Blower-65 (Use W/Hose 22671) | 034984A | Not Available |
| 62 | Not Available | Hoover Converter Special 63, 64 | 35447 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector (Use W/Hose 22671) | 35190 | Not Available |
| 64 | Not Available | Hoover Connector Converter (Use W/Hose 22671) | 034202JM | Not Available |
| 65 | Not Available | Hoover Hose-Less Ends-Ultra | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose Complete-Mv (J | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assembly Complete-U Tufflex (Std. Rear Conversion) | 012864JM | Not Available |

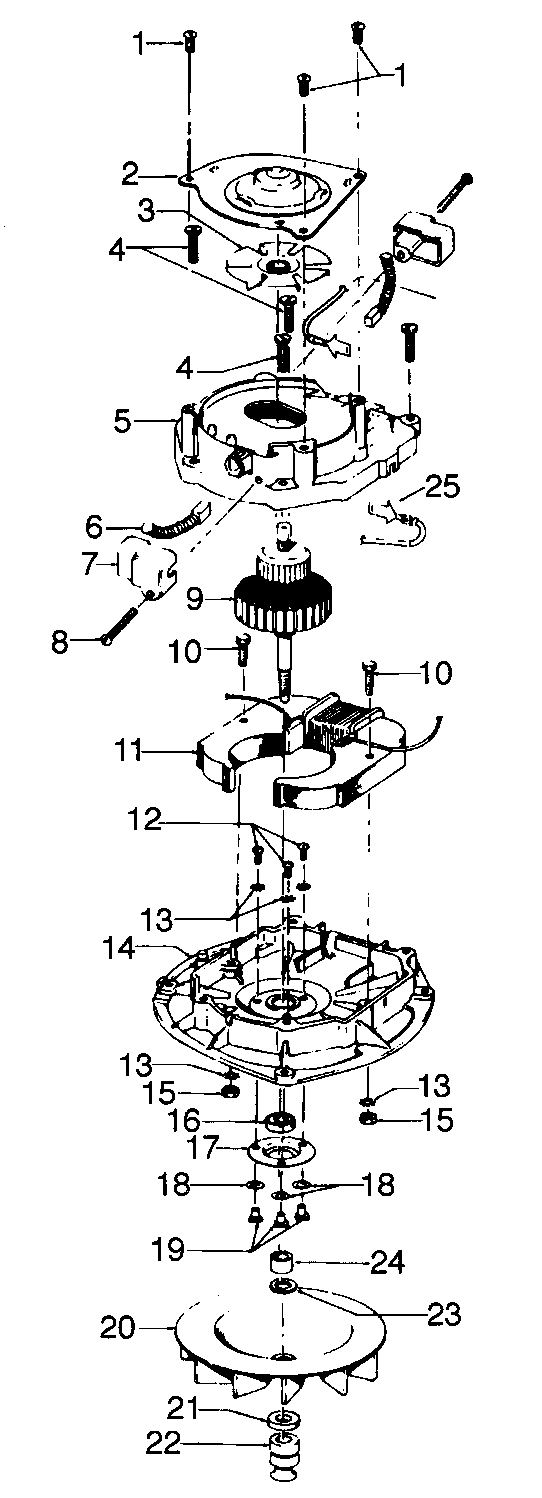

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 4 | Not Available | Hoover Screw | 161535 | Not Available |
| 6 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 7 | Not Available | Hoover Brush Cap - U4313 U4565-048, U4373-048, U4377-935, U4393-048, U4401-948, | 36315003 | Not Available |
| 8 | Not Available | Hoover Screw | 046930AZ | Not Available |
| 9 | Not Available | Hoover Armature-8Mm | 44765085 | Not Available |
| 10 | Not Available | Hoover Field Bolt | 45118 | Not Available |
| 12 | Not Available | Hoover Screw | 21772501 | Not Available |
| 13 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Hoover Motor Case Lh | 42193006 | Not Available |
| 15 | Not Available | Hoover Nut Hex 5140 | 15673 | Not Available |
| 16 | Not Available | Hoover Bearing Assembly Comp-8 | 43267006 | Not Available |
| 16 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Hoover Bearing Retainer-8Mm | 32184003 | Not Available |
| 18 | Not Available | Hoover Washer-Lock-843 | 19772 | Not Available |
| 19 | Not Available | Hoover Nut | 45251 | Not Available |
| 20 | Not Available | Hoover Fan | 38755011 | Not Available |
| 21 | Not Available | Hoover Washer-Heat Insulation | 31162004 | Not Available |
| 23 | Not Available | Hoover Washer | 166563 | Not Available |
| 25 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | No Image | MOTOR, U4403 Part Number: 43574161 for Hoover | 43574161 | $118.20Read more |
| 26 | Not Available | Hoover Armature-Spacer (For Use With Lower Motor. Brgs. With 4) | 40300014 | Not Available |
Report errors on this page HERE
