Schematic and parts list for: Hoover Model: U4517
This is a list of parts and a diagram and schematic for: Hoover Model: U4517
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies

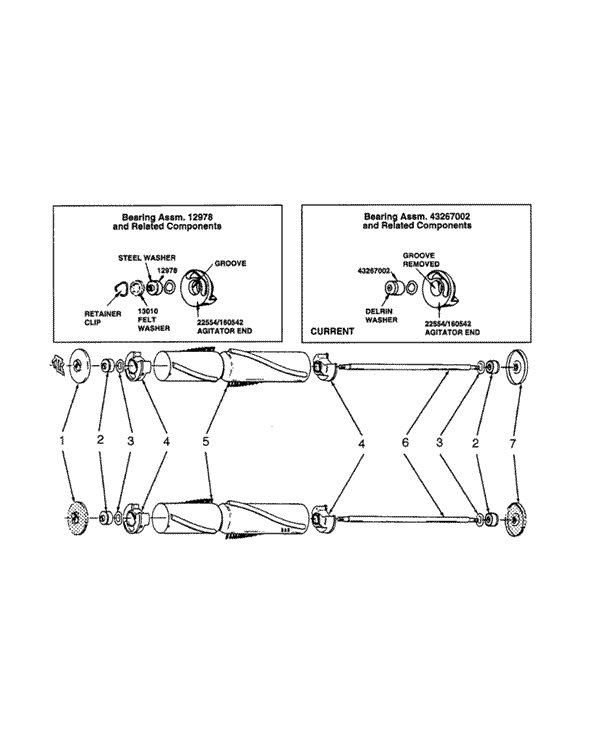

| # | Part image | Description | SKU | Price |
| XX |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| XX |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| XX |  | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 5 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Read more |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Nozzle Connector Tub | 013149JM | Not Available |
| 3 | Not Available | Hoover Brush Back | 013254BZ | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 5 | Not Available | Hoover Dusting Brush Face | 013263BZ | Not Available |
| 8 | Not Available | Hoover Floor Brush Back & N | 013155JM | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Hoover Furniture Tool - Black | 38614029 | Not Available |
| 11 | Not Available | Hoover Crevice Tool - Ag | 38617024 | Not Available |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 14 | Not Available | Hoover Hose Tube Assem. - A | 43466040 | Not Available |
| 15 | Not Available | Hoover Foot Pad - F5047 | 034207AG | Not Available |
| 16 | Not Available | Hoover Latch-U4901-U4903 | 33126001 | Not Available |
| 17 | Not Available | Hoover Spring | 38311006 | Not Available |
| 18 | Not Available | Hoover Washer | 161549 | Not Available |
| 19 | Not Available | Hoover Pads-2910 | 34121001 | Not Available |
| 20 | Not Available | Hoover Converter Body Assem | 43482097 | Not Available |
| 21 | Not Available | Hoover Seal-End-U4901-U4903 | 34253003 | Not Available |
| 22 | Not Available | Hoover Latch Lever-U4901-U4 | 38452026 | Not Available |
| 23 | Not Available | Hoover Seal-Side-U4901-U490 | 34113005 | Not Available |
| 24 | Not Available | Hoover Converter Body Assem | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag U3P03 | 58544004 | Not Available |
| 28 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 32 | Not Available | Hoover Hose Conn Label-U490 | 51869006 | Not Available |
| 33 | Not Available | Hoover Latch Ring-Ag-S3273 | 36153009 | Not Available |
| 35 | Not Available | Hoover Tube Latch | 012846AG | Not Available |
| 36 | Not Available | Hoover Rivet | 12772 | Not Available |
| 37 |  | Handle, Blk Right & Left Snap Together Kit Part Number: R12783K for Rexair | R12783K | $39.73Read more |
| 38 | Not Available | Hoover Rivet | 12763AW- | Not Available |
| 39 | Not Available | Hoover Plate | 12824 | Not Available |
| 40 |  | Motor Assembly Part Number 3620012600 for Simplicity Models QS1 | 3620012600 | Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Hoover Washer | 21312704 | Not Available |
| 42 | Not Available | Hoover Tube Latch - Aat | 36152018 | Not Available |
| 43 |  | Mesh Blade Window Tool Bissell repair part number: 1612597 | 1612597 | $15.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 | Not Available | Hoover Tube Guide | 12589 | Not Available |
| 45 | Not Available | Hoover Gasket | 012844JM | Not Available |
| 46 | Not Available | Hoover Externion Tube Inner | 12598 | Not Available |
| 47 | Not Available | Hoover Extension Wand - 211 | 43458001 | Not Available |
| 48 | Not Available | Hoover Extension Tube - Black | 38634078 | Not Available |
| 48 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| XX | | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 2 | Not Available | Hoover Screw | 21765159 | Not Available |
| 3 | Not Available | Hoover Nut | 015854EF | Not Available |
| 6 |  | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 7 | Not Available | Hoover Top Fill Tube | 38657004 | Not Available |
| 9 | Not Available | Hoover Switch Button | 38421012 | Not Available |
| 10 | Not Available | Hoover Switch Cover-Kt-U415 | 37258015 | Not Available |
| 11 | Not Available | Hoover Switch - U4219 | 28179013 | Not Available |
| 12 | Not Available | Hoover Terminal | 27666702 | Not Available |
| 13 | Not Available | Hoover Handle Grip Assem-Co | 39454060 | Not Available |
| 14 | Not Available | Hoover Nameplate - U4505 | 52115149 | Not Available |
| 15 | Not Available | Hoover Terminals-0513 | 12227 | Not Available |
| 16 | Not Available | Hoover Screw - S3005 | 166735EF | Not Available |
| 17 | Not Available | Hoover Bag Support-Jm | 39442001 | Not Available |
| 19 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 21 | Not Available | Hoover Nut Shield | 31323001 | Not Available |
| 22 | Not Available | Hoover Handle Clamp Bolt | 21631301 | Not Available |
| 23 | Not Available | Hoover Cord Release | 36153030 | Not Available |
| 24 | No Image | SCREW, CORD HOOK SELF TAPPING DECADE 80/U4329 Part Number: 21434824 for Hoover | 21434824 | $1.81Read more |
| 25 | Not Available | Hoover Bag Flange W/Sealant | 41424011 | Not Available |
| 26 | Not Available | Hoover Bellows-Jm | 38673009 | Not Available |
| 27 | Not Available | Hoover Handle Socket Assm C | 46526012 | Not Available |
| 28 | Not Available | Hoover Cap Housing/Tubing A | 46522008 | Not Available |
| 29 | Not Available | Hoover Bail Cover Plate-Ay | 34777012 | Not Available |
| 31 | Not Available | Hoover Foot Pad-Ag -C1E03 | 38426080 | Not Available |
| 32 | Not Available | Hoover Hdl Cont Lever-Ag | 43137047 | Not Available |
| 33 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 34 | | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | Hoover Screw-Self Tapping | 21465312 | Not Available |
| 36 | Not Available | Hoover Cord Clip - Aap | 39442030 | Not Available |
| 37 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 38 | Not Available | Hoover Noz Adj Lever-Ag | 38456044 | Not Available |
| 39 | Not Available | Hoover Indicator-Ag-Printed | 51151034 | Not Available |
| 40 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 41 | Not Available | Hoover Spring - Bag Flange Clamp | 048409FW | Not Available |
| 42 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 43 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 44 | Not Available | Hoover Wheel Retainer | 32182001 | Not Available |
| 45 | Not Available | Hoover Rear Wheel-Ag | 38521016 | Not Available |
| 46 | Not Available | Hoover Cam Follower-Plastic | 43263005 | Not Available |
| 47 | Not Available | Hoover Rear Wheel Shaft | 33152003 | Not Available |
| 48 | Not Available | Hoover Spring | 161513 | Not Available |
| 49 | Not Available | Hoover Axle/Bag Flange Reta | 35434040 | Not Available |
| 50 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 51 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 52 | Not Available | Hoover Motor Assembly Compl | 43574191 | Not Available |
| 53 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 54 | Not Available | Hoover Indicator Guide Spri | 35276006 | Not Available |
| 55 | Not Available | Hoover Retainer | 34312011 | Not Available |
| 56 | Not Available | Hoover Screw-U4581-910 | 21447220 | Not Available |
| 57 | Not Available | Hoover Screw | 45533AY- | Not Available |
| 58 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 59 | Not Available | Hoover Indicator Guide Asse | 41961009 | Not Available |
| 61 | Not Available | Hoover Rivet | 12997AW- | Not Available |
| 62 | Not Available | Hoover Washer | 168278AY | Not Available |
| 63 | Not Available | Hoover Indicator Lens | 48111008 | Not Available |
| 68 | Not Available | Hoover Screw | 017001FW | Not Available |
| 69 | Not Available | Hoover Lamp - Bulb #912 12 Volt / Can Sub 27313101 | 27313101 | Not Available |
| 70 | Not Available | Hoover Lamp Socket-L.V. | 36912004 | Not Available |
| 71 | Not Available | Hoover Wire Holder | 45517 | Not Available |
| 72 | Not Available | Hoover Frontwheel Shaft | 047457AY | Not Available |
| 73 | Not Available | Hoover Washer | 21312772 | Not Available |
| 74 | Not Available | Hoover Carrier Wheel-Ag | 38522013 | Not Available |
| 75 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 76 | Not Available | Hoover Vent Enclosure | 34311003 | Not Available |
| 77 |  | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 78 | Not Available | Hoover Supportwasher-Uprig | 21312781 | Not Available |
| 79 |  | SPRING, BRUSHROLL RETAINING S3439-070 Part Number: 34784021 for Hoover | 34784021 | $2.26Read more |
| 80 | Not Available | Hoover Agitator Assem Comp- | 41435005 | Not Available |
| 81 | Not Available | Hoover Main Body Assem - Ag | 42242225 | Not Available |
| 82 | Not Available | Hoover Screw-S2095/97/99 | 21447203 | Not Available |
| 83 | Not Available | Hoover Latch-C1K01 | 36153006 | Not Available |
| 84 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 85 | Not Available | Hoover Bottom Plate - Plast | 37245081 | Not Available |
| 87 | Not Available | Hoover Screw | 21447009 | Not Available |
| 88 | Not Available | Hoover Screw | 21447020 | Not Available |
| 89 | Not Available | Hoover Bag & Dust Cup Assm- | 43675135 | Not Available |
| 90 | Not Available | Hoover Spring - Bag Closure Clip Order 41128021 | 38335009 | Not Available |
| 91 | Not Available | Hoover Bag Clip And Spring Assembly | 41128021 | Not Available |
| 92 | Not Available | Hoover Cloth Bag - Ag | 43667041 | Not Available |
| 93 | Not Available | Hoover Bag Expander-U7063 | 35173001 | Not Available |
| 94 | Not Available | Hoover Seal | 34112015 | Not Available |
| 95 | Not Available | Hoover Support & Bellows-U7 | 41427006 | Not Available |
| 96 | Not Available | Hoover Latch - Ag - U7063 | 36155011 | Not Available |
| 97 | Not Available | Hoover Gasket | 34123020 | Not Available |
| 98 |  | Bellows, Blk Top Fill Convertible/Industrial Uprt Part Number: 38673001 for Hoover | 38673001 | $17.69Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 99 | Not Available | Hoover Clamp-U7063 | 36425023 | Not Available |
| 100 | Not Available | Hoover Dirt Cup Assembly | 38775001 | Not Available |
| # | Part image | Description | SKU | Price |
| 48 | Not Available | Hoover Hose End - Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Hose Grip W/Sc-Ag-S1 | 43466068 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM- | Not Available |
| 54 | Not Available | Hoover Hose Assm Complete-U | 012864JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 56 | Not Available | Hoover Converter Assm-Jr Cl | 43452503 | Not Available |
| 58 | Not Available | Hoover Hose Complete - 1341 | 019633JM | Not Available |
| 61 | Not Available | Hoover Blower-65 | 034984-A | Not Available |
| 62 | Not Available | Hoover Converter Special | 35447 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector | 35190 | Not Available |
| 64 | Not Available | Hoover Connector | 034202JM | Not Available |
| 65 | Not Available | Hoover Hose-Less Ends-Ultra | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose Complete-Mv (J | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assm Complete-U | 012864JM | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY- | Not Available |
| 2 | | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Indicator Guide Asse | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Vent Fan-Plastic-U44 | 38755005 | Not Available |
| 6 | Not Available | Hoover Screw | 161535 | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing-U | 42195003 | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | Not Available | Hoover Brush Cap - U4313 | 36315003 | Not Available |
| 10 | Not Available | Hoover Armature-8Mm | 44765085 | Not Available |
| 11 | Not Available | Hoover Field Bolt | 45118 | Not Available |
| 12 | Not Available | Hoover Field - U4523 | 45421020 | Not Available |
| 13 | Not Available | Hoover Screw | 21772501 | Not Available |
| 14 | | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Hoover Motor Case Lh | 42193006 | Not Available |
| 16 | Not Available | Hoover Bearing Retainer-8Mm | 32184003 | Not Available |
| 17 | Not Available | Hoover Washer-Lock-843 | 19772 | Not Available |
| 18 | Not Available | Hoover Nut | 45251 | Not Available |
| 19 | Not Available | Hoover Fan Spacer-8Mm | 31731002 | Not Available |
| 20 | Not Available | Hoover Washer | 166563 | Not Available |
| 21 | Not Available | Hoover Fan | 38755011 | Not Available |
| 22 | Not Available | Hoover Washer-Heat Insulati | 31162004 | Not Available |
| 23 | Not Available | Hoover Motor Pulley - U4479 | 38532015 | Not Available |
| 24 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
Report errors on this page HERE
