Schematic and parts list for: Hoover Model: U4730

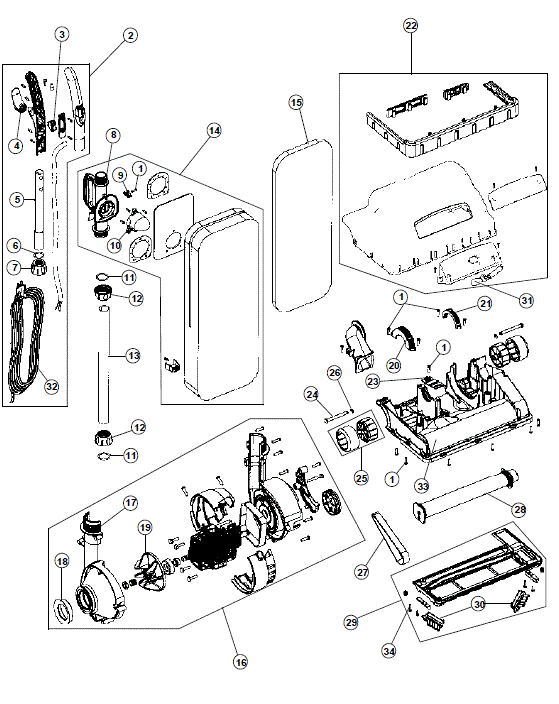

This is a list of parts and a diagram and schematic for: Hoover Model: U4730
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Residential Bagged Upright Clean And Light / Signature
Popular Supplies
Product is special order please allow 2-4 weeks for delivery.
$12.57Add to cart
# | Part image | Description | SKU | Price |
1 | Screw, :( Handle - Machine 6200 Series Part Number: 1503819000 for Royal | 1503819000 | $0.37Add to cart Product is special order please allow 2-4 weeks for delivery. | |
2 | Not Available | Hoover Upper Handle Assembly - Black 3 Position Switch - High/Low | 1249004 | Not Available |
3 | Not Available | Hoover Switch - 3 Position Switch - High/Low | 760624001 | Not Available |
4 | Not Available | Hoover Cord Hook | 1JR0012000 | Not Available |
5 | Not Available | Hoover Upper Handle Tube | 1JR0018000 | Not Available |
6 | Not Available | Hoover Handle O-Ring Gasket - Small Round | 1JR0027000 | Not Available |
7 | Not Available | Hoover Upper Handle Collar | 1JR0026000 | Not Available |
8 | Not Available | Hoover Carrying Handle Tube Grip | 1JR0028000 | Not Available |
9 | Not Available | Hoover Cord Clip | 1JR0029000 | Not Available |
10 | Not Available | Hoover Dirt Inlet | 1JR0035000 | Not Available |
11 | Not Available | Hoover Handle O-Ring Gasket - V Shape | 1RYV650000 | Not Available |
12 | Not Available | Hoover Lower Handle Collar | 1JR0025000 | Not Available |
13 | Not Available | Hoover Lower Handle Tube | 2JR1000000 | Not Available |
14 | Not Available | Hoover Hepa Cloth Bag Assembly - Black | 1250012 | Not Available |
15 | Paper Bag, Type B Allergen Clean N Lght W4707 3 Pk Part Number: 4010103B for Hoover | 4010103B | $12.57Add to cart Product is special order please allow 2-4 weeks for delivery. | |
15 | Paper Bag, :( Type B Allergen U4707/U4730 Part Number: 4010102B for Hoover | 4010102B | $1.93Read more | |
15 | Not Available | Hoover Type B Bag - Hepa | 43655119 | Not Available |
16 | No Image | MOTOR, ASSEMBLY MRY6400/U4707/U4730 Part Number: 001248011 for Hoover | 1248011 | $106.54Read more |
17 | Not Available | Hoover Motor Fan Cover | 1JR0015000 | Not Available |
18 | Not Available | Hoover Fan Cover Seal | 1JR0014000 | Not Available |
19 | Not Available | Hoover Fan | 1JR0013000 | Not Available |
20 | Not Available | Hoover Left Clamp | 1JR0031000 | Not Available |
21 | Not Available | Hoover Right Clamp | 1JR0030000 | Not Available |
22 | Not Available | Hoover Nozzle Cover With Bumpers - Silver | 1033004 | Not Available |
23 | Not Available | Hoover Handle Stopper | 1JR0022000 | Not Available |
24 | Not Available | Hoover Wheel Pin | 1JR0021000 | Not Available |
25 | Not Available | Hoover Wheel Assembly | 1JR0019000 | Not Available |
26 | Not Available | Hoover Wheel E-Clip | 1JR0020000 | Not Available |
27 | Hoover Style 18 Belt | 40201318 | $5.99Read more | |
28 | HOOVER / ROYAL BRUSHROLL ASSY | RO-JR0010 | $42.99Read more | |
29 | Not Available | Hoover Nozzle Guard Assembly | 1JR0032000 | Not Available |
30 | Not Available | Hoover Edge Cleaner Assembly | 1JR0033000 | Not Available |
31 | Not Available | Hoover Bulb #906 | 1920906000 | Not Available |
32 | Not Available | Hoover Power Cord | 1LV1101000 | Not Available |
33 | Not Available | Hoover Nozzle Base | 513175009 | Not Available |
34 | Not Available | Hoover Screw - Nozzle Guard | 1JV0103000 | Not Available |
