Schematic and parts list for: Hoover Model: U5046
This is a list of parts and a diagram and schematic for: Hoover Model: U5046
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies

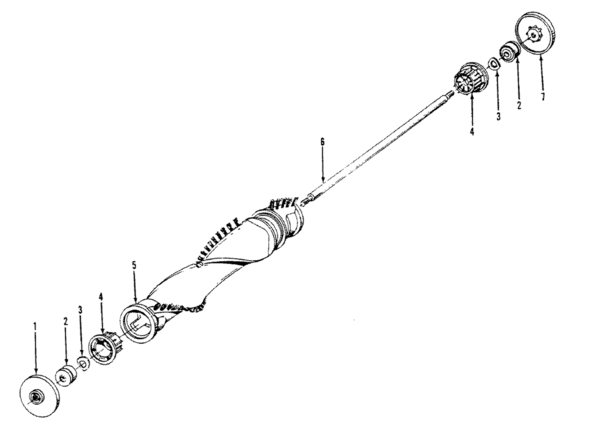

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Thread Guard - Rh - | 36423016 | Not Available |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 | Not Available | Hoover End Cap - Agitator / Brush Roll | 36422022 | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 6 | Not Available | Hoover Agitator Shaft - U44 | 32724013 | Not Available |
| 7 | Not Available | Hoover Thread Guard - Lh - | 36423017 | Not Available |

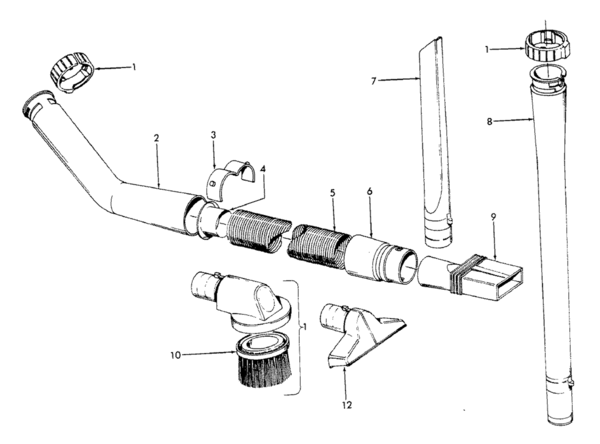

| # | Part image | Description | SKU | Price |
| xx | Not Available | Hoover Owner Manual - U4911 | 56519028 | Not Available |
| xx |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Hoover Hose Connector Curve | 38646535 | Not Available |
| 3 | Not Available | Hoover Hose Conenctor Colla | 36171501 | Not Available |
| 4 | Not Available | Hoover Hose Liner - 678704 | 32156707 | Not Available |
| 5 | Not Available | Hoover Hose - 678713 | 43431529 | Not Available |
| 6 | Not Available | Hoover Hose Connector - 674 | 38634517 | Not Available |
| 7 | Not Available | Hoover Crevice Tool - 67405 | 38617507 | Not Available |
| 8 | Not Available | Hoover Extension Tube - 676 | 43453512 | Not Available |
| 9 | Not Available | Hoover Convertor - 677762 | 38656518 | Not Available |
| 10 | Not Available | Hoover Dusting Brush - 6182 | 808532- | Not Available |
| 12 | Not Available | Hoover Furniture Nozzle - 6 | 38614514 | Not Available |

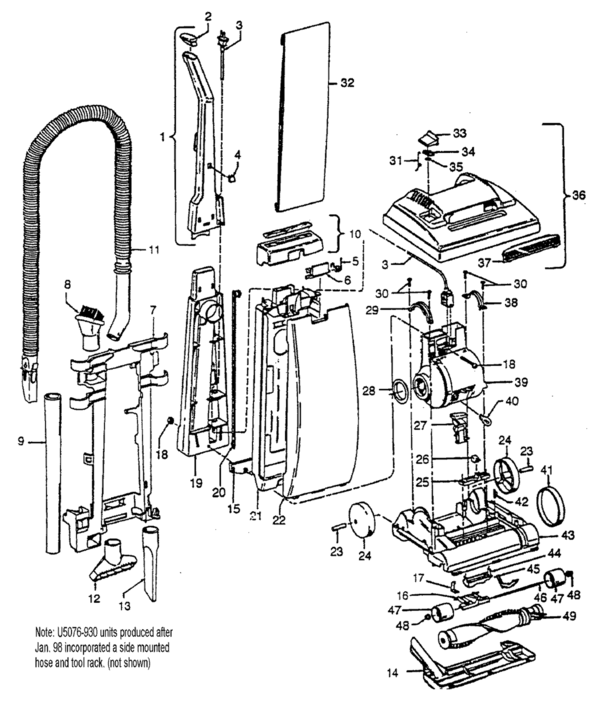

| # | Part image | Description | SKU | Price |
| 4 | Not Available | Hoover Plug | 37911061 | Not Available |
| 5 |  | SPRING, BAG COVER LATCH LEGACY II 5079 Part Number: 38355008 for Hoover | 38355008 | $2.76Read more |
| 6 | Not Available | Hoover Latch - U5069/U5079 | 36151006 | Not Available |
| 8 | Not Available | Hoover Dusting Brush | 43414145 | Not Available |
| 9 | Not Available | Hoover Extension Tube - Black | 38634078 | Not Available |
| 12 | Not Available | Hoover Furniture Tool - Black | 38614029 | Not Available |
| 13 | Not Available | Hoover Crevice Tool - Ag | 38617024 | Not Available |
| 15 | Not Available | Hoover Bag Housing Bracket | 36425081 | Not Available |
| 16 | Not Available | Hoover Front Wheel Assembly - Replaced By 43248073 | 43248059 | Not Available |
| 17 | Not Available | Hoover Cam Actuator Spring- | 34572002 | Not Available |
| 18 | Not Available | Hoover Nut & Bolt Assembly- | 40201085 | Not Available |
| 21 | Not Available | Hoover Bag Housing - U5069/ | 37254068 | Not Available |
| 23 | Not Available | Hoover Rear Wheel Shaft | 31523012 | Not Available |
| 24 | Not Available | Hoover Rear Wheel - Black | 38522011 | Not Available |
| 25 | Not Available | Hoover Cam Actuator-Ke-U445 | 38567008 | Not Available |
| 26 | Not Available | Hoover Indicator Knob-Abe-U | 38421070 | Not Available |
| 27 | Not Available | Hoover Handle Release Lever | 38458022 | Not Available |
| 28 | Not Available | Hoover Seal - U4455 | 38784016 | Not Available |
| 29 | Not Available | Hoover Motor Retainer Cap - | 36131057 | Not Available |
| 30 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 31 | Not Available | Hoover Spring - Elite Ii | 38351013 | Not Available |
| 32 |  | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 34 | Not Available | Hoover Exp-Seal | 38785013 | Not Available |
| 35 | Not Available | Hoover Speed Nut | 21362006 | Not Available |
| 38 | Not Available | Hoover Motor Retainer | 36131090 | Not Available |
| 40 | Not Available | Hoover Lamp - Bulb #912 12 Volt / Can Sub 27313101 | 27313101 | Not Available |
| 41 | Not Available | Hoover Belt Replaced By 38528040 | 38528027 | Not Available |
| 41 | Not Available | Hoover Belt | 38528040 | Not Available |
| 42 | Not Available | Hoover Rib Shoe | 13261AY- | Not Available |
| 44 |  | Cam, :( Nozzle Height Adjustment Elite/Eli Part Number: 38563011 for Hoover | 38563011 | $3.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | Not Available | Hoover Lever | 43248058 | Not Available |
| 46 | Not Available | Hoover Wheel Shaft - Ay - U | 32563012 | Not Available |
| 47 | Not Available | Hoover Front Wheel Assembly - Replaced By 43248073 | 43248054 | Not Available |
| 48 | Not Available | Hoover Wheel Retainer - Natural | 36131056 | Not Available |
| 49 |  | Brushroll, Elite/Legacy/ Futura/Tempo/Empower OEM # 48414081, 48414036 | HR-2010 | $27.99Read more |
| 49 | Not Available | Hoover Agitator / Brush Roll Assembly | 48414079 | Not Available |

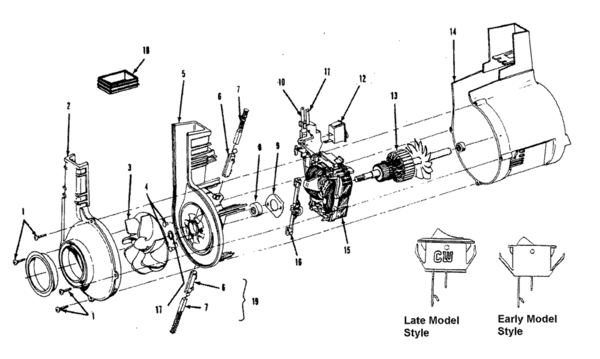

| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Fan Chamber | 38736033 | Not Available |
| 3 | Not Available | Hoover Fan | 38755030 | Not Available |
| 4 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 5 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 6 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 7 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 8 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 9 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 10 | Not Available | Hoover Switch Bar | 36914004 | Not Available |
| 11 | No Image | COVER, MOTOR U5272-9RM BAGLESS UPRIGHT W/HEADLT Part Number: 37194050 for Hoover | 37194050 | $19.25Read more |
| 11 | Not Available | Hoover Attachment Terminal | 39116005 | Not Available |
| 13 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 14 | Not Available | Hoover Motor End Cap W/Hl | 37194049 | Not Available |
| 15 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 16 | Not Available | Hoover Not Required Part Or See Note Turbine Complete | W10124350 | Not Available |
| 17 | Not Available | Hoover Washer - U4455 | 21312793 | Not Available |
| 18 | Not Available | Hoover Duct Seal-Molded | 38783020 | Not Available |
| 19 | Not Available | Hoover Brush Holder Assembl | 41311016 | Not Available |

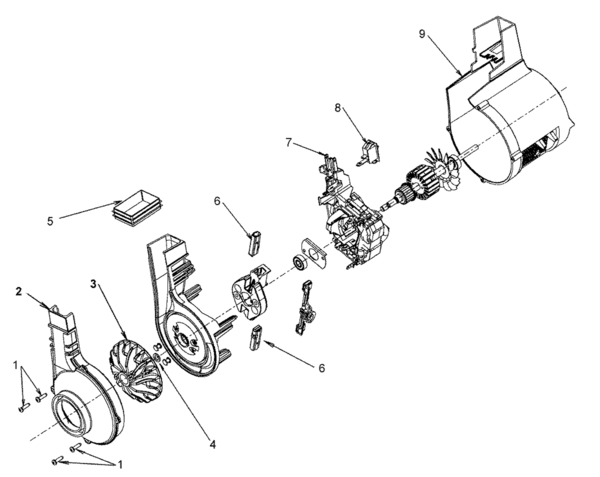

| # | Part image | Description | SKU | Price |
| xx | No Image | COVER, MOTOR U5272-9RM BAGLESS UPRIGHT W/HEADLT Part Number: 37194050 for Hoover | 37194050 | $19.25Read more |
| 1 | Not Available | Hoover Screw-Self Tapping-5/8 | 214793DA | Not Available |
| 4 | Not Available | Hoover Washer - U4455 | 21312793 | Not Available |
| 5 | Not Available | Hoover Duct Seal-Molded | 38783020 | Not Available |
| 6 | Not Available | Hoover Motor Brush-Svw | 41311022 | Not Available |
| 7 | Not Available | Hoover Switch Bar | 36914006 | Not Available |
| 8 | Not Available | Hoover Rocker Switch | 28161068 | Not Available |
| 9 | Not Available | Hoover Motor End Cap W/Hl | 37194049 | Not Available |
