Schematic and parts list for: Hoover Model: U5102
This is a list of parts and a diagram and schematic for: Hoover Model: U5102
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright

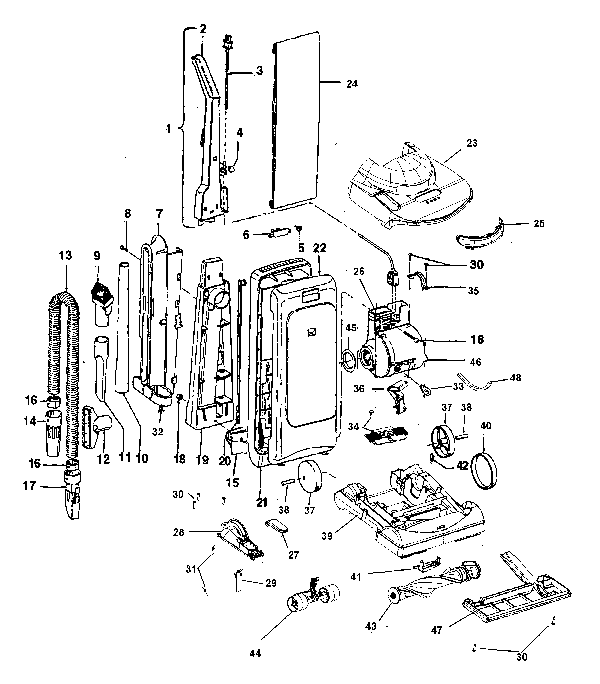

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Upper Handle Assembly | 48663160 | Not Available |
| 2 | Not Available | Hoover Handle Grip | 39458057 | Not Available |
| 3 | Not Available | Hoover Cord-30 Ft | 46388043 | Not Available |
| 4 | Not Available | Hoover Plug-U5069/U5079 | 37911038 | Not Available |
| 5 | Not Available | Hoover Torsion Spring | 38355009 | Not Available |
| 6 | Not Available | Hoover Latch-U5209 | 36151013 | Not Available |
| 7 | Not Available | Hoover Tool Holder Assembly | 41426019 | Not Available |
| 8 | Not Available | Hoover Screw-U4581 | 21447220 | Not Available |
| 9 | Not Available | Hoover Dusting Brush Assembly | 43414146 | Not Available |
| 10 | Not Available | Hoover Extension Tube | 38634078 | Not Available |
| 11 | Not Available | Hoover Crevice Tool | 38617026 | Not Available |
| 12 | Not Available | Hoover Furniture Nozzle | 38614036 | Not Available |
| 13 | Not Available | Hoover Clean Tool Hose Assembly | 43434265 | Not Available |
| 14 | Not Available | Hoover Hose Adapter | 32288011 | Not Available |
| 15 | Not Available | Hoover Bag Housing Bracket | 36425081 | Not Available |
| 16 | Not Available | Hoover Hose Connector | 36116014 | Not Available |
| 17 | Not Available | Hoover Hose Connector | 38656035 | Not Available |
| 18 | Not Available | Hoover Nut & Bolt Assembly | 40201085 | Not Available |
| 19 | Not Available | Hoover Lower Handle | 39464005 | Not Available |
| 20 | Not Available | Hoover Switch Control Rod | 38456036 | Not Available |
| 21 | Not Available | Hoover Bag Housing-U5095 | 37254069 | Not Available |
| 22 | Not Available | Hoover Bag Hsg Door-U5102-9 U5102-900, U5102-940 | 37257294 | Not Available |
| 23 | Not Available | Hoover Hood-Aby-U5102-900 (Includes Item 25) U5102-900, U5102-940 | 42252B58 | Not Available |
| 24 | No Image | PAPER BAG, :) HVR TYPE A ALLERGAN 3PK Part Number: H4010100A for Hoover Replacement | H4010100A | $8.22Read more |
| 25 | Not Available | Hoover Lens- Deluxe | 39383056 | Not Available |
| 26 | Not Available | Hoover Duct Seal-Molded | 38783020 | Not Available |
| 27 | Not Available | Hoover Air Intake Door-Cadd | 37257245 | Not Available |
| 28 | Not Available | Hoover Duct Cover-Caddy Vac | 38656034 | Not Available |
| 29 | Not Available | Hoover Valve Door-Caddy Vac | 38718010 | Not Available |
| 30 | Not Available | Hoover Screw-Self Tapping | 21447217 | Not Available |
| 31 | Not Available | Hoover Spring-Caddy Vac | 38351020 | Not Available |
| 32 | Not Available | Hoover Tool Holder Connector | 36433118 | Not Available |
| 33 | Not Available | Hoover Lamp | 27313101 | Not Available |
| 34 | Not Available | Hoover Cam Actuator Assembly | 40309028 | Not Available |
| 35 | Not Available | Hoover Motor Retainer | 36131090 | Not Available |
| 36 | Not Available | Hoover Handle Release Lever-Caddy | 38458058 | Not Available |
| 37 | Not Available | Hoover Wheel Rear - Ag | 38522011 | Not Available |
| 38 | Not Available | Hoover Rear Wheel Shaft | 31523012 | Not Available |
| 39 | Not Available | Hoover Main Body-Caddy Vac Deluxe (Includes Items 37, 38) | 37241157 | Not Available |
| 40 | Not Available | Hoover Agitator Belt-12 Amp | 38528040 | Not Available |
| 41 | Not Available | Hoover Nozzle Hight Adjustment | 38563008 | Not Available |
| 42 | Not Available | Hoover Rib Shoes | 013261AY | Not Available |
| 43 | Not Available | Hoover Agitator Assembly Complete | 48414118 | Not Available |
| 44 | Not Available | Hoover Front Wheel Assembly | 43248059 | Not Available |
| 45 | Not Available | Hoover Seal - U4455 | 38784016 | Not Available |
| 46 | Not Available | Hoover Motor Assembly 12 Amp | 43576199 | Not Available |
| 47 | No Image | BOTTOM PLATE, CADDY VAC U5110 Part Number: 37245047 for Hoover | 37245047 | $26.81Read more |
| 48 | Not Available | Hoover Gasket-Main Body | 34123056 | Not Available |
| 49 | Not Available | Hoover Owner Manual-U510290 | 56511B51 | Not Available |

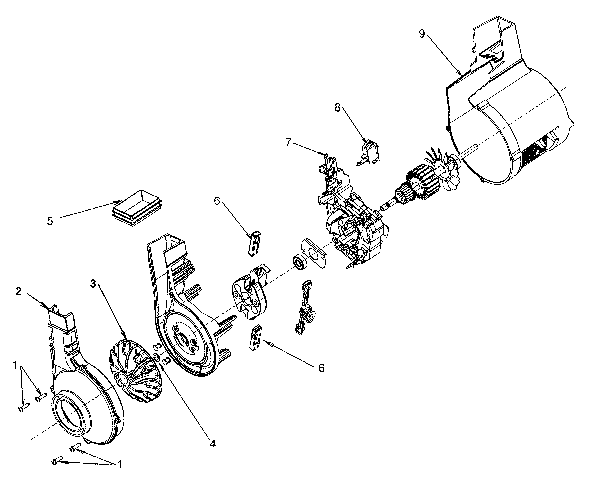

| # | Part image | Description | SKU | Price |
| xx | No Image | COVER, MOTOR U5272-9RM BAGLESS UPRIGHT W/HEADLT Part Number: 37194050 for Hoover | 37194050 | $19.25Read more |
| 1 | Not Available | Hoover Screw-Self Tapping-5/8" | 214793DA | Not Available |
| 4 | Not Available | Hoover Washer - U4455 | 21312793 | Not Available |
| 5 | Not Available | Hoover Duct Seal-Molded | 38783020 | Not Available |
| 6 | Not Available | Hoover Motor Brush | 41311022 | Not Available |
| 7 | Not Available | Hoover Switch Bus Bar | 36914006 | Not Available |
| 8 | Not Available | Hoover Rocker Switch | 28161068 | Not Available |
| 9 | Not Available | Hoover Motor End Cap With Headlight | 37194049 | Not Available |
