Schematic and parts list for: Hoover Model: U5106

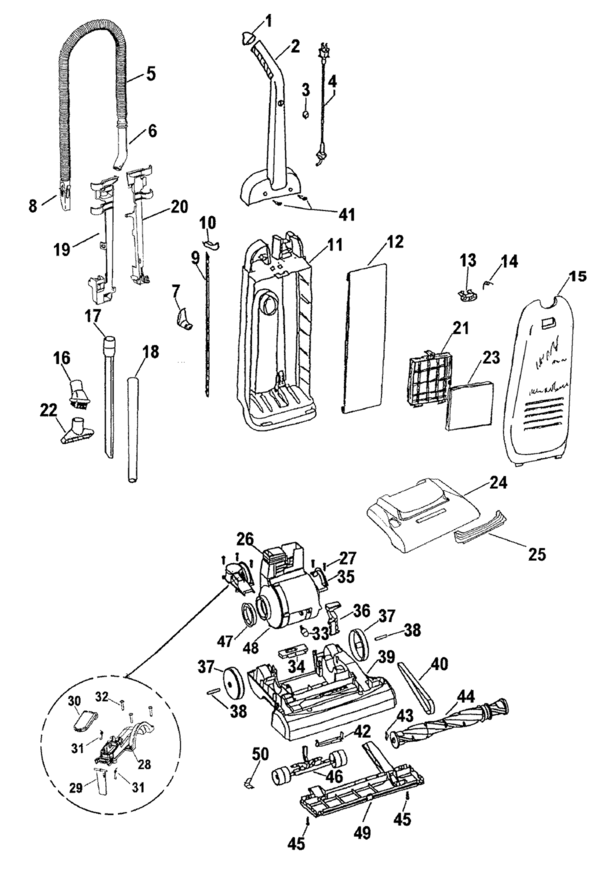

This is a list of parts and a diagram and schematic for: Hoover Model: U5106

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: Upright

Popular Supplies


Product is special order please allow 2-4 weeks for delivery.


# Part image Description SKU Price
1Not AvailableHoover Handle Cap-Abe-U5209 37911078Not Available
2Not AvailableHoover Upper Handle-Caddy V 39466041Not Available
3Not AvailableHoover Not Required Part Or See Note Turbine Complete W10124350Not Available
4Not AvailableHoover Cord - 30' 46388043Not Available
5Not AvailableHoover Hose Complete - Dark Charcoal / Black 43434268Not Available
6Not AvailableHoover Hand Grip 39454059Not Available
7Not AvailableHoover Cord Wrap 3944201PNot Available
8Not AvailableHoover Hose Connector-U5104 38655008Not Available
9Not AvailableHoover Switch Rod 38458057Not Available
10Not AvailableHoover Rocker Switch 38433036Not Available
12Product ThumbnailPaper Bag, Type Z allergen Dimension Upright 3 Pk Part Number: 4010100Z for Hoover

More Product Details

4010100Z

$11.45Add to cart

Product is special order please allow 2-4 weeks for delivery.
13Not AvailableHoover Latch-Bag Door 36151010Not Available
14Not AvailableHoover Torsion Spring 38355009Not Available
16Not AvailableHoover Dusting Brush Assem- 43414174Not Available
17Not AvailableHoover Crevice Tool-Abr 38617029Not Available
18Not AvailableHoover Extension Tube - Black 38634078Not Available
19Not AvailableHoover Hose/Tool Holder-Rh 36433184Not Available
20Not AvailableHoover Hose/Tool Holder-Lh 36433185Not Available
21Not AvailableHoover Filter Retainer-Ag 36426041Not Available
22Not AvailableHoover Furniture Nozzle 3861401ENot Available
23Not AvailableHoover Final Filter - 2 Pack 40110003Not Available
26Not AvailableHoover Duct Seal-Molded 38783020Not Available
27Not AvailableHoover Screw-Self Tapping 21447217Not Available
28Not AvailableHoover Duct Cover-Caddy Vac 38656034Not Available
29Not AvailableHoover Valve Door-Caddy Vac 38718010Not Available
30Not AvailableHoover Air Intake Door-Cadd 37257245Not Available
31Not AvailableHoover Spring-Caddy Vac 38351020Not Available
32Not AvailableHoover Screw-Self Tapping 21447217Not Available
33Not AvailableHoover Lamp - Bulb #912 12 Volt / Can Sub 27313101 27313101Not Available
34Not AvailableHoover Cam Actuator Assem-C 40309028Not Available
35Not AvailableHoover Motor Retainer 36131090Not Available
36Not AvailableHoover Hdl Rel Lever-Caddy 38458058Not Available
37Not AvailableHoover Rear Wheel - Black 38522011Not Available
38Not AvailableHoover Rear Wheel Shaft 31523012Not Available
39Not AvailableHoover Main Body-Caddy Vac 37241157Not Available
39No ImageBASE, CADDY VAC U5110 Part Number: 37241162 for Hoover

More Product Details

37241162

$43.16Read more

40Not AvailableHoover Belt 38528040Not Available
41Not AvailableHoover Screw-Self Tapping-C 214472EDNot Available
42Not AvailableHoover Noz Hgt. Adj. Cam-Ca 38563008Not Available
43Not AvailableHoover Rib Shoe 013261AYNot Available
44Not AvailableHoover Agitator Assembly Comp-Ag 48414118Not Available
45Not AvailableHoover Screw-Self Tapping 21447217Not Available
46Not AvailableHoover Front Wheel Assembly - Replaced By 43248073 43248059Not Available
47Not AvailableHoover Seal - U4455 38784016Not Available
48Not AvailableHoover Motor Assem. Comp. 12 Amp 43576199Not Available
49No ImageBOTTOM PLATE, CADDY VAC U5110 Part Number: 37245047 for Hoover

More Product Details

37245047

$26.81Read more

50Not AvailableHoover Cam Actuator Spring- 34572002Not Available
