Schematic and parts list for: Hoover Model: U5185
This is a list of parts and a diagram and schematic for: Hoover Model: U5185
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Whisper Cyclonic Bagless Upright
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Switch Button - Legacy Purple | 93002352 | Not Available |
| 2 | Not Available | Hoover Switch Button Spring | 93001706 | Not Available |
| 3 | Not Available | Hoover Switch | 93001705 | Not Available |
| 4 | Not Available | Hoover Switch Holder | 93001703 | Not Available |
| 5 | Not Available | Hoover Handle - Right Graphite Silver Metallic | 93002351 | Not Available |
| 6 | Not Available | Hoover Switch Sleeve | 93001702 | Not Available |
| 7 | Not Available | Hoover Left - Right Graphite Silver Metallic | 93002350 | Not Available |
| 8 | Not Available | Hoover Telescoping Tube | 93001698 | Not Available |
| 9 | Not Available | Hoover Male Connector | 93001700 | Not Available |
| 10 | Not Available | Hoover Female Connector | 93001717 | Not Available |
| 11 | Not Available | Hoover Fixing Plate - Male Connector | 93001701 | Not Available |
| 12 | Not Available | Hoover Handle Sleeve | 93001697 | Not Available |
| 14 | Not Available | Hoover Turbine Hand Tool | 49129044 | Not Available |
| 15 | Not Available | Hoover Furniture Nozzle Brush - Removable | 93001716 | Not Available |
| 16 | Not Available | Hoover Furniture Nozzle - Magnesium Gray | 93001715 | Not Available |
| 17 | Not Available | Hoover Hose Assembly | 93001710 | Not Available |
| 18 | Not Available | Hoover Lower Hose Holder - Graphite Silver | 93002331 | Not Available |
| 19 | Not Available | Hoover Debris Door - Magnesium Gray | 93001658 | Not Available |
| 20 | Not Available | Hoover Adaptor - Cyclone Purple | 93001690 | Not Available |
| 21 | Not Available | Hoover Upper Hose Holder - Magnesium Gray | 93002354 | Not Available |
| 22 | No Image | SCREW, SELF-TAPPING U5180 U5182 U5183 UH70005 Part Number: 93001728 for Hoover | 93001728 | $1.12Read more |
| 23 | Not Available | Hoover Carry Handle - Graphite Silver | 93002349 | Not Available |
| 24 | Not Available | Hoover Handle Release Button - Legacy Purple | 93002353 | Not Available |
| 25 | No Image | SPRING, HANDLE RELEASE U5180 U5182 U5183 U5185 Part Number: 93001709 for Hoover | 93001709 | $1.51Read more |
| 26 | Not Available | Hoover Handle Cover - Graphite Silver | 93002348 | Not Available |
| 27 | Not Available | Hoover U70005b, Cord Hook - Graphite Silver | 93002347 | Not Available |
| 28 | Not Available | Hoover Power Cord - Black | 93001718 | Not Available |
| 29 | Not Available | Hoover Fixing Plate - Power Cord | 93001693 | Not Available |
| 30 | Not Available | Hoover Turbine Tool Holder - Graphite Silver | 93002346 | Not Available |
| 31 | Not Available | Hoover Combination Brush Holder - Graphite Silver | 93002345 | Not Available |
| 32 | Not Available | Hoover Pre-Motor Filter Frame With Seal | 93001721 | Not Available |
| 33 | Not Available | Hoover Seal - Pre Motor Filter Frame | 93001724 | Not Available |
| 34 |  | Filter Set 1 Motor 1 Exhaust U5180/U51 | 401140010 | $11.25Read more |
| 35 | Not Available | Hoover Filter Frame Bottom - Pre Filter | 93001731 | Not Available |
| 36 | Not Available | Hoover Dirt Cup Inlet Seal | 93001720 | Not Available |
| 38 | Not Available | Hoover Back Panel / Dirt Cup Housing - Graphite Silver | 93002341 | Not Available |
| 39 | Not Available | Hoover Duct Cover - Clear | 93001689 | Not Available |
| 41 | Not Available | Hoover Crevice Tool - Legacy Purple | 93002344 | Not Available |
| 42 | Not Available | Hoover Upper Tube Holder - Graphite Silver | 93002343 | Not Available |
| 43 | Not Available | Hoover Extension Tube - 14" - Magnesium Gray | 38634092 | Not Available |
| 44 | Not Available | Hoover Lower Tube Holder - Graphite Silver | 93002342 | Not Available |
| 45 | Not Available | Hoover Final Filter Frame - Magnesium Gray | 93001725 | Not Available |
| 46 | | Filter Set 1 Motor 1 Exhaust U5180/U51 | 401140010 | $11.25Read more |
| 48 | Not Available | Hoover Motor Seal | 93001679 | Not Available |
| 49 | Not Available | Hoover Motor | 93001678 | Not Available |
| 50 |  | PLATE, :( REAR MOTOR U5180 U5182 U5183 U5185 UH700 Part Number: 93001677 for Hoover | 93001677 | $5.04Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | Not Available | Hoover Motor Cover - Graphite Silver | 93002332 | Not Available |
| 52 | Not Available | Hoover Bulb | 27313107 | Not Available |
| 53 | Not Available | Hoover Lamp Socket | 93001660 | Not Available |
| 54 | Not Available | Hoover Lens | 93001659 | Not Available |
| 55 | Not Available | Hoover Screw - Self Tapping | 93001729 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Hood Retainer - Left Graphite Gray | 93002333 | Not Available |
| 2 | Not Available | Hoover Height Adjustment Knob - Legcy Purple | 93002336 | Not Available |
| 3 | Not Available | Hoover Hood Retainer - Right Graphite Gray | 93002337 | Not Available |
| 4 | No Image | HOOD, NOZZLE U5185 SILVER & PURPLE Part Number: 93002338 for Hoover | 93002338 | $12.77Read more |
| 5 | Not Available | Hoover Lower Hose - Magnesium Gray | 93001654 | Not Available |
| 6 | Not Available | Hoover Rear Cover - Main Body - Silver Graphite | 93002335 | Not Available |
| 7 | Not Available | Hoover Inlet Duct - Graphite Gray | 93001655 | Not Available |
| 8 | Not Available | Hoover Screw - Self Tapping | 93001729 | Not Available |
| 9 | Not Available | Hoover Rear Wheel Hub - Legacy Purple | 93002340 | Not Available |
| 10 | Not Available | Hoover Rear Wheel - Graphite Gray | 93001672 | Not Available |
| 11 | Not Available | Hoover Trunnion | 93001663 | Not Available |
| 12 | Not Available | Hoover Screw - Self Tapping | 93001729 | Not Available |
| 13 | Not Available | Hoover Handle Release Pedal - Legacy Purple | 93002334 | Not Available |
| 14 | Not Available | Hoover Main Body / Nozzle Base - Graphite Gray | 93001666 | Not Available |
| 15 | Not Available | Hoover Furniture Guard - Legacy Purple | 93002339 | Not Available |
| 16 | Not Available | Hoover Agitator / Brush Roll 15" Wooden | 48414132 | Not Available |
| 17 | Not Available | Hoover Belt | 38528040 | Not Available |
| 18 | Not Available | Hoover Height Adjustment Cam - Graphite Gray | 93001671 | Not Available |
| 19 | Not Available | Hoover Front Wheel Carriage - Graphite Gray | 93001674 | Not Available |
| 20 |  | Wheel, :( Front U5180/U5182/U5183/U5185 Part Number: 93001675 for Hoover | 93001675 | $4.20Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Shaft, Front Wheel U5180/U5182/U5183/U5 Part Number: 93001676 for Hoover | 93001676 | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |

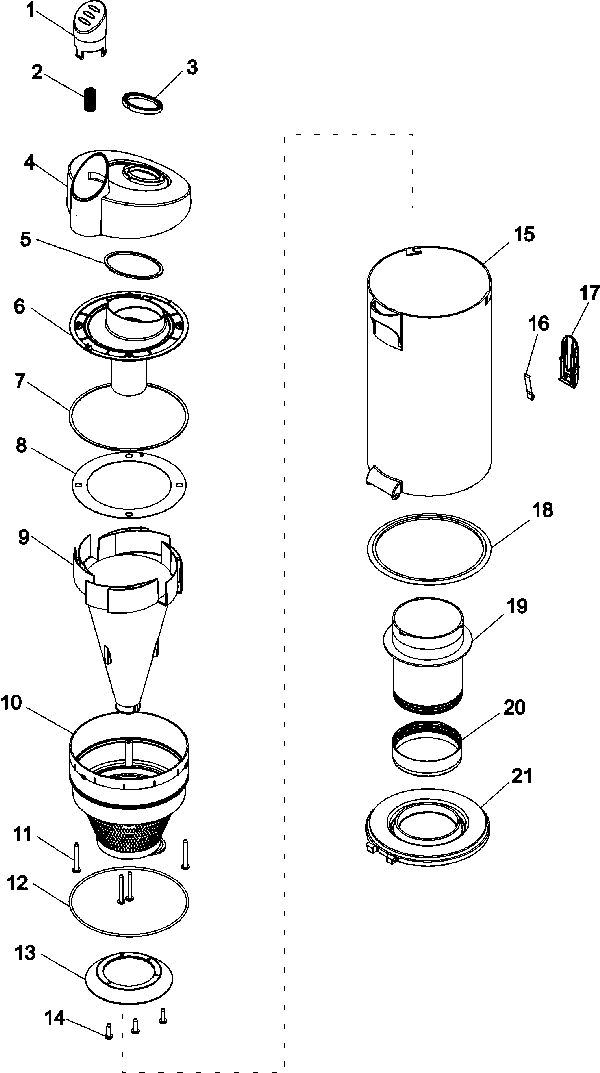

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Dirt Cup Release Button - Legacy Purple | 93002324 | Not Available |
| 2 | Not Available | Hoover Dirt Cup Release Button Spring | 93001656 | Not Available |
| 3 | Not Available | Hoover Dirt Cup Outlet Seal | 93001647 | Not Available |
| 4 | Not Available | Hoover Dirt Cup Cover - Graphite Silver | 93002330 | Not Available |
| 5 | Not Available | Hoover Dirt Cup Cover Seal | 93001649 | Not Available |
| 6 | Not Available | Hoover Duct - Black | 93001650 | Not Available |
| 7 | Not Available | Hoover Seal - Duct B | 93001651 | Not Available |
| 8 | Not Available | Hoover Seal - Duct A | 93001652 | Not Available |
| 9 | Not Available | Hoover Cone Separator - Legacy Purple | FNLA | Not Available |
| 10 | Not Available | Hoover Cyclone Filter - Legacy Purple | 93002325 | Not Available |
| 11 | Not Available | Hoover Screw - Self Tapping | 93001730 | Not Available |
| 12 | Not Available | Hoover Filter Seal - 5/16" | 93001833 | Not Available |
| 14 | Not Available | Hoover Screw - Self Tapping | 93001729 | Not Available |
| 16 | No Image | SPRING, DIRT CUP RELEASE FUSION UPRIGHT U5180 Part Number: 93001641 for Hoover | 93001641 | $1.51Read more |
| 17 | Not Available | Hoover Dirt Cup Release Button - Legacy Purple | 93002328 | Not Available |
| 18 | Not Available | Hoover Dirt Cup Lid Seal | 93001642 | Not Available |
| 19 | Not Available | Hoover Dust Chamber With Shroud - Gray | 59156220 | Not Available |
| 20 | Not Available | Hoover Dust Chamber Seal | 93001644 | Not Available |
| 21 | Not Available | Hoover Bottom Dirt Cup Lid With Seal - Clear | 93001645 | Not Available |
