Schematic and parts list for: Hoover Model: U5460
This is a list of parts and a diagram and schematic for: Hoover Model: U5460
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: WindTunnel
Popular Supplies
$8.99Add to cart

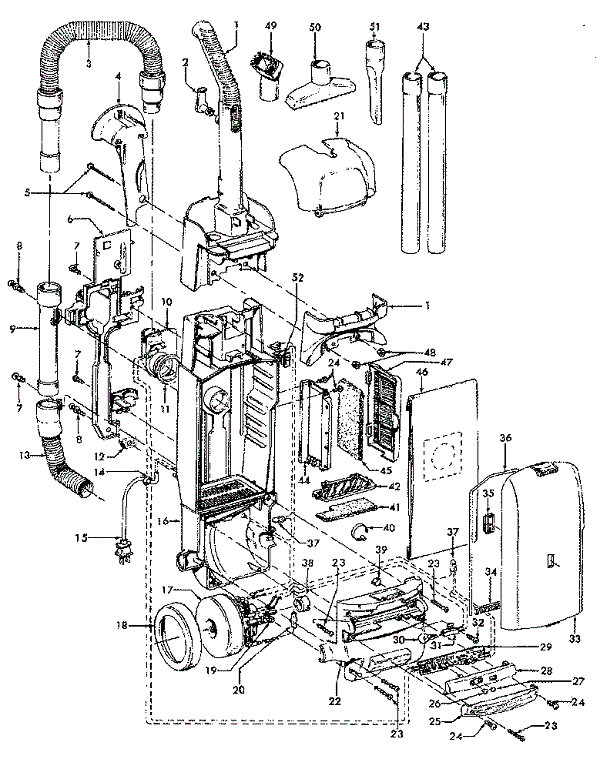

| # | Part image | Description | SKU | Price |
| 3 | Not Available | Hoover Hose Assembly Complete | 304102001 | Not Available |
| 4 | Not Available | Hoover Hose Holder - Dark Charcoal Gray | 36433137 | Not Available |
| 5 | Not Available | Hoover Handle Hardware Assembly 2 Screws 3-15/16" - 3 Nuts | 40201149 | Not Available |
| 6 | Not Available | Hoover Wand/Hose Holder - Dark Charcoal Gray | 36433120 | Not Available |
| 7 | Not Available | Hoover Screw - Self Tapping | 21447242 | Not Available |
| 8 | Not Available | Hoover Screw - Self Tapping | 23149002 | Not Available |
| 9 | Not Available | Hoover Hose Tube Extention Assembly | 43457024 | Not Available |
| 10 | Not Available | Hoover Edf Micro/Duct Assembly | 47823003 | Not Available |
| 11 | Not Available | Hoover Hose Connector Gasket | 31178017 | Not Available |
| 12 | Not Available | Hoover Wire Opening Seal | 34311004 | Not Available |
| 13 | Not Available | Hoover Lower Hose / Inlet Door Assembly | 43431005 | Not Available |
| 14 | Not Available | Hoover Strain Relief | 27482230 | Not Available |
| 15 |  | Cord, 25' Blk 1/4 Terminal WindTunnel and Bagless | H-46383331 | $26.99Read more |
| 18 | Not Available | Hoover Motor Mount - Large | 36322037 | Not Available |
| 19 | Not Available | Hoover Motor Brush Used With Motor 27212081 | 41311017 | Not Available |
| 20 | Not Available | Hoover Thermal Protector - Used With Motor 27212081 | 28382087 | Not Available |
| 21 | Not Available | Hoover Tool Door | 37257260 | Not Available |
| 22 | Not Available | Hoover Motor Cover - Dark Charcoal Gray | 37196158 | Not Available |
| 23 | Not Available | Hoover Screw - Self Tapping | 21447230 | Not Available |
| 24 | Not Available | Hoover Screw - Self Tapping | 21447228 | Not Available |
| 25 | Not Available | Hoover Lens | 39383107 | Not Available |
| 26 | Not Available | Hoover Snap In Lens - Red | 27352030 | Not Available |
| 27 | Not Available | Hoover Snap In Lens - Green | 27352031 | Not Available |
| 28 | Not Available | Hoover Edf Cover / 3 Lights - Dark Charcoal Gray | 42258002 | Not Available |
| 28 |  | COVER, ABE-EDF Part Number: 42258001 for Hoover | 42258001 | $9.01Read more |
| 32 |  | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 33 | Not Available | Hoover Bag Housing Door Deluxe Incl #34 & #36 - Sapphire Transparent | FNLA | Not Available |
| 34 | Not Available | Hoover Bag Door Gasket - Bottom | 34123050 | Not Available |
| 35 | Not Available | Hoover Bag Indicator | 51151010 | Not Available |
| 36 | Not Available | Hoover Bag Door Gasket - 34.5" | 38781057 | Not Available |
| 37 | Not Available | Hoover Wire Connector | 27618508 | Not Available |
| 38 |  | Mount, :( Small Motor Belt Side WindTunnel Part Number: 440013147 for Hoover | 440013147 | $4.26Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Hoover Wire Opening Plug | 34131019 | Not Available |
| 40 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 41 |  | Secondary Filter for Hoover Windtunnel | 38765019 | $6.99Read more |
| 42 |  | Frame, :( Filter WindTunnel Upright Part Number: 36426034 for Hoover | 36426034 | $2.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 43 | Not Available | Hoover Extension Tube - Black | 38634078 | Not Available |
| 44 | Not Available | Hoover Filter Holder - Dark Charcoal Gray | 36426033 | Not Available |
| 45 | Not Available | Hoover Final Filter / Allergen - 2 Pack | 40110064 | Not Available |
| 45 |  | Filter, Aftermarket Hoover WindTunnel Final 2Pk Part Number: 471119 for Hoover Replacement | 471119 | $8.99Add to cart |
| 46 |  | HOOVER Type Y Allergen Bag (9-Pack) aftermarket | 655295085036 | $14.99Read more |
| 46 | Not Available | Hoover Type Y Hepa Bag - 2 Pack | AH10040 | Not Available |
| 46 |  | Paper Bag, Y/Z Microlined 3Pk Part Number: 151907 for Hoover Replacement | 151907 | $4.81Read more |
| 46 | Not Available | Hoover Type Y Allergen Bag - 3 Pack | 4010106Y | Not Available |
| 46 |  | Paper Bag, Type Y HEPA Carbon Activated 2 Pk Part Number: AH10165 for Hoover | AH10165 | $18.28Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Hoover Filter Grill - Dark Charcoal Gray | 37257221 | Not Available |
| 48 | Not Available | Hoover Handle Hardware Assemembly 2 Screws 3-15/16" - 3 Nuts | 40201149 | Not Available |
| 49 |  | Dust Brush, :( Black WindTunnel Upright Part Number: 43414197 for Hoover | 43414197 | $11.71Read more |
| 52 | Not Available | Hoover Switch | 28161075 | Not Available |
| 53 | Not Available | Hoover Turbine Hand Tool | 49129032 | Not Available |
| 54 | Not Available | Hoover Extra Hose Assembly 20' - Optional | 43434042 | Not Available |

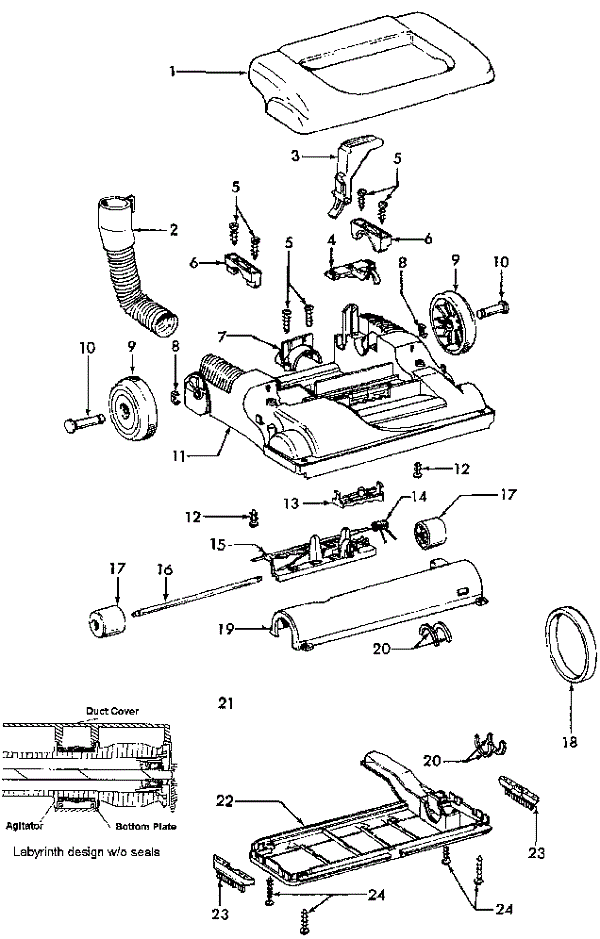

| # | Part image | Description | SKU | Price |
| 1 | No Image | HOOD, U5450-900 Part Number: 37253364 for Hoover | 37253364 | $37.02Read more |
| 2 | Not Available | Hoover Lower Hose / Inlet Door Assembly | 43431005 | Not Available |
| 3 | Not Available | Hoover Handle Release Lever - Black | 38458043 | Not Available |
| 4 | Not Available | Hoover Nozzle Adjust Lever / Cam Kit | 40309004 | Not Available |
| 5 | | Screw, :( Holds Nozzle - Base Upright Extractors Part Number: 21447072 for Hoover | 21447072 | $0.91Read more |
| 6 | Not Available | Hoover Trunnion Cover - Dark Charcoal Gray | 36131094 | Not Available |
| 7 | Not Available | Hoover Hose Clamp - Dark Charcoal Gray | 36171044 | Not Available |
| 8 | Not Available | Hoover Lock Ring | 160017-- | Not Available |
| 9 | Not Available | Hoover Rear Wheel | 38522077 | Not Available |
| 10 | Not Available | Hoover Rear Axle | 32434007 | Not Available |
| 11 | Not Available | Hoover Main Body W / Furniture Guard | 37242135 | Not Available |
| 12 | Not Available | Hoover Screw - Self Tapping | 21447228 | Not Available |
| 13 | Not Available | Hoover Nozzle Adjust Lever / Cam Kit | 40309004 | Not Available |
| 14 | Not Available | Hoover Torsion Spring | 38355010 | Not Available |
| 15 | Not Available | Hoover Front Wheel Support - Clear | 36432027 | Not Available |
| 15 |  | Wheel, 2-Front W/Axle & Carriage WindTunnel Uprigh | H-43248057 | $23.99Read more |
| 17 | Not Available | Hoover Front Wheel - Black | 38521009 | Not Available |
| 18 |  | Hoover style 160 WindTunnel Non-Power Drive Vacuum Belts (2 pack) | 073502508824 | $9.99Add to cart |
| 18 |  | Belt, Flat Brushroll WindTunnel W/O Power Drive | H-38528033 | $4.99Read more |
| 19 | Not Available | Hoover Bottom Plate And Duct 15" | 40309026 | Not Available |
| 20 | Not Available | Hoover Brush Roll / Agitator Pulley Seal | 38781053 | Not Available |
| 21 | Not Available | Hoover Brush Roll / Agitator - 15" Wooden | 48414132 | Not Available |
| 22 | Not Available | Hoover Bottom Plate And Duct 15" | 40309026 | Not Available |
| 24 | Not Available | Hoover Screw | 21447121 | Not Available |
