Schematic and parts list for: Hoover Model: U6003
This is a list of parts and a diagram and schematic for: Hoover Model: U6003
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Clip | 12987 | Not Available |
| 3 | Not Available | Hoover Felt Washer | 13010 | Not Available |
| 4 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 4 | Not Available | Hoover Agitator Bearing 106 (Use W/Items 2,3) | 12978 | Not Available |

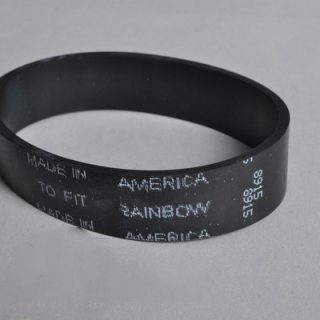

| 5 |  | Belt-Rexair - Power Nozzle For: rexair - rainbow | 17396 | $1.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Agitator End Pulley | 160538 | Not Available |
| 7 | Not Available | Hoover Agitator Shaft 1170 | 160070 | Not Available |
| 8 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Read more |
| 9 | Not Available | Hoover Agitator End | 160542 | Not Available |
| 10 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 11 | | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Read more |
| 11 |  | Hoover Dial A Matic Upright Vacuum Cleaner Belts single | H12471 | $5.99Add to cart |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Tool Rack | 36433042 | Not Available |
| 2 | Not Available | Hoover Hose Connector | 012593JM | Not Available |
| 3 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Hoover Hose Sleeve - Bz | 32156010 | Not Available |
| 5 | Not Available | Hoover Hose Assm Comp-Aap-U W/O Suction Regulator ) | 43434172 | Not Available |
| 6 | Not Available | Hoover Hose Storage Loop-Aa | 34334010 | Not Available |
| 7 | Not Available | Hoover Hose Connector Colla | 36116006 | Not Available |
| 8 | Not Available | Hoover Hose Grip W/Sc | 43466068 | Not Available |
| 9 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 10 | Not Available | Hoover Hose Conn Label | 51869006 | Not Available |
| 11 | Not Available | Hoover Latch Ring | 36153009 | Not Available |
| 13 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Hoover Dusting Brush | 161851JM | Not Available |
| 14 | Not Available | Hoover Dusting Brush Face (Use W/L 61 851 Jm) | 013263BZ | Not Available |
| 15 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 | Not Available | Hoover Floor Brush | 013077JM | Not Available |
| 19 | Not Available | Hoover Floor Brush Back | 013155JM | Not Available |
| 20 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 21 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 22 | Not Available | Hoover Hose Tube Assembly | 43466040 | Not Available |
| 23 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 24 | Not Available | Hoover Tube Latch | 012846AG | Not Available |
| 25 | Not Available | Hoover Rivet | 12772 | Not Available |
| 26 |  | Handle, Blk Right & Left Snap Together Kit Part Number: R12783K for Rexair | R12783K | $39.73Read more |
| 27 | Not Available | Hoover Rivet | 12763AW | Not Available |
| 28 | Not Available | Hoover Plate | 12824 | Not Available |
| 29 |  | Motor Assembly Part Number 3620012600 for Simplicity Models QS1 | 3620012600 | Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Hoover Washer | 21312704 | Not Available |
| 31 | Not Available | Hoover Tube Latch - Aat | 36152018 | Not Available |
| 32 |  | Mesh Blade Window Tool Bissell repair part number: 1612597 | 1612597 | $15.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Hoover Tube Guide | 12589 | Not Available |
| 34 | Not Available | Hoover Gasket | 012844JM | Not Available |
| 35 | Not Available | Hoover Externion Tube Inner | 12598 | Not Available |
| 36 | Not Available | Hoover Extension Wand - 211 | 43458001 | Not Available |
| 37 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 38 | Not Available | Hoover Nozz Position Brkt Assy | 43468018 | Not Available |
| 39 | Not Available | Hoover Hose Assm Comp-Aap-U (1121/1131) | 43434172 | Not Available |
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Hoover Screw 1170 | 160056 | Not Available |
| 4 |  | Pfaff Bobbin Case Part 91-105544-91 | WP12272 | $25.00Read more |
| 5 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 6 | Not Available | Hoover Insulating Pod | 161737 | Not Available |
| 7 | Not Available | Hoover Switch - 70 - 2110 | 12971 | Not Available |
| 9 | No Image | SWITCH PLATE SCREWS Part Number: 21465314 for Hoover | 21465314 | $2.14Read more |
| 10 | Not Available | Hoover Terminal | 160356 | Not Available |
| 11 | Not Available | Hoover Retainer | 012988AW | Not Available |
| 12 | Not Available | Hoover Service Plug Assembly | 35380 | Not Available |
| 14 | Not Available | Hoover Cord Protector | 31969AG | Not Available |
| 15 | Not Available | Hoover Handle Tube | 160167JM | Not Available |
| 16 | Not Available | Hoover Tension Wire - U3101 | 160095AY | Not Available |
| 17 | Not Available | Hoover Handle Support | 160094JM | Not Available |
| 18 | No Image | SCREW, CONCEPT HANDLE Part Number: 018805-- for Hoover | 018805 | $0.73Read more |
| 19 | Not Available | Hoover Nut-3600 | 19462 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Nameplate-U6003-001 | 52115008 | Not Available |
| 3 | Not Available | Hoover Rivet | 12997AW | Not Available |
| 4 |  | 16v 3w E10 bulb for chain wiring. Clear warm ornate candle design | WP12133 | $3.00Read more |
| 5 | Not Available | Hoover Agitator Clamp Spring | 012128AY | Not Available |
| 6 | Not Available | Hoover Rivet | 12132 | Not Available |
| 7 |  | Base Assembly for Sanitaire, Eureka, Bissell, and Perfect Vacuums | WP12150 | $54.99Read more |
| 7 | | Dusting brush 2027 series Bissell repair part number: 1612173 | 1612173 | $9.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Hoover Bottom Plate Latch -Lh | 12149 | Not Available |
| 10 |  | AIRBELT Replacement Textile, with 6048GS and 8034GS Clips, for D4 black (black/silver, stripes) | WP12148 | $24.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Hoover Hose Adptr-With Smooth | 38638008 | Not Available |
| 12 | Not Available | Hoover Dash Pot Spring 1170 | 160146 | Not Available |
| 13 | Not Available | Hoover Bellows Bracket 1170 | 160122 | Not Available |
| 14 | Not Available | Hoover Trunion Bearing | 160069 | Not Available |
| 15 | Not Available | Hoover Washer | 160113 | Not Available |
| 16 | Not Available | Hoover Screw | 12146 | Not Available |
| 17 |  | BELT-HOOVER,DIAL A MATIC/CONCEPT,POWER DRIVE | 39311007 | $6.99Read more |
| 19 | Not Available | Hoover Screw Assembly A117 | 16295 | Not Available |
| 20 | Not Available | Hoover Bearing Half | 38511020 | Not Available |
| 21 | Not Available | Hoover Handle Control Sprin | 160148 | Not Available |
| 22 | Not Available | Hoover Screw 1170 | 160115 | Not Available |
| 24 | Not Available | Hoover Foot Pad-Jm | 38426072 | Not Available |
| 25 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 27 |  | Crevice tool 2027 series Bissell repair part number: 1612172 | 1612172 | $9.33Add to cart |
| 28 | Not Available | Hoover Washer | 21312772 | Not Available |
| 29 | Not Available | Hoover Hex Nut-1170 | 162389EF | Not Available |
| 31 | Not Available | Hoover Power Drive Unit | 43124010 | Not Available |
| 32 | Not Available | Hoover Bottom Plate | 42245027 | Not Available |
| 33 | | Pod Duct with 2 Screws Bissell repair part number: 1612630 | 1612630 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Hoover Bottom Plate Gasket | 160064 | Not Available |
| 34 | | Bissell single brush pro heat main motor PN: 1601038 | 1601038 | $59.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Hoover Frame - Rh - 1178 1178, U6003, U6003-001, U6007, U6039, U6039-030, U6041, U6049 | 163333AY | Not Available |
| 35 | Not Available | Hoover Rear Wheel Shaft | 160120FW | Not Available |
| 36 |  | Pedal - Cord Reel-Titan T9000 Canister
Alt Item Is Same But Diff Color For: titan | 591012123 | $15.15Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 37 | Not Available | Hoover Furniture Guard | 165073JM | Not Available |
| 38 | Not Available | Hoover Nut | 160031 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Field Lamination Bolt | 12022 | Not Available |
| 1 | Not Available | Hoover Motor 1170 | 160083 | Not Available |
| 2 | Not Available | Hoover Screw | 21447028 | Not Available |
| 3 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 4 |  | Bissell Sole Plate for 1792 | WP12033 | $14.99Read more |
| 5 | Not Available | Hoover Carbon Brush - 2100 | 12031 | Not Available |
| 6 | Not Available | Hoover Motor Brush Holder | 12029 | Not Available |
| 7 | Not Available | Hoover Insulating Pod | 161737 | Not Available |
| 8 | Not Available | Hoover Field Coil-1100-Seri | 167677 | Not Available |
| 9 | Not Available | Hoover Spring | 12854 | Not Available |
| 10 |  | Filter, Floormate H3044/H3040/H3045 Recovery Tank Part Number: 40112050 for Hoover | 40112050 | $14.78Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 |  | SEAL, PN/HOUSING S3649 Part Number: 34112007 for Hoover | 34112007 | $2.23Read more |
| 12 | Not Available | Hoover Nut | 21651037 | Not Available |
| 13 | Not Available | Hoover Armature-1170 | 167672 | Not Available |
| 14 | No Image | CORD, PTO U8148 V2 3 WIRE Part Number: 46512003 for Hoover | 46512003 | $13.29Read more |
| 15 | Not Available | Hoover Fan | 43566003 | Not Available |
| 16 | Not Available | Hoover Washer | 21312700 | Not Available |
| 17 | Not Available | Hoover Fan Spacer | 170055 | Not Available |
| 18 | Not Available | Hoover Interstage | 18656 | Not Available |
| 19 | Not Available | Hoover Motor Mount - R H | 12089 | Not Available |
| 20 |  | Lever, Speed Switch 1HD To Legend II | K-120381 | $11.99Add to cart |
| 21 | Not Available | Hoover Not Required Part Or See Note | FNLA | Not Available |
| 22 | No Image | SCREW, SELF TAPPING Part Number: 1186012000 for Royal | 1186012000 | $6.69Read more |
| 23 | Not Available | Hoover Motor Brush Housing | 12059 | Not Available |
| 24 | | Bissell Sole Plate for 1792 | WP12033 | $14.99Read more |
| 25 | No Image | Hose Assembly for Simplicity and Riccar Gusto and Moxie | WP12090 | Original price was: $340.99.$272.99Current price is: $272.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Hoover Nut | 012009AY | Not Available |
| 27 | Not Available | Hoover Motor Gasket | 12154 | Not Available |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Headlight Lens-1151 1176, 1178, U6007, U6039, U6039-030, U6041 | 162226CP | Not Available |
| 2 | Not Available | Hoover Indicator Lens-1151 1176, 1178, U6007, U6039, U6039-030, U6041 | 162608CH | Not Available |
| 4 | Not Available | Hoover Diffuser | 12358 | Not Available |
| 6 | Not Available | Hoover Muffler 1170 | 161334 | Not Available |
| 7 | Not Available | Hoover Screw | 12954 | Not Available |
| 8 |  | BRUSH ROLL ASSY-#88 F.Q. PWR NOZZLE LATE-OEM 1291001600 | FQ2000 | $33.10Read more |
| 9 | Not Available | Hoover Cable Tube 1170 | 160053 | Not Available |
| 10 | Not Available | Hoover Lead Wire 1170 | 160048 | Not Available |
| 11 | Not Available | Hoover Terminal | 160356 | Not Available |
| 12 | Not Available | Hoover Bag Housing-Front Ha Front Half - 1170, U6003 | 164713JM | Not Available |
| 13 | Not Available | Hoover Latch Cover | 162008JM | Not Available |
| 14 | No Image | SCREW, HANDLE DIALAMATIC Part Number: 162007-- for Hoover | 162007 | $2.59Read more |
| 15 | Not Available | Hoover Screw 1170, U6003, U6003-001, U6049, (14) - 1176, 1178, U6007, U6039, U6039-030, U6041 | 21447003 | Not Available |
| 16 | Not Available | Hoover Bushing-1170 | 160110BZ | Not Available |
| 17 | Not Available | Hoover Handle Support Sprin | 12171 | Not Available |
| 19 | Not Available | Hoover Lock Ring | 160017 | Not Available |
| 20 |  | Dust Cover-Titan T9000 Canister For: titan | 591012121 | $66.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Hoover Filter - 1120 | 12122 | Not Available |
| 22 | Not Available | Hoover Bag Housing Gasket | 12155 | Not Available |
| 23 | Not Available | Hoover Secondary Filter Gas | 12156 | Not Available |
| 24 | Not Available | Hoover Motor Housing Gasket | 12160 | Not Available |
| 25 | Not Available | Hoover Motor Support Bracket | 12119 | Not Available |
| 26 | Not Available | Hoover Screw | 12146 | Not Available |
| 27 | Not Available | Hoover Screw | 12954 | Not Available |
| 28 | Not Available | Hoover Muffler | 12662 | Not Available |
| 29 |  | Hoover Dial A Matic Upright Vacuum Cleaner Type D Paper Bags 3 Pk | 836301008236 | $6.99Read more |
| 29 | Not Available | Hoover Dial-A-Matic Bag Throw Away Bag Assem. - 9 Pack | 4010006D | Not Available |
| 30 | Not Available | Hoover Valve Cover | 014903BU | Not Available |
| 31 | Not Available | Hoover Valve Cover Gasket | 12516 | Not Available |
| 32 | Not Available | Hoover Valve | 38711010 | Not Available |
| 33 | Not Available | Hoover Seal | 12076 | Not Available |
| 34 | Not Available | Hoover Bag Housing-Rear | 014922JM | Not Available |
| 35 |  | Hose, Black Nozzle Blow Molded CR68 Part Number: 500013301 for Cirrus | 500013301 | $8.57Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Hoover Hose Connector Lock | 35474004 | Not Available |
| 37 | Not Available | Hoover Suct Cont Valve Knob | 38411026 | Not Available |
| 38 | Not Available | Hoover Capsert - 1120 | 17743 | Not Available |
| 39 | | Dust Bin Assy Grapevine Purple Bissell repair part number: 1612144 | 1612144 | $39.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | No Image | CLIP, CREVICE TOOL DC11 LIGHT GRAY Part Number: 906145-07 for Dyson | 90614507 | $4.63Read more |
| 41 | Not Available | Hoover Screw-Self Tapping | 641762 | Not Available |
| 42 | Not Available | Hoover Seal | 12556 | Not Available |
| 43 | Not Available | Hoover Hose End 1112 | 13770JM | Not Available |
| 44 | Not Available | Hoover Hose - Smooth Bore - | 43431058 | Not Available |
| 45 |  | Open Toe Free Motion Foot | WP10912 | |
| 46 | Not Available | Hoover Motor Cover | 160169JM | Not Available |
| 47 | Not Available | Hoover Motor Housing Gasket-Low | 12535 | Not Available |
| 48 | Not Available | Hoover Bearing Half | 38511020 | Not Available |
| 49 | Not Available | Hoover Motor Gasket | 12154 | Not Available |
| 50 | Not Available | Hoover Nut | 33423007 | Not Available |
| 51 | Not Available | Hoover Washer | 19555 | Not Available |
| 52 | Not Available | Hoover Insulating Pod | 161737 | Not Available |
| 53 | Not Available | Hoover Air Seal | 160142 | Not Available |
| 54 | Not Available | Hoover Lens Seal | 163135 | Not Available |
| 55 | Not Available | Hoover Pivot Bearing | 160080BZ | Not Available |
| 56 | Not Available | Hoover Bolt 1170 | 160058 | Not Available |
| 57 | Not Available | Hoover Rivet U6049 | 48613 | Not Available |
| 57 | Not Available | Hoover Hinge Shaft | 12143 | Not Available |
| 58 | Not Available | Hoover Strain Relief Bushing | 12030 | Not Available |
| 59 | Not Available | Hoover Dirt Finder Lamp 176, 1178, U6007, U6039, U6039-030, U6041 | 27317307 | Not Available |
| 60 | Not Available | Hoover Light Socket Assembly 1176,1178, U6007, U6039, U6039-030, U6041 | 162423 | Not Available |
| 61 | Not Available | Hoover Air Direct Plate-Pow 1176, 1178, U6007, U6039, U6039-030, U6041 | 164630AY | Not Available |
| 62 | Not Available | Hoover Clamp | 34755001 | Not Available |
| 63 | Not Available | Hoover Exhaust Cvr Seal-Pow | 163814 | Not Available |
| 64 |  | Dust Brush, Black D2/D3/D4 Horse Hair Part Number: 78-1600-65 for Rexair Replacement | 78160065 | $8.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 65 | Not Available | Hoover Terminals-0513 1176, 1178, U6007, U6039, U6039-030, U6041 | 12227 | Not Available |
| 66 | Not Available | Hoover Control Cable | 43211010 | Not Available |
| 67 | Not Available | Hoover Nut | 21641623 | Not Available |
| 68 | Not Available | Hoover Washer 1170 | 160059 | Not Available |
| 69 | Not Available | Hoover Actuator Bar Assembly | 160086JM | Not Available |
| 70 | Not Available | Hoover Wrench-Special Conce This Is A 1/2", 12 Point, Deep Offset Box Wrench | 170975 | Not Available |
Report errors on this page HERE
