Schematic and parts list for: Hoover Model: U7067
This is a list of parts and a diagram and schematic for: Hoover Model: U7067
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Upright
Popular Supplies
| # | Part image | Description | SKU | Price |
| xx |  | Belt, Round Convertible/Decade 80 Part Number: 049258AG for Hoover | 049258AG | $5.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| xx |  | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 2 |  | NO LONGER AVAILABLE Bearing, Brushroll W/Nylon Washer Celebrity/Spirit Part Number: 43267002 for Hoover | 43267002 | $4.37Read more |
| 3 | Not Available | Hoover Conical Washer | 21347003 | Not Available |
| 4 |  | BRUSHROLL, 2 ROW C1529 and CONVERTIBLE | H-48414021 | $39.99Read more |
| 5 |  | Brush Strip, :( Reverse Helix Dial A Matic Part Number: 160646BZ for Hoover | 160646BZ | $6.21Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Furniture BrushAg | 43414016 | Not Available |
| 4 |  | Dusting Brush, Accessory Kit W/Locking Tab CH30000 Part Number: 43414064 for Hoover | 43414064 | $3.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Hoover Swivel Connector A | 38644020 | Not Available |
| 7 | Not Available | Hoover Split Ring | 33712007 | Not Available |
| 8 | Not Available | Hoover Brush Back S3273S3 | 48447001 | Not Available |
| 9 |  | Floor Brush, Swivel Neck With Locking Tab Part Number: 440009293 for Hoover | 440009293 | $13.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Upholstery Tool, With Litter Picker Part Number: 43414057 for Hoover | 43414057 | $10.55Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | No Image | Crevice Tool, With Locking Tab | H-38617017 | $9.99Read more |
| 12 |  | Wand, 20" Chrome Straight W/Lock Pin Part Number: 43453027 for Hoover | 43453027 | $13.26Read more |
| 13 | Not Available | Hoover Gasket | 38784087 | Not Available |
| 24 | Not Available | Hoover Converter Body Assem | 43482097 | Not Available |
| 25 | Not Available | Hoover Tool Bag U3P03 | 58544004 | Not Available |
| 28 | Not Available | Hoover Hose Sleeve Bz | 32156010 | Not Available |
| 28 | No Image | FAN, ROTATING Part Number: 31213-1 for Lamb | 312131 | $23.17Read more |
| 31 | Not Available | Hoover Suction Control Ring | 38711014 | Not Available |
| 33 | Not Available | Hoover Latch Ring Mv S3 | 36153021 | Not Available |
| 47 | Not Available | Hoover Extension Wand 211 | 43458001 | Not Available |
| 48 |  | WAND, STRAIGHT 20" W/LOCK PIN POLY | H-43453043 | $19.99Read more |
| # | Part image | Description | SKU | Price |
| xx | No Image | MOTOR, 1 SPEED W/O GUIDE CONVERTIBLE DECADE C1069 Part Number: 43574193 for Hoover | 43574193 | $162.40Read more |
| 1 | Not Available | Hoover Handle Grip | 023458LY | Not Available |
| 2 | Not Available | Hoover Bag Closure Clip Spr | 43362 | Not Available |
| 3 |  | Cord, 50' Orange 18/3 With Grommet Conquest Part Number: 91001025 for Hoover | 91001025 | $45.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Hoover 7330131P Plug Only | 25084 | Not Available |
| 5 | Not Available | Hoover Handle Clamp Nut | 32277008 | Not Available |
| 6 |  | Kit, Bag Docking W/Hinge & Clip Part Number: 440013704 for Oreck | 440013704 | $17.48Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Hoover Cord Protector | 36215025 | Not Available |
| 8 | Not Available | Hoover Cord Clamp | 34785018 | Not Available |
| 9 | Not Available | Hoover Handle BoltU7047/45 | 21631302 | Not Available |
| 10 | Not Available | Hoover Lower HandleLy | 48631109 | Not Available |
| 11 | Not Available | Hoover Switch Pedal | 38424003 | Not Available |
| 12 | Not Available | Hoover Circlip | 24735022 | Not Available |
| 13 | Not Available | Hoover PlugLy | 37911037 | Not Available |
| 15 | Not Available | Hoover Handle Retainer Plat | 35463002 | Not Available |
| 16 | Not Available | Hoover Wire Nut | 48969 | Not Available |
| 17 | Not Available | Hoover Lead Wire ProtBail | 36215002 | Not Available |
| 18 | Not Available | Hoover Bail Cover Plate | 37954001 | Not Available |
| 19 | Not Available | Hoover Screw Self Tapping | 21481273 | Not Available |
| 20 | Not Available | Hoover Support Spring | 38336014 | Not Available |
| 23 |  | Paper Bag, DVC or Envirocare Hoover A 3Pk | HR-14015 | $6.99Add to cart |
| 25 | Not Available | Hoover Screw | 21765159 | Not Available |
| 26 | Not Available | Hoover BellowsJm | 38673009 | Not Available |
| 28 | Not Available | Hoover Nut | 015854EF | Not Available |
| 29 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 30 | Not Available | Hoover Cable Tie | 27479307 | Not Available |
| 31 | Not Available | Hoover ScrewSemsU7047/45/ | 23187363 | Not Available |
| 32 | Not Available | Hoover Ring Tongue Terminal | 27661503 | Not Available |
| 33 | Not Available | Hoover Strain Relief Mounti | 34223004 | Not Available |
| 35 | Not Available | Hoover Bag Flange Clamp Lever | 19907 | Not Available |
| 36 | Not Available | Hoover Cord Cover Tubing | 31727010 | Not Available |
| 37 | Not Available | Hoover Washer | 161507 | Not Available |
| 38 | Not Available | Hoover Foot PadDs | 38426071 | Not Available |
| 39 | Not Available | Hoover Nozzle Adjustment Le | 161571JM | Not Available |
| 40 | Not Available | Hoover Bail Shaft | 161509AY | Not Available |
| 41 | Not Available | Hoover Lock Ring1060 | 017207AZ | Not Available |
| 42 | Not Available | Hoover Washer | 21312772 | Not Available |
| 43 | No Image | WHEEL, :( REAR EARLY CONVERTIBLE Part Number: 38521041 for Hoover | 38521041 | $4.20Read more |
| 44 | Not Available | Hoover Spacer | 31148004 | Not Available |
| 45 | Not Available | Hoover Cam Follower Assem | 161514 | Not Available |
| 46 | Not Available | Hoover Yoke | 34252005 | Not Available |
| 47 | Not Available | Hoover Rear Wheel Shaft | 33152003 | Not Available |
| 48 | Not Available | Hoover Spring | 161513 | Not Available |
| 49 | Not Available | Hoover RivetTubular | 32242004 | Not Available |
| 50 | Not Available | Hoover Motor Lead Spring | 38313023 | Not Available |
| 51 |  | Dirty Tank Rubber Plug Bissell repair part number: 1611735 | 1611735 | $5.19Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 | Not Available | Hoover Pivot Pin | 047450AY | Not Available |
| 54 | Not Available | Hoover Bail Ag | 41416010 | Not Available |
| 55 | Not Available | Hoover Hdl Cont LeverAg | 43137047 | Not Available |
| 56 | Not Available | Hoover Foot PadAg C1E03 | 38426080 | Not Available |
| 57 | Not Available | Hoover Shaft 1330 | 613802AY | Not Available |
| 58 | Not Available | Hoover Mounting BracketAw | 35217006 | Not Available |
| 59 | Not Available | Hoover Nut | 12560 | Not Available |
| 65 | Not Available | Hoover Upper HandleAxU7C0 | 48644022 | Not Available |
| 66 | Not Available | Hoover Hood Aaw | 42251325 | Not Available |
| 75 | No Image | SPRING, HANDLE CONTROL LEVER CONVERTIBLE 4101 Part Number: 012559FW for Hoover | 012559FW | $1.78Read more |
| 76 | Not Available | Hoover Machine Screw | 21767082 | Not Available |
| 77 | Not Available | Hoover Pivot Pin Retainer | 34665007 | Not Available |
| 78 | Not Available | Hoover Lock Ring | 13730 | Not Available |
| 79 | Not Available | Hoover Frontwheel Shaft | 047457AY | Not Available |
| 80 | Not Available | Hoover Front Wheel | 34791AG | Not Available |
| 81 | Not Available | Hoover Main Body AssmCommo | 42242064 | Not Available |
| 82 | Not Available | Hoover Furniture GuardLy | 36231036 | Not Available |
| 83 |  | Clear In Line Feed Through Rocker Switch spt-2 | 48422 | $9.99Add to cart |
| 84 | Not Available | Hoover Agitator Support Pla | 34355002 | Not Available |
| 85 | Not Available | Hoover Rivet SemiTubular | 32243001 | Not Available |
| 86 | Not Available | Hoover Agitator Clamp Sprin | 047259AY | Not Available |
| 87 | Not Available | Hoover Rivet | 161882 | Not Available |
| 88 | Not Available | Hoover Cleaner Bottom Pl Sp | 34439 | Not Available |
| 89 | | Hoover Guardsman Models C1431 and C1433 Belt PN: 044783AG AH20075 | 073502032138 | $9.99Add to cart |
| 91 | Not Available | Hoover Bottom Plate Latch L | 35446005 | Not Available |
| 92 | Not Available | Hoover Support Pad | 34111001 | Not Available |
| 93 | Not Available | Hoover Bottom Plate Complet | 42246008 | Not Available |
| 94 | Not Available | Hoover Rivet | 12456 | Not Available |
| 95 | Not Available | Hoover Bottom Plate LatchR | 35446003 | Not Available |
| 96 | Not Available | Hoover Screw | 21447020 | Not Available |
| # | Part image | Description | SKU | Price |
| 28 | Not Available | Hoover Hose Sleeve Bz | 32156010 | Not Available |
| 48 | Not Available | Hoover Hose End Converter | 013147JM | Not Available |
| 49 |  | Collar, White Connects Hose Coupling Part Number: 012615BZ for Hoover | 012615BZ | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 50 | Not Available | Hoover Nozz Position Brkt Assy | 43468018 | Not Available |
| 51 | Not Available | Hoover Hose Grip Collar | 012704BZ | Not Available |
| 52 | Not Available | Hoover Hose End Converter | 023473JM | Not Available |
| 53 | Not Available | Hoover Hose Grip | 23393JM | Not Available |
| 55 | Not Available | Hoover Hose Tube | 13143 | Not Available |
| 59 | Not Available | Hoover Hose Complete | 022671JM | Not Available |
| 60 | Not Available | Hoover Hose End Short 65 | 34355 | Not Available |
| 63 | Not Available | Hoover Model 91 Connector | 35190 | Not Available |
| 64 | Not Available | Hoover Connector | 034202JM | Not Available |
| 65 | Not Available | Hoover HoseLess EndsUltra | 048617JM | Not Available |
| 66 | Not Available | Hoover Hose CompleteMv (J | 43434213 | Not Available |
| 67 | Not Available | Hoover Hose Assm CompleteU | 012864JM | Not Available |

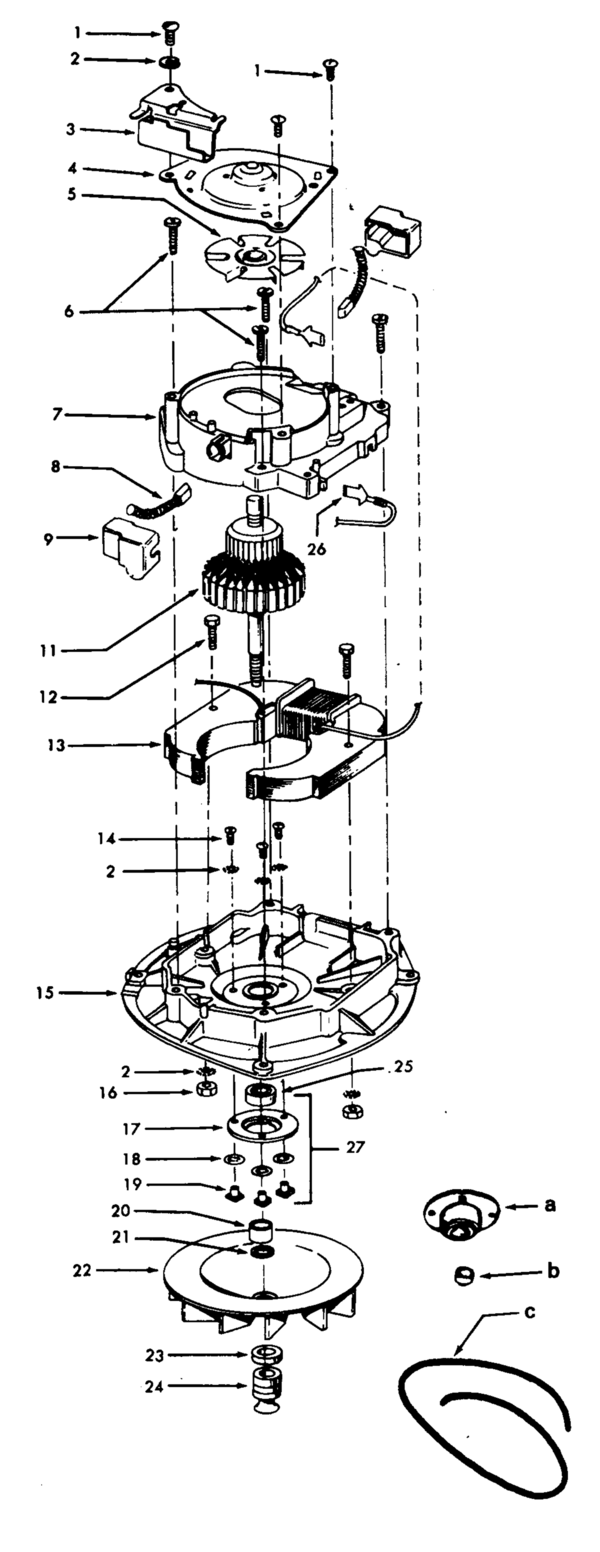

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Screw | 45533AY | Not Available |
| 2 |  | Paper Bag, 3M Eureka Style U Micro 3Pk Part Number: 67701B for Eureka Replacement | 67701B | $9.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Hoover Indicator Guide Asse | 41961009 | Not Available |
| 4 | Not Available | Hoover Upper Motor Bearing | 42934002 | Not Available |
| 5 | Not Available | Hoover Ventilating FanU415 | 38755004 | Not Available |
| 6 | Not Available | Hoover Screw | 161535 | Not Available |
| 7 | Not Available | Hoover Upper Motor Casing | 19857 | Not Available |
| 8 | Not Available | Hoover Motor Brush | 47318012 | Not Available |
| 9 | Not Available | Hoover Brush Cap U4313 | 36315003 | Not Available |
| 11 | Not Available | Hoover Armature8Mm | 44765085 | Not Available |
| 12 | Not Available | Hoover Field Bolt | 45118 | Not Available |
| 14 | Not Available | Hoover Screw | 21772501 | Not Available |
| 15 | Not Available | Hoover Motor Case Lh | 42193006 | Not Available |
| 16 | Not Available | Hoover Nut Hex 5140 | 15673 | Not Available |
| 17 | Not Available | Hoover Bearing Retainer8Mm | 32184003 | Not Available |
| 18 | Not Available | Hoover WasherLock843 | 19772 | Not Available |
| 19 | Not Available | Hoover Nut | 45251 | Not Available |
| 20 | Not Available | Hoover Fan Spacer8Mm | 31731002 | Not Available |
| 21 | Not Available | Hoover Washer | 166563 | Not Available |
| 22 | Not Available | Hoover Fan | 38755011 | Not Available |
| 23 | Not Available | Hoover WasherHeat Insulati | 31162004 | Not Available |
| 24 | Not Available | Hoover Motor PulleyHeat In | 38532009 | Not Available |
| 25 |  | Bearing, 8MM Upper Ball Elite/Legacy/Conquest Part Number: 24152807 for Hoover | 24152807 | $16.35Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | | PreMotor Filter single black with 90PPI Bissell repair part number: 1614320 | 1614320 | $8.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Handle Main-steel Tube Part Number 19829 for Cleanmax Models CM-WAV | 19829 | Original price was: $115.99.$92.99Current price is: $92.99.Add to cart Product is special order please allow 2-4 weeks for delivery. |
