Schematic and parts list for: Hoover Model: UH70020
This is a list of parts and a diagram and schematic for: Hoover Model: UH70020
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Cyclonic Bagless Upright
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Handle Assembly | 48663249 | Not Available |
| 1 | Not Available | Hoover Handle Assembly | 48663249 | Not Available |
| 2 | Not Available | Hoover Handle Screw | 21447236 | Not Available |
| 02 | Not Available | Hoover Handle Screw | 21447236 | Not Available |
| 3 | Not Available | Hoover Power Cord - 40 | 46383365 | Not Available |
| 03 | Not Available | Hoover Power Cord - 40 | 46383365 | Not Available |
| 4 | Not Available | Hoover Carry Handle Assembly | 48664005 | Not Available |
| 04 | Not Available | Hoover Carry Handle Assembly | 48664005 | Not Available |
| 5 | Not Available | Hoover Upper Cord Wrap | 39442056 | Not Available |
| 05 | Not Available | Hoover Upper Cord Wrap | 39442056 | Not Available |
| 6 | Not Available | Hoover Lower Cord Wrap | 39442059 | Not Available |
| 06 | Not Available | Hoover Lower Cord Wrap | 39442059 | Not Available |
| 07 | Not Available | Hoover Wand Assembly | 48642104 | Not Available |
| 7 | Not Available | Hoover Wand Assembly | 48642104 | Not Available |
| 08 | Not Available | Hoover Hose Assembly | 43434279 | Not Available |
| 8 | Not Available | Hoover Hose Assembly | 43434279 | Not Available |
| 9 | Not Available | Hoover Inlet Duct With Microphone Bracket | 48511008 | Not Available |
| 09 | Not Available | Hoover Inlet Duct With Microphone Bracket | 48511008 | Not Available |
| 10 | Not Available | Hoover Power Pcb Board Assembly | 440002753 | Not Available |
| 11 | Not Available | Hoover Single Pcb Board Assembly | 440002754 | Not Available |
| 12 | No Image | MOTOR, W/SHROUD UH70010 Part Number: 43576229 for Hoover | 43576229 | $83.98Read more |
| 13 | Not Available | Hoover Motor Cover Assembly | 42191018 | Not Available |
| 14 | Not Available | Hoover Exhaust Filter Cover Assembly | 37257327 | Not Available |
| 15 | No Image | SCREW, SELF TAPPING PAN HEAD 6-10 Part Number: 21447527 for Hoover | 21447527 | $0.03Read more |

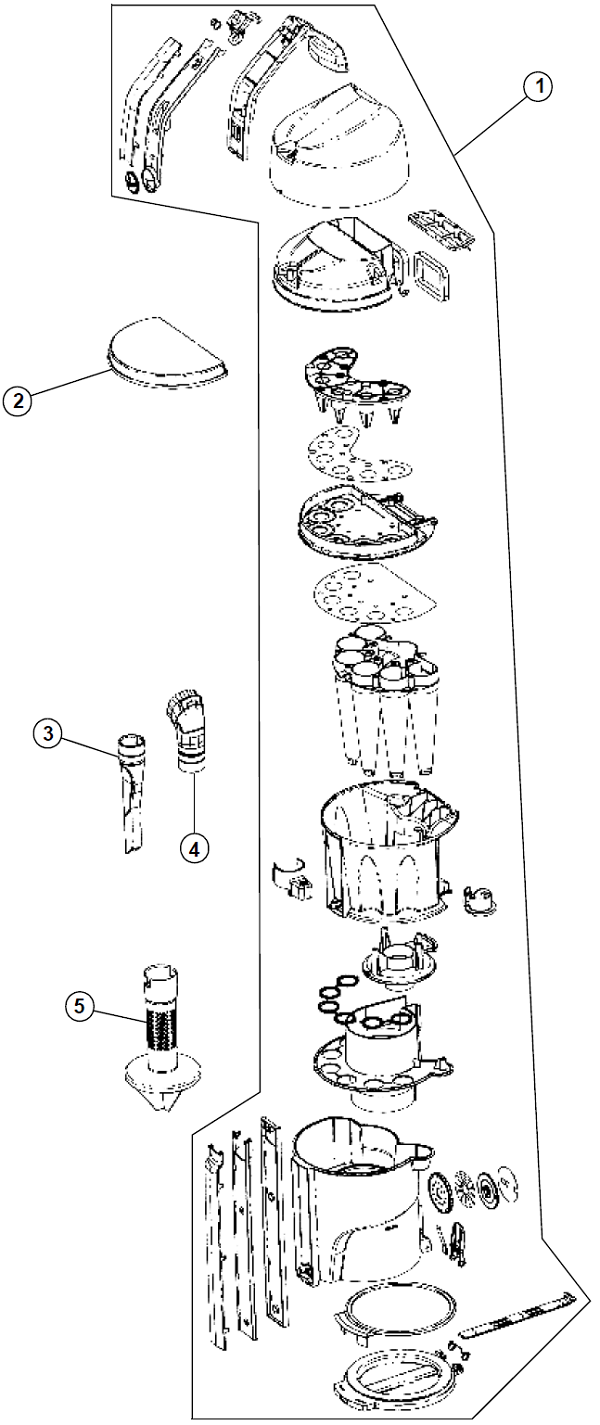

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Complete Dirt Cup Assembly | 43645063 | Not Available |
| 1 | Not Available | Hoover Complete Dirt Cup Assembly | 43645063 | Not Available |
| 02 | Not Available | Hoover Dirt Cup Filter | 43615096 | Not Available |
| 2 | Not Available | Hoover Dirt Cup Filter | 43615096 | Not Available |
| 03 | Not Available | Hoover Crevice Tool | 38617035 | Not Available |
| 3 | Not Available | Hoover Crevice Tool | 38617035 | Not Available |
| 04 | Not Available | Hoover Furniture Tool Assembly | 303659001 | Not Available |
| 4 | Not Available | Hoover Furniture Tool Assembly | 303659001 | Not Available |
| 05 | Not Available | Hoover Umbrella Tube - Dirt Cup | 38768050 | Not Available |
| 5 | Not Available | Hoover Umbrella Tube - Dirt Cup | 38768050 | Not Available |
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Hoover Hood - Right | 37252123 | Not Available |
| 1 | Not Available | Hoover Hood - Right | 37252123 | Not Available |
| 2 | Not Available | Hoover Hood - Left | 37252122 | Not Available |
| 02 | Not Available | Hoover Hood - Left | 37252122 | Not Available |
| 3 | Not Available | Hoover Trunnion Cover - Right | 36131163 | Not Available |
| 03 | Not Available | Hoover Trunnion Cover - Right | 36131163 | Not Available |
| 04 | Not Available | Hoover Trunnion Cover - Left | 36131164 | Not Available |
| 4 | Not Available | Hoover Trunnion Cover - Left | 36131164 | Not Available |
| 05 | Not Available | Hoover Hood - Center W/Edf Label | 42252B80 | Not Available |
| 5 | Not Available | Hoover Hood - Center W/Edf Label | 42252B80 | Not Available |
| 6 | Not Available | Hoover Transfer Pulley Assembly | 43256008 | Not Available |
| 06 | Not Available | Hoover Transfer Pulley Assembly | 43256008 | Not Available |
| 07 | Not Available | Hoover Transfer Pulley Clamp | 36171068 | Not Available |
| 7 | Not Available | Hoover Transfer Pulley Clamp | 36171068 | Not Available |
| 08 | Not Available | Hoover Idler Arm Assembly | 43151026 | Not Available |
| 8 | Not Available | Hoover Idler Arm Assembly | 43151026 | Not Available |
| 9 | Not Available | Hoover Actuator Arm Trunnion | 36171058 | Not Available |
| 10 | Not Available | Hoover Idler Arm Clamp | 36172061 | Not Available |
| 11 | Not Available | Hoover Height Adjustment Motor Assembly | 27271005 | Not Available |
| 12 | Not Available | Hoover Lower Hose Assembly | 43434280 | Not Available |
| 13 | Not Available | Hoover Pivot Clamp | 36171069 | Not Available |
| 14 | Not Available | Hoover Handle Release Pedal | 38434049 | Not Available |
| 15 | Not Available | Hoover Handle Release Pedal Clamp | 36436029 | Not Available |
| 16 | Not Available | Hoover Nozzle Base Assembly With Wheels | 42246154 | Not Available |
| 17 | Not Available | Hoover Nozzle Liner | 37243072 | Not Available |
| 18 | Not Available | Hoover Edf Pcb Assembly | 46851081 | Not Available |
| 19 | Not Available | Hoover Pcb Hall Assembly | 46851082 | Not Available |
| 20 | Not Available | Hoover Front Wheel Assembly | 43248074 | Not Available |
| 21 | Not Available | Hoover Bottom Plate / Nozzle Guard | 42246152 | Not Available |
| 22 | Not Available | Hoover Agitator / Brush Roll Assembly | 48414156 | Not Available |
| 23 |  | NLA USE SKU 38-3305-04 Hoover Wind Tunnel Self Propelled Belt | 38528034 | $10.99Read more |
| 24 |  | Hoover U8300 Vacuum Cleaner Belt H-38528050 | 38528050 | $16.99Read more |
