Schematic and parts list for: Hoover Model: UH70110

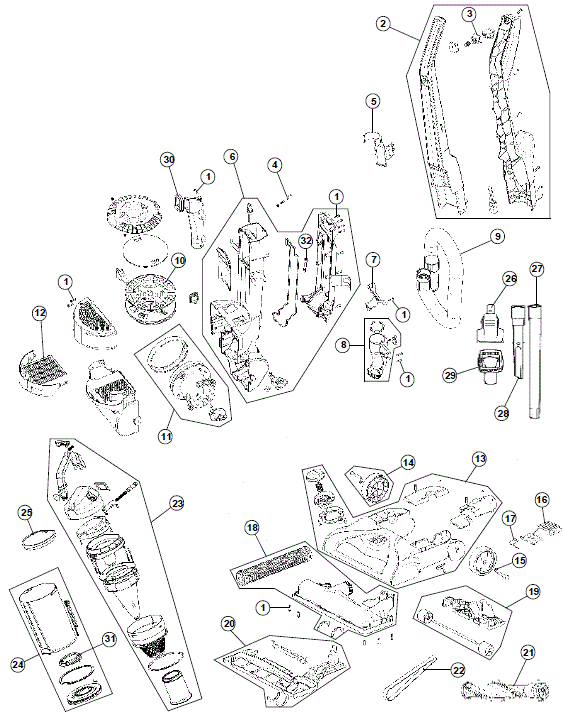

This is a list of parts and a diagram and schematic for: Hoover Model: UH70110
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: T- Hoover Series - Windtunnel Rewind
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Body Screw - | 660021002 | Not Available |
| 2 | Not Available | Hoover Handle Assembly - Straight / D Style Shadow Gray | 303846001 | Not Available |
| 3 |  | Switch, Brown Square Push Button UH70100 Part Number: 28218062 for Hoover | 28218062 | $3.03Read more |
| 4 |  | Screw, Handle UH70200/UH70110/UH70105/UH70205 Part Number: 430001077 for Hoover | 430001077 | $5.12Read more |
| 5 | Not Available | Hoover Turbo Tool Clip Assembly | 521025001 | Not Available |
| 6 | Not Available | Hoover Main Back Panel Lower | 303831002 | Not Available |
| 7 | Not Available | Hoover Hose Wrap - Assembly | 521088001 | Not Available |
| 8 | Not Available | Hoover Lower Hose Adaptor - 8' | 303832001 | Not Available |
| 9 |  | Hose, Upper UH70200/UH70210 Part Number: 440013582 for Hoover | 440013582 | $15.07Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Genuine Hoover 303238002 Vacuum Cord Reel Assembly OEM for models: UH70825,UH70830,UH70215,UH70820,UH70831,UH70205,UH70821,UH70832,UH70110,UH70210,UH70200,UH70211,UH70212,UH70130,UH70120,UH70839,UH70829 | 303238002 | $39.00Read more |
| 11 | Not Available | Hoover Motor Assembly - With Gasket / Grommet 3 Wire - With Headlight Yellow Lead Assembly | 230333001 | Not Available |
| 12 |  | Aftermarket Hoover Exhaust Filter for UH70800 Models | H-305687001 | $16.99Add to cart |
| 13 | Not Available | Hoover Nozzle Base Assembly - Warm Titanium Metallic | 304030002 | Not Available |
| 14 | Not Available | Hoover Rear Wheel Assembly | 304233001 | Not Available |
| 15 | Not Available | Hoover E - Clip | 691040002 | Not Available |
| 16 | Not Available | Hoover Handle Release Pedal Spring | 521048001 | Not Available |
| 17 | Not Available | Hoover Handle Release Pedal Lower Hose Assembly | 633197001 | Not Available |
| 18 | Not Available | Hoover Brush Roll Housing / Hose Assembly | 304024001 | Not Available |
| 19 |  | Roller Lifter, Assy WindTunnel UH70115/UH70116 Part Number: 440001693 for Hoover | 440001693 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Bottom Plate, :( WindTunnel UH70100 Part Number: 304026001 for Hoover | 304026001 | $10.68Read more |
| 21 |  | Brushroll, Uh70100/70120 On/Off Brush Shut Off | H-303202001 | $44.99Read more |
| 21 |  | Brushroll, 13" Windtunnel T Series Uprights Part Number: H901 for Hoover Replacement | H901 | $20.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Belt,Hoover Stretch T & T1 Series Flat. Same as hoover 033 belt | 38528058 | $5.99Read more |
| 22 |  | Hoover style 160 WindTunnel Non-Power Drive Vacuum Belts (2 pack) | 073502508824 | $9.99Add to cart |
| 23 | Not Available | Hoover Dirt Cup Lid Assembly - Warm Titanium Metallic | 303833009 | Not Available |
| 24 |  | Hoover clear/gray dirt cup is designed to fit WindTunnel T-Series vacuums models UH70110,UH70120,UH70130,UH70200,UH70205,UH70210,UH70211,UH70212,UH70215 | 304025001 | $30.00Read more |
| 25 |  | Hoover Filter Dirt Cup UH70600/UH71009 Round Primary | H-304087001 | $11.99Add to cart |
| 26 |  | Hoover pet turbo tool, UH30300, UH30302, UH30308, UH30310 T-Series WindTunnel Pet, UH70086 WindTunnel Pet Rewind Plus, UH70130 T-Series WindTunnel Rewind, UH70140 T-Series WindTunnel Rewind Plus, UH70210 T-Series WindTunnel Pet Rewind, UH70211 T-Series WindTunnel Pet Rewind, U | 440004118 | Original price was: $22.00.$12.00Current price is: $12.00.Read more |
| 27 | Not Available | Hoover Extension Wand | 500170001 | Not Available |
| 29 |  | Dust Brush, Black UH70200/UH70205/UH70130 Part Number: 440013586 for Hoover | 440013586 | $6.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Hoover Inlet Tube Seal Chamber Seal | 562269002 | Not Available |
| 31 |  | Gasket, Dirt Cup Lid Chamber Seal UH70105 Part Number: 562271001 for Hoover | 562271001 | $2.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | Hoover Wire Fuse Assembly | 290467001 | Not Available |
