Schematic and parts list for: Hoover Model: UH70116

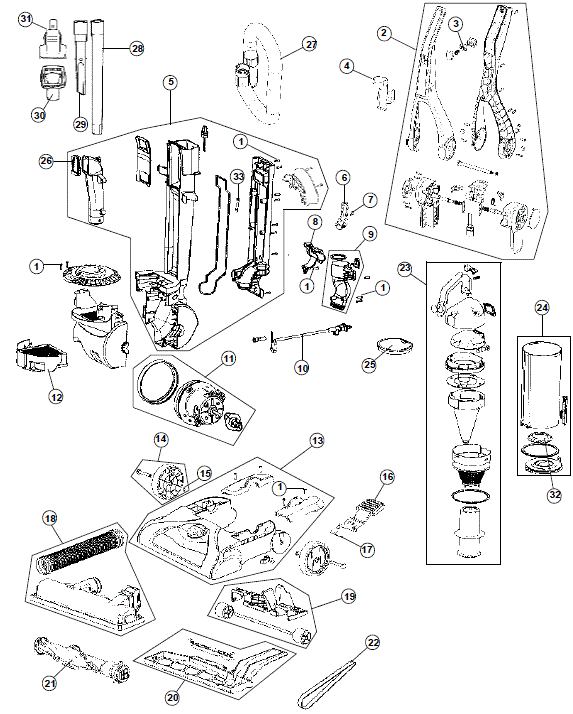

This is a list of parts and a diagram and schematic for: Hoover Model: UH70116
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Windtunnel T- Hoover Series
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Body Screw - Folding / D Style Gray | 660021002 | Not Available |
| 2 | Not Available | Hoover Handle Assembly - | 303839001 | Not Available |
| 3 |  | Switch, Brown Square Push Button UH70100 Part Number: 28218062 for Hoover | 28218062 | $3.03Read more |
| 4 | Not Available | Hoover Turbo Tool Clip Assembly | 521025001 | Not Available |
| 5 | Not Available | Hoover Main Back Panel | 304287001 | Not Available |
| 6 | Not Available | Hoover Upper Cord Hook Hook | 521067001 | Not Available |
| 7 | Not Available | Hoover Screw - Cord Wrap - Lower | 21447228 | Not Available |
| 8 | Not Available | Hoover Hose / Cord Assembly | 521068001 | Not Available |
| 9 | Not Available | Hoover Lower Hose Adaptor - 30' | 303832001 | Not Available |
| 11 | Not Available | Hoover Motor Assembly - With Gasket / Grommet 3 Wire - With Headlight Yellow Lead Assembly | 230333001 | Not Available |
| 12 |  | Aftermarket Hoover Exhaust Filter for UH70800 Models | H-305687001 | $16.99Add to cart |
| 13 | Not Available | Hoover Nozzle Base Assembly | 304030002 | Not Available |
| 14 | Not Available | Hoover Rear Wheel Assembly | 304233001 | Not Available |
| 15 | Not Available | Hoover E - Clip | 691040002 | Not Available |
| 16 | Not Available | Hoover Handle Release Pedal Spring | 521048001 | Not Available |
| 17 | Not Available | Hoover Handle Release Pedal / Lower Hose | 633197001 | Not Available |
| 18 | Not Available | Hoover Brush Roll Housing | 304024001 | Not Available |
| 19 |  | Roller Lifter, Assy WindTunnel UH70115/UH70116 Part Number: 440001693 for Hoover | 440001693 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Bottom Plate, :( WindTunnel UH70100 Part Number: 304026001 for Hoover | 304026001 | $10.68Read more |
| 21 |  | Brushroll, Uh70100/70120 On/Off Brush Shut Off | H-303202001 | $44.99Read more |
| 21 |  | Brushroll, 13" Windtunnel T Series Uprights Part Number: H901 for Hoover Replacement | H901 | $20.74Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Belt,Hoover Stretch T & T1 Series Flat. Same as hoover 033 belt | 38528058 | $5.99Read more |
| 22 |  | Hoover style 160 WindTunnel Non-Power Drive Vacuum Belts (2 pack) | 073502508824 | $9.99Add to cart |
| 23 | Not Available | Hoover Dirt Cup Lid - Long | 303833007 | Not Available |
| 24 | Not Available | Hoover Dirt Cup Assembly | 304025002 | Not Available |
| 25 |  | Hoover Filter Dirt Cup UH70600/UH71009 Round Primary | H-304087001 | $11.99Add to cart |
| 26 | Not Available | Hoover Inlet Tube Seal 8' | 562269002 | Not Available |
| 27 | Not Available | Hoover Upper Hose Assembly - 12' | 303642001 | Not Available |
| 28 | Not Available | Hoover Extension Wand | 500170001 | Not Available |
| 30 |  | Dust Brush, Black UH70200/UH70205/UH70130 Part Number: 440013586 for Hoover | 440013586 | $6.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | Hoover pet turbo tool, UH30300, UH30302, UH30308, UH30310 T-Series WindTunnel Pet, UH70086 WindTunnel Pet Rewind Plus, UH70130 T-Series WindTunnel Rewind, UH70140 T-Series WindTunnel Rewind Plus, UH70210 T-Series WindTunnel Pet Rewind, UH70211 T-Series WindTunnel Pet Rewind, U | 440004118 | Original price was: $22.00.$12.00Current price is: $12.00.Read more |
| 32 |  | Gasket, Dirt Cup Lid Chamber Seal UH70105 Part Number: 562271001 for Hoover | 562271001 | $2.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Hoover Wire Fuse Assembly | 290467001 | Not Available |
