Schematic and parts list for: Hoover Model: UH70608

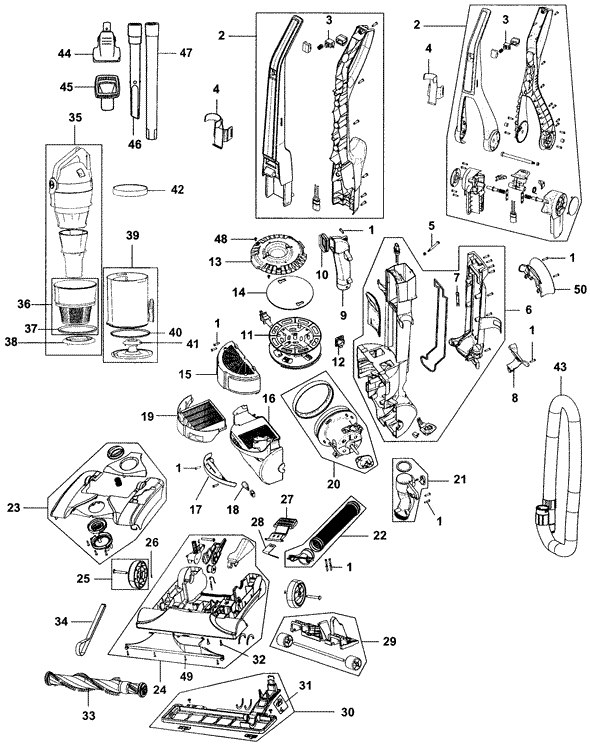

This is a list of parts and a diagram and schematic for: Hoover Model: UH70608
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: T-Series WindTunnel Pro Whole House Multi Cyclonic
Popular Supplies
$14.99Add to cart
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Hoover Body Screw - #6 - 10 Self Tapping | 21447228 | Not Available |
| 3 |  | Switch, Brown Square Push Button UH70100 Part Number: 28218062 for Hoover | 28218062 | $3.03Read more |
| 4 | Not Available | Hoover Turbo Tool Clip | 521025001 | Not Available |
| 5 |  | Screw, Handle UH70200/UH70110/UH70105/UH70205 Part Number: 430001077 for Hoover | 430001077 | $5.12Read more |
| 7 | Not Available | Hoover Wire Fuse Assembly - 18 Awg Brown | 290467001 | Not Available |
| 8 | Not Available | Hoover Hose Wrap - Lower | 521088001 | Not Available |
| 9 | Not Available | Hoover Inlet Tube Assembly -Dirt Cup | 304083001 | Not Available |
| 10 | Not Available | Hoover Seal - Inlet Tube | 562269001 | Not Available |
| 11 |  | Genuine 28' cord reel pn 304081001 for hoover UH70600, UH70601, UH70603 Max Multi-Cyclonic Bagless, UH70140 Rewind Bagless, UH70602 Max Whole House Multi-Cyclonic, UH70605 Max Pet Plus Multi-Cyclonic and UH70240 T-Series Paws Pet Rewind | 304081001 | $38.00Read more |
| 12 | Not Available | Hoover Inlet - Cord Rewind | 521090001 | Not Available |
| 13 | Not Available | Hoover Exhaust Filter Cover | 522553001 | Not Available |
| 14 | Not Available | Hoover Foam - Cord Rewind | 902335002 | Not Available |
| 15 | Not Available | Hoover Cord Rewind Cover | 522743001 | Not Available |
| 16 | Not Available | Hoover Frontmotor Cover -Coral Blue | 522278001 | Not Available |
| 17 | Not Available | Hoover Head Light Lens | 521064002 | Not Available |
| 18 | Not Available | Hoover Lamp - Bulb 13 Volt | 27313107 | Not Available |
| 19 | Not Available | Hoover Exhaust Hepa Filter Assembly | 303172001 | Not Available |
| 20 | Not Available | Hoover Motor Assembly - With Gasket / Grommet | 230333001 | Not Available |
| 21 | Not Available | Hoover Lower Hose Adaptor Assembly | 303832001 | Not Available |
| 22 | Not Available | Hoover Lower Hose Assembly | 440001655 | Not Available |
| 23 |  | NOZZLE COVER, CORAL BLUE Part Number: 440002855 for Hoover | 440002855 | $22.89Read more |
| 24 |  | Hoover nozzle base tray assembly for models UH70600, UH70601, UH70603, UH70605, UH70602, UH30600, UH70607, UH70608, UH70700 and Royal Upright UR30090 t series machines | 440002859 | Original price was: $50.00.$18.00Current price is: $18.00.Read more |
| 24 | Not Available | Hoover Nozzle Base Assembly -Order 440002859 Series Band 440002860 Series B /Also Order Series B Nozzle Cover | 304091001 | Not Available |
| 25 | Not Available | Hoover Rear Wheel Assembly | 304233001 | Not Available |
| 26 | Not Available | Hoover E-Clip | 691040002 | Not Available |
| 27 |  | Pedal, Silver Metallic Handle Release W Part Number: 440013591 for Hoover | 440013591 | $8.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Hoover Spring - Handle Release Pedal | 633197001 | Not Available |
| 29 |  | Roller Lifter, Assy WindTunnel UH70115/UH70116 Part Number: 440001693 for Hoover | 440001693 | $13.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Hoover Nozzle Guard Assembly | 304093001 | Not Available |
| 30 |  | Hoover Guard, Nozzle Guard Assembly, Ver-B Wt-Max fits hoover UH70602 Whole House Multi-Cyclonic Bagless Upright, UH30600 T-Series Windtunnel Max, UH70607 WindTunnel Air T-Series, UH70608 and UH70700 WindTunnel Max Pet Plus and royal UR30090 | 440002860 | $21.00Read more |
| 31 | Not Available | Hoover Guard Lock Assembly -Nozzle Guard | 440001653 | Not Available |
| 32 | Not Available | Hoover Shoulder Screw -Nozzle Guard | 661360001 | Not Available |
| 33 |  | Brushroll hoover 15 In Uh70600/Uh30600-T/Uh70 | H-304094001 | $28.99Add to cart |
| 34 |  | Belt, Hoover T Series Singles pn: 440005535 | H-562289001 | $7.99Read more |
| 34 |  | Hoover AH20065 T-Series Flat Non-Stretch Belt, Pack of 2 alternate pn: 440005535 562289001 | 073502031773 | $14.99Add to cart |
| 36 | Not Available | Hoover Dirt Cup Shroud With Seal | 304090001 | Not Available |
| 37 | Not Available | Hoover Seal - Dirt Cup Shroud | 562602001 | Not Available |
| 38 | Not Available | Hoover Dirt Cup Dust Skirt | 522290001 | Not Available |
| 39 | Not Available | Hoover Dirt Cup Assembly -Short | 304084001 | Not Available |
| 40 | Not Available | Hoover Seal - Dirt Cup Bottom Door | 562598001 | Not Available |
| 41 | Not Available | Hoover Seal - Dirt Cup Bottom Door Chamber | 562598002 | Not Available |
| 42 |  | Hoover Filter Dirt Cup UH70600/UH71009 Round Primary | H-304087001 | $11.99Add to cart |
| 43 | Not Available | Hoover Upper Hose Assembly -16' | 304079001 | Not Available |
| 44 |  | Hoover pet turbo tool, UH30300, UH30302, UH30308, UH30310 T-Series WindTunnel Pet, UH70086 WindTunnel Pet Rewind Plus, UH70130 T-Series WindTunnel Rewind, UH70140 T-Series WindTunnel Rewind Plus, UH70210 T-Series WindTunnel Pet Rewind, UH70211 T-Series WindTunnel Pet Rewind, U | 440004118 | Original price was: $22.00.$12.00Current price is: $12.00.Read more |
| 45 |  | Dust Brush, Black UH70200/UH70205/UH70130 Part Number: 440013586 for Hoover | 440013586 | $6.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 46 | Not Available | Hoover Crevice Tool - Long /Red | 522736001 | Not Available |
| 47 | Not Available | Hoover Telescopic Wand Assembly - Black | 304315001 | Not Available |
| 48 | Not Available | Hoover Screw | 21447263 | Not Available |
| 49 | Not Available | Hoover Screw - Black Can Use 21447239 - Silver | 21447526 | Not Available |
| 50 | Not Available | Hoover Upper Hose Wrap | 521022001 | Not Available |
