Schematic and parts list for: Hoover Model: UH72003

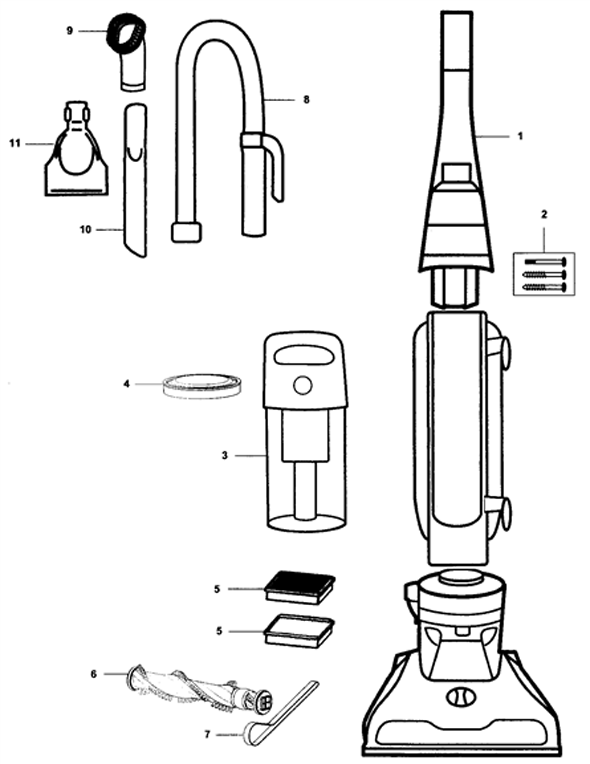

This is a list of parts and a diagram and schematic for: Hoover Model: UH72003
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Elite Max Pet
# | Part image | Description | SKU | Price |
XX | Not Available | Hoover Schematic Code1. Handle Assembly | 440007173 | Not Available |
2 | SCREW PACKAGE, HANDLE 3 PACK 72011 Part Number: 440007053 for Hoover | 440007053 | $2.82Read more | |
3 | Not Available | Hoover Dirt Cup And Lid Assembly Complete | 440007174 | Not Available |
4 | Not Available | Hoover Main Filter Assembly | 440005121 | Not Available |
5 | Filter, Exhaust UH72011 Elite Max Pleated | H-440005122 | Original price was: $13.49.$4.25Current price is: $4.25.Read more | |
5 | Not Available | Hoover Exhaust Filter With Carbon - Pet | 440005116 | Not Available |
6 | Not Available | Hoover Brish Roll Assembly | 440005117 | Not Available |
7 | Not Available | Hoover Belt | 562932001 | Not Available |
8 | Not Available | Hoover Hose Assembly | 440005118 | Not Available |
9 | Not Available | Hoover Dusting Brush - Pet | 440005119 | Not Available |
9 | Dust Brush, Black UH70200/UH70205/UH70130 Part Number: 440013586 for Hoover | 440013586 | $6.71Add to cart Product is special order please allow 2-4 weeks for delivery. | |
10 | Not Available | Hoover Crevice Tool | 522305001 | Not Available |
11 | Hoover pet turbo tool, UH30300, UH30302, UH30308, UH30310 T-Series WindTunnel Pet, UH70086 WindTunnel Pet Rewind Plus, UH70130 T-Series WindTunnel Rewind, UH70140 T-Series WindTunnel Rewind Plus, UH70210 T-Series WindTunnel Pet Rewind, UH70211 T-Series WindTunnel Pet Rewind, U | 440004118 | Original price was: $22.00.$12.00Current price is: $12.00.Read more |
