Schematic and parts list for: Hoover Model: WH20201

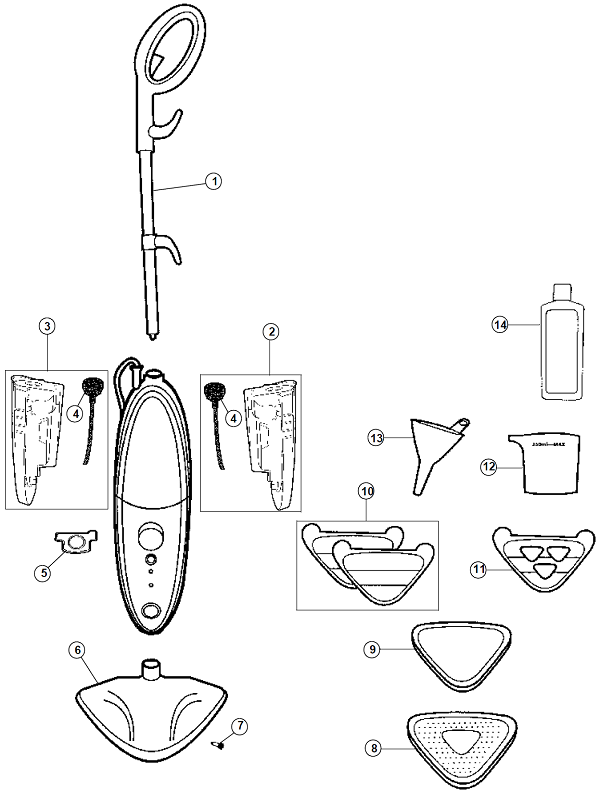

This is a list of parts and a diagram and schematic for: Hoover Model: WH20201
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: Steam Mop
| # | Part image | Description | SKU | Price |
| xx | No Image | DISINFECTANT, 32OZ MULTIPURPOSE Part Number: WH00020 for Hoover | WH00020 | $22.12Read more |
| 1 | Not Available | Hoover Handle Assembly | 440001697 | Not Available |
| 2 | Not Available | Hoover Water Tank Assembly With Cap | 440001702 | Not Available |
| 3 |  | Tank, Solution W/Cap SteamMop WH20200/WH20201 Part Number: 440001701 for Hoover | 440001701 | $13.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 4 | Not Available | Hoover Cap Assembly With Tube | 440001703 | Not Available |
| 5 | Not Available | Hoover Water Filter Assembly | 440001705 | Not Available |
| 6 | Not Available | Hoover Nozzle Assembly | 440001699 | Not Available |
| 7 | Not Available | Hoover Screw - Nozzle | 440001700 | Not Available |
| 8 | Not Available | Hoover Cooling Tray / Storage Base | 440001704 | Not Available |
| 9 | Not Available | Hoover Carpet Glide | 440001694 | Not Available |
| 10 | Not Available | Hoover Cleaning Pad | 440001695 | Not Available |
| 11 | Not Available | Hoover Cleaning Pad - 2 Pack | WH01000 | Not Available |
| 12 | Not Available | Hoover Disinfecting Pad | 440001696 | Not Available |
| 13 | Not Available | Hoover Measuring Cup | 440001698 | Not Available |
| 14 | Not Available | Hoover Funnel | 440001706 | Not Available |
