Schematic and parts list for: Karcher Model: CV380
This is a list of parts and a diagram and schematic for: Karcher Model: CV380
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: CV 380
Popular Supplies
Original price was: $39.99.$34.99Current price is: $34.99.Add to cart

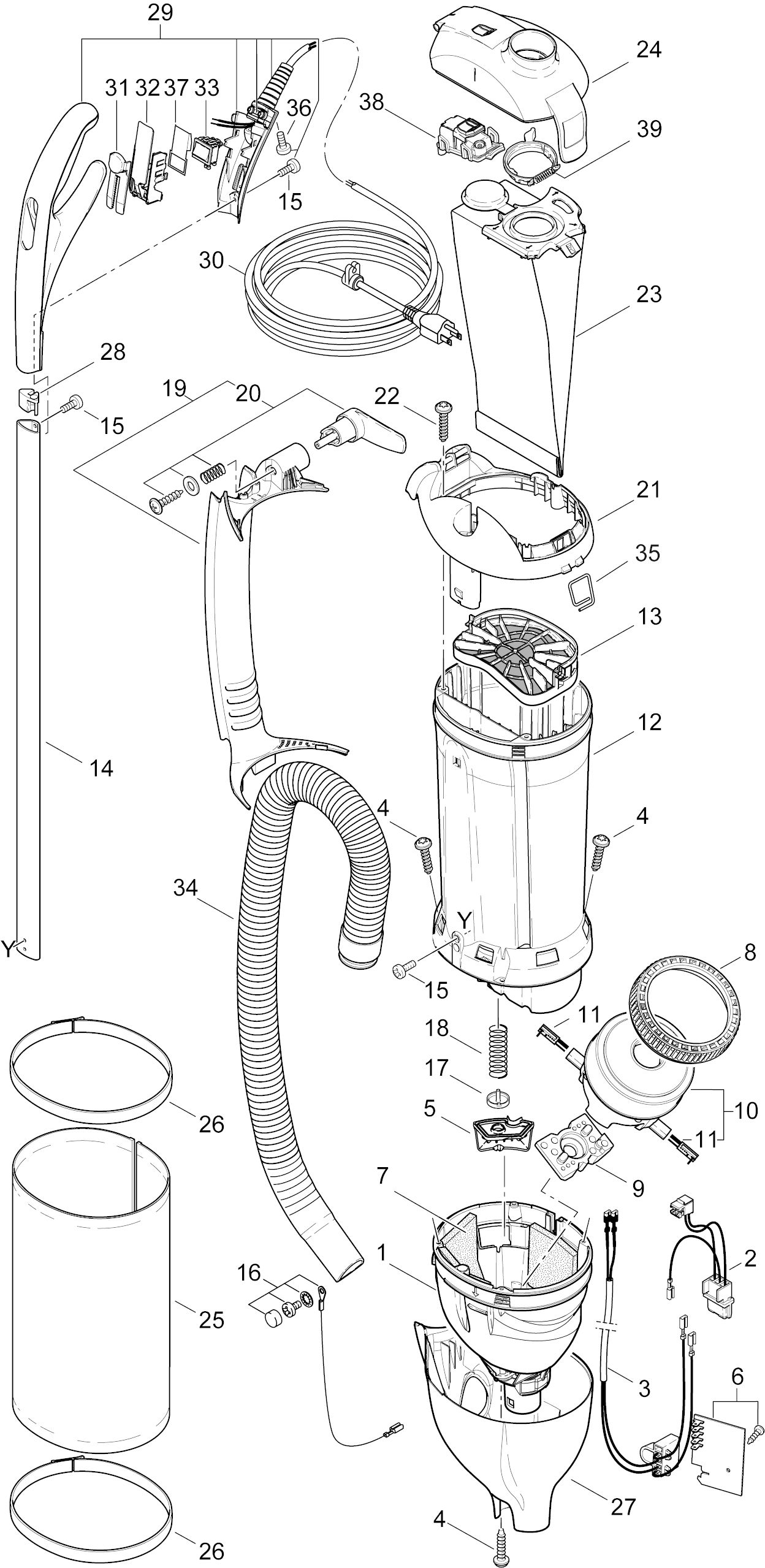

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Karcher AIR DUCT For Model: CV380 | 8.613-775.0 | Not Available |
| 1 |  | Air Duct, for DART (gray black) Sebo vacuum cleaner repair part | 7002GS | $29.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 | Not Available | Karcher WIRING, INTERNAL ET For Model: CV380 | 8.614-682.0 | Not Available |
| 2 |  | Internal Wiring ET, for FELIX series and DART Sebo vacuum cleaner repair part | 7064 | $12.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 |  | Internal Cable, for DART and FELIX 1 (9802AM) with non-adjusting handles Sebo vacuum cleaner repair part | 7070 | $28.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 3 | Not Available | Karcher INTERNAL CABLE For Model: CV380 | 8.614-292.0 | Not Available |
| 4 | Not Available | Screw STS 4 x 16-T20 (single), for X7/X8, FELIX series, DART, 300/350, and DISCO | 1016 | Not Available |
| 4 | Not Available | Karcher SCREW, M4 X16-T20 SS For Model: CV380 | 8.614-478.0 | Not Available |
| 5 | Not Available | Karcher VALVE COVER For Model: CV380 | 8.614-651.0 | Not Available |
| 5 |  | Valve Cover, for DART and FELIX 1 (9802AM) with non-adjusting handles (light gray) Sebo vacuum cleaner repair part | 7057HG | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | | Printed Circuit Board 120V,with no variable suction control, for DART Sebo vacuum cleaner repair part | 7102ER | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Karcher CIRCUIT BOARD, PRINTED 120V For Model: CV380 | 8.613-996.0 | Not Available |
| 7 |  | Sound Insulation, for 7041ER vacuum motor, for FELIX series and DART Sebo vacuum cleaner repair part | 7098 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Karcher SOUND INSULATION For Model: CV380 | 8.614-518.0 | Not Available |
| 8 | Not Available | Karcher VAC MOTOR SEAL For Model: CV380 | 8.614-638.0 | Not Available |
| 8 | | Vac Motor Seal Sebo vacuum cleaner repair part | 1047 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 |  | Rubber Mounting, for 7041ER vacuum motor, for FELIX series and DART Sebo vacuum cleaner repair part | 7009 | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 9 | Not Available | Karcher RUBBER MOUNTING For Model: CV380 | 8.614-474.0 | Not Available |
| 10 | No Image | Vacuum Motor 120V / 1000W, for FELIX series and DART Sebo vacuum cleaner repair part | WP11192 | $79.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Karcher MOTOR, VAC 120V HSH / HSG For Model: CV380 | 8.614-366.0 | Not Available |
| 11 |  | Carbon Brush Set, for 7041ER Suction Motor, for FELIX series and DART Sebo vacuum cleaner repair part | 05140S | $21.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Karcher BRUSH SET, CARBON BRSH MTR For Model: CV380 | 8.613-838.0 | Not Available |
| 12 | Not Available | Karcher DUST BAG HOUSING For Model: CV380 | 8.636-291.0 | Not Available |
| 12 |  | Dust Bag Housing, for DART, FELIX series, and FELIX Ice Blue (new and old handle configuration) Sebo vacuum cleaner repair part | 7143ER | $36.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 |  | Filter, Motor Protection For Felix Part Number: 7012ER for Sebo | 7012ER | $29.93Read more |
| 13 | Not Available | Karcher FILTER, MOTOR PROTECTION For Model: CV380 | 8.628-477.0 | Not Available |
| 14 | Not Available | Karcher HANDLE TUBE For Model: CV380 | 8.614-251.0 | Not Available |
| 14 |  | Handle Tube, 660 mm, for DART and FELIX 1 (9802AM) with non-adjusting handles Sebo vacuum cleaner repair part | 7080ER | $22.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 | Not Available | Karcher SCREW, M4 X 10 For Model: CV380 | 8.614-483.0 | Not Available |
| 15 | Not Available | Screw M 4x10K | 127 | Not Available |
| 16 | Not Available | Karcher WIRING, INTERNAL For Model: CV380 | 8.614-683.0 | Not Available |
| 17 |  | Valve Disc, for FELIX series and DART Sebo vacuum cleaner repair part | 7025 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Karcher VALVE, DISC For Model: CV380 | 8.614-649.0 | Not Available |
| 18 | Not Available | Karcher VALVE SPRING For Model: CV380 | 8.636-277.0 | Not Available |
| 18 |  | Valve Spring Set, for FELIX series and DART (set of two springs: one #7028 old version, one #8128UL new version) Sebo vacuum cleaner repair part | 7028ER | $3.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Karcher HOSE DUCT, BASALT GRAY For Model: CV380 | 8.640-592.0 | Not Available |
| 19 |  | Hose Duct, for FELIX White and DART (arctic white) Sebo vacuum cleaner repair part | 7090WE | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | | Cord Hook, for FELIX White and DART (arctic white) Sebo vacuum cleaner repair part | 7027WE | $8.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Karcher CABLE HOOK, KARCHER GRAY For Model: CV380 | 8.640-593.0 | Not Available |
| 21 | Not Available | Karcher COVER, DUST BAG HOUSING, BASALT GRAY For Model: CV380 | 8.640-594.0 | Not Available |
| 21 |  | Cover, dust bag housing, for DART with non-adjusting handle (arctic white) Sebo vacuum cleaner repair part | 7092WE | $20.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Screw STS 4 x 20-T20 (single), for FELIX and E series, DART, and 370 COMFORT | 1017 | Not Available |
| 22 | Not Available | Karcher SCREW, M4 X 20-T20 SS For Model: CV380 | 8.614-479.0 | Not Available |
| 23 | Not Available | Karcher FILTER BAG (10/PK) For Model: CV380 | 8.628-479.0 | Not Available |
| 23 |  | Sebo Vacuum Bags for Felix Upright - 8pk | 676224070299 | Original price was: $39.99.$34.99Current price is: $34.99.Add to cart |
| 24 | | Filter Cover, for FELIX Ice Blue, White, and DART (arctic white) Sebo vacuum cleaner repair part | 7091WE | $24.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Karcher FILTER COVER BASALT GREY For Model: CV380 | 8.640-595.0 | Not Available |
| 25 | Not Available | Karcher EXHAUST FILTER BACK For Model: CV380 | 8.632-214.0 | Not Available |
| 26 | Not Available | Karcher EXHAUST FILTER CLAMP BLACK For Model: CV380 | 8.632-215.0 | Not Available |
| 26 | | Exhaust Filter Clamp, for FELIX Ice Blue, Fun, and DART (gray black) Sebo vacuum cleaner repair part | 7017GS | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 | Not Available | Karcher Lower housing basalt gray For Model: CV380 | 8.641-114.0 | Not Available |
| 27 |  | Lower Housing, for DART (arctic white) Sebo vacuum cleaner repair part | 7169AM | $20.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 28 | Not Available | Karcher TUBE PLUG For Model: CV380 | 8.614-625.0 | Not Available |
| 28 | | Tube Plug, for DART (gray black) Sebo vacuum cleaner repair part | 7076GS | $5.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | | Refer to 7164WE Handle Grip, complete (2 pcs.), with grommet, cable clamp, and two screws, for DART (arctic white) Sebo vacuum cleaner repair part | 7163WE | $34.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 29 | Not Available | Karcher HANDLE GRIP, CPL, KARCHER For Model: CV380 | 8.632-217.0 | Not Available |
| 30 |  | Cable with USA-plug, for FELIX series and DART (dark gray) Sebo vacuum cleaner repair part | 7127DG | $40.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30 | Not Available | Karcher CABLE 120V, US, YELLOW For Model: CV380 | 8.640-597.0 | Not Available |
| 31 | | Sliding Button, for DART (gray black) Sebo vacuum cleaner repair part | 7035GS | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | Not Available | Karcher SLIDING BUTTON, ZINC YELLOW For Model: CV380 | 8.640-598.0 | Not Available |
| 32 | Not Available | Karcher HANDLE FRAME BLACK For Model: CV380 | 8.632-220.0 | Not Available |
| 32 | | Switch Frame, for DART (arctic white) Sebo vacuum cleaner repair part | 7178WE | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Karcher SWITCH, ROCKER 2-POL For Model: CV380 | 8.614-548.0 | Not Available |
| 33 | Not Available | Rocker Switch, 2-pol., for DART | 5138 | Not Available |
| 34 |  | Hose, complete, for FELIX Classic Sebo vacuum cleaner repair part | WP10989 | $40.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Cover Latch Spring Set, for FELIX series and DART (set of two springs: one old version, one new version) Sebo vacuum cleaner repair part | 7024ER | $7.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 | Not Available | Karcher Spring Latch filter cover set For Model: CV380 | 8.636-981.0 | Not Available |
| 36 | Not Available | Screw, AMTEC, 4 x 13 Tx 20 (single), for X7/X8, G4/G5, DART, 370 COMFORT, 300/350, D & E series | 1036 | Not Available |
| 36 | Not Available | Karcher SCREW M4 X 14 For Model: CV380 | 8.636-337.0 | Not Available |
| 37 | Not Available | Karcher PROTECTION FILM For Model: CV380 | 8.630-988.0 | Not Available |
| 37 | | Protection Film for switch, on DART Sebo vacuum cleaner repair part | 7142 | $5.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 |  | Filter Indicator, complete, for FELIX series and DART Sebo vacuum cleaner repair part | 7094ER | $12.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 38 | Not Available | Karcher FILTER INDICATOR, CPL For Model: CV380 | 8.614-167.0 | Not Available |
| 39 |  | Retaining Ring, with spring, for FELIX series and DART hose (orange) Sebo vacuum cleaner repair part | 7018OR | $7.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Karcher RETAINING RING, CPL For Model: CV380 | 8.614-463.0 | Not Available |

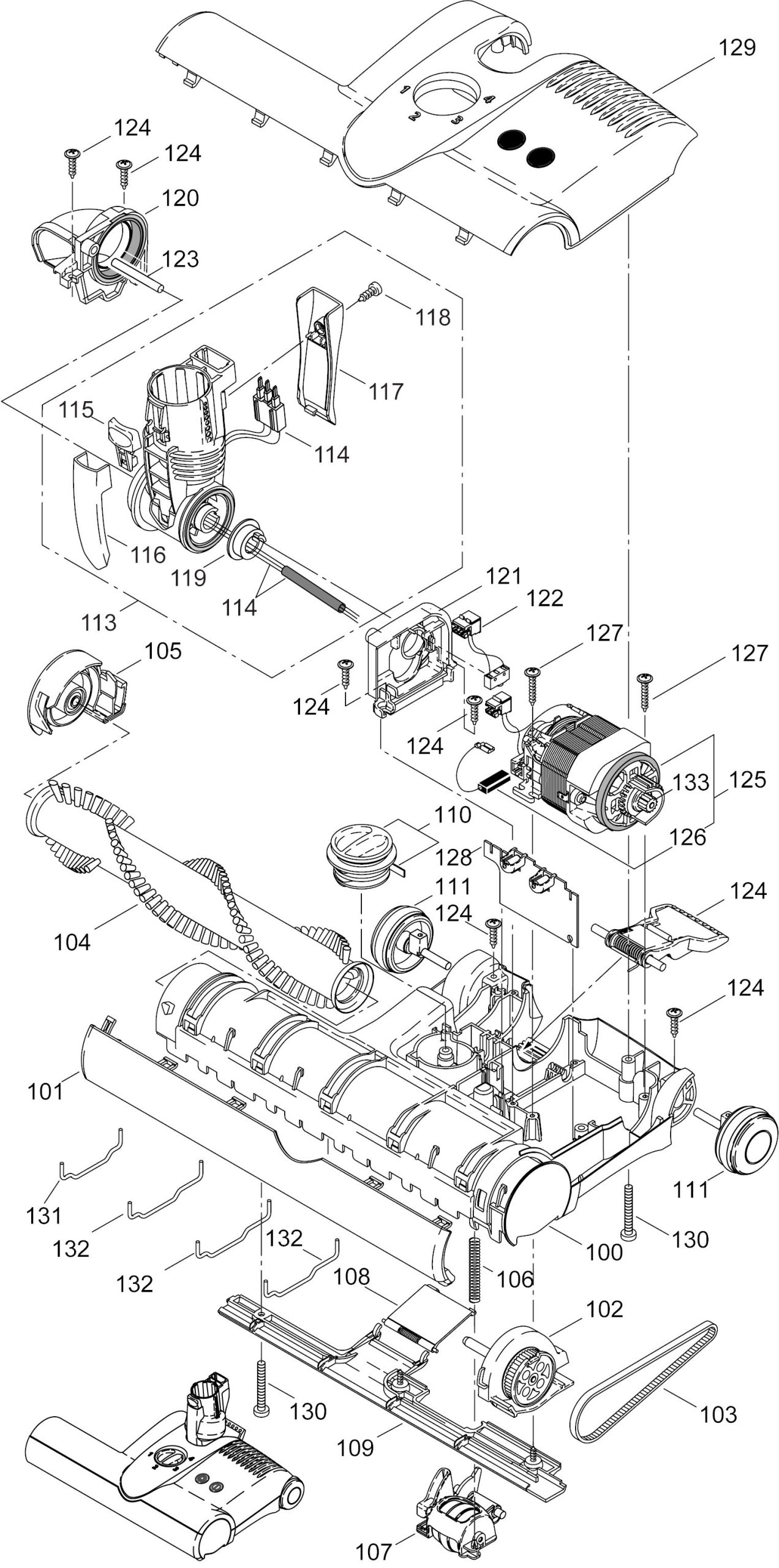

| # | Part image | Description | SKU | Price |
| 100 | Not Available | Karcher CHASSIS ET2 BLACK For Model: CV380 | 8.632-235.0 | Not Available |
| 101 | Not Available | Karcher BUMPER BLACK For Model: CV380 | 8.632-236.0 | Not Available |
| 101 |  | Bumper for ET-2 (gray black) Sebo vacuum cleaner repair part | 2303GS | $20.00Add to cart |
| 102 | Not Available | Karcher BEARING BLOCK LEFT CPL. DG For Model: CV380 | 8.632-223.0 | Not Available |
| 102 |  | Bearing Block, L.H., complete, for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part | 2314GS | $28.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 103 | Not Available | Karcher BELT, 333 3M HTDII-6 For Model: CV380 | 8.613-822.0 | Not Available |
| 103 | Not Available | Sebo Belt 333 3M HTDII-6 | 2923 | Not Available |
| 104 |  | Sebo 15" Brush Roller for ET-2 PN 2838AM | WP11496 | $44.99Read more |
| 104 | Not Available | Karcher BRUSH ROLLER 15" For Model: CV380 | 8.613-849.0 | Not Available |
| 105 |  | Bearing Block RH, complete, for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part | 2313GS | $16.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 105 | Not Available | Karcher BEARING BLOCK RH BLACK For Model: CV380 | 8.632-224.0 | Not Available |
| 106 | Not Available | Karcher SPRING For Model: CV380 | 8.614-526.0 | Not Available |
| 106 |  | Spring for axle adjustment assembly, for ET-1 and ET-2 Sebo vacuum cleaner repair part | 2929 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 107 | Not Available | Karcher ASM, PILE ADJUSTMENT For Model: CV380 | 8.613-784.0 | Not Available |
| 107 |  | Pile Adjustment Assembly, for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part | 2316GS | $18.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 108 |  | Access Door with axle and spring, for ET-1 and ET-2 (orange) Sebo vacuum cleaner repair part | 2909VO | $5.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 108 | Not Available | Karcher ACCESS DOOR ET, ZINC YELLOW For Model: CV380 | 8.640-601.0 | Not Available |
| 109 | Not Available | Karcher REAR BOTTOM PLATE CPL, 15" For Model: CV380 | 8.632-493.0 | Not Available |
| 109 |  | Rear Bottom Plate, for ET-2 (gray black) Sebo vacuum cleaner repair part | 2305GS | $12.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 110 | Not Available | Karcher BUTTON, PILE ADJUSTMENT, ZINC YELLOW For Model: CV380 | 8.640-602.0 | Not Available |
| 110 |  | Pile Adjustment Knob for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part | 2931GS | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 111 | Not Available | Karcher WHEEL BLACK For Model: CV380 | 8.632-228.0 | Not Available |
| 112 | Not Available | Karcher FOOT PEDAL, ZINC YELLOW For Model: CV380 | 8.640-604.0 | Not Available |
| 112 |  | Foot Pedal with axle and spring, for ET-1, ET-2, and DISCO (orange) Sebo vacuum cleaner repair part | 2937OR | $8.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 113 | Not Available | Karcher Swivel NECK ASSEMBLY KARCHER For Model: CV380 | 8.632-229.0 | Not Available |
| 113 |  | Swivel Neck, complete, for ET-1 and ET-2 (gray black) Sebo vacuum cleaner repair part | WP11436 | $44.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 114 |  | Wiring for swivel neck, for ET-1, ET-2, and DISCO Sebo vacuum cleaner repair part | 0876ER | $10.00Add to cart |
| 114 | Not Available | Karcher WIRING SWIVEL NECK For Model: CV380 | 8.632-230.0 | Not Available |
| 115 | Not Available | Karcher BUTTON, RELEASE For Model: CV380 | 8.613-908.0 | Not Available |
| 115 |  | Release Button with leaf spring, for ET-1, ET-2, ET-C, ET-H, and DISCO swivel necks (gray black) Sebo vacuum cleaner repair part | 1737GS | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 116 | Not Available | Karcher Button cover dark grey For Model: CV380 | 8.632-232.0 | Not Available |
| 116 | | Release Button Cover, for ET-1, ET-2, FELIX swivel neck #2307GS, and DISCO (gray black) Sebo vacuum cleaner repair part | 2952GS | $4.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 117 |  | Socket Cover TS-neck, for ET-1, ET-2, FELIX (except White), and DISCO (gray black) Sebo vacuum cleaner repair part | 2951GS | $5.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 117 | Not Available | Karcher Socket cover dark grey For Model: CV380 | 8.632-233.0 | Not Available |
| 118 | Not Available | Karcher SCREW, F3.9 X 9.5 DIN7981 For Model: CV380 | 8.614-482.0 | Not Available |
| 118 |  | Leaf Spring for microfilter holder, 370 series Sebo vacuum cleaner repair part | 1027 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 119 | Not Available | Karcher BEARING, SWIVEL NECK For Model: CV380 | 8.613-814.0 | Not Available |
| 119 |  | Swivel Neck Bearing, for ET-1, ET-2, and DISCO Sebo vacuum cleaner repair part | 2954 | $4.50Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 120 | Not Available | Karcher SUPPORT, SWIVEL NECK R.H. For Model: CV380 | 8.614-540.0 | Not Available |
| 120 |  | Swivel Neck Support, R.H., for ET-1 and ET-2 Sebo vacuum cleaner repair part | 2311 | $14.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 121 |  | Swivel Neck Support, L.H., for ET-1 and ET-2 Sebo vacuum cleaner repair part | 2312 | $14.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 121 | Not Available | Karcher SUPPORT, SWIVEL NECK L.H. For Model: CV380 | 8.614-541.0 | Not Available |
| 122 | Not Available | Sebo Wiring swivel neck switch | 880 | Not Available |
| 122 | Not Available | Karcher WIRING SWIVEL NECK SWITCH For Model: CV380 | 8.635-018.0 | Not Available |
| 123 | Not Available | Karcher AXLE For Model: CV380 | 8.613-793.0 | Not Available |
| 123 |  | Axle for swivel neck supports, for ET-1 and ET-2 Sebo vacuum cleaner repair part | 2928 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 124 | Not Available | Karcher SCREW, F3.9 X 13 DIN968 For Model: CV380 | 8.614-481.0 | Not Available |
| 124 | Not Available | Sebo Screw F 3.9x13 | 1021 | Not Available |
| 125 | Not Available | Karcher MOTOR, BRUSH 120V, 175W For Model: CV380 | 8.614-350.0 | Not Available |
| 125 |  | Brush Motor 120V, 200W, with pulley, for ET-2 Sebo vacuum cleaner repair part | 2974ER | $78.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 126 | Not Available | Karcher BRUSH SET, CARBON VAC MTR For Model: CV380 | 8.613-839.0 | Not Available |
| 126 |  | Carbon Brush Set, for ET-1 and 370 COMFORT power head (2973ER), ET-2 (2974ER), and DISCO (3252ER) Sebo vacuum cleaner repair part | 05141S | $13.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 127 | Not Available | Sebo Screw F 3.9x21 | 1020 | Not Available |
| 127 | Not Available | Karcher SCREW, F3.9 X 21 DIN968 For Model: CV380 | 8.614-480.0 | Not Available |
| 128 | Not Available | Karcher CONTROLLER BOARD ET-2, 120V, 200W For Model: CV380 | 8.642-367.0 | Not Available |
| 128 | | Printed Circuit Board, 200W, for ET-2 Power Head. (New version with yellow on/off light.) Sebo vacuum cleaner repair part | 2689ER | $49.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 129 | Not Available | Karcher Cover power Head ET2 C380 BG For Model: CV380 | Not Available | Not Available |
| 130 | Not Available | Karcher SCREW, M4-.7 X 30 PHPNHMS ZN DIN7985 For Model: CV380 | 8.614-717.0 | Not Available |
| 130 |  | Screw, AM4 x 30 DIN 7985 TL (single), for X and G series, 370 COMFORT, 300/350, ET-1, ET-2, and duo Sebo vacuum cleaner repair part | 0176TL | $0.30Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 131 | Not Available | Karcher WIRE TIE,BOTTOM PLATE,OUTER For Model: CV380 | 8.614-679.0 | Not Available |
| 131 |  | Wire Tie (short/outer), for X1/X4/ET-2/G series (1 right), X2/X5 (1 right/1 left) Sebo vacuum cleaner repair part | 5401 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 132 | Not Available | Karcher WIRE TIE,BOTTOM PLATE,CENTER For Model: CV380 | 8.614-680.0 | Not Available |
| 132 |  | Wire Tie (long), for X and G series, and ET-1/ET-2 Sebo vacuum cleaner repair part | 5402 | $2.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 133 | Not Available | Karcher BRUSH MOTOR PULLEY FM For Model: CV380 | 8.630-903.0 | Not Available |
| 133 |  | Motor Pulley, for ET-1, ET-2, and 370 COMFORT Sebo vacuum cleaner repair part | 2319 | $6.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
