Schematic and parts list for: Koblenz Model: U-310
This is a list of parts and a diagram and schematic for: Koblenz Model: U-310
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U-310 Upright Vacuum
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Koblenz Handle Grip | 13-0947-5 | Not Available |
| 2-A | No Image | PIGTAIL, END 3" Part Number: 28-1526-8 for Koblenz | 2815268 | $12.39Read more |
| 2-B | Not Available | Koblenz Cord Extension | 09-1310-3 | Not Available |
| 3 | Not Available | Koblenz Cord Retainer | 13-1462-4 | Not Available |
| 4 | Not Available | Koblenz Screw # 8 X | 01-0283-0 | Not Available |
| 5 | No Image | SCREW, 10X3/8 U75 Part Number: 01-0290-5 for Koblenz | 0102905 | $1.60Read more |
| 6 | Not Available | Koblenz Cord Hook | 05-2142-7 | Not Available |
| 8 | Not Available | Koblenz Handle Nut | 02-0141-8 | Not Available |
| 9 | Not Available | Koblenz Screw Handle | 01-2034-5 | Not Available |
| 11 | Not Available | Koblenz Screw # 6 X 3/8 | 01-0270-7 | Not Available |
| 12 | Not Available | Koblenz Knob Height | 13-1100-0 | Not Available |
| 14 | Not Available | Koblenz Felt | 37-0136-4 | Not Available |
| 16 | Not Available | Koblenz Label | 17-4335-0 | Not Available |
| 17 | Not Available | Koblenz Hood W/Lens | 05-3489-2 | Not Available |
| 18 | No Image | SPRING, HOOD U110/U210/U310/U510/U610 Part Number: 24-0271-7 for Koblenz | 2402717 | $4.78Read more |
| 19 | Not Available | Koblenz Nut # 10-32 | 02-0037-8 | Not Available |
| 20 | Not Available | Koblenz Star Washer | 04-0271-9 | Not Available |
| 21 | Not Available | Koblenz Bag Support | 13-2127-2 | Not Available |
| 22 | No Image | SCREW, SECURES BAG SUPPORT TO MACHINE Part Number: 01-0742-5 for Koblenz | 0107425 | $1.63Read more |
| 23 | Not Available | Koblenz Ball | 26-0001-3 | Not Available |
| 24 | No Image | SPRING, Part Number: 24-0014-1 for Koblenz | 2400141 | $5.50Read more |
| 25 | Not Available | Koblenz Bag Knob Spacer | 05-0997-6 | Not Available |
| 26 | Not Available | Koblenz Bag Knob | 13-2126-4 | Not Available |
| 27 | No Image | SCREW, SECURES KNOB THAT HOLDS BAG TO METAL UPRTS Part Number: 01-0743-3 for Koblenz | 0107433 | $1.63Read more |
| 28 | No Image | SCREW, SELF TAPPING Part Number: 01-0154-3 for Koblenz | 0101543 | $1.69Read more |
| 29 | Not Available | Koblenz Hexagonal Nut | 02-0007-1 | Not Available |
| 30 | Not Available | Koblenz Star Washer | 04-0271-9 | Not Available |
| 31 | No Image | SCREW, REAR WHEEL RETAINING Part Number: 01-1247-4 for Koblenz | 0112474 | $1.63Read more |
| 32-B | Not Available | Koblenz Plastic Strap | 13-1601-7 | Not Available |
| 32 | Not Available | Koblenz Permanent Cloth Bag Assembly | 46-2941-6 | Not Available |
| 32 |  | Cloth Bag, Dump U75/U80/U90 Commercial Part Number: 46-3231-1 for Koblenz | 4632311 | $78.76Read more |
| 33-B | Not Available | Koblenz Plastic Strap | 13-1128-1 | Not Available |
| 33-C | No Image | SPRING, BAG CONNECTOR U310 Part Number: 24-0233-7 for Koblenz | 2402337 | $4.32Read more |
| 33-D | Not Available | Koblenz Zipper Bag Hose | 12-0548-3 | Not Available |
| 34-B | Not Available | Koblenz Bag Coupling | 13-2196-7 | Not Available |
| 34-A | Not Available | Koblenz Bag Coupling Gasket | 12-0550-9 | Not Available |
| 34 |  | Gasket, Black Bag Coupling Assembly U310/U180/U610 Part Number: 46-2105-8 for Koblenz | 4621058 | $18.65Read more |
| 35 |  | Paper Bag, Singer Type Sub1 Upright 3 Pk Part Number: 32025 for Singer | 32025 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Koblenz Clip Bag | 05-3356-2 | Not Available |
| 37 | No Image | SPRING, CLOTH BAG D/C Part Number: 24-0232-9 for Koblenz | 2402329 | $3.26Read more |

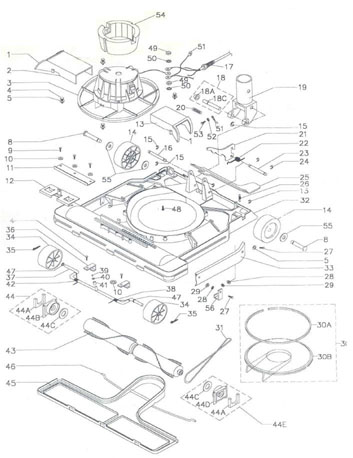

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Koblenz Air Duct Gasket 0.325 | 12-0258-9 | Not Available |
| 2 | Not Available | Koblenz Right Air Duct | 13-1095-2 | Not Available |
| 3 | No Image | Motor Assembly, U310Z Part Number: 46-2542-01-0 for Koblenz | 462542010 | $222.04Read more |
| 4 | Not Available | Koblenz Screw 8-32 X | 01-1391-0 | Not Available |
| 5 | Not Available | Koblenz Flat Washer | 04-0065-5 | Not Available |
| 8 | Not Available | Koblenz Rear Wheel Axle | 25-1242-4 | Not Available |
| 9 | Not Available | Koblenz Screw 632 X 3/8 | 01-0846-4 | Not Available |
| 10 | Not Available | Koblenz Flat Washer | 04-0026-7 | Not Available |
| 11 | Not Available | Koblenz Plate Cam Guide | 05-3069-1 | Not Available |
| 12 | No Image | SPRING, CAM U110 Part Number: 46-1898-9 for Koblenz | 4618989 | $15.49Read more |
| 13 | Not Available | Koblenz Left Air Duct | 13-1096-0 | Not Available |
| 14 | Not Available | Koblenz Rear Wheel | 13-1090-3 | Not Available |
| 17 | Not Available | Koblenz Grommet Heyco | 25-0515-2 | Not Available |
| 18-B | Not Available | Koblenz Switch Shaft | 25-1002-2 | Not Available |
| 18-A | Not Available | Koblenz Switch Actuator | 13-1292-5 | Not Available |
| 18 | No Image | SWITCH ACTUATOR - KOBLENZ U-110 Part Number: 46-2106-6 for Koblenz | 4621066 | $11.66Read more |
| 19 | Not Available | Koblenz Tube Socket | 06-0567-5 | Not Available |
| 20 | No Image | SPRING, HANDLE CAM UPRIGHT Part Number: 24-0259-2 for Koblenz | 2402592 | $1.63Read more |
| 21 | Not Available | Koblenz Handle Cam | 05-3061-8 | Not Available |
| 22 | No Image | SPRING, CAM UPRIGHTS Part Number: 24-0249-3 for Koblenz | 2402493 | $4.23Read more |
| 23 | Not Available | Koblenz Cam Shaft | 25-1003-0 | Not Available |
| 24 | Not Available | Koblenz C .Washer | 04-0242-0 | Not Available |
| 25 | Not Available | Koblenz Pedal | 05-3062-6 | Not Available |
| 26 | Not Available | Koblenz Spring | 240193-3 | Not Available |
| 27 | Not Available | Koblenz Screw 10-32 X 1/2 | 01-1609-5 | Not Available |
| 28 | Not Available | Koblenz Star Washer | 04-0271-9 | Not Available |
| 29 | Not Available | Koblenz Nut 10-32 | 02-0037-8 | Not Available |
| 30 |  | FAN COVER, U110 U210 U310 U610 UPRIGHT Part Number: 46-2036-5 for Koblenz | 4620365 | $20.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 30-A | Not Available | Koblenz Fan Cover Gasket | 12-0813-4 | Not Available |
| 30-B | | FAN COVER, U110 U210 U310 U610 UPRIGHT Part Number: 46-2036-5 for Koblenz | 4620365 | $20.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 |  | Belt, Koblenz Commercial Uprights, Clear Round Part Number: 12-0814-01-7 for Koblenz | 120814017 | $8.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | Not Available | Koblenz Chassis | 06-0638-0 | Not Available |
| 33 | Not Available | Koblenz Bomber | 12-0589-7 | Not Available |
| 34 | No Image | WHEEL, FRONT U210 Part Number: 13-2705-5 for Koblenz | 1327055 | $8.55Read more |
| 35 | Not Available | Koblenz Clip | 25-0012-2 | Not Available |
| 36 | Not Available | Koblenz Front Axle Retainer | 05-3068-3 | Not Available |
| 37 | Not Available | Koblenz Front Axle Assembly | 46-1723-9 | Not Available |
| 38 | No Image | SPRING, FRONT AXLE U510 Part Number: 24-0229-5 for Koblenz | 2402295 | $4.43Read more |
| 39 | Not Available | Koblenz Type " B " Rivet | 03-0127-5 | Not Available |
| 40 | Not Available | Koblenz Flat Washer | 04-0019-2 | Not Available |
| 41 | Not Available | Koblenz Bushing | 25-1065-9 | Not Available |
| 42 | Not Available | Koblenz Front Axle Spring | 24-0234-5 | Not Available |
| 43 |  | Brushroll, 12 In U310/U75 Uprt W/Ends Cmmrcial U80 Part Number: 46-2375-7 for Koblenz | 4623757 | $32.04Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44-E | Not Available | Koblenz Bering Support Assembly | 46-2343-5 | Not Available |
| 44-D | Not Available | Koblenz Left Bearing Support | 13-1801-3 | Not Available |
| 44-C | Not Available | Koblenz Felt | 37-0130-7 | Not Available |
| 44-B | Not Available | Koblenz Right Bearing Support | 13-1252-9 | Not Available |
| 44-A |  | GASKET, BEARING SUPPORT U210 Part Number: 12-0522-8 for Koblenz | 1205228 | $3.29Read more |
| 44 | Not Available | Koblenz Bearing Support Assembly | 46-2107-4 | Not Available |
| 45 |  | BOTTOM PLATE, U210 UPRIGHT Part Number: 46-2035-7 for Koblenz | 4620357 | $39.81Read more |
| 46 | Not Available | Koblenz Retaining Shaft | 25-0997-4 | Not Available |
| 47 | Not Available | Koblenz Flat Washer | 04-0047-3 | Not Available |
| 48 | Not Available | Koblenz Screw 8-32 | 01-1249-0 | Not Available |
| 49 | Not Available | Koblenz Nut 8-32 | 02-0007-1 | Not Available |
| 50 | Not Available | Koblenz Star Washer | 04-0276-8 | Not Available |
| 51 | Not Available | Koblenz Ground Lead | 28-0476-3 | Not Available |
| 52 | Not Available | Koblenz Star Washer | 04-0275-0 | Not Available |
| 53 | No Image | SCREW, U210 Part Number: 01-0931-4 for Koblenz | 0109314 | $1.87Read more |
| 54 | Not Available | Koblenz Motor Noise Reducer | 12-0588-9 | Not Available |
| 55 | Not Available | Koblenz Flat Washer | 04-0587-8 | Not Available |

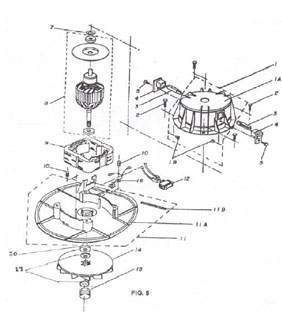

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Koblenz Motor Cover Assembly | 46-2108-2 | Not Available |
| 1-A | Not Available | Koblenz Motor Cover | 13-1091-1 | Not Available |
| 1-B | Not Available | Koblenz Nut 8-32 | 02-0096-4 | Not Available |
| 2 | Not Available | Koblenz Screw Type 8-18 X 3/4 | 01-0071-9 | Not Available |
| 3 | Not Available | Koblenz Brush Holder Assembly | 46-2024-1 | Not Available |
| 4 | Not Available | Koblenz Brush Holder Support | 13-1121-6 | Not Available |
| 5 | Not Available | Koblenz Screw 8-32 X 3/8 | 01-0375-4 | Not Available |
| 7 | Not Available | Koblenz End. Play Washer .850 X .017 | 04-0397-2 | Not Available |
| 8 | Not Available | Koblenz Armature Assembly | 28-0580-2 | Not Available |
| 9 | Not Available | Koblenz Field Assembly | 28-0628-9 | Not Available |
| 10 | No Image | SPRING, MOTOR U310 Part Number: 24-0228-7 for Koblenz | 2402287 | $4.08Read more |
| 11-B | No Image | GASKET, FAN COVER UPRIGHT Part Number: 12-0495-7 for Koblenz | 1204957 | $4.63Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11-A | No Image | MOTOR BASE, U210 UPRIGHT Part Number: 13-1758-5 for Koblenz | 1317585 | $32.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Koblenz Motor Base With Gasket | 46-2109-0 | Not Available |
| 12 |  | Switch, Black Rectangular Rocker Koblenz U310/U75 Part Number: 11-0159-1 for Koblenz | 1101591 | $11.63Read more |
| 14 | Not Available | Koblenz Fan | 13-2442-5 | Not Available |
| 15 | Not Available | Koblenz Belt Pulley Nut | 02-0208-5 | Not Available |
| 16 | Not Available | Koblenz Group Washer | 30-0207-8 | Not Available |
| 17 | Not Available | Koblenz Screw 10-24 X 3/8 | 01-0375-4 | Not Available |
| 18 | Not Available | Koblenz Washer | 04-0271-9 | Not Available |
| 19 | Not Available | Koblenz Washer | 04-0123-2 | Not Available |
| 20 | Not Available | Koblenz Spacer | 26-0221-7 | Not Available |
