Schematic and parts list for: Koblenz Model: U-900
This is a list of parts and a diagram and schematic for: Koblenz Model: U-900
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U-900 Upright Vacuum
| # | Part image | Description | SKU | Price |
| 9 | Not Available | Koblenz Vented Support Fitting | 49-5602-26-0 | Not Available |
| 11 | Not Available | Koblenz Furniture Guard (Black) | 49-5602-23-7 | Not Available |
| 12 | Not Available | Koblenz Foot Pedal Complete (B) (Black) | 49-5602-28-6 | Not Available |
| 20 | Not Available | Koblenz Belt Guard | 49-5602-55-9 | Not Available |
| 22 | Not Available | Koblenz Belt | 49-5602-48-4 | Not Available |

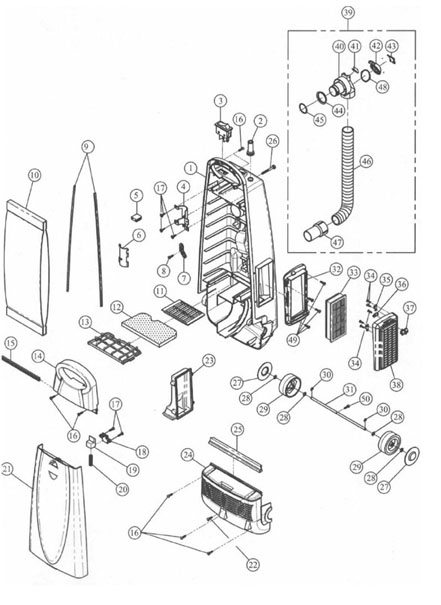

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Koblenz Dust Compartment (Graphite 426C) | 49-5602-22-9 | Not Available |
| 3 | Not Available | Koblenz Switch (Mr-R30) Black | 49-5602-51-8 | Not Available |
| 5 | Not Available | Koblenz Vented Support Rubber | 49-5602-54-2 | Not Available |
| 7 | Not Available | Koblenz Cord Holder (Black) | 49-5602-25-2 | Not Available |
| 10 |  | Paper Bag, U800/U900 3 Pk Part Number: 45-0769-5 for Koblenz | 4507695 | $20.38Read more |
| 12 | Not Available | Koblenz C Secondary Filter (A) | 49-5602-60-9 | Not Available |
| 13 | Not Available | Koblenz Bag Supporter (Red) | 49-5602-10-4 | Not Available |
| 14 | Not Available | Koblenz Switch Housing Cover (Graphite 426C) | 49-5602-03-9 | Not Available |
| 21 | Not Available | Koblenz H Dust Cover (Gray 423C) | 49-5602-02-1 | Not Available |
| 24 | Not Available | Koblenz Motor Cover (Graphite 426C) | 49-5602-04-7 | Not Available |
| 29 | Not Available | Koblenz Rear Wheel (Black) | 49-5602-29-4 | Not Available |
| 31 | Not Available | Koblenz Rear Wheel Shaft (A) | 49-5602-30-2 | Not Available |
| 33 | Not Available | Koblenz Hepa Filter Ass. | 49-5602-13-8 | Not Available |
| 37 | Not Available | Koblenz Hepa Cover Knob (Black) | 49-5602-17-9 | Not Available |
| 38 | Not Available | Koblenz Hepa Filter Cover (Graphite 426C) | 49-5602-12-0 | Not Available |
| 39 | Not Available | Koblenz Stretch Hose Complete (Black) | 49-5602-37-7 | Not Available |
| 43 | Not Available | Koblenz Suction Control Dial (Black) | 49-5602-39-3 | Not Available |

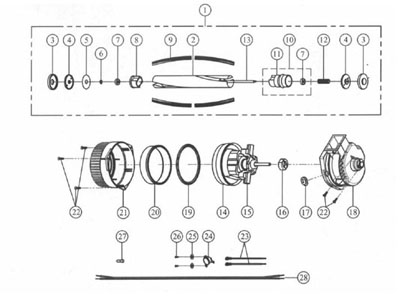

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Koblenz Agitator Assembly (Metal) | 49-5602-33-6 | Not Available |
| 3 | Not Available | Koblenz Rubber End Cover (Black) | 49-5602-45-0 | Not Available |
| 4 | Not Available | Koblenz End Cap | 49-5602-35-1 | Not Available |
| 7 | Not Available | Koblenz Agitator Bearing (626Dd) | 49-5602-34-4 | Not Available |
| 9 | Not Available | Koblenz Agitator Brush | 49-5602-36-9 | Not Available |
| 10 | Not Available | Koblenz Agitator Pulley Complete | 49-5602-56-7 | Not Available |
| 15 | Not Available | Koblenz Lamb Carbon Brush (For Singer Fan) | 49-5602-53-4 | Not Available |
| 16 | Not Available | Koblenz Motor Mount (Front) | 49-5602-46-8 | Not Available |
| 18 | Not Available | Koblenz Motor Support Cover Complete (Black) | 49-5602-16-1 | Not Available |
| 21 | Not Available | Koblenz Motor Support Housing Ass. (Black) | 49-5602-49-2 | Not Available |
| 24 | Not Available | Koblenz Thermal Switch (Us-603 100I) | 49-5602-50-0 | Not Available |

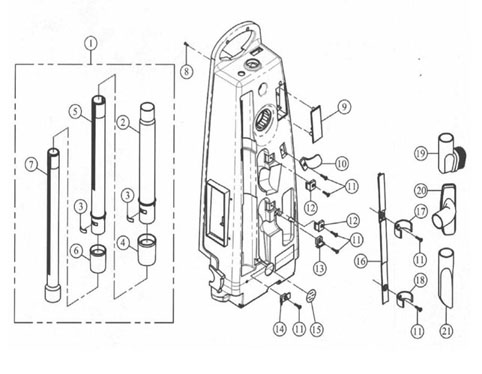

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Koblenz 3-Piece Telescopic Wand(Black) | 49-5602-41-9 | Not Available |
| 9 | Not Available | Koblenz Check Bag Complete Cover(Graphite 426C) | 49-5602-15-3 | Not Available |
| 10 | Not Available | Koblenz Stretch Hose Clip (Black) | 49-5602-11-2 | Not Available |
| 13 | Not Available | Koblenz Upholstery Tool Clip (Black) | 49-5602-44-3 | Not Available |
| 14 | Not Available | Koblenz Wand Retainer Clip (Black) | 49-5602-20-3 | Not Available |
| 16 | Not Available | Koblenz Motor Cord Cover (Graphite 426C) | 49-5602-24-5 | Not Available |
| 19 | Not Available | Koblenz Dusting Brush (Black) | 49-5602-42-7 | Not Available |
| 20 | Not Available | Koblenz Upholstery Tool (Black) | 49-5602-44-3 | Not Available |
| 21 | Not Available | Koblenz Crevice Tool (Black) | 49-5602-43-5 | Not Available |
| # | Part image | Description | SKU | Price |
| 7 | Not Available | Koblenz Bottom Plate Assembly (Lock) | 49-5602-59-1 | Not Available |
| 9 | Not Available | Koblenz Bottom Plate Wheel Pin | 49-5602-32-8 | Not Available |
| 11 | Not Available | Koblenz -On Nut (Psn-4) | 49-5602-62-5 | Not Available |
| 18 | Not Available | Koblenz Power Cord (50Ft Sjt 16Awg)Yellow-Two Terminal | 49-5602-21-1 | Not Available |
