Schematic and parts list for: Oreck Model: 1500

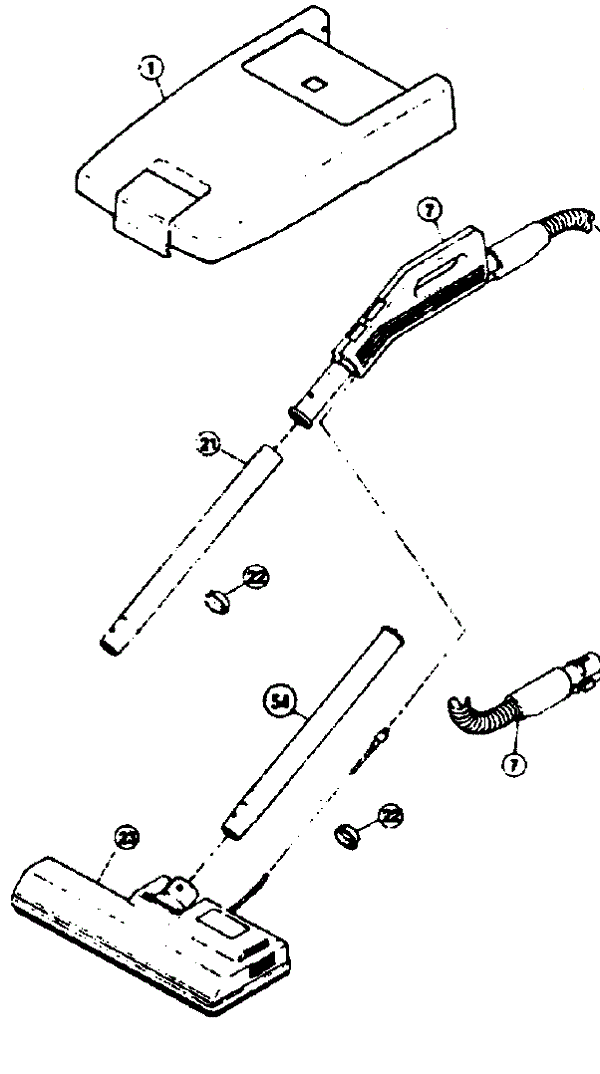

This is a list of parts and a diagram and schematic for: Oreck Model: 1500
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 1500
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Oreck Cover Assembly | 6034970 | Not Available |
| 2 | Not Available | Oreck Bag Full Switch | 108842 | Not Available |
| 3 | Not Available | Oreck Bag Full Indicator Mt. | 135968 | Not Available |
| 4 | Not Available | Oreck Bag Full Tube | 139469 | Not Available |
| 5 | Not Available | Oreck Intake Filter | 103296 | Not Available |
| 6 | Not Available | Oreck Intake Filter | 103298 | Not Available |
| 7 | Not Available | Oreck Hose and Handle Assembly | 144455 | Not Available |
| 8 | Not Available | Oreck Paper Bag Adaptor Plate Assy | 6037016 | Not Available |
| 9 | Not Available | Oreck Paper Bag, 10 pk | FNLA | Not Available |
| 10 | Not Available | Oreck Intake Filter Cage | 131518 | Not Available |
| 11 | Not Available | Oreck Power Button | FNLA | Not Available |
| 12 | Not Available | Oreck Spring Button | 108444 | Not Available |
| 13 | Not Available | Oreck Bag Latch | 135514 | Not Available |
| 14 | No Image | LATCH, HOSE 1500 Part Number: 013-5513 for Oreck | 135513 | $8.41Read more |
| 15 | Not Available | Oreck Bumper | 130372 | Not Available |
| 16 | Not Available | Oreck Cord Rewind Button | 151310 | Not Available |
| 17 | Not Available | Oreck Exhaust Filter | 103297 | Not Available |
| 18 | Not Available | Oreck Exhaust Grill | 134186 | Not Available |
| 19 | No Image | HOUSING, MODEL 1500 Part Number: 013-4927 for Oreck | 134927 | $51.40Read more |
| 20 | Not Available | Oreck Housing Seal Assembly | 147752 | Not Available |
| 21 | Not Available | Oreck Wand, upper, slotted | 109673 | Not Available |
| 22 | Not Available | Oreck Cord Clip | 102473 | Not Available |
| 23 | No Image | POWER NOZZLE, BIGFOOT Part Number: 010-3606 for Oreck | 103606 | $339.02Read more |
| 24 | Not Available | Oreck Wire Cover | 132971 | Not Available |
| 25 | Not Available | Oreck Housing Wire Harness | 104457 | Not Available |
| 26 | Not Available | Oreck Swivel Roller Assy | 147017 | Not Available |
| 27 | Not Available | Oreck Bleeder Valve Rim Seal | 107753 | Not Available |
| 28 | Not Available | Oreck Bleeder Valve Spring | 108442 | Not Available |
| 30 | Not Available | Oreck Power Switch Support | 131057 | Not Available |
| 31 | Not Available | Oreck Switch | 108846 | Not Available |
| 32 | Not Available | Oreck Switch Back-Up Plate | 137020 | Not Available |
| 33 | Not Available | Oreck Exhaust Seal | 107756 | Not Available |
| 34 | Not Available | Oreck Exhaust Seal Clip | 102467 | Not Available |
| 35 | Not Available | Oreck Wheel Spacer | 138304 | Not Available |
| 36 | Not Available | Oreck Wheel Replace Assembly | 6039763 | Not Available |
| 37 | Not Available | Oreck Motor Gasket | 104016 | Not Available |
| 38 | Not Available | Oreck Intake Grill | 134187 | Not Available |
| 39 | No Image | MOTOR, CANISTER CELOC 1500 Part Number: 010-5967 for Oreck | 105967 | $111.64Read more |
| 40 | Not Available | Oreck Motor Gasket, rear | 104015 | Not Available |
| 41 | Not Available | Oreck Wire Nut | 102655 | Not Available |
| 42 | Not Available | Oreck Cord and Reel Set | 102889 | Not Available |
| 43 | Not Available | Oreck Cord brake Striker | 138701 | Not Available |
| 44 | Not Available | Oreck Brake Cord Assembly | 141112 | Not Available |
| 45 | Not Available | Oreck Screw | 8807145 | Not Available |
| 46 | No Image | BASE & LABEL ASSY, MODEL 1500 Part Number: 603-0467 for Oreck | 6030467 | $12.54Read more |
| 47 | Not Available | Oreck Screw | 8807028 | Not Available |
