Schematic and parts list for: Oreck Model: DS1700HY

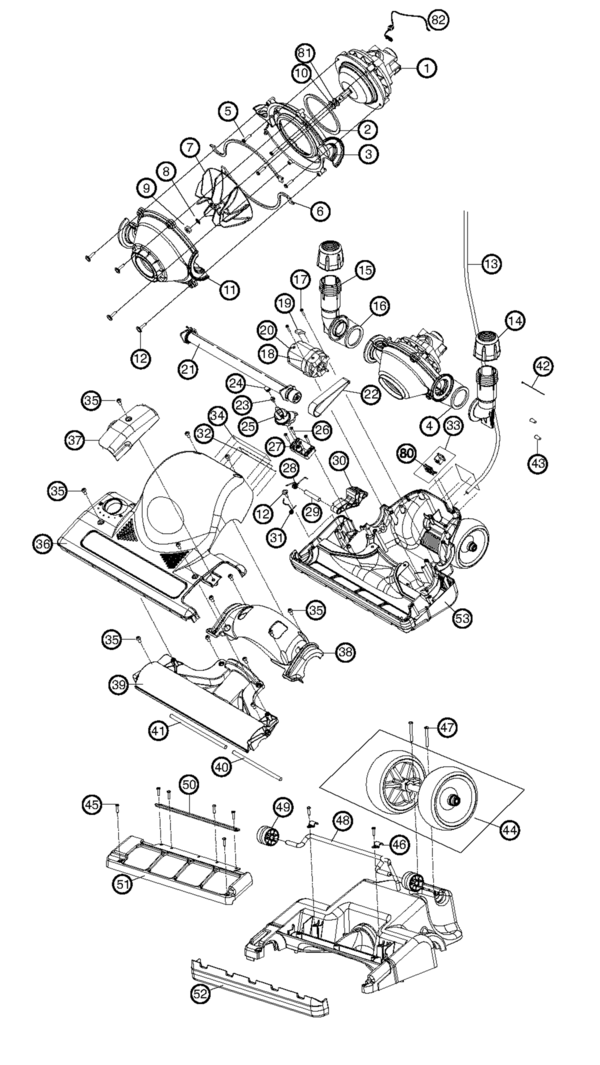

This is a list of parts and a diagram and schematic for: Oreck Model: DS1700HY
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: DS1700HY XL Pro
Popular Supplies
Helpful Repair Videos
# | Part image | Description | SKU | Price |
xx | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. | |
xx | Not Available | Oreck Standard Fastener And Hardware Listing | FNLA | Not Available |
1 | Not Available | Oreck Fan Motor Kit | 09-78148-01 | Not Available |
2 | Not Available | Oreck Motor Cap Gasket | 78000-01 | Not Available |
3 | Not Available | Oreck Rear Scroll Housing - (Order #4 & #6 Also) | 78147-02-0327 | Not Available |
4 | Not Available | Oreck Scroll Liner Ring | 78107-01 | Not Available |
5 | Not Available | Oreck Rear Scroll Housing | 03-00588-01M | Not Available |
6 | No Image | Gasket, Blk Scroll Inner Dual Stack DS1600/DS1607 Part Number: 78006-01 for Oreck | 7800601 | $3.41Read more |
7 | Not Available | Oreck Fan | 78149-01-0000 | Not Available |
8 | Not Available | Oreck Fan Washer | 03-00480-01M | Not Available |
9 | Not Available | Oreck Fan Nut | 03-00448-01M | Not Available |
10 | Not Available | Oreck Washer | 03-00597-01M | Not Available |
11 | Not Available | Oreck Forward Scroll Housing - (Order #4 Also) | 78146-02-0327 | Not Available |
12 | Not Available | Oreck Front Scroll Housing/Cha | 03-00451-01M | Not Available |
13 | Not Available | Oreck Harness, 3 Conductor W/ Terminal | 78153-52-327 | Not Available |
14 | Not Available | Oreck Pivot Collar | 78018-01-0327 | Not Available |
15 | Not Available | Oreck Pivot Assembly | 78019-04-0327 | Not Available |
16 | No Image | GASKET, PIVOT DUAL STACK Part Number: 78011-01 for Oreck | 7801101 | $4.86Read more |
17 | Not Available | Oreck Screw | 03-00490-23M | Not Available |
18 | Not Available | Oreck Motor Seal | 75095-01 | Not Available |
19 | Not Available | Oreck Gasket, 1.0 X .5 X 1.88 | 78084-01 | Not Available |
20 | Not Available | Oreck Roller Brush Motor | FNLA | Not Available |
21 | Not Available | Oreck Brush Roll Assembly | FNLA | Not Available |
22 | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart | |
23 | Not Available | Oreck Shoulder Bolt | 03-00508-01M | Not Available |
24 | Not Available | Oreck Glamour Cap | 78109-01 | Not Available |
25 | Not Available | Oreck Cha Knob | 78100-01-0327 | Not Available |
26 | Not Available | Oreck Detent Cap | 03-00518-01M | Not Available |
27 | Not Available | Oreck Detent Cap | FNLA | Not Available |
28 | Not Available | Oreck Detent Spring | 03-00506-01 | Not Available |
29 | Not Available | Oreck Detent Axle | 03-00505-01 | Not Available |
30 | Not Available | Oreck Detent Pedal | 78093-01-449 | Not Available |
31 | Not Available | Oreck Cha Spring | 03-00515-02 | Not Available |
32 | Not Available | Oreck Label, Tco Reset | 78114-01 | Not Available |
33 | Not Available | Oreck Kit, Plug & Square Strain Relief | 78131-01 | Not Available |
34 | Not Available | Oreck Servicing Label | FNLA | Not Available |
35 | Not Available | Oreck Insert Screw | 03-00519-02M | Not Available |
36 | Not Available | Oreck Top Cover Assembly W/Labels | 09-78176-01 | Not Available |
37 | Not Available | Oreck Belt Door | 78075-01-0384 | Not Available |
38 | Not Available | Oreck Cover, Inner-Base, Rear, 16" Nozzle | 78072-01-0384 | Not Available |
39 | Not Available | Oreck Front Inner-Cover Assembly - (Order #40 & #41 Also) | 09-78156-51 | Not Available |
40 | No Image | GASKET, INNER-BASE COVER FRONT LEFT DS1600 Part Number: 7805501 for Oreck | 7805501 | $4.72Read more |
41 | No Image | GASKET, INNER-BASE COVER FRONT RIGHT DS1600 Part Number: 7805601 for Oreck | 7805601 | $4.72Read more |
42 | Not Available | Oreck Cable Tie | 03-00404-01 | Not Available |
43 | Not Available | Oreck Wire Nut | 03-00599-01M | Not Available |
44 | Not Available | Oreck Rear Wheel Assembly | 09-78113-52 | Not Available |
45 | Not Available | Oreck Cha Axle / Skidplate | 03-00413-23M | Not Available |
46 | Not Available | Oreck Axle Clamp | 03-00510-01 | Not Available |
47 | Not Available | Oreck Rear Wheel Axle | 03-00402-01M | Not Available |
48 | Not Available | Oreck Cha Axle | 03-00509-01 | Not Available |
49 | Not Available | Oreck Front Wheel | 78101-01-0327 | Not Available |
50 | Not Available | Oreck Micro Sweep Blade | 78076-02 | Not Available |
51 | Not Available | Oreck Skid Plate, 16" Nozzle | FNLA | Not Available |
52 | Not Available | Oreck Bumper 16" Nozzle | 78034-01-0329 | Not Available |
53 | Not Available | Oreck Baseplate Assembly, 16" | FNLA | Not Available |
54 | Not Available | Oreck Handle, Right | 78165-01-0327 | Not Available |
55 | Not Available | Oreck Steel Bushing Ring | 03-00598-01M | Not Available |
56 | Not Available | Oreck Cord, 3 Conductor W/O Locking Mechanism | FNLA | Not Available |
57 | Not Available | Oreck Handle, Left | 78166-01-0327 | Not Available |
58 | Not Available | Oreck D Handle | 03-00476-01M | Not Available |
59 | Switch, Blk Rocker 1-Speed Handle Type 6 XL7 Uprts Part Number: 430000914 for Oreck | 430000914 | $10.31Add to cart Product is special order please allow 2-4 weeks for delivery. | |
60 | Cord Hook, Black 9800 Model Part Number: 430001073 for Oreck | 430001073 | $18.32Add to cart Product is special order please allow 2-4 weeks for delivery. | |
61 | Not Available | Oreck Handle Tube | FNLA | Not Available |
64 | Not Available | Oreck Clamps | 03754M | Not Available |
76 | Not Available | Oreck Nut Plate | 03-00516-01M | Not Available |
78 | No Image | SCREW, CLAMP DS1600 Part Number: 030051701M for Oreck | 030051701M | $35.64Read more |
84 | Not Available | Oreck Ground Screw | 03-00507-01M | Not Available |
