Schematic and parts list for: Oreck Model: FC1000

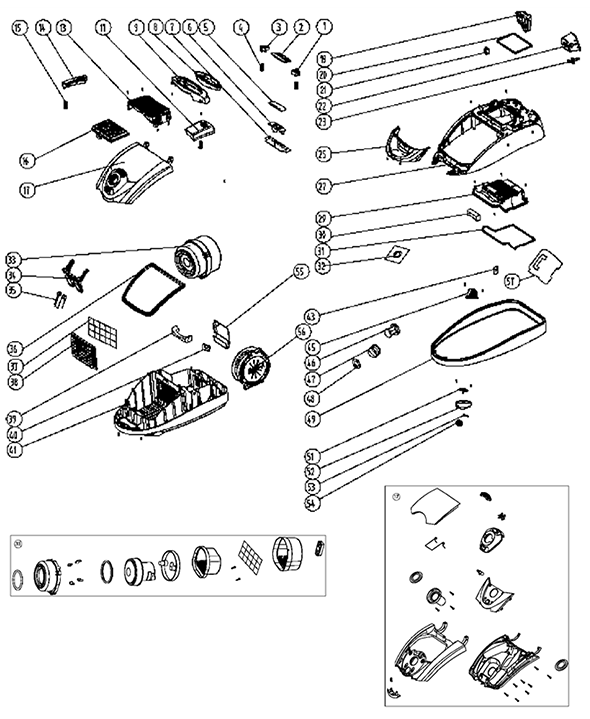

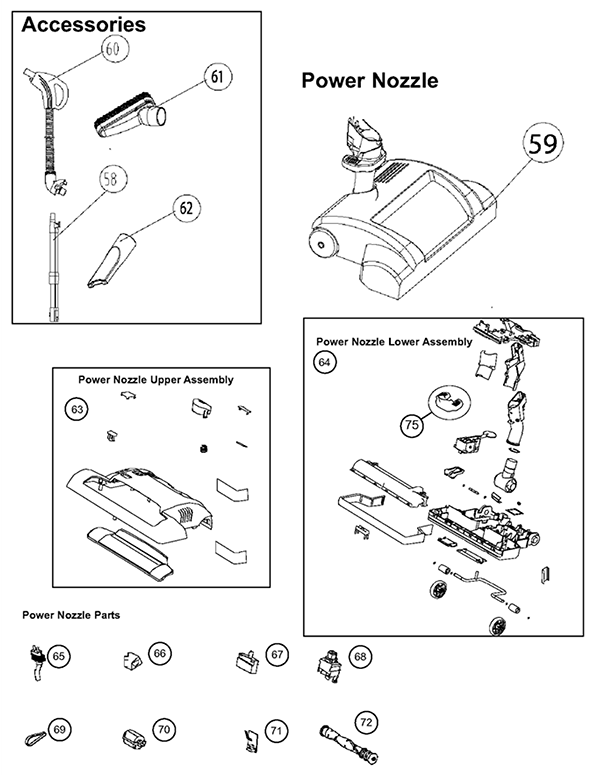

This is a list of parts and a diagram and schematic for: Oreck Model: FC1000
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: FC1000 Quest Pro
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Oreck Power Down Button | 82379-01 | Not Available |
| 2 | Not Available | Oreck Power Indicator Panel | 82330-01 | Not Available |
| 3 | No Image | Switch, Power Up Button FC1000 Part Number: 82331-01 for Oreck | 8233101 | $1.84Read more |
| 4 | Not Available | Oreck Spring For Power Regulation Button | 82332-01 | Not Available |
| 5 | Not Available | Oreck Power Indicator Cover | 82333-01 | Not Available |
| 6 | Not Available | Oreck Middle Light Lens | 82334-01 | Not Available |
| 7 | Not Available | Oreck Light Led | 82336-01 | Not Available |
| 8 | Not Available | Oreck Decoration Part | 82335-01 | Not Available |
| 9 | Not Available | Oreck Indicator | 82337-01 | Not Available |
| 11 | Not Available | Oreck Cord Rewinder | 82338-01 | Not Available |
| 13 | Not Available | Oreck Air Outlet Filter Cover | 82339-01 | Not Available |
| 14 | No Image | BUTTON, POWER SWITCH FC1000 CANISTER Part Number: 82340-01 for Oreck | 8234001 | $3.24Read more |
| 15 | Not Available | Oreck Spring | 82341-01 | Not Available |
| 16 | Not Available | Oreck Fc1000 Hepa Filter | FCX1000FILT | Not Available |
| 17 | Not Available | Oreck Fc1000, Front Cover Assembly | 82343-01 | Not Available |
| 19 | Not Available | Oreck Hook | 82378-01 | Not Available |
| 20 | Not Available | Oreck Middle Housing Seal | 82344-01 | Not Available |
| 21 | Not Available | Oreck Switch | 82345-01 | Not Available |
| 22 | Not Available | Oreck Cord Outlet Guider | 82346-01 | Not Available |
| 23 | Not Available | Oreck Inserter | 82347-01 | Not Available |
| 25 | Not Available | Oreck Handle Cover | 82348-01 | Not Available |
| 27 | Not Available | Oreck Middle Housing | 82349-01 | Not Available |
| 29 | Not Available | Oreck Motor Housing | 82350-01 | Not Available |
| 30 | Not Available | Oreck Motor Housing Cushion | 82351-01 | Not Available |
| 31 | Not Available | Oreck Motor Housing Seal | 82352-01 | Not Available |
| 32 |  | Oreck FC1000 Canister Vacuum Bags | PK12FC1000 | $44.99Read more |
| 33 | No Image | Motor, Sub Assy FC1000 Canister W/Power Nozzle Part Number: 82353-01 for Oreck | 8235301 | $102.94Read more |
| 34 | Not Available | Oreck Dust Bag Holder | 82354-01 | Not Available |
| 35 | Not Available | Oreck Dust Bag Holder Spring | 82355-01 | Not Available |
| 36 | Not Available | Oreck Dust Compartment Seal | 82356-01 | Not Available |
| 37 | Not Available | Oreck Air Inlet Filter | 82357-01 | Not Available |
| 38 | Not Available | Oreck Air Inlet Filter Frame | 82358-01 | Not Available |
| 39 | Not Available | Oreck Motor Housing Cushion | 82359-01 | Not Available |
| 40 | Not Available | Oreck Cord Outler Protector 1 | 82360-01 | Not Available |
| 41 | Not Available | Oreck Bottom Housing | 82361-01 | Not Available |
| 43 | Not Available | Oreck Cord Outlet Protector 2 | 82362-01 | Not Available |
| 45 | Not Available | Oreck Safety Valve Housing | 82363-01 | Not Available |
| 46 | Not Available | Oreck Safety Valve Core | 82364-01 | Not Available |
| 47 | Not Available | Oreck Safety Valve Spring | 82365-01 | Not Available |
| 48 | Not Available | Oreck Safety Valve Seal | 82366-01 | Not Available |
| 49 | Not Available | Oreck Middle Housing Bumper | 82367-01 | Not Available |
| 51 | Not Available | Oreck All Way Wheel Fixer | 82368-01 | Not Available |
| 52 | Not Available | Oreck All Way Wheel | 82369-01 | Not Available |
| 53 | Not Available | Oreck Front Small Wheel Axel | 82370-01 | Not Available |
| 54 | No Image | Wheel, Front Small FC1000 Canister W/PN Part Number: 82371-01 for Oreck | 8237101 | $3.12Read more |
| 55 | Not Available | Oreck Pcb + Sensor Tube | 82372-01 | Not Available |
| 56 |  | Cord, :( Power FC1000 Canister Part Number: 82373-01 for Oreck | 8237301 | $119.88Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 | Not Available | Oreck Noise Reducing Cushion | 82374-01 | Not Available |
| 58 |  | Wand, Electric Telescopic FC1000 Canister Part Number: 82376-01 for Oreck | 8237601 | $76.08Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 73 | Not Available | Oreck Fc1000 Hepa Filter | FCX1000FILT | Not Available |
| 74 | Not Available | Oreck Fc1000 Hardwood Floor Tool | 82402-01 | Not Available |
| # | Part image | Description | SKU | Price |
| 59 | Not Available | Oreck Pb-22 Power Nozzle | 82375-01 | Not Available |
| 60 |  | Hose, Black Elect W/ Gas Pump Handle Quest FC1000 Part Number: 82377-01 for Oreck | 8237701 | $69.38Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61 | Not Available | Oreck Fc1000, Upholstery Tool | 82384-01 | Not Available |
| 62 | Not Available | Oreck Fc1000, Crevice Tool | 82385-01 | Not Available |
| 63 | Not Available | Oreck Power Nozzle Upper Assembly | 82388-01 | Not Available |
| 64 | Not Available | Oreck Power Nozzle Lower Assembly | 82389-01 | Not Available |
| 65 | Not Available | Oreck Cord | 82394-01 | Not Available |
| 66 | Not Available | Oreck Dirt Sensor Indicator | 82398-01 | Not Available |
| 67 | Not Available | Oreck Reset Switch | 82397-01 | Not Available |
| 68 | No Image | Switch, Power FC1000 Canister W/ Power Nozzle Part Number: 82396-01 for Oreck | 8239601 | $4.11Read more |
| 69 | Not Available | Oreck Fc1000 Pwr Nzl Belt | 82392-01 | Not Available |
| 70 | Not Available | Oreck Motor | 82391-01 | Not Available |
| 71 | Not Available | Oreck Pcb Power Nozzle | 82390-01 | Not Available |
| 72 | Not Available | Oreck Fc1000 Pwr Nzl Brushroll | 82393-01 | Not Available |
| 75 | Not Available | Oreck Handle Release | 82406-01 | Not Available |
