Schematic and parts list for: Oreck Model: STEAM150

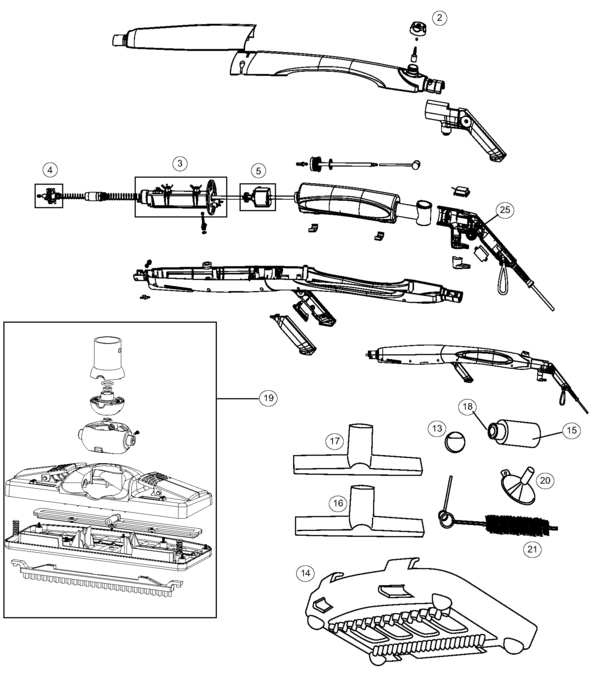

This is a list of parts and a diagram and schematic for: Oreck Model: STEAM150
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: STEAM150 Grab It and Steam-It
| # | Part image | Description | SKU | Price |
| 2 | Not Available | Oreck Steam150: Inlet Cap, White | 53690-01 | Not Available |
| 3 | Not Available | Oreck Heat Element Assembly | 53590-01 | Not Available |
| 4 | Not Available | Oreck Steam Nozzle Assembly | 53504-01 | Not Available |
| 5 | Not Available | Oreck Pump Assembly | 53524-01 | Not Available |
| 13 | Not Available | Oreck Steam Deflector Nozzle | 53536-01 | Not Available |
| 14 | Not Available | Oreck Carpet Glide Attachment | 53535-01 | Not Available |
| 15 | Not Available | Oreck Brush Holder | 53529-01 | Not Available |
| 16 | Not Available | Oreck Utility Tool | 53516-01 | Not Available |
| 17 | Not Available | Oreck Squeegee | 53517-01 | Not Available |
| 18 | Not Available | Oreck Spot Brush | 53518-01 | Not Available |
| 19 | Not Available | Oreck Steam150: Main Floor Nozzle, White | 53691-01 | Not Available |
| 20 | Not Available | Oreck Funnel | 53520-01 | Not Available |
| 21 | Not Available | Oreck Cleaning Brush | 53521-01 | Not Available |
| 22 |  | Genuine Oreck Versavac replacement pads pack of 2 | 743808401883 | Original price was: $25.00.$10.00Current price is: $10.00.Read more |
| 23 | Not Available | Oreck Carton | 53523-01 | Not Available |
| 24 | Not Available | Oreck O-Ring Kit | 53526-01 | Not Available |
| 25 | Not Available | Oreck Steam150: Steam Control Knob, White | 53692-01 | Not Available |
