Schematic and parts list for: Oreck Model: U2640RH

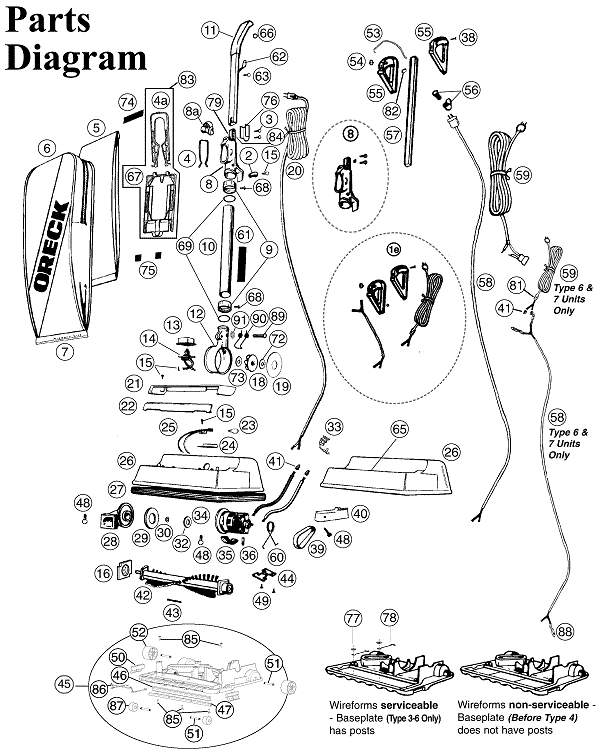

This is a list of parts and a diagram and schematic for: Oreck Model: U2640RH

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: U2640RH

Popular Supplies

---

Helpful Repair Videos

#	Part image	Description	SKU	Price
01e	Not Available	Oreck Kit, Retro, Handle Assembly, Residential, Black, includes items #38, #54, #55, #58, #59, #81, #82 Type 1, 2, 3, 4 & 5 Units Only	097561201	Not Available
04a	Not Available	Oreck Docking Clip, Rear, Type CC (use w/#67 or order #83)	7558303480	Not Available
05		Aftermarket Oreck Type CC HEPA Bags - 9pk More Product Details	OR-1473A	$29.99Add to cart
05		Oreck STANDARD Antimicrobial Filtration Bags - 25pk More Product Details	AK1CC25	$49.99Read more
05		Paper Bag, CC Purple Superior Filtration 6Pk More Product Details	O-AK1CC6H	$34.99Read more
05		Aftermarket Oreck Type CC HEPA Bags - 9pk More Product Details	OR-1473A	$29.99Add to cart
05	Not Available	Oreck Bag Paper Hypo-Allergen 25 Pack	AK1CC25A	Not Available
06	Not Available	Oreck XL2540RH / U2640RH: Outer Bag, Dk Gray, Black, Dark Gray	7524611	Not Available
07	Not Available	Oreck U2640RH: Bag Clip, Black / Silver	097507806	Not Available
08	Not Available	Oreck Connector Assembly Kit, includes items #3 & #84	097530857	Not Available
08a	Not Available	Oreck Deflector, Black, Snap Type 1 & 2 Units Only	75220010327	Not Available
09	Not Available	Oreck Collar	75309020327	Not Available
12	Not Available	Oreck Fan Housing Assembly includes Rivet & Spring	097534303	Not Available
16	Not Available	Oreck End Cap	0134623	Not Available
18	No Image	Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck More Product Details	097530001	$15.44Add to cart Product is special order please allow 2-4 weeks for delivery.
19	Not Available	Oreck Fan Seal Cup	7501201	Not Available
20	Not Available	Oreck Cord Set (see #59)	FNLA	Not Available
26	Not Available	Oreck XL2540RH / U2640RH: Housing, Gull Gray w/Label	097542621	Not Available
27	Not Available	Oreck U2640RH Bumper, White	7518103	Not Available
28	Not Available	Oreck Intake Pivot Assembly with Felt Seal	097506602	Not Available
29		Circular White Felt Gasket for Oreck More Product Details	7506501	$14.95Read more
32		Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck More Product Details	7511701M	$1.87Add to cart Product is special order please allow 2-4 weeks for delivery.
34	Not Available	Oreck Motor Assembly Kit	097550501	Not Available
35	Not Available	Oreck Motor Seal	7509501	Not Available
36	Not Available	Oreck Kit, Motor Brush (Large & Small) / Spring	097551401	Not Available
39		Belt-Oreck - 3Pk - Upright - All Models For: oreck More Product Details	0300604	$17.93Add to cart Product is special order please allow 2-4 weeks for delivery.
39a		Oreck Upright Vacuum Flat Stretch Belt More Product Details	OR-1000	$5.99Add to cart
40	Not Available	Oreck U2640RH: Door Belt, Gull Gray	75057020384	Not Available
42		Oreck XL Wooden Brush Roller 9000 Series w/o Magnet - 75202-01 More Product Details	OR2000	$29.99Add to cart
43	Not Available	Oreck Seal, Baseplate	7500801	Not Available
44	Not Available	Oreck Plastic Detent, (uses 2 #49 screws)	7529901	Not Available
45	Not Available	Oreck Complete Baseplate Assembly includes: #43, #46, #47, #50, #51, #52, #85, #86, #87	097571501	Not Available
46	Not Available	Oreck MICRO SWEEP Blade Type 1-6 Units Only	7570002	Not Available
50		Brush Strip, Black Edge All U2000 Series Uprights Part Number: 430000961 for Oreck More Product Details	430000961	$7.53Add to cart Product is special order please allow 2-4 weeks for delivery.
50	Not Available	Oreck Edge Brush, w/o Wheels, Left or Right	7576603	Not Available
51		Axle, :( Front & Rear Wheel XL100C Part Number: 03-00630-01 for Oreck More Product Details	030063001	$2.23Add to cart Product is special order please allow 2-4 weeks for delivery.
52	Not Available	Oreck Soft Rear Wheel, Black	75187020327	Not Available
53	Not Available	Oreck Static Wire Type 1, 2, 3, 4 & 5 Units Only	7503701	Not Available
54		Switch, Blk Rocker 1-Speed Handle Type 6 XL7 Uprts Part Number: 430000914 for Oreck More Product Details	430000914	$10.31Add to cart Product is special order please allow 2-4 weeks for delivery.
55	Not Available	Oreck U2640RH: Grips, Gull Gray Set	097557629	Not Available
56		Cord Hook, Black 9800 Model Part Number: 430001073 for Oreck More Product Details	430001073	$18.32Add to cart Product is special order please allow 2-4 weeks for delivery.
57	Not Available	Oreck Handle Tube, Chrome	7508101	Not Available
58	Not Available	Oreck U2640RH: Cord, Harness Assembly	7555202327	Not Available
59	Not Available	Oreck U2640RH: Cord Set, Black	7555602327	Not Available
60	Not Available	Oreck Motor Spring	7528301	Not Available
61	Not Available	Oreck Tube Label	7508705	Not Available
65	Not Available	Oreck Oreck' Name Plate Label	7559903	Not Available
67	Not Available	Oreck Bag Dock Hinge, Type CC (use w/#4a or order #83)	7558203480	Not Available
79	Not Available	Oreck Stiffener, Through Bolt Connector (uses different length screws)	7561901	Not Available
81		Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck More Product Details	030060001	$5.32Add to cart Product is special order please allow 2-4 weeks for delivery.
83	Not Available	Oreck Kit, Bag Dock, includes items #4a & #67	097565702	Not Available
84	Not Available	Oreck Stiffener (uses same length screws, notched) - Incuded in item #8	FNLA	Not Available
87		Wheel, Front XL Uprights Part Number: 430000957 for Oreck More Product Details	430000957	$7.02Add to cart Product is special order please allow 2-4 weeks for delivery.

---
