Schematic and parts list for: Oreck Model: U4080H2R

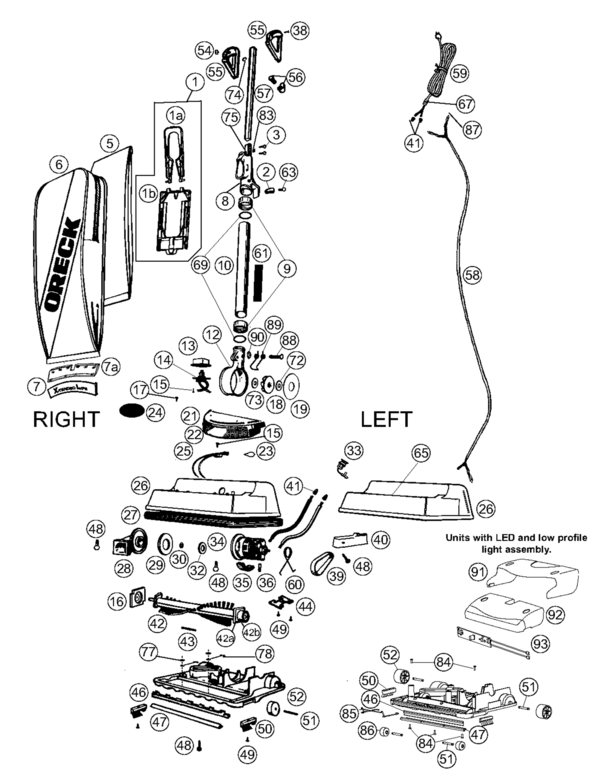

This is a list of parts and a diagram and schematic for: Oreck Model: U4080H2R
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U4080H2R XL2 Xtended Life
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| 8 | Not Available | Oreck Connector Assembly Kit, Includes Items #3 & #83 | 09-75308-57 | Not Available |
| 45 | Not Available | Oreck Complete Baseplate Assembly Includes: | 09-75715-01 | Not Available |
| # | Part image | Description | SKU | Price |
| xx | No Image | Screw, #8 x.811 W/Int Washer XL Classic 100PK Part Number: 03-00608-01M for Oreck | 030060801M | $39.42Read more |
| 1 |  | Bag Dock Kit CC Style | 09-75675-01 | $17.99Read more |
| 1 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Bag Dock Kit CC Style More Product Details | 09-75675-01R | $14.39Add to cart |
| 1b | Not Available | Oreck Bag Dock Hinge, Type Cc | 75582-03-480 | Not Available |
| 1a | No Image | Dock, Blue Rear Bag Part Number: 430000946 for Oreck | 430000946 | $14.30Add to cart |
| 2 | Not Available | Oreck Cord Clamp | 03-00619-01M | Not Available |
| 3 | Not Available | Oreck Screw 8-32 X .440 | 03-00478-02M | Not Available |
| 5 | Not Available | Oreck Dust Bag, (25 Pk.) Hypo Allergenic | AK1CC25A | Not Available |
| 5 |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $29.99Add to cart |
| 6 | Not Available | Oreck U4080H2R: Outer Bag, Lt. Gray, Red, Ultra, | FNLA | Not Available |
| 7 | Not Available | Oreck U4080H2R: Bag Clip, Front, Red W/White | 09-75594-06 | Not Available |
| 7a | Not Available | Oreck U4080H2R: Bag Clip, Rear, Red | 75593-01-444 | Not Available |
| 8 | Not Available | Oreck Connector Assembly Kit, Includes Items #3 & #83 | 09-75308-57 | Not Available |
| 9 | Not Available | Oreck Collar | 75309-02-0327 | Not Available |
| 10 | Not Available | Oreck Tube Assembly | 75198-05 | Not Available |
| 12 | Not Available | Oreck Fan Housing Assembly Includes Rivet & Spring | 09-75343-03 | Not Available |
| 15 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 16 | Not Available | Oreck Endcard, Metal Pulley Brush, Rt | 75704-01 | Not Available |
| 17 | Not Available | Oreck Screw, #8 - 10 X 1.25 Plt 30 | 03751M | Not Available |
| 18 | No Image | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $15.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Oreck Fan Cup Seal | 75012-01 | Not Available |
| 20 | Not Available | Oreck Cord Set | FNLA | Not Available |
| 21 | Not Available | Oreck U4080H2R: Lamp Housing, Curved, Red | 75521-01-444 | Not Available |
| 22 | Not Available | Oreck Lens | 75520-02-455 | Not Available |
| 23 | Not Available | Oreck Bulb #912 - Headlight 12 Volt | 27313101 | Not Available |
| 24 | Not Available | Oreck Badge Decal, Black On Silver | 73020-04 | Not Available |
| 25 | Not Available | Oreck Lamp Holder | 75539-01 | Not Available |
| 26 | Not Available | Oreck U4080H2R: Housing, Red | 09-75780-21 | Not Available |
| 27 | Not Available | Oreck Bumper, Clear W/Blue Tint | 75181-04 | Not Available |
| 28 | Not Available | Oreck Intake Pivot Assembly With Felt Seal | 09-75066-02 | Not Available |
| 29 |  | Circular White Felt Gasket for Oreck | 7506501 | $14.95Read more |
| 30 | Not Available | Oreck 1/4 X 32 Yellow Chrome | 03-00448-01M | Not Available |
| 32 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $1.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Oreck Cord Retainer, Square | 03-00494-01 | Not Available |
| 34 | Not Available | Oreck Motor Assembly Kit | 09-75505-01 | Not Available |
| 35 | Not Available | Oreck Motor Seal | 75095-01 | Not Available |
| 36 | Not Available | Oreck Kit, Motor Brush / Spring | 09-75514-01 | Not Available |
| 38 | Not Available | Oreck Screw, #8 X .75 | 03-00476-01M | Not Available |
| 39a |  | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart |
| 39 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Oreck U4080H2R: Door, Belt, Red | 75057-01-444 | Not Available |
| 41 | Not Available | Oreck Wire Nut | 03-00599-01M | Not Available |
| 42b | Not Available | Oreck Brush Roll Pulley, Metal | 75706-01 | Not Available |
| 42a | Not Available | Oreck Endcard, Metal Pulley Side, Lft | 75705-01 | Not Available |
| 42 |  | Oreck XL Wooden Brush Roller 9000 Series w/o Magnet - 75202-01 | OR2000 | $29.99Add to cart |
| 43 | Not Available | Oreck Seal, Baseplate | 75008-01 | Not Available |
| 44 | Not Available | Oreck Plastic Detent, (Uses 2 #49 Screws) | 75299-01 | Not Available |
| 45 | Not Available | Oreck Complete Baseplate Assembly | 09-75715-01 | Not Available |
| 46 | Not Available | Oreck Micro Sweep Blade Type 6 Units Only | 75700-02 | Not Available |
| 48 | Not Available | Oreck Screw, #8 X .75 Phillips | 03-00476-01M | Not Available |
| 49 | Not Available | Oreck Screw, #7 X .38 Phillips | 03-00475-01M | Not Available |
| 50 |  | Brush Strip, Black Edge All U2000 Series Uprights Part Number: 430000961 for Oreck | 430000961 | $7.53Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 51 | Not Available | Oreck Wheel Axle | 03-00630-01M | Not Available |
| 52 | Not Available | Oreck Soft Rear Wheel, Black | 75187-02-0327 | Not Available |
| 54 | Not Available | Oreck Switch, 2 Position Assembly | 75585-01 | Not Available |
| 55 | Not Available | Oreck U4080H2R: Grips, Red, Set | 09-75576-28 | Not Available |
| 56 | Not Available | Oreck Cord Wrap / Post Assembly - Red | 09-75185-07 | Not Available |
| 57 |  | Handle, Upper Metal U2000/XL2100RHS Part Number: 430000905 for Oreck | 430000905 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | This part is available CERTIFIED RECONDITIONED Pre owned Oreck chrome handle for classic style orecks. Square silver handle More Product Details | 7519007R | $14.99Add to cart |
| 58 | Not Available | Oreck U4080H2R: Cord, Harness Assembly, White | 75896-02-328 | Not Available |
| 60 |  | Cord, :( 30' White Harness Assmbly 2-Wire 3000 Ser Part Number: 75896-01-328 for Oreck | 7589601328 | $26.66Read more |
| 61 | Not Available | Oreck Motor Spring | 75283-01 | Not Available |
| 63 | Not Available | Oreck Screw 10 X .5 - Phillips | 03-00450-01M | Not Available |
| 67 | Not Available | Oreck Tube Label | 75087-05 | Not Available |
| 69 | Not Available | Oreck O-Ring | 75191-02M | Not Available |
| 72 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.27Read more |
| 73 | Not Available | Oreck Washer, Lock External Tooth | 03-00480-01M | Not Available |
| 74 | Not Available | Oreck Steel Bushing Ring | 03-00598-01M | Not Available |
| 75 |  | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 77 | Not Available | Oreck Retainer Clip | 03528M | Not Available |
| 78 | Not Available | Oreck Wireform | 75194-03M | Not Available |
| 83 |  | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $3.00Add to cart |
| 84 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 85 | Not Available | Oreck Wireform, One-Piece | 75698-01 | Not Available |
| 86 |  | Wheel, Front XL Uprights Part Number: 430000957 for Oreck | 430000957 | $7.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 87 | Not Available | Oreck Insulator - Jst | 75679-01M | Not Available |
| 88 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $35.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 | Not Available | Oreck Bag Spring | 75015-01M | Not Available |
| 90 | Not Available | Oreck Push Nut | 03-00636-01M | Not Available |
