Schematic and parts list for: Oreck Model: U4140HH

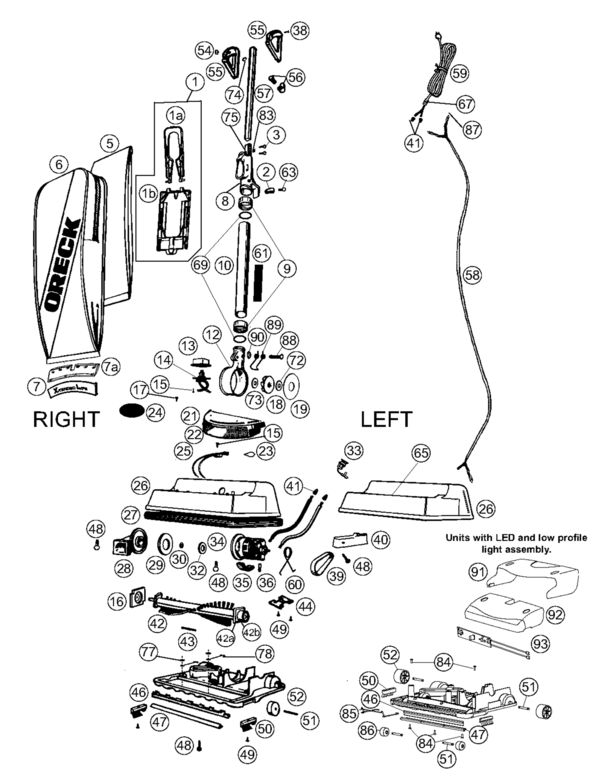

This is a list of parts and a diagram and schematic for: Oreck Model: U4140HH
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U4140HH XL2
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| xx | No Image | Screw, #8 x.811 W/Int Washer XL Classic 100PK Part Number: 03-00608-01M for Oreck | 030060801M | $39.42Read more |
| 1 | Not Available | Oreck Kit - Bag Dock / Antimicrobial - Type Cc | 09-75657-02 | Not Available |
| 1b | Not Available | Oreck Bag Dock Type Cc, , Black | 75582-02-480 | Not Available |
| 1a | Not Available | Oreck Dock, Rear Bag Type Cc, Black | 75583-02-480 | Not Available |
| 2 | Not Available | Oreck Cord Clamp | 03-00619-01M | Not Available |
| 3 | Not Available | Oreck Screw 8-32 X .440 | 03-00478-02M | Not Available |
| 5 |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $29.99Add to cart |
| 6 | Not Available | Oreck U4140Hh: Outer Bag Costco | 75645-21 | Not Available |
| 7a | Not Available | Oreck U4140Hh : Bag Clip, Rear, Black | 75593-01-0327 | Not Available |
| 7 | Not Available | Oreck U4140Hh: Bag Clip Curved Front, Black | 09-75776-03 | Not Available |
| 8 | Not Available | Oreck Connector Assembly Kit, Includes Items #3 & #83 | 09-75308-57 | Not Available |
| 9 | Not Available | Oreck Collar | 75199-02-0327 | Not Available |
| 10 | Not Available | Oreck Tube Assembly | 75198-05 | Not Available |
| 12 | Not Available | Oreck Fan Housing Assembly Includes Rivet & Spring | 09-75343-03 | Not Available |
| 15 | No Image | SCREW, :( HEADLIGHT LENS 100PK Part Number: 03752-01M for Oreck | 0375201M | $30.26Read more |
| 16 | Not Available | Oreck Endcard, Metal Pulley Brush, Rt | 75704-01 | Not Available |
| 17 | Not Available | Oreck Screw, #8 - 10 X 1.25 Plt 30 | 03751M | Not Available |
| 18 | No Image | Fan (Plastic)-Oreck Upt 5300/888/8300/100/9100 For: oreck | 097530001 | $15.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Oreck Fan Cup Seal | 75012-01 | Not Available |
| 20 | Not Available | Oreck Cord Set | FNLA | Not Available |
| 23 |  | Bulb, 14 Volt 2000/3000/4000/XL21 Series Part Number: 430001260 for Oreck | 430001260 | $10.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Oreck U4140Hh : Label, Xl Dome Black On Silver | 75772-01 | Not Available |
| 25 | Not Available | Oreck U4140Hh : Lamp Holder | 75539-01 | Not Available |
| 26 | Not Available | Oreck U4140Hh: Top Cover, Black | 09-75780-17 | Not Available |
| 27 | Not Available | Oreck Bumper, Clear W/Blue Tint, | 75765-01 | Not Available |
| 28 | Not Available | Oreck Intake Pivot Assembly With Felt Seal | 09-75066-02 | Not Available |
| 29 |  | Circular White Felt Gasket for Oreck | 7506501 | $14.95Read more |
| 30 | Not Available | Oreck 1/4 X 32 Yellow Chrome | 03-00448-01M | Not Available |
| 32 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $1.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 | Not Available | Oreck Cord Retainer, Square | 03-00494-01 | Not Available |
| 34 | Not Available | Oreck Motor Assembly Kit | 09-75505-01 | Not Available |
| 35 | Not Available | Oreck Motor Seal | 75095-01 | Not Available |
| 36 | Not Available | Oreck Kit, Motor Brush / Spring | 09-75514-01 | Not Available |
| 38 | Not Available | Oreck Screw, #8 X .75 | 03-00476-01M | Not Available |
| 39 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39a |  | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart |
| 40 | Not Available | Oreck U4140Hh : Door, Belt, Black | 75057-01-0327 | Not Available |
| 41 | Not Available | Oreck Wire Nut | 03-00599-01M | Not Available |
| 42 |  | Oreck XL Wooden Brush Roller 9000 Series w/o Magnet - 75202-01 | OR2000 | $29.99Add to cart |
| 42b | Not Available | Oreck Brush Roll Pulley, Metal | 75706-01 | Not Available |
| 42a | Not Available | Oreck Endcard, Metal Pulley Side, Lft | 75705-01 | Not Available |
| 43 | Not Available | Oreck Seal, Baseplate | 75008-01 | Not Available |
| 44 | Not Available | Oreck Plastic Detent, (Uses 2 #49 Screws) | 75299-01 | Not Available |

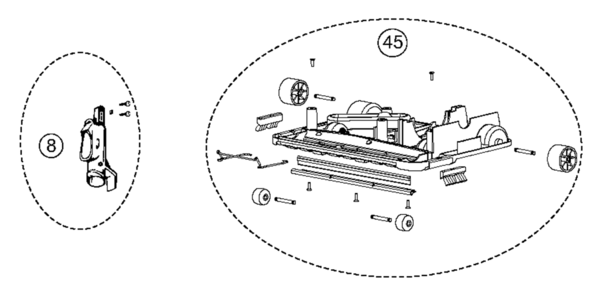

| 45 | Not Available | Oreck Complete Baseplate Assembly Includes: | 09-75901-01 | Not Available |
| 46 | Not Available | Oreck Micro Sweep Blade | 75700-02 | Not Available |
| 47 | Not Available | Oreck Channel | 75701-01 | Not Available |
| 48 | Not Available | Oreck Screw, #8 X .75 Phillips | 03-00476-01M | Not Available |
| 49 | Not Available | Oreck Screw, #7 X .38 Phillips | 03-00475-01M | Not Available |
| 50 | Not Available | Oreck Edge Brush | 75766-03 | Not Available |
| 51 | Not Available | Oreck Wheel Axle | 03-00630-01M | Not Available |
| 52 | Not Available | Oreck Soft Rear Wheel, Black | 75187-02-0327 | Not Available |
| 54 | Not Available | Oreck Switch, 2 Position Assembly | 75585-01 | Not Available |
| 55 | Not Available | Oreck U4140Hh : Grips, Black, Set | 09-75576-34 | Not Available |
| 56 |  | Cord Hook, Black 9800 Model Part Number: 430001073 for Oreck | 430001073 | $18.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | Handle, Upper Metal U2000/XL2100RHS Part Number: 430000905 for Oreck | 430000905 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | This part is available CERTIFIED RECONDITIONED Pre owned Oreck chrome handle for classic style orecks. Square silver handle More Product Details | 7519007R | $14.99Add to cart |
| 58 | Not Available | Oreck U4140Hh: Cord, Harness Assembly, Black | 75896-02-327 | Not Available |
| 59 | Not Available | Oreck U4140Hh: Cord Set, Blk W/Molded Strain Relief | 75896-03-327 | Not Available |
| 60 | Not Available | Oreck Motor Spring | 75283-01 | Not Available |
| 61 | Not Available | Oreck Tube Label | 75087-05 | Not Available |
| 63 | Not Available | Oreck Screw 10 X .5 - Phillips | 03-00450-01M | Not Available |
| 67 |  | Strain Relief, Cord U4080/U4090/XL2320 Part Number: 03-00600-01 for Oreck | 030060001 | $5.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 69 | Not Available | Oreck O-Ring | 75191-02M | Not Available |
| 72 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.27Read more |
| 73 | Not Available | Oreck Washer, Lock External Tooth | 03-00480-01M | Not Available |
| 74 | Not Available | Oreck Steel Bushing Ring | 03-00598-01M | Not Available |
| 75 | Not Available | Oreck Stiffener, Through Bolt Connector | 75619-01 | Not Available |
| 77 | Not Available | Oreck Retainer Clip | 03528M | Not Available |
| 78 | Not Available | Oreck Wireform | 75194-03M | Not Available |
| 83 |  | Square Nut, Handle Brace 2000RH Part Number: 03-00606-01M for Oreck | 030060601M | $3.00Add to cart |
| 84 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 85 | Not Available | Oreck Wireform, One-Piece | 75698-01 | Not Available |
| 86 |  | Wheel, Front XL Uprights Part Number: 430000957 for Oreck | 430000957 | $7.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 87 | Not Available | Oreck Insulator - Jst | 75679-01M | Not Available |
| 88 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $35.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 89 | Not Available | Oreck Bag Spring | 75015-01M | Not Available |
| 90 | Not Available | Oreck Push Nut | 03-00636-01M | Not Available |
| 91 | Not Available | Oreck U4140Hh : Lamp Housing Low Profile, Black | 75763-01-0327 | Not Available |
| 92 | Not Available | Oreck Lens Low Profile | 75762-01-0329 | Not Available |
| 93 |  | Oreck XL Headlight With Circuit Board | 7577001 | $59.99Read more |
| 93 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Oreck XL Headlight With Circuit Board More Product Details | 7577001R | $47.99Add to cart |
| # | Part image | Description | SKU | Price |
| 8 | Not Available | Oreck Connector Assembly Kit, Includes Items #3 & #83 | 09-75308-57 | Not Available |
| 45 | Not Available | Oreck Complete Baseplate Assembly | 09-75901-01 | Not Available |
