Schematic and parts list for: Oreck Model: U7060ECS

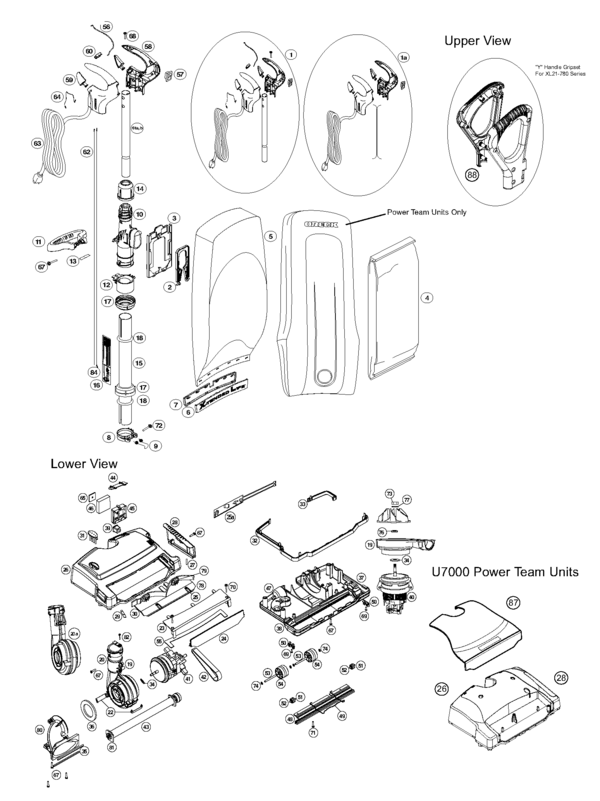

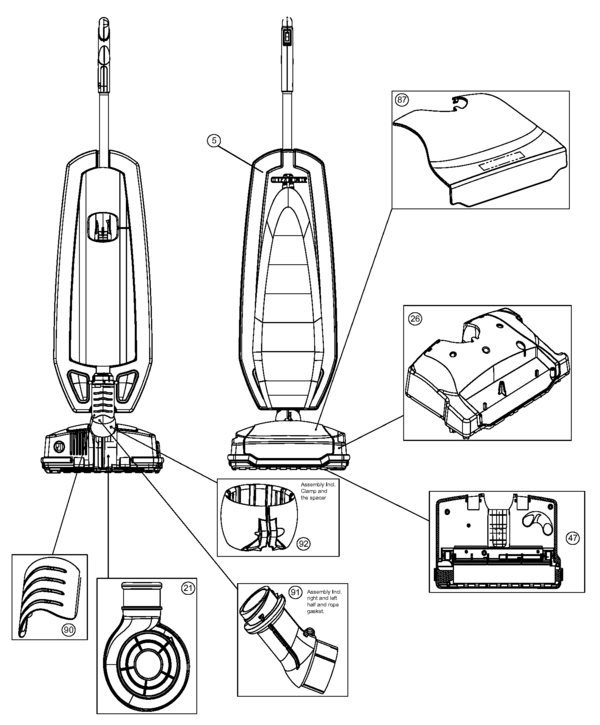

This is a list of parts and a diagram and schematic for: Oreck Model: U7060ECS
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U7060ECS XL Gold
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| xx |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $29.99Add to cart |
| xx | No Image | SCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck | 030045601M | $18.25Read more |
| xx |  | Paper Bag, CC Purple Superior Filtration 6Pk | O-AK1CC6H | $34.99Read more |
| 2 | Not Available | Oreck Bag Dock, Rear Type Cc | 75583-02-0480 | Not Available |
| 3 | Not Available | Oreck Bag Dock, Hinge | 75582-02-0480 | Not Available |
| 4 | | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $29.99Add to cart |
| 5 | No Image | Cloth Bag, Outer U7060ECS XL Gold Part Number: 79109-01 for Oreck | 7910901 | $88.26Read more |
| 10 |  | Oreck Connector Assembly for Conquer UK30300PC | 430000943 | $22.99Add to cart |
| 10 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Oreck Connector Assembly for Conquer UK30300PC More Product Details | 430000943R | $18.39Add to cart |
| 11 | Not Available | Oreck Carrying Handle | 77014-02-0384 | Not Available |
| 12 |  | Rear Carry Handle for Oreck Elevate and XL21 | 77014040327 | $14.99Read more |
| 12 | | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Oreck Connector Assembly for Conquer UK30300PC More Product Details | 430000943R | $18.39Add to cart |
| 13 | No Image | Oreck Detent Carry Handle for XL21 | 7706601 | $10.00Add to cart |
| 14 |  | Oreck Upper Handle Collar for U7230ECS and UK30300PC | 430001002 | $13.99Read more |
| 15 | Not Available | Oreck Tube, Lower | 77002-03 | Not Available |
| 16 | Not Available | Oreck Label, Tube | 77078-02 | Not Available |
| 17 |  | Oreck Lower Collar for UK30300PC and U7200 | 430000983 | $14.99Read more |
| 18 | No Image | Oreck O-Ring for Lower Handle UK30300PC and XL21 | 7705401 | $2.99Read more |
| 21 |  | Fan Kit and housing w/Washers for Oreck model XL21 | 097723051 | $59.99Add to cart |
| 25A |  | Oreck LED Board for Conquer UK30300PC | 7908601 | $39.99Add to cart |
| 26 | Not Available | Oreck U7060Ecs: Top Cover/Belt Door Assembly, Peacoat Blue | 09-79153-52 | Not Available |
| 28 | Not Available | Oreck U7060Ecs: Belt Door | 79078-01-487 | Not Available |
| 29 |  | Detent, XL21 Uprights | O-7701701 | $19.99Add to cart |
| 32 |  | Bumper, Gray Rubber Main XL21 Part Number: 430001003 for Oreck | 430001003 | $19.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Bumper, Gray RubberSide XL21-600/XL21-700ECB Part Number: 430000994 for Oreck | 430000994 | $12.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 | Not Available | Oreck Felt Seal, Motor | 75117-01Mgi | Not Available |
| 35 |  | Gasket, Strip Black Seal Foam Inlet XL21 Part Number: 430000881 for Oreck | 430000881 | $22.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Oreck Seal, Felt Inlet, White | 77032-01 | Not Available |
| 37 | Not Available | Oreck Seal, Power Nozzle 5" | 77043-01 | Not Available |
| 38 |  | Gasket, 1 Power Nozzle Seal XL Platinum Pilot Part Number: 430000888 for Oreck | 430000888 | $18.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Oreck Strain Relief, Square | 03-00494-01 | Not Available |
| 40 |  | Genuine Oreck Motor for XL21 Series | O-097703801 | $144.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Genuine Oreck Motor for XL21 Series More Product Details | O-097703801R | $119.99Add to cart |
| 41 | Not Available | Oreck Motor Brush & Spring Kit | 77114-01 | Not Available |
| 42a |  | Belt, Corded U7000 Series 79095-01 | O-7909501 | $19.95Add to cart |
| 43 |  | Oreck XL21 Brush Roll Red Nylon with Magnet – 79192-02 | 7919202 | $32.99Add to cart |
| 47 |  | Base Plate, XL21 Series | O-097712704 | $110.00Read more |
| 48 | Not Available | Oreck Channel/Squeegee | 77046-02 | Not Available |
| 49 | Not Available | Oreck Sock Guard | 77055-01 | Not Available |
| 50a | Not Available | Oreck Edge Brush | 79186-01 | Not Available |
| 51 | Not Available | Oreck Wheel, Front | 77050-02-0327 | Not Available |
| 52 |  | Axle, Front Wheel XL21/XL21-700/XL21-750/XL21-650 Part Number: 03-00583-01 for Oreck | 030058301 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 |  | Axle, :( Front & Rear Wheel XL100C Part Number: 03-00630-01 for Oreck | 030063001 | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | Not Available | Oreck Rear Wheel, Black | 75187-02-0327 | Not Available |
| 55 | Not Available | Oreck Seal, Motor Mount | 77122-01 | Not Available |
| 57 |  | 2 Speed Switch for Oreck XL | WP10051 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned 2 Speed Switch for Oreck XL More Product Details | WP10051R | $18.39Add to cart |
| 58 | Not Available | Oreck U7060Ecs: Grips, Peacoat Blue, Set | 09-77208-06 | Not Available |
| 59 | Not Available | Oreck U7060Ecs: Cord Dump, Peacoat Blue | 09-77016-09 | Not Available |
| 60 |  | Detent, Cord Hook XL21/U7000 Series Part Number: 430000969 for Oreck | 430000969 | $15.84Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61b | Not Available | Oreck Handle Tube | 77028-03 | Not Available |
| 62 | Not Available | Oreck Cord Harness, With Jst, Black | 79103-02-327 | Not Available |
| 63 | Not Available | Oreck Cord Set, Black | 79027-01-327 | Not Available |
| 67 | Not Available | Oreck Base Plate, Motor, Intake/ | 03-00476-01M | Not Available |
| 68 | Not Available | Oreck Side Door (Black) | 03-00677-01M | Not Available |
| 69 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 70 | No Image | Screw, #6 x 1 Handle For XL Platinum Part Number: 03-00589-01M for Oreck | 030058901M | $35.09Read more |
| 71 | No Image | SCREW, INTAKE PIVOT 100PK Part Number: 03796M for Oreck | 03796M | $25.78Read more |
| 72 | Not Available | Oreck Bag Clip Clamp (Type 1-4 Only) | 03-00402-01M | Not Available |
| 73 | Not Available | Oreck Fan Nut | 03-00448-01M | Not Available |
| 74 | Not Available | Oreck Washer, Wheel, Rear Axle | 03-00630-01M | Not Available |
| 75 | Not Available | Oreck Washer, Wheel, Front Axle | 03-00583-01M | Not Available |
| 76 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.27Read more |
| 77 | Not Available | Oreck Washer, Lock, External Tooth | 03-00480-01M | Not Available |
| 80 | No Image | Inlet, XL Platinum Pilot/XL Signature Part Number: 430000940 for Oreck | 430000940 | $23.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Inlet, XL Platinum Pilot/XL Signature Part Number: 430000940 for Oreck More Product Details | 430000940R | $18.63Add to cart |
| 82 | No Image | Screw, #6-32 X 3/8 Master Pack Part Number: 03-00620-01M for Oreck | 030062001M | $37.25Read more |
| 83 |  | Bag Dock Kit CC Style | 09-75675-01 | $17.99Read more |
| 83 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Bag Dock Kit CC Style More Product Details | 09-75675-01R | $14.39Add to cart |
| 84 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $35.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | Not Available | Oreck Fascia (Not Shown) | 03-00636-01M | Not Available |
| 86 | Not Available | Oreck Bag Stiffener | 76061-02-0327 | Not Available |
| 87 | Not Available | Oreck U7060Ecs: Fascia | 09-79160-55 | Not Available |
| 94 | Not Available | Oreck Pilot Assembly | 03-00390-15M | Not Available |
| 95 | Not Available | Oreck Fan Housing | 03-00688-01M | Not Available |
| 96 | Not Available | Oreck Screw, Black/Circuit Board | 03-00674-01M | Not Available |
| 96 |  | Circuit Board, P3/U7200/7060/U7010ECS Part Number: 430001044 for Oreck | 430001044 | $38.54Read more |
| 96 |  | This part is available CERTIFIED RECONDITIONED Preowned Oreck PCB Circuit Board for P3 U7200 7060 U7010ECS More Product Details | 430001044R | $41.99Add to cart |
| 97 | No Image | Oreck Jumper Wire Motor to Circuit Board for Conquer | WP10983 | $14.99Read more |
| # | Part image | Description | SKU | Price |
| 21 |  | Oreck Fan Housing for Oreck U7200ECB | WP10256 | Original price was: $69.99.$61.24Current price is: $61.24.Add to cart |
| 47 |  | Oreck Bottom Plate Assembly for U7200 and U7200ECB | WP11472 | $79.99Read more |
| 91 |  | Pivot, Assembly Both Sides W/Gasket U7200/U7300 | O-097906701 | $46.99Read more |
| 92 |  | Clamp with Spacer for Oreck Elevate and U7200ECB | WP10255 | $19.99Add to cart |
