Schematic and parts list for: Oreck Model: U7220ECS

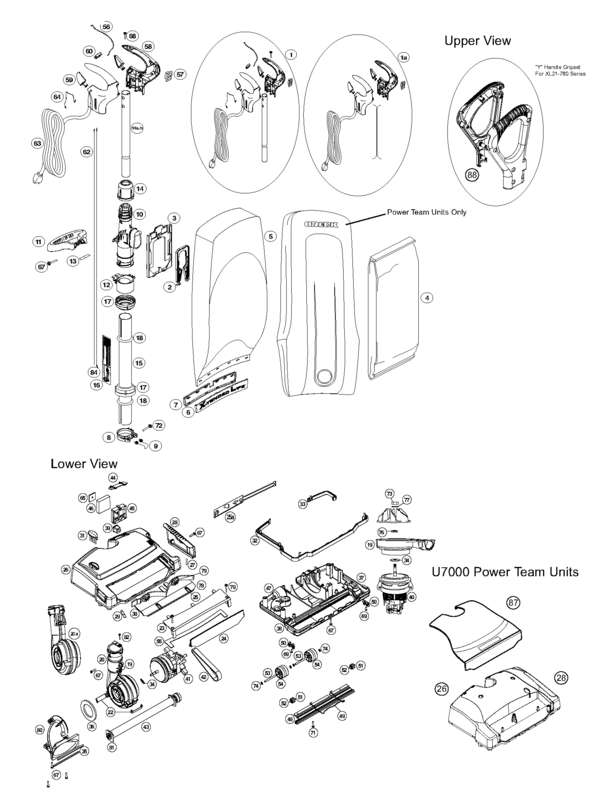

This is a list of parts and a diagram and schematic for: Oreck Model: U7220ECS
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: U7220ECS XL Pilot
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| xx |  | Oreck LED Board for Conquer UK30300PC | 7908601 | $39.99Add to cart |
| xx | No Image | Oreck Jumper Wire Motor to Circuit Board for Conquer | WP10983 | $14.99Read more |
| 2 | Not Available | Oreck Bag Dock, Rear Type Cc | 75583-03-0327 | Not Available |
| 3 | Not Available | Oreck Bag Dock, Hinge | 75582-03-0327 | Not Available |
| 4 |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $29.99Add to cart |
| 5 | Not Available | Oreck U7220Ecs: Outer Bag | 79046-03 | Not Available |
| 10 |  | Oreck Connector Assembly for Conquer UK30300PC | 430000943 | $22.99Add to cart |
| 10 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Oreck Connector Assembly for Conquer UK30300PC More Product Details | 430000943R | $18.39Add to cart |
| 11 | Not Available | Oreck Rear Carry Handle | 77014-04-0384 | Not Available |
| 12 |  | Rear Carry Handle for Oreck Elevate and XL21 | 77014040327 | $14.99Read more |
| 12 | | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Oreck Connector Assembly for Conquer UK30300PC More Product Details | 430000943R | $18.39Add to cart |
| 13 | No Image | Oreck Detent Carry Handle for XL21 | 7706601 | $10.00Add to cart |
| 14 |  | Oreck Upper Handle Collar for U7230ECS and UK30300PC | 430001002 | $13.99Read more |
| 15 |  | TUBE, LOWER U7200 Pilot Upright Part Number: 430001045 for Oreck | 430001045 | $20.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Oreck Label, Tube | 77078-02 | Not Available |
| 17 |  | Oreck Lower Collar for UK30300PC and U7200 | 430000983 | $14.99Read more |
| 18 | No Image | Oreck O-Ring for Lower Handle UK30300PC and XL21 | 7705401 | $2.99Read more |
| 21 |  | Oreck Fan Housing for Oreck U7200ECB | WP10256 | Original price was: $69.99.$61.24Current price is: $61.24.Add to cart |
| 25a |  | Oreck XL Headlight With Circuit Board | 7577001 | $59.99Read more |
| 25a |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Oreck XL Headlight With Circuit Board More Product Details | 7577001R | $47.99Add to cart |
| 26 | Not Available | Oreck U7320Ecs: Top Cover/Belt Door Assembly Black | 09-79051-05 | Not Available |
| 28 |  | Oreck Belt Door for Model U7000ECB | O79078010327 | Original price was: $12.99.$11.05Current price is: $11.05.Add to cart |
| 29 |  | Detent, XL21 Uprights | O-7701701 | $19.99Add to cart |
| 32 |  | Bumper, Gray Rubber Main XL21 Part Number: 430001003 for Oreck | 430001003 | $19.89Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 33 |  | Bumper, Gray RubberSide XL21-600/XL21-700ECB Part Number: 430000994 for Oreck | 430000994 | $12.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 34 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $1.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 35 |  | Gasket, Strip Black Seal Foam Inlet XL21 Part Number: 430000881 for Oreck | 430000881 | $22.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 36 | Not Available | Oreck Seal, Felt Inlet, White | 77032-01 | Not Available |
| 37 | Not Available | Oreck Seal, Power Nozzle 5" | 77043-01 | Not Available |
| 38 |  | Gasket, 1 Power Nozzle Seal XL Platinum Pilot Part Number: 430000888 for Oreck | 430000888 | $18.51Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 39 | Not Available | Oreck Strain Relief, Square | 03-00655-01 | Not Available |
| 40 |  | Genuine Oreck Motor for XL21 Series | O-097703801 | $144.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Genuine Oreck Motor for XL21 Series More Product Details | O-097703801R | $119.99Add to cart |
| 41 | Not Available | Oreck Motor Brush & Spring Kit | 77114-01 | Not Available |
| 43 |  | Oreck XL21 Brush Roll Red Nylon with Magnet – 79192-02 | 7919202 | $32.99Add to cart |
| 47 |  | Oreck Bottom Plate Assembly for U7200 and U7200ECB | WP11472 | $79.99Read more |
| 48 | Not Available | Oreck Channel/Squeegee | 77046-01 | Not Available |
| 49 | Not Available | Oreck Sock Guard | 77055-01 | Not Available |
| 50a | Not Available | Oreck Edge Brush Assembly | 77134-02 | Not Available |
| 51 | Not Available | Oreck Wheel, Front | 77050-02-0327 | Not Available |
| 52 |  | Axle, Front Wheel XL21/XL21-700/XL21-750/XL21-650 Part Number: 03-00583-01 for Oreck | 030058301 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 53 |  | Axle, :( Front & Rear Wheel XL100C Part Number: 03-00630-01 for Oreck | 030063001 | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 54 | Not Available | Oreck Rear Wheel, Black | 75187-02-0327 | Not Available |
| 57 |  | 2 Speed Switch for Oreck XL | WP10051 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 57 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned 2 Speed Switch for Oreck XL More Product Details | WP10051R | $18.39Add to cart |
| 58 |  | Grip, Black Hard Wired XL21-600/U7000 | O-097712802 | $69.99Read more |
| 59 |  | Cord Dump, Black oreck xl21 | WP10066 | $16.99Read more |
| 60 |  | Detent, Cord Hook XL21/U7000 Series Part Number: 430000969 for Oreck | 430000969 | $15.84Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 61b | Not Available | Oreck Handle Tube, Silver | 77028-03 | Not Available |
| 62 |  | Cord, Black 2-Wire Lower XL21-750 TYPE 2-5 Part Number: 430001043 for Oreck | 430001043 | $38.99Read more |
| 62 |  | This part is available CERTIFIED RECONDITIONED Oreck Cord Harness, 2Conductor, Black used in pilot and XL21 types More Product Details | 430001043R | $29.99Add to cart |
| 63 |  | Cord, Black 2-Wire U7230 Part Number: 430001460 for Oreck | 430001460 | $36.26Read more |
| 63 |  | This part is available CERTIFIED RECONDITIONED Oreck Cord Set, Black, for pilot XL21 More Product Details | 430001460R | $39.99Add to cart |
| 67 | Not Available | Oreck Base Plate, Motor, Intake/ Pivot, Side Door, Carrying Handle Clamp, Fan Shroud | 03-00476-01M | Not Available |
| 68 | No Image | SCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck | 030045601M | $18.25Read more |
| 69 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 70 | No Image | Screw, #6 x 1 Handle For XL Platinum Part Number: 03-00589-01M for Oreck | 030058901M | $35.09Read more |
| 71 | No Image | SCREW, INTAKE PIVOT 100PK Part Number: 03796M for Oreck | 03796M | $25.78Read more |
| 72 | Not Available | Oreck Bag Clip Clamp (Type 1-4 Only) | 03-00402-01M | Not Available |
| 73 | Not Available | Oreck Fan Nut | 03-00448-01M | Not Available |
| 74 | Not Available | Oreck Washer, Wheel, Rear Axle | 03-00630-01M | Not Available |
| 75 | Not Available | Oreck Washer, Wheel, Front Axle | 03-00583-01M | Not Available |
| 76 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.27Read more |
| 77 | Not Available | Oreck Washer, Lock, External Tooth | 03-00480-01M | Not Available |
| 80 | No Image | Inlet, XL Platinum Pilot/XL Signature Part Number: 430000940 for Oreck | 430000940 | $23.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 80 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Inlet, XL Platinum Pilot/XL Signature Part Number: 430000940 for Oreck More Product Details | 430000940R | $18.63Add to cart |
| 81 | Not Available | Oreck Endcard, Right | 77021-02 | Not Available |
| 82 | No Image | Screw, #6-32 X 3/8 Master Pack Part Number: 03-00620-01M for Oreck | 030062001M | $37.25Read more |
| 83 | Not Available | Oreck Kit - Bag Dock / Antimicrobial - Type Cc | 09-75657-02 | Not Available |
| 84 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $35.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 85 | Not Available | Oreck Fascia (Not Shown) | 03-00636-01M | Not Available |
| 87 | No Image | Fascia, Black W/Silver Pilot U7220ECS Part Number: 430001310 for Oreck | 430001310 | $38.03Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 87 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Fascia, Black W/Silver Pilot U7220ECS Part Number: 430001310 for Oreck More Product Details | 430001310R | $30.42Add to cart |
| 91 |  | Pivot, Assembly Both Sides W/Gasket U7200/U7300 | O-097906701 | $46.99Read more |
| 92 |  | Clamp with Spacer for Oreck Elevate and U7200ECB | WP10255 | $19.99Add to cart |
| 93 |  | Oreck Pilot Tune Up Kit | WP10671 | $60.00Read more |
| 94 | Not Available | Oreck Pilot Assembly | 03-00390-15M | Not Available |
| 95 | Not Available | Oreck Fan Housing | 03-00688-01M | Not Available |
| 96 | Not Available | Oreck Screw, Black/Circuit Board | 03-00674-01M | Not Available |
| 96 |  | Circuit Board, P3/U7200/7060/U7010ECS Part Number: 430001044 for Oreck | 430001044 | $38.54Read more |
| 96 |  | This part is available CERTIFIED RECONDITIONED Preowned Oreck PCB Circuit Board for P3 U7200 7060 U7010ECS More Product Details | 430001044R | $41.99Add to cart |

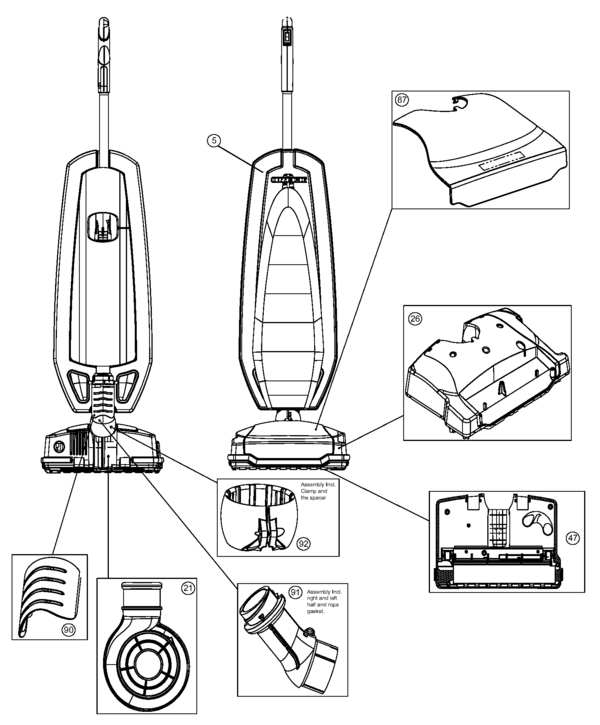

| # | Part image | Description | SKU | Price |
| 5 | Not Available | Oreck U7220Ecs: Outer Bag | 79046-03 | Not Available |
| 21 | | Oreck Fan Housing for Oreck U7200ECB | WP10256 | Original price was: $69.99.$61.24Current price is: $61.24.Add to cart |
| 47 | | Oreck Bottom Plate Assembly for U7200 and U7200ECB | WP11472 | $79.99Read more |
| 87 | No Image | Fascia, Black W/Silver Pilot U7220ECS Part Number: 430001310 for Oreck | 430001310 | $38.03Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 87 | | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Fascia, Black W/Silver Pilot U7220ECS Part Number: 430001310 for Oreck More Product Details | 430001310R | $30.42Add to cart |
| 90 | Not Available | Oreck U7200Ecb/U7220Ecs/U7230Ecs/U7330Ecbs/U7240Ecs/ | FNLA | Not Available |
| 91 | | Pivot, Assembly Both Sides W/Gasket U7200/U7300 | O-097906701 | $46.99Read more |
| 92 | | Clamp with Spacer for Oreck Elevate and U7200ECB | WP10255 | $19.99Add to cart |
