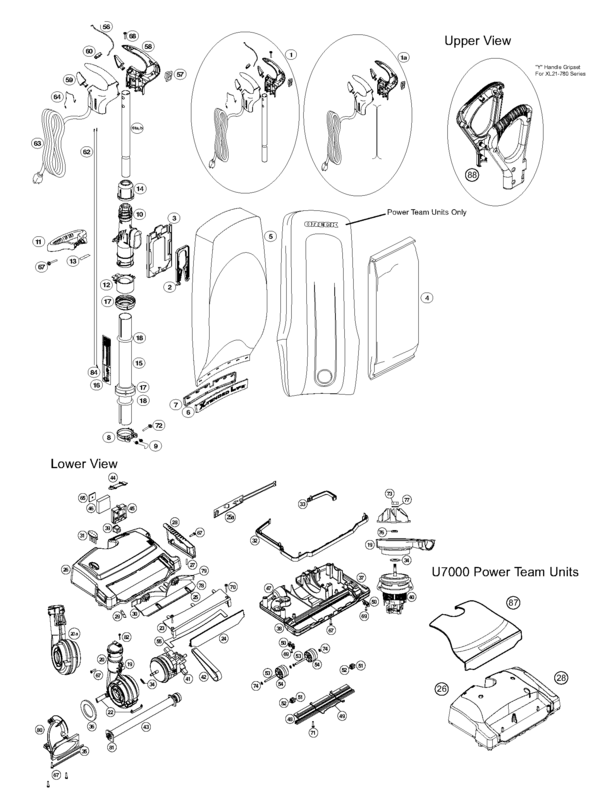

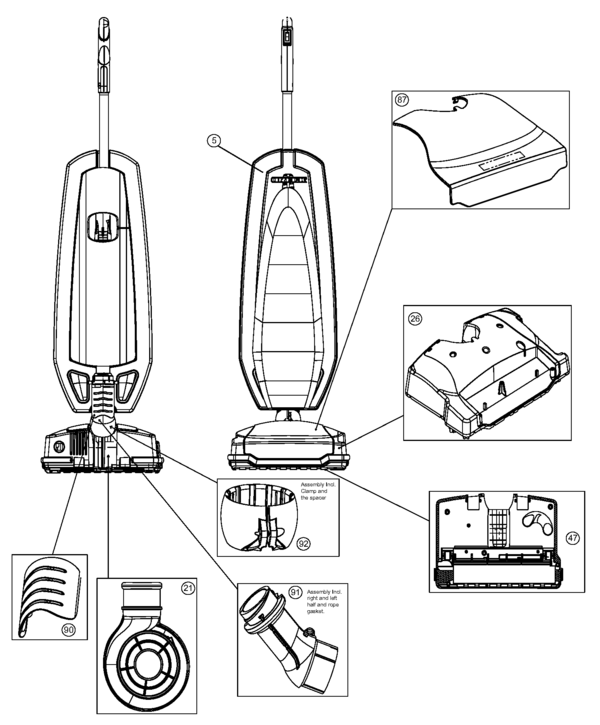

Schematic and parts list for: Oreck Model: U7330ECBS
Popular Supplies
Helpful Repair Videos
# | Part image | Description | SKU | Price |
xx | Oreck LED Board for Conquer UK30300PC | 7908601 | $39.99Add to cart | |
xx | No Image | Oreck Jumper Wire Motor to Circuit Board for Conquer | WP10983 | $14.99Read more |
2 | Not Available | Oreck Bag Dock, Rear Type Cc | 75583-03-0327 | Not Available |
3 | Not Available | Oreck Bag Dock, Hinge | 75582-03-0327 | Not Available |
4 | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $29.99Add to cart | |
5 | Certified reconditioned Oreck outer bag for Axis and Aviator vacuums. Misc colors color can not be gauranteed | 7919403R | $69.99Add to cart | |
10 | Oreck Connector Assembly for Conquer UK30300PC | 430000943 | $22.99Add to cart | |
10 | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Oreck Connector Assembly for Conquer UK30300PC More Product Details | 430000943R | $18.39Add to cart | |
11 | Not Available | Oreck Rear Carry Handle | 77014-04-0384 | Not Available |
12 | Rear Carry Handle for Oreck Elevate and XL21 | 77014040327 | $14.99Read more | |
12 | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Oreck Connector Assembly for Conquer UK30300PC More Product Details | 430000943R | $18.39Add to cart | |
13 | No Image | Oreck Detent Carry Handle for XL21 | 7706601 | $10.00Add to cart |
14 | Oreck Upper Handle Collar for U7230ECS and UK30300PC | 430001002 | $13.99Read more | |
15 | TUBE, LOWER U7200 Pilot Upright Part Number: 430001045 for Oreck | 430001045 | $20.59Add to cart Product is special order please allow 2-4 weeks for delivery. | |
16 | Not Available | Oreck Label, Tube | 77078-02 | Not Available |
17 | Oreck Lower Collar for UK30300PC and U7200 | 430000983 | $14.99Read more | |
18 | No Image | Oreck O-Ring for Lower Handle UK30300PC and XL21 | 7705401 | $2.99Read more |
21 | Oreck Fan Housing for Oreck U7200ECB | WP10256 | Original price was: $69.99.$61.24Current price is: $61.24.Add to cart | |
25a | Oreck XL Headlight With Circuit Board | 7577001 | $59.99Read more | |
25a | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Oreck XL Headlight With Circuit Board More Product Details | 7577001R | $47.99Add to cart | |
26 | No Image | Door Assy, Black Top Cover U7230ECS Platinum Pilot | 430000964 | $44.95Read more |
28 | Oreck Belt Door for Model U7000ECB | O79078010327 | Original price was: $12.99.$11.05Current price is: $11.05.Add to cart | |
29 | Detent, XL21 Uprights | O-7701701 | $19.99Add to cart | |
32 | Bumper, Gray Rubber Main XL21 Part Number: 430001003 for Oreck | 430001003 | $19.89Add to cart Product is special order please allow 2-4 weeks for delivery. | |
33 | Bumper, Gray RubberSide XL21-600/XL21-700ECB Part Number: 430000994 for Oreck | 430000994 | $12.52Add to cart Product is special order please allow 2-4 weeks for delivery. | |
34 | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $1.87Add to cart Product is special order please allow 2-4 weeks for delivery. | |
35 | Gasket, Strip Black Seal Foam Inlet XL21 Part Number: 430000881 for Oreck | 430000881 | $22.02Add to cart Product is special order please allow 2-4 weeks for delivery. | |
36 | Not Available | Oreck Seal, Felt Inlet, White | 77032-01 | Not Available |
37 | Not Available | Oreck Seal, Power Nozzle 5" | 77043-01 | Not Available |
38 | Gasket, 1 Power Nozzle Seal XL Platinum Pilot Part Number: 430000888 for Oreck | 430000888 | $18.51Add to cart Product is special order please allow 2-4 weeks for delivery. | |
39 | Not Available | Oreck Strain Relief, Square | 03-00655-01 | Not Available |
40 | Genuine Oreck Motor for XL21 Series | O-097703801 | $144.99Add to cart Product is special order please allow 2-4 weeks for delivery. | |
40 | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Genuine Oreck Motor for XL21 Series More Product Details | O-097703801R | $119.99Add to cart | |
41 | Not Available | Oreck Motor Brush & Spring Kit | 77114-01 | Not Available |
42a | Belt, Corded U7000 Series 79095-01 | O-7909501 | $19.95Add to cart | |
43 | Oreck XL21 Brush Roll Red Nylon with Magnet – 79192-02 | 7919202 | $32.99Add to cart | |
47 | Oreck Bottom Plate Assembly for U7200 and U7200ECB | WP11472 | $79.99Read more | |
48 | Not Available | Oreck Channel/Squeegee | 77046-01 | Not Available |
49 | Not Available | Oreck Sock Guard | 77055-01 | Not Available |
50a | Not Available | Oreck Edge Brush Assembly | 77134-02 | Not Available |
51 | Not Available | Oreck Wheel, Front | 77050-02-0327 | Not Available |
52 | Axle, Front Wheel XL21/XL21-700/XL21-750/XL21-650 Part Number: 03-00583-01 for Oreck | 030058301 | $1.99Add to cart Product is special order please allow 2-4 weeks for delivery. | |
53 | Axle, :( Front & Rear Wheel XL100C Part Number: 03-00630-01 for Oreck | 030063001 | $2.23Add to cart Product is special order please allow 2-4 weeks for delivery. | |
54 | Not Available | Oreck Rear Wheel, Black | 75187-02-0327 | Not Available |
57 | 2 Speed Switch for Oreck XL | WP10051 | $22.99Add to cart Product is special order please allow 2-4 weeks for delivery. | |
57 | This part is available CERTIFIED RECONDITIONED Certified Reconditioned 2 Speed Switch for Oreck XL More Product Details | WP10051R | $18.39Add to cart | |
58 | Grip, Black Hard Wired XL21-600/U7000 | O-097712802 | $69.99Read more | |
58 | This part is available CERTIFIED RECONDITIONED Pre-owned Oreck XL21 Handle and Cord Hook Assembly More Product Details | 097720803R | $44.99Add to cart | |
59 | Cord Dump, Black oreck xl21 | WP10066 | $16.99Read more | |
60 | Detent, Cord Hook XL21/U7000 Series Part Number: 430000969 for Oreck | 430000969 | $15.84Add to cart Product is special order please allow 2-4 weeks for delivery. | |
61b | Not Available | Oreck Handle Tube, Silver | 77028-03 | Not Available |
62 | Cord, Black 2-Wire Lower XL21-750 TYPE 2-5 Part Number: 430001043 for Oreck | 430001043 | $38.99Read more | |
62 | This part is available CERTIFIED RECONDITIONED Oreck Cord Harness, 2Conductor, Black used in pilot and XL21 types More Product Details | 430001043R | $29.99Add to cart | |
63 | Not Available | Oreck U7330Ecs:Cord Set, Black, 36' | 79027-01-327 | Not Available |
67 | Not Available | Oreck Base Plate, Motor, Intake/ Pivot, Side Door, Carrying Handle Clamp, Fan Shroud | 03-00476-01M | Not Available |
68 | No Image | SCREW, SMALL HEAD D HDLE 2800 100PK Part Number: 030045601M for Oreck | 030045601M | $18.25Read more |
69 | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more | |
70 | No Image | Screw, #6 x 1 Handle For XL Platinum Part Number: 03-00589-01M for Oreck | 030058901M | $35.09Read more |
71 | No Image | SCREW, INTAKE PIVOT 100PK Part Number: 03796M for Oreck | 03796M | $25.78Read more |
72 | Not Available | Oreck Bag Clip Clamp (Type 1-4 Only) | 03-00402-01M | Not Available |
73 | Not Available | Oreck Fan Nut | 03-00448-01M | Not Available |
74 | Not Available | Oreck Washer, Wheel, Rear Axle | 03-00630-01M | Not Available |
75 | Not Available | Oreck Washer, Wheel, Front Axle | 03-00583-01M | Not Available |
76 | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.27Read more | |
77 | Not Available | Oreck Washer, Lock, External Tooth | 03-00480-01M | Not Available |
80 | No Image | Inlet, XL Platinum Pilot/XL Signature Part Number: 430000940 for Oreck | 430000940 | $23.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
80 | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Inlet, XL Platinum Pilot/XL Signature Part Number: 430000940 for Oreck More Product Details | 430000940R | $18.63Add to cart | |
81 | Not Available | Oreck Endcard, Right | 77021-02 | Not Available |
82 | No Image | Screw, #6-32 X 3/8 Master Pack Part Number: 03-00620-01M for Oreck | 030062001M | $37.25Read more |
83 | Not Available | Oreck Kit - Bag Dock / Antimicrobial - Type Cc | 09-75657-02 | Not Available |
84 | No Image | Rivet, 3/16 x 1.41 Master Pack XLPlatin Part Number: 03-00453-01M for Oreck | 030045301M | $35.75Add to cart Product is special order please allow 2-4 weeks for delivery. |
85 | Not Available | Oreck Fascia (Not Shown) | 03-00636-01M | Not Available |
87 | No Image | Fascia, Black W/Silver Pilot U7220ECS Part Number: 430001310 for Oreck | 430001310 | $38.03Add to cart Product is special order please allow 2-4 weeks for delivery. |
87 | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Fascia, Black W/Silver Pilot U7220ECS Part Number: 430001310 for Oreck More Product Details | 430001310R | $30.42Add to cart | |
90 | Not Available | Oreck U7330Ecs:Rear Joint Cover Blue | 09-79048-01 | Not Available |
91 | Pivot, Assembly Both Sides W/Gasket U7200/U7300 | O-097906701 | $46.99Read more | |
92 | Clamp with Spacer for Oreck Elevate and U7200ECB | WP10255 | $19.99Add to cart | |
93 | Oreck Pilot Tune Up Kit | WP10671 | $60.00Read more | |
94 | Not Available | Oreck Pilot Assembly | 03-00390-15M | Not Available |
95 | Not Available | Oreck Fan Housing | 03-00688-01M | Not Available |
96 | Not Available | Oreck Screw, Black/Circuit Board | 03-00674-01M | Not Available |
96 | Circuit Board, P3/U7200/7060/U7010ECS Part Number: 430001044 for Oreck | 430001044 | $38.54Read more |
# | Part image | Description | SKU | Price |
5 | Certified reconditioned Oreck outer bag for Axis and Aviator vacuums. Misc colors color can not be gauranteed | 7919403R | $69.99Add to cart | |
21 | Oreck Fan Housing for Oreck U7200ECB | WP10256 | Original price was: $69.99.$61.24Current price is: $61.24.Add to cart | |
26 | Top cover and Belt Door | 09-79051-01 | $29.99Read more | |
26 | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Top cover and Belt Door - High impact item may have significant cosmetic defects More Product Details | 09-79051-01R | $23.99Add to cart | |
47 | Oreck Bottom Plate Assembly for U7200 and U7200ECB | WP11472 | $79.99Read more | |
87 | No Image | Fascia, Black W/Silver Pilot U7220ECS Part Number: 430001310 for Oreck | 430001310 | $38.03Add to cart Product is special order please allow 2-4 weeks for delivery. |
87 | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Fascia, Black W/Silver Pilot U7220ECS Part Number: 430001310 for Oreck More Product Details | 430001310R | $30.42Add to cart | |
90 | Not Available | Oreck U7200Ecb/U7220Ecs/U7230Ecs/U7330Ecbs/U7240Ecs/ | FNLA | Not Available |
91 | Pivot, Assembly Both Sides W/Gasket U7200/U7300 | O-097906701 | $46.99Read more | |
92 | Clamp with Spacer for Oreck Elevate and U7200ECB | WP10255 | $19.99Add to cart |
