Schematic and parts list for: Oreck Model: UK2200

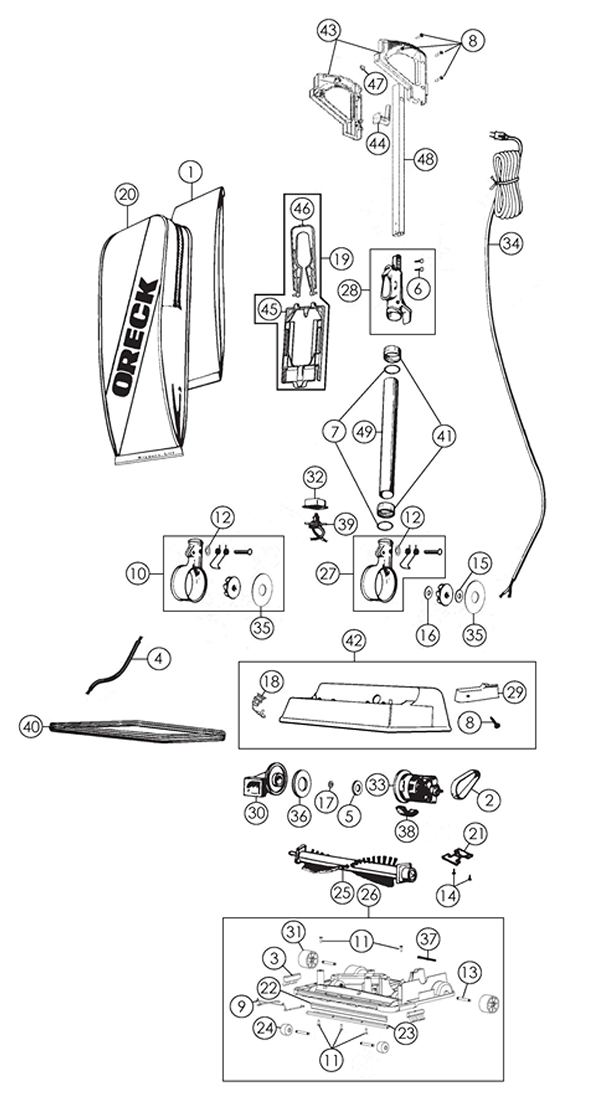

This is a list of parts and a diagram and schematic for: Oreck Model: UK2200
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: UK2200 Limited Edition XL Classic
Popular Supplies
Helpful Repair Videos
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Oreck Type Cc Select Allergen Filter Bag | AK1CC25A | Not Available |
| 1 |  | Aftermarket Oreck Type CC HEPA Bags - 9pk | OR-1473A | $29.99Add to cart |
| 2 |  | Belt-Oreck - 3Pk - Upright - All Models For: oreck | 0300604 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 2 |  | Oreck Upright Vacuum Flat Stretch Belt | OR-1000 | $5.99Add to cart |
| 3 | Not Available | Oreck Brush, Standard Black Edge | 75766-04 | Not Available |
| 4 | Not Available | Oreck Wbd Jumper, 15 Blk W/.025 Term | 75843-01 | Not Available |
| 5 |  | Gasket, Felt Motor Seal XL Platinum Pilot Ea Part Number: 75117-01M for Oreck | 7511701M | $1.87Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 6 | Not Available | Oreck Screw, 8-32 X .440 W/Wsh Patch | 03-00478-02M | Not Available |
| 7 | Not Available | Oreck Collar, O-Ring Master Pack | 75191-02M | Not Available |
| 8 | Not Available | Oreck Screw, 8-18X0.75 Lrg Hd 100 Pk | 03-00688-02M | Not Available |
| 9 | Not Available | Oreck Wireform, 1 Pc | 75698-01 | Not Available |
| 10 | Not Available | Oreck Assy, Fan Housing | 09-75221-12 | Not Available |
| 11 |  | Screw, Edge Brush XL21 Part Number: 03-00626-01M for Oreck | 030062601M | $39.14Read more |
| 12 | Not Available | Oreck Pushnut, 3/16" Master Pack | 03-00636-01M | Not Available |
| 13 | Not Available | Oreck Axle, Baseplate, Mp | 03-00630-01M | Not Available |
| 14 | Not Available | Oreck #8 X .38 Phillips Mc | 03-00475-01M | Not Available |
| 15 |  | Washer, :( Fan Thrush Part Number: 030047901M for Oreck | 030047901M | $0.27Read more |
| 16 | Not Available | Oreck Washer, Lock Ext Tooth Master | 03-00480-01M | Not Available |
| 17 | Not Available | Oreck 1/4 X 32 Yellow Chrome Mc | 03-00448-01M | Not Available |
| 18 | Not Available | Oreck Relief, Square Strain #18-2 | 03-00655-01 | Not Available |
| 19 |  | Bag Dock Kit CC Style | 09-75675-01 | $17.99Read more |
| 19 |  | This part is available CERTIFIED RECONDITIONED Certified Reconditioned Bag Dock Kit CC Style More Product Details | 09-75675-01R | $14.39Add to cart |
| 20 | Not Available | Oreck Bag, Uk2200Pc Outer | 565A00011 | Not Available |
| 21 | Not Available | Oreck Spring, Detent Plastic | 75299-01 | Not Available |
| 22 | Not Available | Oreck Squeegee, Low Friction | 75700-02 | Not Available |
| 23 | Not Available | Oreck Retainer, Squeegee | 75891-01-0327 | Not Available |
| 24 |  | Wheel, Front XL Uprights Part Number: 430000957 for Oreck | 430000957 | $7.02Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Oreck XL Wooden Brush Roller 9000 Series w/o Magnet - 75202-01 | OR2000 | $29.99Add to cart |
| 26 | Not Available | Oreck Assy, Baseplate Complete R-Svc | 09-75715-01 | Not Available |
| 27 | Not Available | Oreck Assy, Fan Housing W/Rivet/Spr | 09-75343-03 | Not Available |
| 28 | Not Available | Oreck Assy, Connector W/Screw & Flyr | 09-75308-57 | Not Available |
| 29 | Not Available | Oreck Door, Belt Black | 75057-01-0327 | Not Available |
| 30 | Not Available | Oreck Assembly Intake Pivot | 09-75066-02 | Not Available |
| 31 | Not Available | Oreck Wheel, Rear | 521A00093 | Not Available |
| 32 | Not Available | Oreck Assy, Black Switch Cover W/11C Hs | 09-75266-04 | Not Available |
| 33 | Not Available | Oreck Motor Kit, Al Magnet Wire Svc | 09-75886-01 | Not Available |
| 34 | Not Available | Oreck Cord, Black 18 Awg, 2 Conductor | 75163-06-327 | Not Available |
| 35 | Not Available | Oreck Seal, Fan | 75012-01 | Not Available |
| 36 |  | Circular White Felt Gasket for Oreck | 7506501 | $14.95Read more |
| 37 | Not Available | Oreck Seal, Base | 75008-01 | Not Available |
| 38 | Not Available | Oreck Seal, Motor | 75095-01 | Not Available |
| 39 | Not Available | Oreck Wbd Switch, Plastic Foot | 75842-01 | Not Available |
| 40 | Not Available | Oreck Bumper Band, Clear W/Blue Ten | 75181-04 | Not Available |
| 41 | Not Available | Oreck Collar, Modified | 75199-02-0327 | Not Available |
| 42 | Not Available | Oreck Assy, Top Cover And Belt Door | 430000561 | Not Available |
| 43 | Not Available | Oreck Set, Black Grip | 430000560 | Not Available |
| 44 |  | Cord Hook, Black 9800 Model Part Number: 430001073 for Oreck | 430001073 | $18.32Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 45 | No Image | Dock, Greem Rear Bag Part Number: 430001157 for Oreck | 430001157 | $20.43Read more |
| 46 |  | Hinge, Green Bag Dock UK30100/UK30200/UK30300 Part Number: 430001153 for Oreck | 430001153 | $17.62Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 47 | Not Available | Oreck Nla Bushing, Steel Ring | 03-00598-01 | Not Available |
| 48 |  | Handle, Upper Metal U2000/XL2100RHS Part Number: 430000905 for Oreck | 430000905 | $17.93Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 48 |  | This part is available CERTIFIED RECONDITIONED Pre owned Oreck chrome handle for classic style orecks. Square silver handle More Product Details | 7519007R | $14.99Add to cart |
| 49 | No Image | Tube, Handle Round Lower Screw Type New Style Up Part Number: 430000897 for Oreck | 430000897 | $28.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
