Schematic and parts list for: Oreck Model: XLWD69

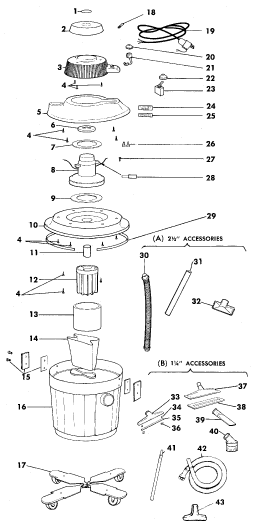

This is a list of parts and a diagram and schematic for: Oreck Model: XLWD69
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: XLWD69
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Oreck Label | FNLA | Not Available |
| 02* |  | Intressa polyester core-spun sewing thread PINK TWIST color number IT402 INTRESSA 40 WT 164 YDS/EUROSPOOL | 16440IT402 | $2.29Read more |
| 03* | Not Available | Oreck Lower vent cover | 62046 | Not Available |
| 4 | Not Available | Oreck Screws | 61183M | Not Available |
| 5 | Not Available | Oreck Upper motor housing | 62045A | Not Available |
| 6 | Not Available | Oreck Upper motor mtg ring | 62699 | Not Available |
| 07* | Not Available | Oreck Lower motor isolator | 62051A | Not Available |
| 7 | Not Available | Oreck Gasket | 62051A | Not Available |
| 8 |  | turbine for hoover models F5914, F5915, F5917, F5918, FH50045, FH50046, FH50044, FH50047, FH50041 / FH50042, FH50043 and FH50048CA PN 43191021 | 43191021 | $45.00Read more |
| 9 | Not Available | Oreck Lower fan isolator | 62050 | Not Available |
| 09* | No Image | SEAL ,MOTOR MDL.8000 Part Number: 62050A for Douglas | 62050A | $2.70Read more |
| 10 | Not Available | Oreck Lower motor housing | FNLA | Not Available |
| 11* |  | Intressa polyester core-spun sewing thread ORCHID color number IT613 INTRESSA 40 WT 164 YDS/EUROSPOOL | 16440IT613 | $2.29Read more |
| 12* |  | Intressa polyester core-spun sewing thread RICHLY PINK color number IT508 INTRESSA 40 WT 164 YDS/EUROSPOOL | 16440IT508 | $2.29Read more |
| 13* | Not Available | Oreck Foam filter | 62057 | Not Available |
| 14* | Not Available | Oreck Filter bags | PKWD5 | Not Available |
| 15* | No Image | ***N LA 02-13 CLAMP KIT, TWO CLAMPS W/HARDWARE 810 Part Number: 90066 for Douglas | 90066 | $15.69Read more |
| 16* | Not Available | Oreck Lower housing assembly | 61723P | Not Available |
| 17* | Not Available | Oreck Dolly kit | 62605B | Not Available |
| 18 | Not Available | Oreck Terminal | 61828 | Not Available |
| 19* | Not Available | Oreck Cord & adapter | 61825B | Not Available |
| 20 | Not Available | Oreck Cord boot | 61944B | Not Available |
| 21 | Not Available | Oreck Strain relief | 61577 | Not Available |
| 22 | Not Available | Oreck Switch boot | 61944A | Not Available |
| 23 | Not Available | Oreck Switch assy | 61876 | Not Available |
| 24 | Not Available | Oreck Label, specification | FNLA | Not Available |
| 25 | Not Available | Oreck Lable warning | 62102 | Not Available |
| 26 | Not Available | Oreck Wire connectors | 61199 | Not Available |
| 27* | Not Available | Oreck Screw | 61183M | Not Available |
| 28 | Not Available | Oreck Motor brush assy | FNLA | Not Available |
| 29 | Not Available | Oreck Sealing gasket | 62051A | Not Available |
| 30 | Not Available | Oreck 2 1/2 hose assembly | FNLA | Not Available |
| 31 | Not Available | Oreck 2 1/2 wands | FNLA | Not Available |
| 32 | Not Available | Oreck 2 1/2 utility tool | FNLA | Not Available |
| 33 | Not Available | Oreck 10 x 1 1/4 floor tool | 62372D | Not Available |
| 34 | Not Available | Oreck Springs | 90055 | Not Available |
| 35 | Not Available | Oreck Bristle | FNLA | Not Available |
| 36 | Not Available | Oreck Clips | FNLA | Not Available |
| 37 | Not Available | Oreck 1 1/4 wet pickup tool | 63534C | Not Available |
| 38 | Not Available | Oreck Bottom plate & squeege assembly | FNLA | Not Available |
| 39 | Not Available | Oreck 1 1/4 crevice tool | 72031010327 | Not Available |
| 40 | Not Available | Oreck 1 1/4 dusting brush | 72029010327 | Not Available |
| 41 | Not Available | Oreck 1 1/4 wands | 62759E | Not Available |
| 42 | Not Available | Oreck 1 1/4 hose assembly | FNLA | Not Available |
| 43 | Not Available | Oreck Upholstery tool | 72030-01-0327 | Not Available |
