Schematic and parts list for: ProTeam Model: CoachVac 10 Qt. Backpack Vacuum

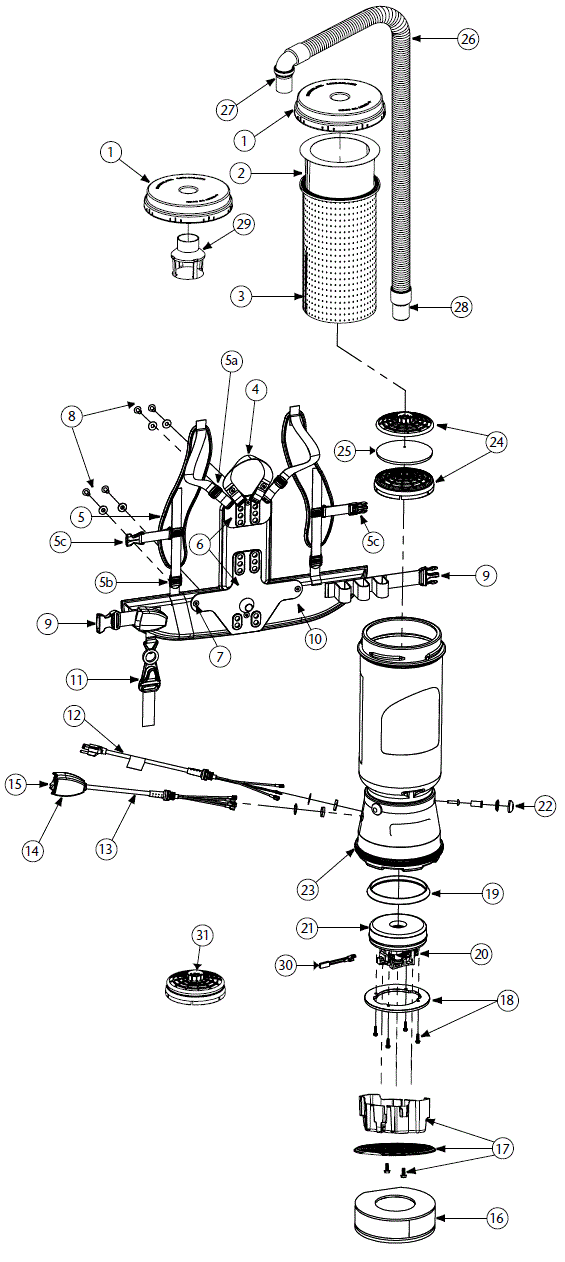

This is a list of parts and a diagram and schematic for: ProTeam Model: CoachVac 10 Qt. Backpack Vacuum
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: CoachVac 10 Qt. Backpack Vacuum
| # | Part image | Description | SKU | Price |
| xx | Not Available | Proteam 50' Extension Cord (Not Shown) | PT-101678 | Not Available |
| 2 | Not Available | Proteam Intercept Micro Filter 698 Sq. In. | PT-100331 | Not Available |
| 3 | Not Available | Proteam Micro Cloth Filter | PT-100565 | Not Available |
| 4 | Not Available | Proteam Carry Handle w/Rivet and Washer Set | PT-101737 | Not Available |
| 05b | Not Available | Proteam Shoulder Strap Plastic Adjustment Buckle (Bottom) | PT-100357 | Not Available |
| 05a | Not Available | Proteam Shoulder Strap Plastic Adjustment Buckle (Top) | PT-100358 | Not Available |
| 5 | Not Available | Proteam Shoulder Strap Assembly (includes: #5a, 5b, 5c) | PT-100356 | Not Available |
| 05c | Not Available | Proteam Sternum Strap Buckles (Latch and Keeper) | PT-103627 | Not Available |
| 7 | Not Available | Proteam Barrel Nut Connection Set for Backplate (Replacement) | PT-100375 | Not Available |
| 8 | Not Available | Proteam Backplate (Black) Connection Set: 4 Screws w/Washers | PT-100716 | Not Available |
| 9 | Not Available | Proteam Waist Belt Keeper and Latch | PT-106719 | Not Available |
| 11 | Not Available | Proteam Schulte Cord Holder | PT-102604 | Not Available |
| 12 | Not Available | Proteam Power Cord (18" 14/3) Assembly | PT-100641 | Not Available |
| 14 | Not Available | Proteam Switch Box w/Velcro and New Lamb Switch | PT-101472 | Not Available |
| 16 | Not Available | Proteam Sound Muffler | PT-100597 | Not Available |
| 17 | Not Available | Proteam Motor Shroud/Diffuser w/Screw Set: 2 Screws | PT-105044 | Not Available |
| 19 | Not Available | Proteam Tetraseal | PT-100014 | Not Available |
| 22 | Not Available | Proteam Motor Mounting System Set: 3 Well Nuts, 3 Bolts, 3 Washers, 3 Covers | PT-100368 | Not Available |
| 23 | Not Available | Proteam Bottom Bumper | PT-100586 | Not Available |
| 24 | Not Available | Proteam Dome Filter w/Foam Media | PT-100030 | Not Available |
| 26 | Not Available | Proteam Static-Dissipating Hose w/Cuffs (Black) | PT-103048 | Not Available |
| 27 | Not Available | Proteam Replacement Double Swivel Elbow Cuff (Black) | PT-101928 | Not Available |
| 28 | Not Available | Proteam Replacement Swivel Cuff (Black) 11/2" | PT-100694 | Not Available |
| 29 | Not Available | Proteam Filter Guard (Optional) | PT-101543 | Not Available |
| 30 | Not Available | Proteam Thermal Protector | PT-103476 | Not Available |
| 31 | Not Available | Proteam Replacement HEPA Dome Filter | PT-106526 | Not Available |
