Schematic and parts list for: Sanitaire Model: SC3683A-1
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC3683A-1
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC3683A-1

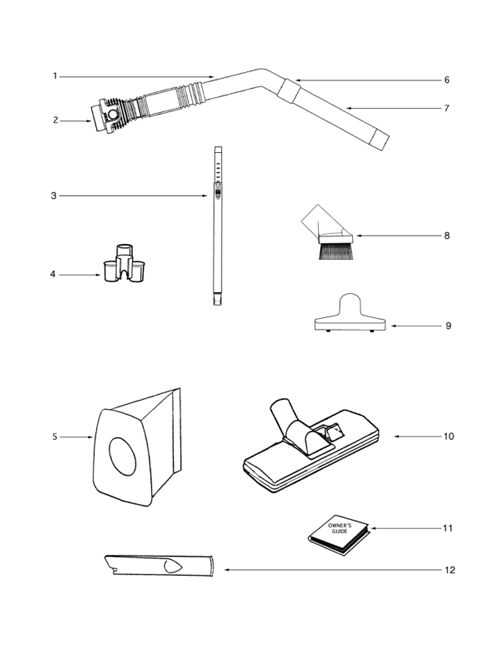

| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Strap & Pin Assembly. | 38353 | Not Available |
| 01 |  | Hose, Black Pistol Grip Mighty Mite | E-60289-1 | $39.99Read more |
| 02 |  | Coupling, Hose Sanitaire 3670A/3682 Part Number: 15355119N for Eureka | 15355119N | $21.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 |  | Wand, 1-1/4" Blk Steel Telescopic MightyMite 3684 Part Number: 72953SAN for Eureka | 72953SAN | $39.17Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | Not Available | Sanitaire Clip & Tool | 54610 | Not Available |
| 05 | Not Available | Sanitaire Paper Bag Package Assembly (3mm) | 60295A | Not Available |
| 06 | Not Available | Sanitaire Bleeder | 37653-3 | Not Available |
| 07 |  | Wand, Curved for Mighty Might Part Number: 261933 for Eureka | 261933 | $21.65Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 |  | Dust Brush, Black Natural Bristles Part Number: 602901 for Eureka | 602901 | $16.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $9.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Rug Tool, Floor & Friction 12" 3686A Might Part Number: 38702A2 for Eureka | 38702A2 | $34.71Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 11 | Not Available | Sanitaire Owners Guide | 75328 | Not Available |
| 12 |  | Crevice Tool, 4467 Part Number: 272373 for Eureka | 272373 | $7.53Add to cart Product is special order please allow 2-4 weeks for delivery. |

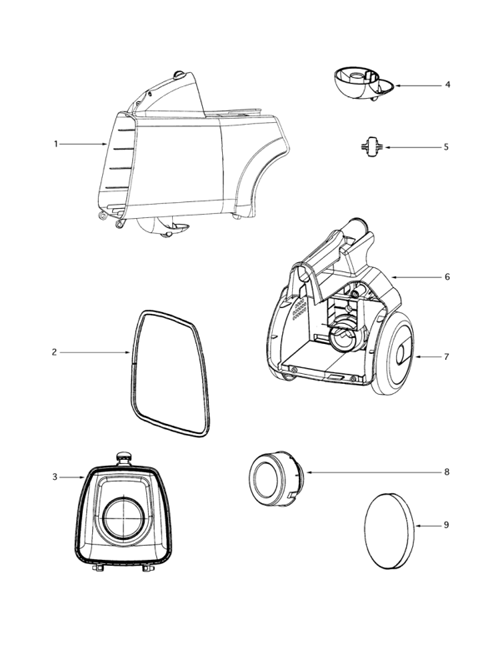

| # | Part image | Description | SKU | Price |
| 01 |  | Housing, Red Main SC3683 Commercial Canist Part Number: 6048727 for Eureka | 6048727 | $60.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Gasket, Strip Front Door Mighty Mite Part Number: 590461 for Eureka | 590461 | $7.50Read more |
| 03 |  | Cover, Front Mighty Might Canister 3670/3685 Part Number: 389561SV for Eureka | 389561SV | $16.90Read more |
| 04 | Not Available | Sanitaire Castor Assembly. | 38805-1 | Not Available |
| 05 | No Image | ***USE E-38805-1 WHEEL, FRONT CASTOR Part Number: 37409-1 for Eureka | 374091 | $6.24Read more |
| 06 | Not Available | Sanitaire Rear Housing Assembly | 28008B-4 | Not Available |
| 07 |  | Wheel, Rear Mighty Mite 3600 | 15409A119N | $9.99Add to cart |
| 08 |  | Extension Tube, Black Mighty Might Canister Series Part Number: 27964119N for Eureka | 27964119N | $5.98Read more |
| 09 |  | Cord, 25' Blk 1/4 Terminal WindTunnel and Bagless | H-46383331 | $26.99Read more |

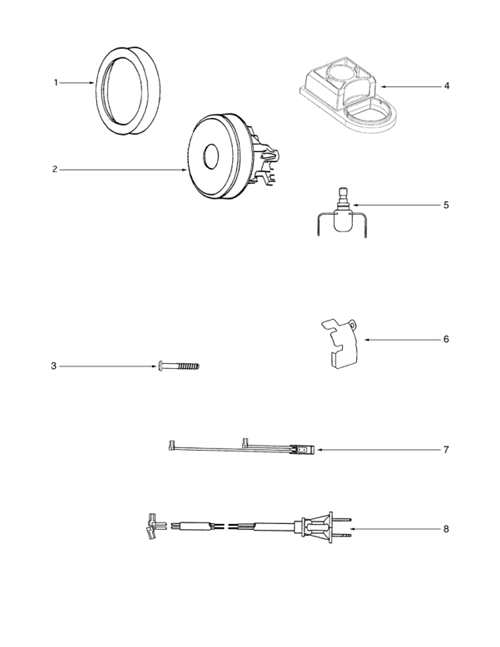

| # | Part image | Description | SKU | Price |
| 01 | No Image | Gasket, Motor Mounting SC3683D Part Number: 75079 for Eureka | 75079 | $10.28Read more |
| 02 | Not Available | Sanitaire Motor Assembly - Packaged (Must order part 74110-119N &!%75027 along with the | 74110-119N &!%75027 along with the motor)!%62392 | Not Available |
| 03 | Not Available | Sanitaire Screw Package | 60610 | Not Available |
| 04 | Not Available | Sanitaire Bushing - Motor | 75027 | Not Available |
| 05 |  | Switch, Red Push Button Mighty Mite 3684/3690/3695 Part Number: 28304A2 for Eureka | 28304A2 | $9.82Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Shield - Wire | 39028 | Not Available |
| 07 | Not Available | Sanitaire Thermostat & Terminal Assembly | 39408-8 | Not Available |
| 08 | Not Available | Sanitaire Cord & Terminal Assembly | 39409-8 | Not Available |
