Schematic and parts list for: Sanitaire Model: SC4580BT
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC4580BT
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC4580BT
Popular Supplies

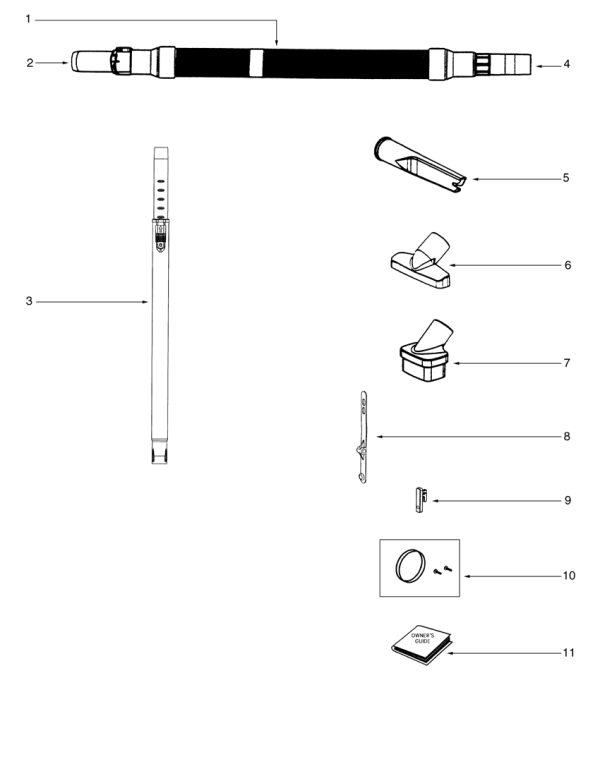

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Hose Assembly - Cartoned | 61040-1 | Not Available |
| 02 | No Image | COUPLING, MACHINE END 5181 Part Number: 28051A-119N for Eureka | 28051A119N | $6.66Read more |
| 03 | Not Available | Sanitaire Telescopic Wand | 60424 | Not Available |
| 04 | Not Available | Sanitaire Coupling - Hose | 37057A-3 | Not Available |
| 05 |  | ***USEE-27237-3 CREVICE TOOL, 8" W/HOLE TOBACCO Part Number: 26708-119N for Eureka | 26708119N | $5.98Read more |
| 06 |  | Upholstery Tool, Black Excalibur Part Number: 382843 for Eureka | 382843 | $9.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | Dust Brush, Black Natural Bristles Part Number: 602901 for Eureka | 602901 | $16.13Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 |  | STRAP, HOSE EUREKA 5195 Part Number: 39231-2 for Eureka | 392312 | $18.37Read more |
| 09 | Not Available | Sanitaire Plate - Hook | 39152A-333N | Not Available |
| 10 | No Image | COLLAR, FLOOR TOOL Part Number: 70124 for Compact | 70124 | $6.18Read more |
| 11 | Not Available | Sanitaire Owner's Guide | 70478A | Not Available |

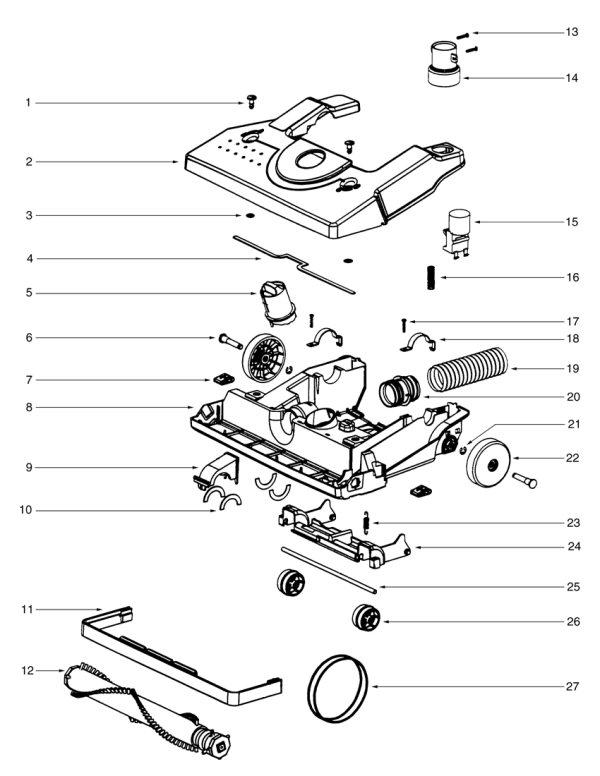

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Quarter Turn Fastener - P Pkg Of 10. | 60940 | Not Available |
| 02 | Not Available | Sanitaire Hood Assembly - Packaged | 60249-1 | Not Available |
| 03 | Not Available | Sanitaire 1/4 Turn Retainer(Pak 10) | 60941 | Not Available |
| 04 | Not Available | Sanitaire Base Gasket/4170 | 58506-3 | Not Available |
| 05 | Not Available | Sanitaire Operator - Height Adjustm | 27462C-288N | Not Available |
| 06 |  | Brushroll, 18 In Vs18/Vsp18 Part Number: 8.613-859.0 for Windsor | 86138590 | $293.92Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 | Not Available | Sanitaire Quarter Turn Receptacle - | 60939 | Not Available |
| 08 | Not Available | Sanitaire Base Assy (60938-4) Includes Items, 5,6,11,20,21,22,23,24,25 & 26. | 60938-1 | Not Available |
| 09 | Not Available | Sanitaire Belt Cap & Gasket - Packa Includes Item 10. | 54376-2 | Not Available |
| 10 |  | GASKET, FELT VICTORY Part Number: 57569 for Eureka | 57569 | $4.55Read more |
| 11 | Not Available | Sanitaire Furniture Guard(15591A-288N) | 15591-288N | Not Available |
| 12 | Not Available | Sanitaire Disturbulator Assy. | 60909-3 | Not Available |
| 13 | Not Available | Sanitaire Screw Package Pkg Of 10. | 53197-1 | Not Available |
| 14 |  | CUFF, HOSE NOZZLE HSG VICTORY SERIES Part Number: 27468D-119N for Eureka | 27468D119N | $8.24Read more |
| 15 | Not Available | Sanitaire Release - Handle | 27467A-288N | Not Available |
| 16 |  | SPRING, HANDLE RELEASE VICTORY 5PK Part Number: 60133 for Eureka | 60133 | $4.46Read more |
| 17 | Not Available | Sanitaire Screw Package Pkg Of 10. | FNLA | Not Available |
| 18 | Not Available | Sanitaire Clamp | 38420-2 | Not Available |
| 19 | Not Available | Sanitaire Hose - Compression (Purch | 38479-4 | Not Available |
| 20 | Not Available | Sanitaire Adapter - Base | 28243A-316N | Not Available |
| 21 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 | Not Available | Sanitaire Wheel/Bushing Package | 39260A-288N | Not Available |
| 23 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 | Not Available | Sanitaire Carriage - Wheel | 14993C-119N | Not Available |
| 25 | Not Available | Sanitaire Wheel Axle | 71551 | Not Available |
| 26 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 27 |  | Eureka Extended U belt aftermarket pn: 61120F | 20310801 | $9.99Add to cart |

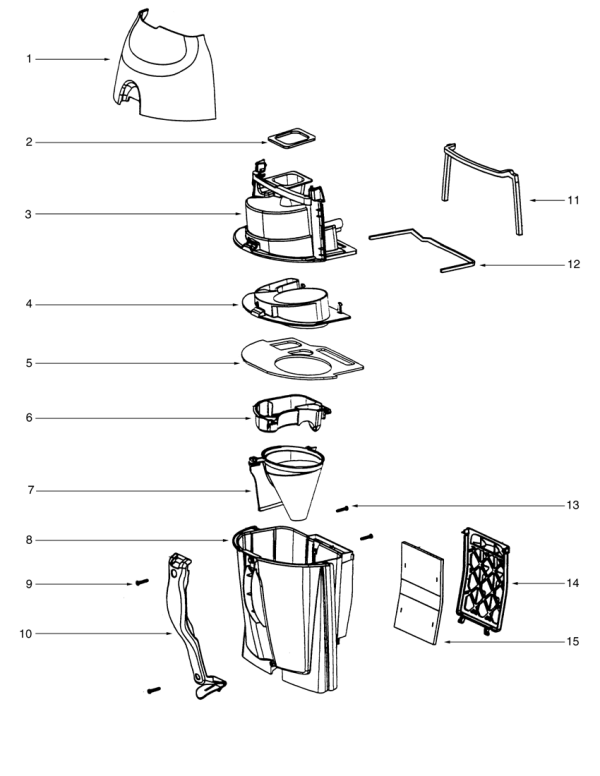

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Front Cover Assembly - Pk | 60704-14 | Not Available |
| 02 | Not Available | Sanitaire Cyclone Gasket Sheet 2 & 5 Come As A Set. | 39219B-1 | Not Available |
| 03 | Not Available | Sanitaire Upper Cyclone Assy | 60705-5 | Not Available |
| 04 | Not Available | Sanitaire Lower Cyclone Comes With 2 Only. | FNLA | Not Available |
| 05 | Not Available | Sanitaire Cyclone Gasket Sheet 2 & 5 Come As A Set. | 39219B-1 | Not Available |
| 06 | Not Available | Sanitaire Filter - Screen | 28099B-333N | Not Available |
| 07 | Not Available | Sanitaire Funnel-Cyclone(02311A-333N) | 71568 | Not Available |
| 08 | Not Available | Sanitaire Cyclonic Cass.Assy.(6070 (Nla) | 60706-3 | Not Available |
| 09 | Not Available | Sanitaire Screw Package | 53197-1 | Not Available |
| 10 | Not Available | Sanitaire Grip - Dirt Cup | 28131-288N | Not Available |
| 11 | Not Available | Sanitaire Gasket - Cyclone | 59595-1 | Not Available |
| 12 | Not Available | Sanitaire Gasket - Air Duct | 59297-2SV | Not Available |
| 13 | Not Available | Sanitaire Screw Package | 53197-1 | Not Available |
| 14 | Not Available | Sanitaire Frame - Filter | 28114-119N | Not Available |
| 15 | Not Available | Sanitaire Victory Whirlwind Filter | 60696 | Not Available |

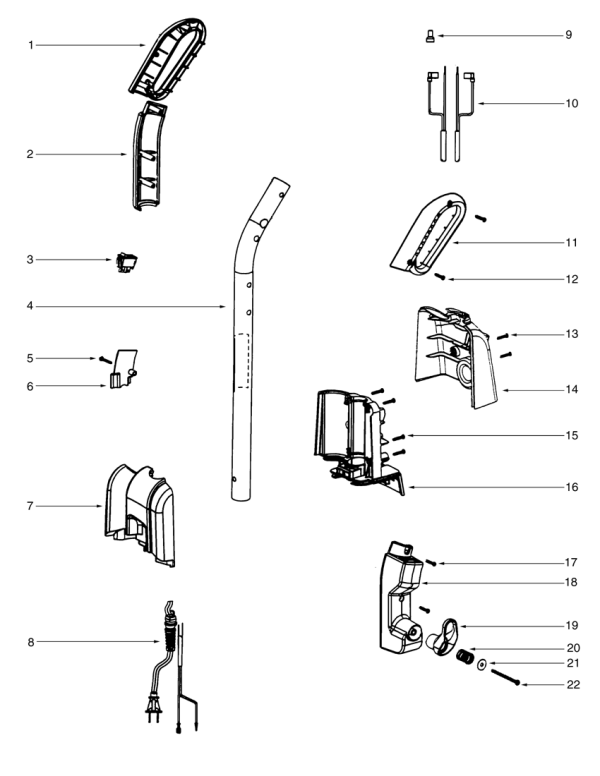

| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Handle Assembly | 15605A-2 | Not Available |
| 01 | Not Available | Sanitaire Grip - Right Handle | 15597-288N | Not Available |
| 02 | Not Available | Sanitaire Housing - Switch (Rh) | 02349-288N | Not Available |
| 03 | Not Available | Sanitaire Rocker Switch | 28305 | Not Available |
| 04 | Not Available | Sanitaire Handle - Steel | 15580 | Not Available |
| 05 | No Image | SCREW, HANDLE SC677 Part Number: 60947 for Eureka | 60947 | $17.12Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Shield - Wiring | 59741-316N | Not Available |
| 07 | Not Available | Sanitaire Housing - Front Handle | 70332-308N | Not Available |
| 08 | Not Available | Sanitaire Supply Cord & Terminal Assy | 38680-19 | Not Available |
| 09 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 10 | Not Available | Sanitaire Upper Cord Assembly | 28011-2 | Not Available |
| 11 | Not Available | Sanitaire Grip - Left Handle | 15596-288N | Not Available |
| 14 | No Image | COVER, HANDLE Part Number: 15581-119N for Eureka | 15581119N | $91.28Read more |
| 15 | No Image | HOUSING, LEFT SWITCH SC4570 Part Number: 02348-288N for Eureka | 02348288N | $6.74Read more |
| 17 | Not Available | Sanitaire Screw Package | 53197-1 | Not Available |
| 18 | Not Available | Sanitaire Housing - Rear Handle (Nla) | 15534A-119N | Not Available |
| 19 | Not Available | Sanitaire Cord Retainer/Sc4570At | 28316-288N | Not Available |
| 20 | No Image | SPRING, UPPER CORD HOOK SC4570 10PK Part Number: 60945 for Eureka | 60945 | $6.63Read more |
| 21 | No Image | Washer, SC677 10Pk Part Number: 60946 for Eureka | 60946 | $9.53Read more |
| 22 | No Image | SCREW, HANDLE BRAVO SOFT BODY 10PK Part Number: 5323818 for Eureka | 5323818 | $7.22Read more |

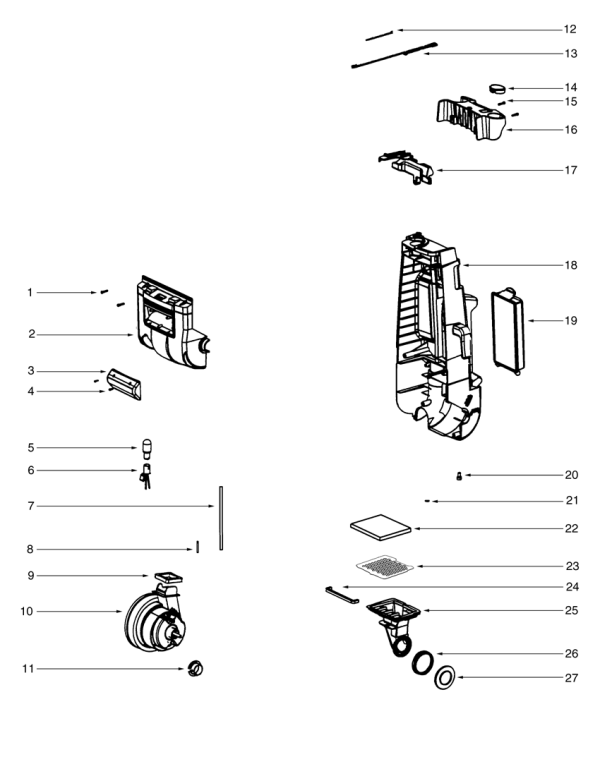

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Screw Package | 53197-1 | Not Available |
| 02 | No Image | COVER, MOTOR SC4580 Part Number: 609421 for Eureka | 609421 | $50.52Read more |
| 03 | Not Available | Sanitaire Lens - Motor Cover | 15407-313N | Not Available |
| 04 | Not Available | Sanitaire Screw Package | 60068-2 | Not Available |
| 05 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Light Socket & T (38611 (Nla) | 38611-1 | Not Available |
| 07 | Not Available | Sanitaire Tube (Victory) (Nla) | 59362B | Not Available |
| 08 | Not Available | Sanitaire Adapter - Tube | 59361A | Not Available |
| 09 | No Image | GASKET, MOTOR Part Number: 59137 for Eureka | 59137 | $4.55Read more |
| 10 | Not Available | Sanitaire Motor Assy Use 60943-4 | 60943-1 | Not Available |
| 11 | Not Available | Sanitaire Grommet | 27552B | Not Available |
| 12 | No Image | TIES, CABLE Part Number: 467135 for Eureka | 467135 | $4.29Read more |
| 13 | Not Available | Sanitaire Thermostat Assy./Sc4570A (Nla) | 39252-3 | Not Available |
| 14 | No Image | BUSHING, TOOL CADDY 4580 Part Number: 70133-119N for Eureka | 70133119N | $6.49Read more |
| 15 | Not Available | Sanitaire Screw Package | 53197-1 | Not Available |
| 16 | Not Available | Sanitaire Tool Caddy | 15443B-119N | Not Available |
| 17 | No Image | ***NLS RETAINER Part Number: 28290-333N for Eureka | 28290333N | $199.90Read more |
| 18 | Not Available | Sanitaire Rear Housing - Packaged | 60944-2 | Not Available |
| 19 | No Image | FILTER AND FRAME, VICTORY/SELF PROPELLED M Part Number: 61510 for Eureka | 61510 | $59.70Read more |
| 20 | | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 21 | Not Available | Sanitaire Push Nuts | 60613 | Not Available |
| 22 | Not Available | Sanitaire Motor Filter Package | 61333 | Not Available |
| 23 | Not Available | Sanitaire Grille - Air Duct | 28425 | Not Available |
| 24 | Not Available | Sanitaire Gasket - Air Duct | 59297SV | Not Available |
| 25 | Not Available | Sanitaire Air Duct/ Victory Series | 15408B-119N | Not Available |
| 26 | No Image | GASKET, FAN COVER BRAVO ALL MODELS Part Number: 27171A for Eureka | 27171A | $4.55Read more |
| 27 | Not Available | Sanitaire Flange - Motor Intake | 39023 | Not Available |
