Schematic and parts list for: Sanitaire Model: SC6001A
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC6001A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

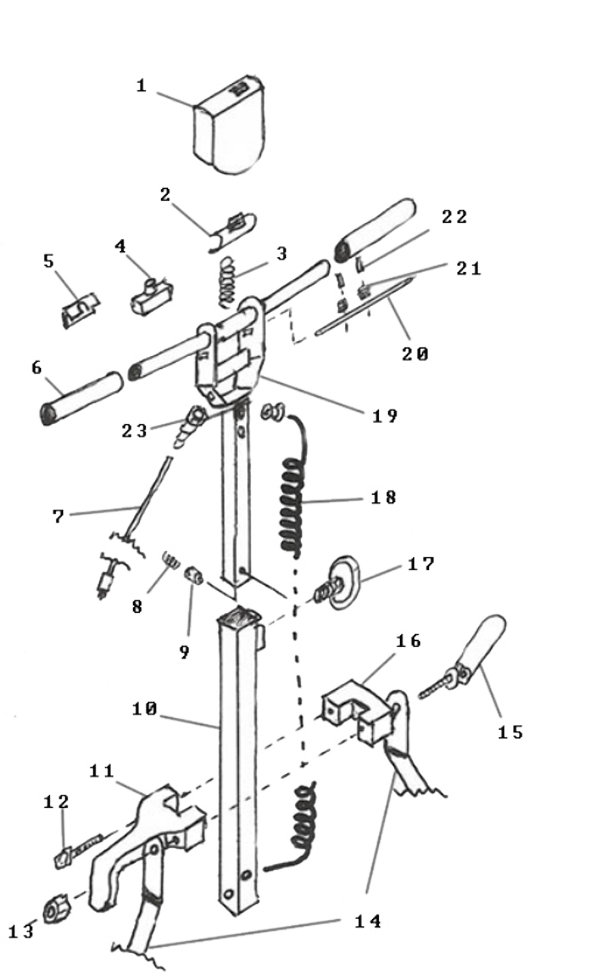

Parts for: SC6001A
| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Solution Tank | 62055-1 | Not Available |
| 1 | Not Available | Sanitaire Switch Bx Cvr-13 In-Eurek | W0003-3P | Not Available |
| 2 | Not Available | Sanitaire Safety Switch | C0003-EYAS | Not Available |
| 3 | Not Available | Sanitaire Spring 2Lng X .025 Od X . | H0014 | Not Available |
| 4 | Not Available | Sanitaire Main On/Off Switch | E0007 | Not Available |
| 5 | Not Available | Sanitaire Switch Insulation | H0013 | Not Available |
| 6 | Not Available | Sanitaire Handle Grip - Gray | C0007-2 | Not Available |
| 7 | Not Available | Sanitaire Crd-Blk-16-3 Sjt Ul/Csa 2 | E0031-2 | Not Available |
| 8 | Not Available | Sanitaire Spring 11/16Lngx.344 Odx. | H0023 | Not Available |
| 9 | Not Available | Sanitaire Sleeve-Lock Pin | M0003-2P | Not Available |
| 10 | Not Available | Sanitaire Lower Telescoping Handle | W0002L-1P | Not Available |
| 11 | Not Available | Sanitaire Cord Hook & Handle Clamp | HP0002SANITAIRE | Not Available |
| 12 | Not Available | Sanitaire 3/8-16 X 2-1/2H.C.S. Gr8 | H0044 | Not Available |
| 13 | Not Available | Sanitaire Nut-3/8 X 16 Hex Nylck-Zi | H0015 | Not Available |
| 14 | Not Available | Sanitaire Paint-Connecting Leg - Gr | S0005P-1 | Not Available |
| 15 | Not Available | Sanitaire Cam Lock Assy (Painted) | HP0003-HAMMERSILVER | Not Available |
| 16 | Not Available | Sanitaire Cord Hook & Handle Clamp | HP0002SANITAIRE | Not Available |
| 17 | Not Available | Sanitaire Knob (Rosette) | H0101 | Not Available |
| 18 | Not Available | Sanitaire Cord Blk - 16-3 1-5' Sjeo | E0012-2 | Not Available |
| 19 | Not Available | Sanitaire Upper Telescoping Handle | W0002U-1P | Not Available |
| 20 | Not Available | Sanitaire Painted - Trigger - Gray | S0008P-1 | Not Available |
| 21 | Not Available | Sanitaire Spring 11/16Lngx.344 Odx. | H0023 | Not Available |
| 22 | Not Available | Sanitaire Roll Pin 1/8 C 1-3/4 | H0012 | Not Available |
| 23 | Not Available | Sanitaire Strain Relief Heyco - Blo | H0021-3 | Not Available |

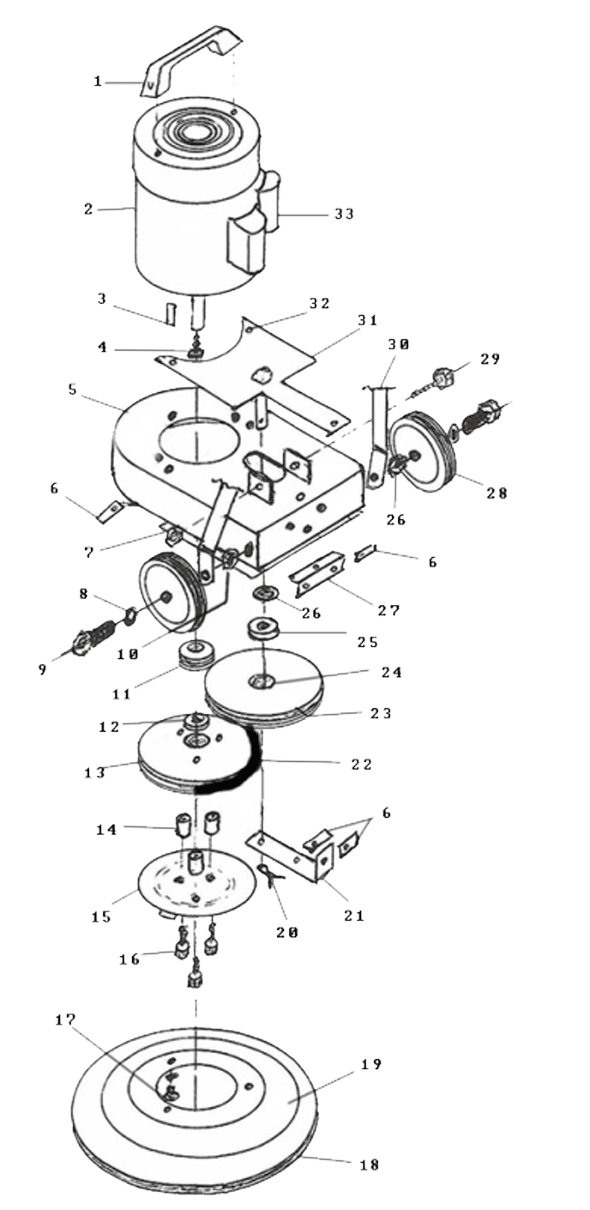

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Sanitaire Lift Handle W/Brass Inser | C0038 | Not Available |
| 2 | Not Available | Sanitaire Motor 1/2Hp 115/230V 60C | E0002 | Not Available |
| 3 | Not Available | Sanitaire Motor/ Pulley Key | H0053-1 | Not Available |
| 4 | Not Available | Sanitaire 1/4-20X1-1/4 Hx Tap Blt 2 | H0056-8 | Not Available |
| 5 | Not Available | Sanitaire Frm Assy-2Pcs Fr Blt Drv | W0001-2P-1 | Not Available |
| 6 | Not Available | Sanitaire Aveco Clip #8359 | H0079-3 | Not Available |
| 7 | Not Available | Sanitaire Splash Guard Mat-Wrinkle | C0037P | Not Available |
| 8 | Not Available | Sanitaire Spring Washer .515 Id Zin | H0007 | Not Available |
| 9 | Not Available | Sanitaire 1/2X13X3 Hx Cap Scrw 5-Zi | H0091-2 | Not Available |
| 10 | Not Available | Sanitaire Nut- 1/2-13 Inch Nylon-Zi | H0090-1 | Not Available |
| 11 | Not Available | Sanitaire Drive Pulley | M0015-3 | Not Available |
| 12 | Not Available | Sanitaire Bearing .625 Id | M0019-3 | Not Available |
| 13 | Not Available | Sanitaire Pulley-Idler Drive | M0014-1 | Not Available |
| 14 | Not Available | Sanitaire Spacer - 1.175 Long | M0004 | Not Available |
| 15 | Not Available | Sanitaire Mach-Clutch Drive Casting | C0036M | Not Available |
| 16 | Not Available | Sanitaire 1/4-20X2-3/4 Sc Cp Scrw B | H0056-5 | Not Available |
| 17 | Not Available | Sanitaire Screw 1/4 - 20 X 3/4 | H0056-9 | Not Available |
| 18 | Not Available | Sanitaire 13 Inch Bumper - Red Eure | C0015-1 | Not Available |
| 19 | Not Available | Sanitaire 13 Brush Cover-Hammer Gra | S0020-1P-10 | Not Available |
| 20 | Not Available | Sanitaire Cotter Pin-Zin 3/32 X 1 | H0006 | Not Available |
| 21 | Not Available | Sanitaire Belt Adj Bracket-Lower | S0040P | Not Available |
| 22 | Not Available | Sanitaire Belt | C0014-3 | Not Available |
| 23 | Not Available | Sanitaire Step Pulley | M0015-4 | Not Available |
| 24 | Not Available | Sanitaire Bearing Spacer | M0029 | Not Available |
| 25 | Not Available | Sanitaire Bearing .500 Id | M0019-2 | Not Available |
| 26 | Not Available | Sanitaire Washer-Zinc Plated Steel | H0008 | Not Available |
| 27 | Not Available | Sanitaire Belt Adj Bracket-Upper Zi | S0041P | Not Available |
| 28 | Not Available | Sanitaire Description Unavailable | C0004BB | Not Available |
| 29 | Not Available | Sanitaire 3/8-16X 2-1/4 Hx Cp Scrw | H0043-1 | Not Available |
| 30 | Not Available | Sanitaire Paint-Connecting Leg - Gr | S0005P-1 | Not Available |
| 31 | Not Available | Sanitaire Frm Assy-2Pcs Fr Blt Drv | W0001-2P-1 | Not Available |
| 32 | Not Available | Sanitaire 1/4-20X3/4 | H0056-6 | Not Available |
| 33 | Not Available | Sanitaire Start/Run Capacitor | E0008-8 | Not Available |
