Schematic and parts list for: Sanitaire Model: SC6025A
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC6025A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

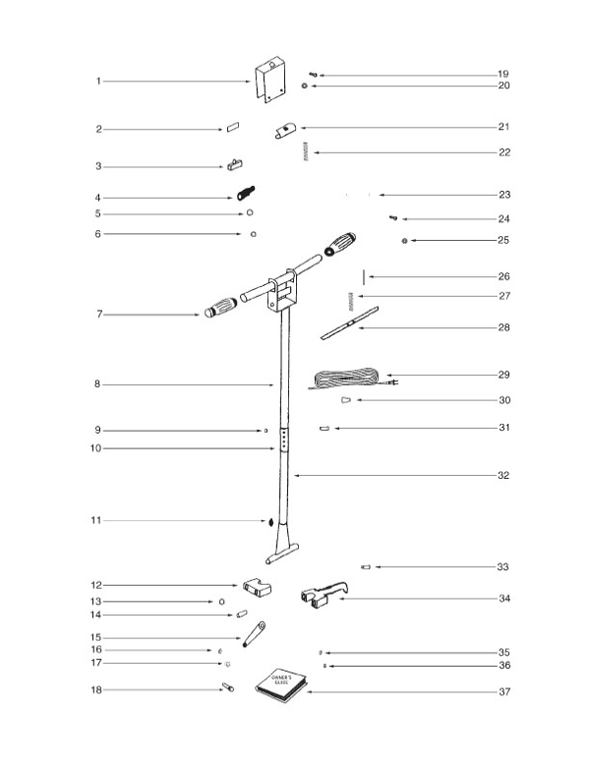

Parts for: SC6025A
| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Cam Lock Assy (Painted) | HP0003-HAMMERSILVER | Not Available |
| xx |  | TANK, SOLUTION POLISHERS/BURNISHERS Part Number: 62055 for Eureka | 62055 | $450.48Read more |
| 1 | Not Available | Sanitaire Switch Bx Cvr Wldmnt-Rnd- | W0003-2P | Not Available |
| 2 | Not Available | Sanitaire Switch Insulation | H0013 | Not Available |
| 3 | Not Available | Sanitaire Main On/Off Switch | E0007 | Not Available |
| 4 | Not Available | Sanitaire Strain Relief Imperial Ea | H0021 | Not Available |
| 5 | Not Available | Sanitaire Nut (Appleton Bl50/Neer L | H0022 | Not Available |
| 6 | Not Available | Sanitaire Wshr.890X1.5X.104 Str Rlf | H0022-1 | Not Available |
| 7 | Not Available | Sanitaire Handle Grip - Gray | C0007-2 | Not Available |
| 8 | Not Available | Sanitaire Handle - Upper - Plated | W0002UP | Not Available |
| 9 | Not Available | Sanitaire Nut - 5/16 - 18 Nyloc | H0099 | Not Available |
| 10 | Not Available | Sanitaire Coupling Handle - Plated | M0027P | Not Available |
| 11 | Not Available | Sanitaire Grommet Badger #Bg179 | H0028 | Not Available |
| 12 | Not Available | Sanitaire Cord Hook & Handle Clamp | HP0002SANITAIRE | Not Available |
| 13 | Not Available | Sanitaire Nut-3/8 X 16 Hex Nylck-Zi | H0015 | Not Available |
| 14 | Not Available | Sanitaire 3/8-16X4-3/8 Spade Bolt Z | H0017 | Not Available |
| 15 | Not Available | Sanitaire Painted-Handle Lock Cam G | M0001P2 | Not Available |
| 16 | Not Available | Sanitaire Plated Slotted Washer | H0001P | Not Available |
| 17 | Not Available | Sanitaire Push Nut 5/16 - Bright Ni | H0019 | Not Available |
| 18 | Not Available | Sanitaire Rivet 5/16 X 1-1/4 Solid- | H0018 | Not Available |
| 19 | Not Available | Sanitaire Screw 10-24 X .50 | H0040 | Not Available |
| 20 | Not Available | Sanitaire Washer #10 Ext. Tooth Lck | H0020 | Not Available |
| 21 | No Image | SWITCH, SAFETY SC6025A Part Number: C0003 for Eureka | C0003 | $19.64Read more |
| 22 | Not Available | Sanitaire Spring 2Lng X .025 Od X . | H0014 | Not Available |
| 23 | Not Available | Sanitaire Loop Clamp .250 For 16-3 | H0062 | Not Available |
| 24 | Not Available | Sanitaire Screw 10-24 X .50 | H0040 | Not Available |
| 25 | Not Available | Sanitaire Washer #10 Ext. Tooth Lck | H0020 | Not Available |
| 26 | Not Available | Sanitaire Roll Pin 1/8 C 1-3/4 | H0012 | Not Available |
| 27 | Not Available | Sanitaire Spring 11/16Lngx.344 Odx. | H0023 | Not Available |
| 28 | Not Available | Sanitaire Painted - Trigger - Gray | S0008P-1 | Not Available |
| 29 | No Image | CORD, 50' 14/3 FLOOR MACHINE SC6010 Part Number: E0003G for Eureka | E0003G | $223.78Read more |
| 30 | Not Available | Sanitaire Wire Nut | H0027 | Not Available |
| 31 | Not Available | Sanitaire Bolt 5/16 -18 X 2 In | H0098 | Not Available |
| 32 | Not Available | Sanitaire Handle - Lower - Plated | W0002LP | Not Available |
| 33 | Not Available | Sanitaire 3/8-16 X 2-1/2H.C.S. Gr8 | H0044 | Not Available |
| 34 | Not Available | Sanitaire Cord Hook & Handle Clamp | HP0002SANITAIRE | Not Available |
| 35 | Not Available | Sanitaire 3/8 Flat Washer - Blk Oxi | H0016 | Not Available |
| 36 | Not Available | Sanitaire Lock Nut Thn Flex .375-16 | H0057 | Not Available |
| 37 | Not Available | Sanitaire Owners Guide | 73416 | Not Available |

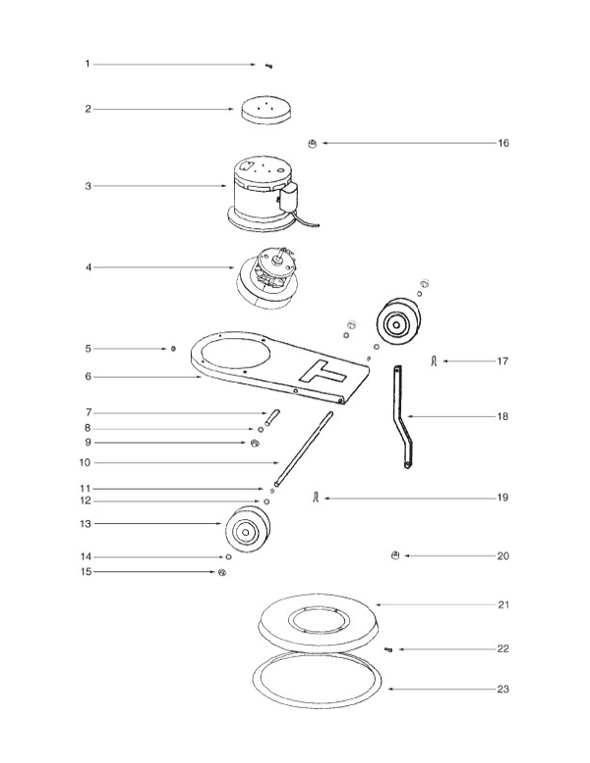

| # | Part image | Description | SKU | Price |
| 1 | Not Available | Sanitaire 10-24 X 1 Screw | H0002 | Not Available |
| 2 | Not Available | Sanitaire Drp Cvr-Chrome Mirror Fin | S0001CP | Not Available |
| 3 | Not Available | Sanitaire 3-Idlr Gear Bx W/Mtg Plt | G0002P | Not Available |
| 4 | Not Available | Sanitaire 1.5Hp 110V 60C - Gray | E0030P | Not Available |
| 5 | Not Available | Sanitaire Washer 5/16 Ext Tooth Lk | H0005 | Not Available |
| 6 | Not Available | Sanitaire Pnt-Std Spd Flr Mach Frm | W0001P-1 | Not Available |
| 7 | Not Available | Sanitaire Plated Hndle Mounting Shf | M0006P | Not Available |
| 8 | Not Available | Sanitaire Washer-Zinc Plated Steel | H0008 | Not Available |
| 9 | Not Available | Sanitaire Push Nut 1/2 - Bright Nic | H0009 | Not Available |
| 10 | Not Available | Sanitaire Plated Wheel Axle | M0005P | Not Available |
| 11 | Not Available | Sanitaire Spring Washer .515 Id Zin | H0007 | Not Available |
| 12 | Not Available | Sanitaire Washer-Zinc Plated Steel | H0008 | Not Available |
| 13 | Not Available | Sanitaire Wheel 1.25X5 Ball Bearing | C0004BB | Not Available |
| 14 | Not Available | Sanitaire Washer-Zinc Plated Steel | H0008 | Not Available |
| 15 | Not Available | Sanitaire Push Nut 1/2 - Bright Nic | H0009 | Not Available |
| 16 | Not Available | Sanitaire Nylon Un-Threaded Rnd Spa | H0003-1 | Not Available |
| 17 | Not Available | Sanitaire Cotter Pin-Zin 3/32 X 1 | H0006 | Not Available |
| 18 | Not Available | Sanitaire Paint-Connecting Leg - Gr | S0005P-1 | Not Available |
| 19 | Not Available | Sanitaire Cotter Pin 5/32 X 1-1/4-Z | H0031 | Not Available |
| 20 | Not Available | Sanitaire Spacer - 1.175 Long | M0004 | Not Available |
| 21 | Not Available | Sanitaire 20 Brush Cover Chrome Mir | S0004CP | Not Available |
| 22 | No Image | SCREWS, 5/16 1X2 SOCKET CAP Part Number: H0011 for Eureka | H0011 | $11.63Read more |
| 23 | Not Available | Sanitaire 20 Inch Bumper - Red | C0002-1 | Not Available |
