Schematic and parts list for: Sanitaire Model: SC6200A
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC6200A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC6200A 14" Cordless Auto Scrubber

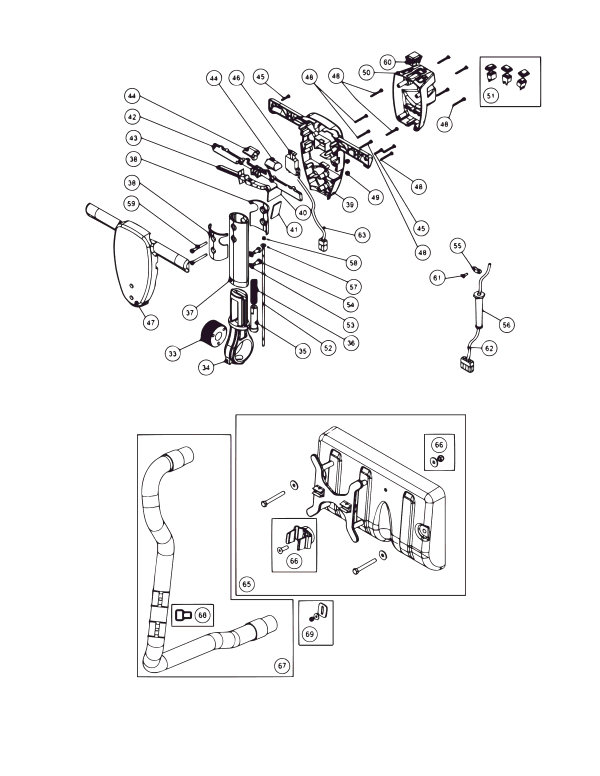

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-SC6200A-1.png)
# | Part image | Description | SKU | Price |
33 | Not Available | Sanitaire Handle Adjusting Gear | 16937CP | Not Available |
34 | Not Available | Sanitaire Aluminum Knuckle | 16938CP | Not Available |
35 | Not Available | Sanitaire Handle Adjusting Gear Dog | 16939CP | Not Available |
36 | Not Available | Sanitaire Gear Dog Spring | 16940CP | Not Available |
37 | Not Available | Sanitaire Ton | 16941CP | Not Available |
38 | Not Available | Sanitaire Handle Rubber Boot | 16942CP | Not Available |
39 | Not Available | Sanitaire Handle Case Rear | 16943CP | Not Available |
40 | Not Available | Sanitaire Solution Trigger Blanking | 16944CP | Not Available |
41 | Not Available | Sanitaire Handle Socket Blanking Pl | 16945CP | Not Available |
42 | Not Available | Sanitaire Trigger Left & Right | 17024CP | Not Available |
43 | Not Available | Sanitaire Gear Lever | 17025CP | Not Available |
44 | Not Available | Sanitaire Interlock | 17026CP | Not Available |
45 | Not Available | Sanitaire Self Tapper | 17027CP | Not Available |
46 | Not Available | Sanitaire Switch | 17028CP | Not Available |
47 | Not Available | Sanitaire Handle Case Front | 17029CP | Not Available |
48 | Not Available | Sanitaire Self Tapper | 17030CP | Not Available |
49 | Not Available | Sanitaire Nut M6 A2 Din 982 | 17031CP | Not Available |
50 | Not Available | Sanitaire Operator Panel | 17032CP | Not Available |
51 | Not Available | Sanitaire Push Button Kit | 17033CP | Not Available |
52 | Not Available | Sanitaire Adjusting Gear Rod | 17034CP | Not Available |
53 | Not Available | Sanitaire Washer D8 A2 Din 125A | 17035CP | Not Available |
54 | Not Available | Sanitaire 17036Cp | 17036CP | Not Available |
55 | Not Available | Sanitaire Cable Restraint | 17037CP | Not Available |
56 | Not Available | Sanitaire Cable Strain Relief | 17038CP | Not Available |
57 | Not Available | Sanitaire Washer D.5X15 A2 Din902 | 17039CP | Not Available |
58 | Not Available | Sanitaire Nut M5 A2 Din 982 | 17040CP | Not Available |
59 | Not Available | Sanitaire Screw Pan Head M6X55 | 17041CP | Not Available |
60 | Not Available | Sanitaire Battery Level Indicator | 17042CP | Not Available |
61 | Not Available | Sanitaire Screw M 4.5X20 | 17043CP | Not Available |
62 | Not Available | Sanitaire Power Cord - Handle To Bo | 17044CP | Not Available |
63 | Not Available | Sanitaire Power Cord-Brush Sw To Hn | 17045CP | Not Available |
65 | Not Available | Sanitaire Rear Cover Assembly | 17047CP | Not Available |
66 | Not Available | Sanitaire Vacuum Hose Clip Kit | 17048CP | Not Available |
67 | Not Available | Sanitaire Vacuum Hose | 16462CP | Not Available |
68 | Not Available | Sanitaire Vacuum Hose Elastic Tie K | 17049CP | Not Available |
69 | Not Available | Sanitaire Charger Fixing Kit | 17050CP | Not Available |

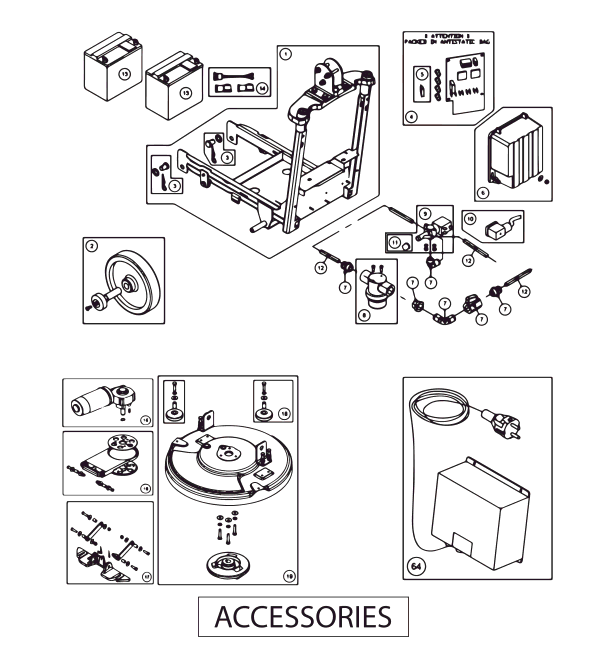

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-SC6200A-2.png)
# | Part image | Description | SKU | Price |
1 | Not Available | Sanitaire Chassis Assembly | 16912CP | Not Available |
2 | Not Available | Sanitaire Wheel Assembly | 16458CP | Not Available |
3 | Not Available | Sanitaire Brush Cover Fixing Kit | 16913CP | Not Available |
4 | Not Available | Sanitaire Electronic Board | 16914CP | Not Available |
5 | Not Available | Sanitaire Fuse 30 Amp | 16915CP | Not Available |
6 | Not Available | Sanitaire Electronic Board Cover As | 16916CP | Not Available |
7 | Not Available | Sanitaire Hose Connector Kit | 16917CP | Not Available |
8 | Not Available | Sanitaire Solution Filter Kit | 16459CP | Not Available |
9 | Not Available | Sanitaire Solenoid Valve Kit | 16918CP | Not Available |
10 | Not Available | Sanitaire Solenoid Valve Connector | 16919CP | Not Available |
11 | Not Available | Sanitaire Cap | 16920CP | Not Available |
12 | Not Available | Sanitaire Solution Hose Kit | 16921CP | Not Available |
13 | Not Available | Sanitaire Battery (Sc6200) | 16922CP | Not Available |
14 | Not Available | Sanitaire Battery Connection Cable | 16923CP | Not Available |
15 | Not Available | Sanitaire Brush Motor | 16466CP | Not Available |
16 | Not Available | Sanitaire Fulcrum Arm Asembly | 16924CP | Not Available |
17 | Not Available | Sanitaire Squeegee Support Assembly | 16925CP | Not Available |
18 | Not Available | Sanitaire Bumper Assembly | 16926CP | Not Available |
19 | Not Available | Sanitaire Brush Cover Assembly | 16927CP | Not Available |
64 | Not Available | Sanitaire Battery Charger | 17046CP | Not Available |
![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-SC6200A-3.png)
# | Part image | Description | SKU | Price |
7 | Not Available | Sanitaire Hose Connector Kit | 16917CP | Not Available |
20 | Not Available | Sanitaire Solution Tank Kit | 16928CP | Not Available |
21 | Not Available | Sanitaire Vacuum Motor Assembly | 16460CP | Not Available |
22 | Not Available | Sanitaire Vacuum Air Flow&Sound Pro | 16929CP | Not Available |
23 | Not Available | Sanitaire Vacuum Motor Holder Kit | 16930CP | Not Available |
25 | Not Available | Sanitaire Solution Tank Filling Hos | 16931CP | Not Available |
26 | Not Available | Sanitaire Hose Connector Kit (5 Per | 16932CP | Not Available |
27 | Not Available | Sanitaire Recovery Tank Assembly | 16933CP | Not Available |
28 | Not Available | Sanitaire Drain Hose Clamp Kit | 16934CP | Not Available |
29 | Not Available | Sanitaire Drain Hose | 16461CP | Not Available |
30 | Not Available | Sanitaire Recovery Tank Lid W/ Gask | 16465CP | Not Available |
31 | Not Available | Sanitaire Float Cage Assembly | 16935CP | Not Available |
32 | Not Available | Sanitaire Ball D.35 | 16936CP | Not Available |

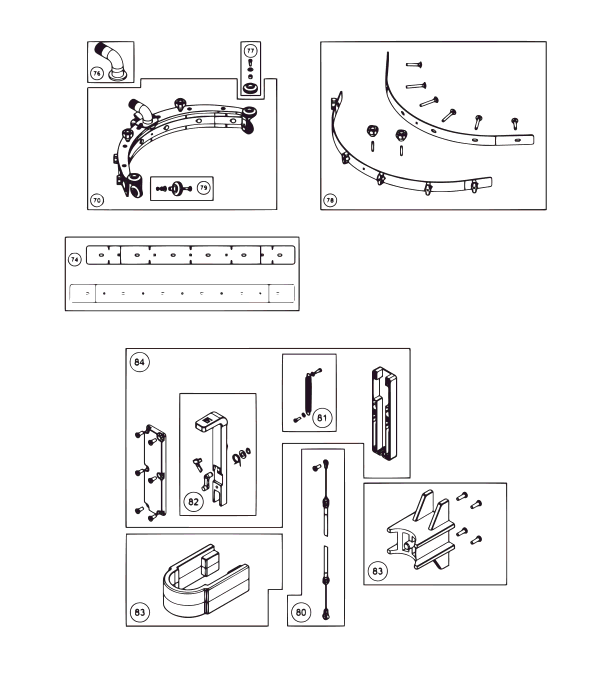

![](https://www.vacuumsrus.com/wp-content/uploads/2023/11/vacuums-SC6200A-4.png)
# | Part image | Description | SKU | Price |
71 | Not Available | Sanitaire Complete Squeegee Assembl | 17059CP | Not Available |
74 | Not Available | Sanitaire Squeegee Blade Set | 16463CP | Not Available |
76 | Not Available | Sanitaire Elbow Connector 1 1/4" Dn | 17051CP | Not Available |
77 | Not Available | Sanitaire Bumper Wheel Assembly | 17052CP | Not Available |
78 | Not Available | Sanitaire Squeegee Retainer | 17053CP | Not Available |
79 | Not Available | Sanitaire Squeegee Blade Wheels | 17054CP | Not Available |
80 | Not Available | Sanitaire Squeegee Lifting Cable | 16464CP | Not Available |
81 | Not Available | Sanitaire Lever Return Spring Kit | 17055CP | Not Available |
82 | Not Available | Sanitaire Lever Kit | 17056CP | Not Available |
83 | Not Available | Sanitaire Clamp & Support Kit | 17057CP | Not Available |
84 | Not Available | Sanitaire Lever Enclosure Kit | 17058CP | Not Available |
