Schematic and parts list for: Sanitaire Model: SC6484DT
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC6484DT
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC6484DT
Popular Supplies
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Sanitaire Wand Assy (Nla) | 14990-2 | Not Available |
| 2 | Not Available | Sanitaire Ring-Bleeder (Nla) | 38381-1 | Not Available |
| 3 | Not Available | Sanitaire Hose Assy - Crtnd | 54691-1 | Not Available |
| 4 | Not Available | Sanitaire Hose Assy - Crtnd | 54692-1 | Not Available |
| 5 | Not Available | Sanitaire Wand - Straight | 54723 | Not Available |
| 6 | Not Available | Sanitaire Tool - Crevice | 54780 | Not Available |
| 7 | Not Available | Sanitaire Upholstery Nozzle Assembl | 54782 | Not Available |
| 8 | Not Available | Sanitaire Dusting Brush - Packaged | 54787 | Not Available |
| 9 | Not Available | Sanitaire Pkg - Hardware (Nla) | 58068 | Not Available |
| # | Part image | Description | SKU | Price |

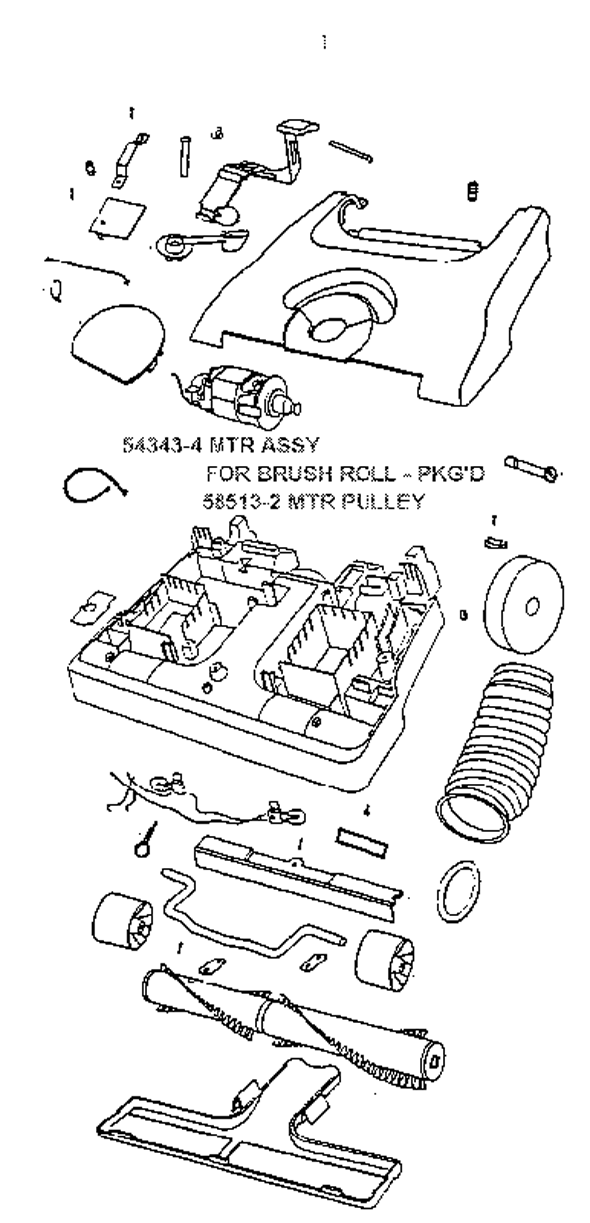

| xx | Not Available | Sanitaire Motor Assembly - Packaged | 54343-1 | Not Available |
| 1 | Not Available | Sanitaire Plate - Sole | 02235-119N | Not Available |
| 2 | Not Available | Sanitaire Wheel - Rear (26270- (Nla) | 26270-3 | Not Available |
| 3 | Not Available | Sanitaire Lever - Adjustme (58327- (Nla) | 27372-1 | Not Available |
| 4 | Not Available | Sanitaire Lamp Skt & Harness (Nla) | 27376 | Not Available |
| 5 | No Image | HANDLE RELEASE PEDAL, EXCALIBUR Part Number: 27405 for Eureka | 27405 | $10.55Read more |
| 6 | Not Available | Sanitaire Adjustment Cover & Grphcs | 27483-10 | Not Available |
| 7 | Not Available | Sanitaire Lower Cord Assy (Nla) | 27541-1 | Not Available |
| 8 | Not Available | Sanitaire Motor Shield--(Nla) (Nla) | 27667A | Not Available |
| 9 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.53Read more |
| 10 | No Image | WHEEL AXLE, DREAM MACHINE UPRIGHT EXTRACTOR 2450A Part Number: 38392 for Eureka | 38392 | $6.66Read more |
| 11 | Not Available | Sanitaire Cap - Foot Pedal (Nla) | 38407 | Not Available |
| 12 | Not Available | Sanitaire Axle-Front (Nla) | 38457 | Not Available |
| 13 | No Image | MOTOR, 7.2" 120 VOLT B/B 2 STAGE TANGENTIAL BYPASS Part Number: 117467-13 for Lamb | 11746713 | $567.68Read more |
| 14 | Not Available | Sanitaire Tie - Cable (Purchased) | 46713-2 | Not Available |
| 15 |  | Miele SFD20 Long Flexible Crevice Tool for Miele Vacuums | SFD20 | $32.00Read more |
| 16 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $1.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 |  | Clamp, Axle Most Uprights Part Number: 53201 for Eureka | 53201 | $0.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 18 |  | Screw, Clamp SC888E/8284 Express 10Pk Part Number: 5323811 for Eureka | 5323811 | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 | Not Available | Sanitaire Screw Package | 53238-4 | Not Available |
| 21 | Not Available | Sanitaire Motor Assy (54343-5 | 54343-4 | Not Available |
| 22 | Not Available | Sanitaire Hood Assy - Pkg (Nla) | 54705-3 | Not Available |
| 23 | Not Available | Sanitaire Base Assy - Package | 54706-7 | Not Available |
| 24 | Not Available | Sanitaire Push On Nut-Pkg 10 (Nla) | 54707 | Not Available |
| 25 | Not Available | Sanitaire Spring-Pkg 10 (Nla) | 54708 | Not Available |
| 26 | No Image | CLIP, REAR WHEEL EXCALIBAR Part Number: 54709 for Eureka | 54709 | $10.55Read more |
| 27 | Not Available | Sanitaire Lamp - Headlight | 57940 | Not Available |
| 28 | Not Available | Sanitaire Screw - Height Adj (Nla) | 58244 | Not Available |
| 29 | Not Available | Sanitaire Pin - Foot Pedal | 58298 | Not Available |
| 30 | Not Available | Sanitaire Sleeving | 58427 | Not Available |
| 31 |  | Sangria Mettler silk finish egyptian cotton 50WT (164 yd) thread spool. 9105-0157 alternate: 10550-0958 | 91050157 | $3.25Add to cart |
| 32 | Not Available | Sanitaire Pulley | 58513-2 | Not Available |
| 33 | Not Available | Sanitaire Roll Assembly Replacement | 60167-1 | Not Available |
| 34 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| # | Part image | Description | SKU | Price |
| 1 | Not Available | Sanitaire Handle-Carrying (Nla) | 14909-1 | Not Available |
| 2 | No Image | GASKET, ACCESS DOOR EXCALIBUR UPRIGHTS Part Number: 14966 for Eureka | 14966 | $1.27Read more |
| 3 | Not Available | Sanitaire Access Door Assy | 14967-1 | Not Available |
| 4 | No Image | DIVERTER ARM, EXCALIBER Part Number: 27345 for Eureka | 27345 | $3.35Read more |
| 5 |  | FILTER, SECONDARY UPRT EXCALIBUR 6400 SERIES Part Number: 27384 for Eureka | 27384 | $6.09Read more |
| 6 | Not Available | Sanitaire Frame - Filter | 27385 | Not Available |
| 7 |  | MICRO SWITCH, INTERNAL EXCALIBUR Part Number: 27410 for Eureka | 27410 | $7.61Read more |
| 8 | Not Available | Sanitaire Door - Converter Valve (Nla) | 27666 | Not Available |
| 9 | Not Available | Sanitaire Upper Cord Assy. Commeric | 27897 | Not Available |
| 10 | Not Available | Sanitaire Rear Housing (Nla) | 27908-1 | Not Available |
| 11 | Not Available | Sanitaire Clamp - Motor (Nla) | 38243-1 | Not Available |
| 12 |  | Tool Easy Scrubber Bissell repair part number: 2038410 | 2038410 | $8.64Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | | Filter PostMotor 4122 Bissell repair part number: 2038427 | 2038427 | $3.45Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Sanitaire Deflector - Air (Nla) | 38618 | Not Available |
| 15 | Not Available | Sanitaire Foam - Sound | 38661 | Not Available |
| 16 | Not Available | Sanitaire Screw Pkg (Nla) | 53238-28 | Not Available |
| 17 | Not Available | Sanitaire Pkg. Screws Excalibur (Nla) | 53238-32 | Not Available |
| 18 | Not Available | Sanitaire Screw Package (Nla) | 53238-33 | Not Available |
| 19 | Not Available | Sanitaire Screw Package | 53238-34 | Not Available |
| 20 | Not Available | Sanitaire Screw Package (Nla) | 53238-35 | Not Available |
| 21 | Not Available | Sanitaire Screw Package | 53238-4 | Not Available |
| 22 | Not Available | Sanitaire Snap Pin Pkg 10 (Nla) | 53536-3 | Not Available |
| 23 | Not Available | Sanitaire Screw Package | 54669-1 | Not Available |
| 24 | Not Available | Sanitaire Spring-Pkg 5 (Nla) | 54710 | Not Available |
| 25 | No Image | SCREWS, LENS ON MOTOR COVER VICTORY 10PKG Part Number: 54938-2 for Eureka | 549382 | $4.86Read more |
| 26 | No Image | HOOD, WITH BASE BI-5701 POWER NOZZLE Part Number: 155463 for Built-In | 155463 | $66.90Read more |
| 27 | Not Available | Sanitaire Dirt Chute Cover W/Gasket | 60032-2 | Not Available |
| 28 | Not Available | Sanitaire Comm Mtr Cvr (Nla) | 60045 | Not Available |
| 29 | No Image | MOTOR, 10AMP SC6484 Part Number: 60046 for Eureka | 60046 | $103.38Read more |
| 30 |  | Belt, Style 10 Flat Each 088650/088750/088300 Part Number: 1860140600 for Royal | 1860140600 | $5.52Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 31 | | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| # | Part image | Description | SKU | Price |

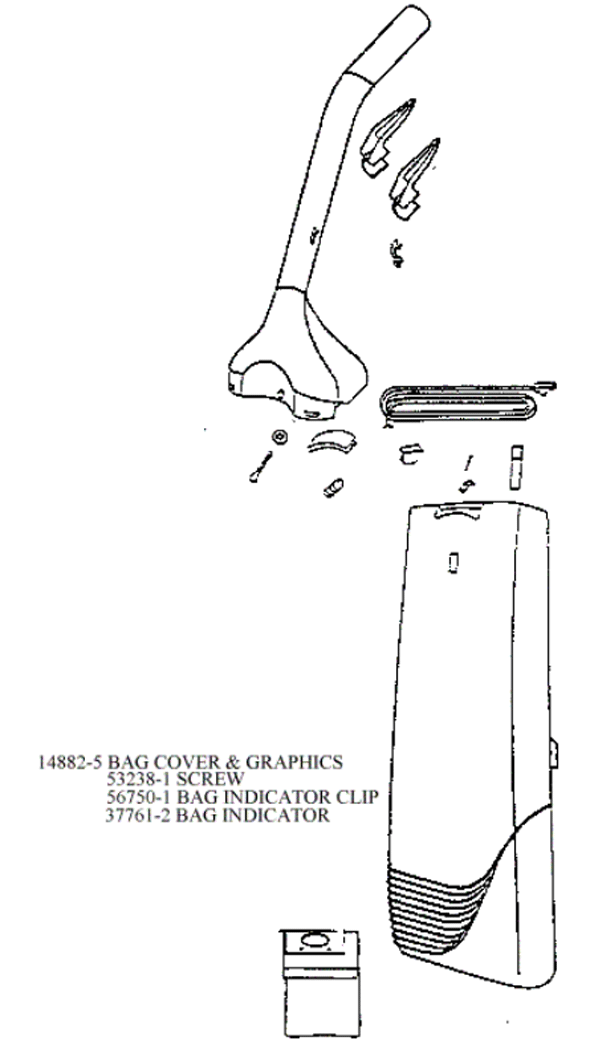

| 1 | Not Available | Sanitaire Handle Assy W/Cord Rel-Pk | 02119-2 | Not Available |
| 2 | Not Available | Sanitaire Latch - Bag Cover (Nla) | 27514 | Not Available |
| 3 | Not Available | Sanitaire Clip - Hose (Nla) | 27515-1 | Not Available |
| 4 | Not Available | Sanitaire Commercial Cord Assembly | 27521-2 | Not Available |
| 5 | Not Available | Sanitaire Switch - Rocker | 27871 | Not Available |
| 6 |  | Handle, Beige Vinyl Grip Fitall Part Number: 32-6340-72 for Fitall | 32634072 | $1.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 7 | Not Available | Sanitaire Bag Indicator Assembly | 37761-2 | Not Available |
| 8 | Not Available | Sanitaire Lockwshr Pkg 10 (Nla) | 53222-5 | Not Available |
| 9 | Not Available | Sanitaire Screw Pkg (Ew312- (Nla) | 53238-1 | Not Available |
| 10 | No Image | SCREW, 10PK Part Number: 53238-37 for Eureka | 5323837 | $10.55Read more |
| 11 | No Image | SPRING, BAG DOOR LATCH EXCALIBUR 5 PK Part Number: 54711 for Eureka | 54711 | $4.40Read more |
| 12 | Not Available | Sanitaire Clip - Bag Indic (56750 (Nla) | 56750-1 | Not Available |
| 13 |  | Eureka Electrolux Allergy Type Y Vacuum Bags | 748167000647 | $7.95Add to cart |
| 14 | Not Available | Sanitaire Bushing (Nla) | 58605 | Not Available |
