Schematic and parts list for: Sanitaire Model: SC899E-1
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC899E-1
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC899E-1
Popular Supplies

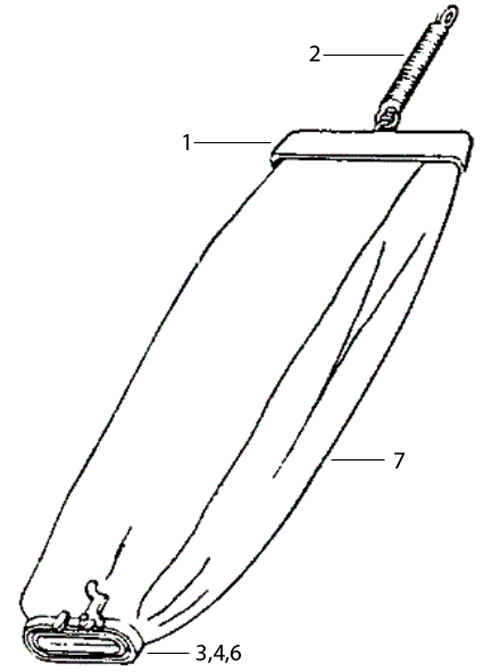

| # | Part image | Description | SKU | Price |
| xx | Not Available | Sanitaire Hardware Pkg-Comm Upright | 49461A | Not Available |
| 01 |  | Clip, Metal Bag SC679/SC684/SC881/SC886/SC899 Part Number: 30599D10 for Eureka | 30599D10 | $9.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Spring, Chrome Bag From Slide to Handle Part Number: 47722 for Eureka | 47722 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 |  | Gasket, :( Rubber Bag Adapter Part Number: 48282 for Eureka | 48282 | $4.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | No Image | Washer, Fits SC899, SC996 Series Part Number: 48748 for Eureka | 48748 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Bag Adapter | 54174-1 | Not Available |
| 07 |  | Cloth Bag, Commercial Latch Cplng Red Lined Titex Part Number: 54582A4 for Sanitaire | 54582A4 | $43.26Add to cart Product is special order please allow 2-4 weeks for delivery. |

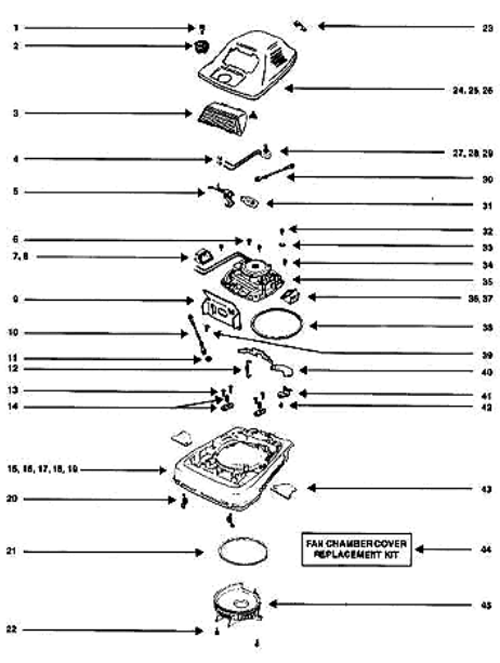

| # | Part image | Description | SKU | Price |
| 01 |  | Screw, Shoulder Adjustment Knob Part Number: 53143 for Eureka | 53143 | $3.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Sanitaire Knob Assembly | 26833-1 | Not Available |
| 03 | Not Available | Sanitaire Lens - Hood | 12600-22 | Not Available |
| 04 | Not Available | Sanitaire Wire Nuts/Pkg 10 | 53214-1 | Not Available |
| 05 | Not Available | Sanitaire Headlamp Socket Assembly | 37514 | Not Available |
| 06 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 07 |  | Inlet, Right Hand Air Duct Sanitaire Part Number: 56379SV for Eureka | 56379SV | $11.53Read more |
| 08 | Not Available | Sanitaire Tape - Foam | 49052-3 | Not Available |
| 09 | Not Available | Sanitaire FNLA | FNLA | Not Available |
| 10 | Not Available | Sanitaire Wire & Terminal Assembly | 54177 | Not Available |
| 11 | No Image | Nut, Hex Part Number: 532134 for Eureka | 532134 | $6.35Read more |
| 12 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $2.00Add to cart |
| 13 | | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $2.00Add to cart |
| 14 | Not Available | Sanitaire Clamps&Screws-Pkg 6 | 53140 | Not Available |
| 15 |  | Base, 16" Red Hex End Brushroll Less Fan Cover Part Number: 535004 for Eureka | 535004 | $71.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Sanitaire Cam (Right) | 24964A-1 | Not Available |
| 17 | Not Available | Sanitaire Cam (Left) | 24965A-1 | Not Available |
| 18 | Not Available | Sanitaire Rivets-Pkg 10 | 53118 | Not Available |
| 19 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.94Read more |
| 20 | No Image | COVER, POWER WAND HANDLE DC22 SCARLET Part Number: 913531-17 for Dyson | 91353117 | $24.74Read more |
| 21 |  | Gasket, Motor/Base Uprights eureka sanitaire oreck bissell commercial machines | E-30517 | $4.99Add to cart |
| 22 |  | Screw, Motor Mount Eureka/Sanitaire 10Pk Part Number: 5323814 for Eureka | 5323814 | $5.47Read more |
| 23 |  | Bushing, Strain Relief SC899E-1/E-2/E-3/SC899F Part Number: 531224 for Eureka | 531224 | $3.00Read more |
| 24 |  | Hood, Chrome W/Headlight Santitare SC888D/SC899E-1 Part Number: 540981 for Eureka | 540981 | $68.36Read more |
| 25 | Not Available | Sanitaire Decal | 55754 | Not Available |
| 26 | Not Available | Sanitaire FNLA | FNLA | Not Available |
| 27 |  | Switch, Metal Push Button SC886/887/888/889/899 | E-36409-13 | $10.99Add to cart |
| 28 | Not Available | Sanitaire Nut - Switch | 55446 | Not Available |
| 29 | Not Available | Sanitaire FNLA | FNLA | Not Available |
| 30 | Not Available | Sanitaire Wire Assembly (Grounding) | 54173-1 | Not Available |
| 31 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 33 | No Image | Clamp, 3/10 UPT Cable 5Pk Part Number: 53160 for Eureka | 53160 | $4.00Read more |
| 34 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 35 | Not Available | Sanitaire Mtr 1 Sp 6.5 | 54352-3 | Not Available |
| 36 | Not Available | Sanitaire Duct Assembly (L) | 56380SV | Not Available |
| 37 | Not Available | Sanitaire Tape - Foam | 49052-3 | Not Available |
| 38 | | Gasket, Motor/Base Uprights eureka sanitaire oreck bissell commercial machines | E-30517 | $4.99Add to cart |
| 39 |  | Screw, Clamp SC888E/8284 Express 10Pk Part Number: 5323811 for Eureka | 5323811 | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 40 | Not Available | Sanitaire Pedal - Foot | 24834A-3 | Not Available |
| 41 | Not Available | Sanitaire Spring-Adapt Retainer | 37034 | Not Available |
| 42 | No Image | Nut, Hex Part Number: 532134 for Eureka | 532134 | $6.35Read more |
| 43 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 |  | Kit, Fan Cover Repair SC886/SC887/SC888 Wide Track | E-52334 | $21.99Add to cart |
| 45 |  | Cover, Clear Plastic Fan Chamber SC887/SC888/SC889 Part Number: 137701 for Eureka | 137701 | $20.23Add to cart Product is special order please allow 2-4 weeks for delivery. |

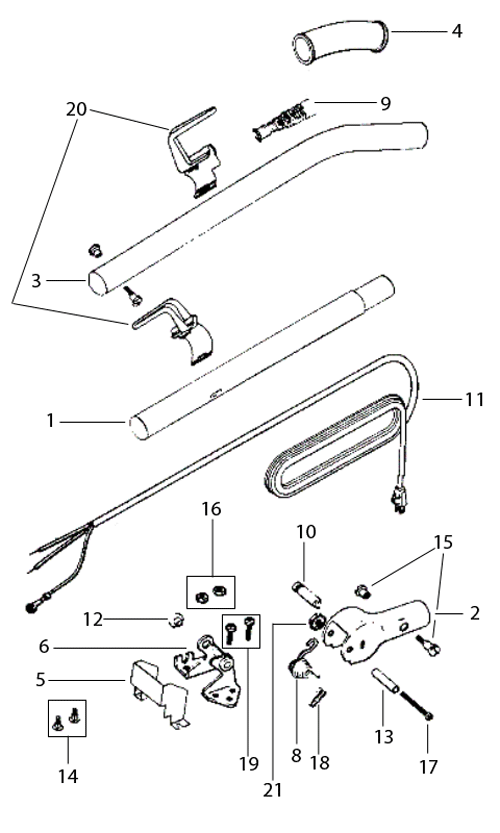

| # | Part image | Description | SKU | Price |
| xx |  | Spring Loaded Handle Socket Assembly for BG101 OR101 | WP10609 | $30.00Read more |
| 01 | No Image | Lower Handle for Sanitaire SC899 | WP11625 | $18.00Read more |
| 02 | Not Available | Sanitaire Socket - Handle | 25238-23 | Not Available |
| 03 | Not Available | Sanitaire Handle Assembly-Upper | 25329-20 | Not Available |
| 04 |  | Handle, Beige Vinyl Grip Fitall Part Number: 32-6340-72 for Fitall | 32634072 | $1.96Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Shield, Handle Socket C2194A/B C4046B/D/E/F/F-1 Part Number: 36439 for Eureka | 36439 | $4.08Read more |
| 06 | Not Available | Sanitaire Brkt & Bushing A | 36521A | Not Available |
| 08 |  | Latch, Recovery Tank SpotBot 1200 Serie Part Number: 203-6649 for Bissell | 2036649 | $4.72Read more |
| 09 | Not Available | Sanitaire Spring - Strain Relief Pk | 38495 | Not Available |
| 10 | Not Available | Sanitaire Pin - Handle Support | 41064F | Not Available |
| 11 | Not Available | Sanitaire Cord & Term Assembly-Fb-50'(One Only) | 52370-12 | Not Available |
| 12 | Not Available | Sanitaire Bushings-Pkg5 | 53098 | Not Available |
| 13 | Not Available | Sanitaire Spacers-Pkg 5 | 53099 | Not Available |
| 14 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $1.06Read more |
| 15 | Not Available | Sanitaire Handle Screws/Pkg | 53198-1 | Not Available |
| 16 | Not Available | Sanitaire Nut Pk 10 | 53213-5 | Not Available |
| 17 | Not Available | Sanitaire Screws-Package 10 | 53217-7 | Not Available |
| 18 | Not Available | Sanitaire Cttr Pins-Pkg10 | 53232-2 | Not Available |
| 19 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 20 | Not Available | Sanitaire Retnr Pkg(Upper&Lower)Beige | 53574-1 | Not Available |
| 21 | Not Available | Sanitaire Lk Nut Pkg/5Per | 53833-3 | Not Available |

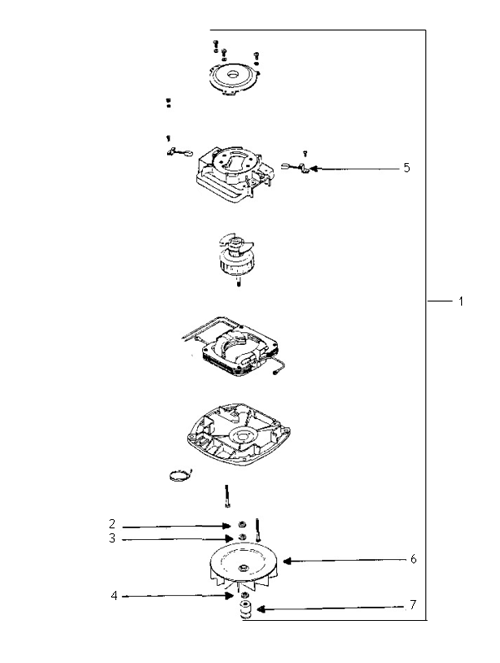

| # | Part image | Description | SKU | Price |
| 01 |  | Motor, 7 Amp SC899 Part Number: 5435217 for Eureka | 5435217 | $101.24Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Washer, SC886/SC888/SC899 Series 10Pk Part Number: 531882 for Eureka | 531882 | $12.46Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 | Not Available | Sanitaire Washer - Fan Package (10) | 53148-1 | Not Available |
| 04 | Not Available | Sanitaire Washer - Fan Package (10) | 53148-1 | Not Available |
| 05 |  | Carbon Brush, SC889A/SC685G/SC888K Part Number: UAU-000000-00K03 for Eureka | UAU00000000K03 | $28.86Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Fan Blower - Motor | UAU-000000-00K02 | Not Available |
| 07 |  | Pulley, Motor Belt Lux/Eur/Sanitaire Part Number: UAU-000000-00K06 for Eureka | UAU00000000K06 | $10.09Read more |

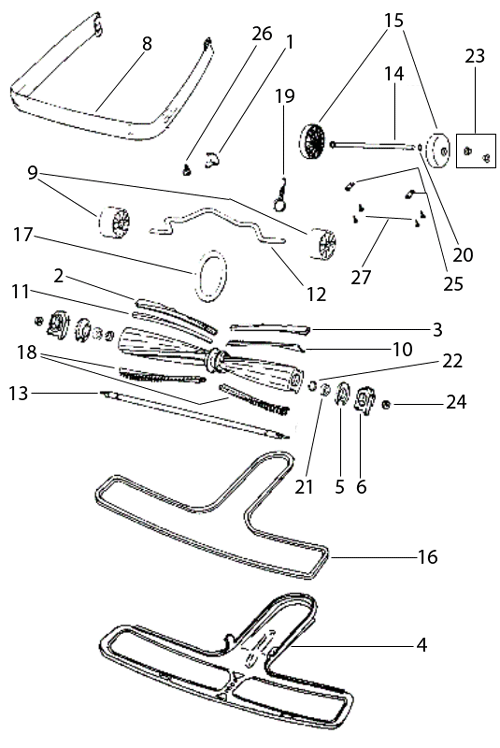

| # | Part image | Description | SKU | Price |
| xx |  | Brushroll, 16 In Hex End W/Ball Bearings VGI SC899 Part Number: 53273 for Eureka | 53273 | $81.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 01 |  | Clip, Bumper Guard-Wide Track Part Number: 25666SAN for Eureka | 25666SAN | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Beater Bar, Long SC899D/SC899E/SC899F Part Number: 25670A for Eureka | 25670A | $20.63Read more |
| 03 |  | Beater Bar, Short SC899D/E/F Series Part Number: 25671A for Eureka | 25671A | $18.25Read more |
| 04 |  | Bottom Plate, Double Slot/Front Tabs/Wide Track Part Number: 25672A for Eureka | 25672A | $32.42Read more |
| 05 | Not Available | Sanitaire Cap - Disturbulator | 26058A | Not Available |
| 06 |  | Cover, Black Pliable Rubber End Cap Part Number: 26059A for Eureka | 26059A | $1.93Add to cart |
| 07 |  | Wheel, Rear C2000/S600/SC800 Series Part Number: 26242119N for Eureka | 26242119N | $4.98Read more |
| 08 |  | Bumper, 37"x .75" Wide Clear Wrap Sanitaire/Eureka Part Number: 285042 for Eureka | 285042 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.53Read more |
| 10 | Not Available | Sanitaire Support - Beater Bar | 35895-3 | Not Available |
| 11 | Not Available | Sanitaire Support - Beater Bar | 35895-4 | Not Available |
| 12 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $9.77Read more |
| 13 | Not Available | Sanitaire Shaft - Disturbulator | 36517 | Not Available |
| 14 |  | Axle, Rear For Outside Rear Wheels S647/661 Series Part Number: 37183 for Eureka | 37183 | $8.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Wheel Axle and Press Clips for Bissell BG101 BG102 Oreck OR101 OR102 and Sanitaire Commercial | 60161 | $11.99Read more |
| 16 | Not Available | Sanitaire Tape - Foam | 46538-2 | Not Available |
| 17 |  | Miele SFD20 Long Flexible Crevice Tool for Miele Vacuums | SFD20 | $32.00Read more |
| 18 |  | Brush Strip, 16 Inch Vgi Pair Black Part Number: 52264 for Eureka | 52264 | $19.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $1.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | CYCLONE ASSY, DC25 PINK Part Number: 915531-10 for Dyson | 91553110 | $66.90Read more |
| 21 |  | Bearing, For VGI Brushroll SC888/SC9150/SC899 Part Number: 53114 for Eureka | 53114 | $8.19Read more |
| 22 | Not Available | Sanitaire Tol Rings-Pkg10 | 53115 | Not Available |
| 23 |  | Push Nut, Metal Rear Wheel C2094/C2132/C4046 Ser Part Number: 53121 for Eureka | 53121 | $0.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $9.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 25 |  | Clamp, Axle Most Uprights Part Number: 53201 for Eureka | 53201 | $0.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 26 | Not Available | Sanitaire Screw Package | 53238-10 | Not Available |
| 27 | | Screw, Clamp SC888E/8284 Express 10Pk Part Number: 5323811 for Eureka | 5323811 | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
