Schematic and parts list for: Sanitaire Model: SC899E-2
This is a list of parts and a diagram and schematic for: Sanitaire Model: SC899E-2
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SC899E-2
Popular Supplies

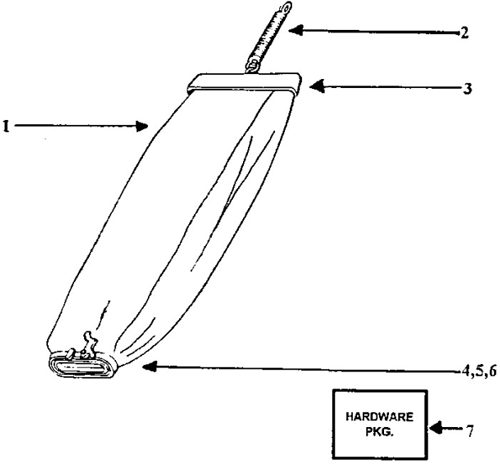

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Bag Assembly - Packaged-9 | 54582-4 | Not Available |
| 02 |  | Spring, Chrome Bag From Slide to Handle Part Number: 47722 for Eureka | 47722 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 |  | Clip, Metal Bag SC679/SC684/SC881/SC886/SC899 Part Number: 30599D10 for Eureka | 30599D10 | $9.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 | No Image | Washer, Fits SC899, SC996 Series Part Number: 48748 for Eureka | 48748 | $4.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Gasket, :( Rubber Bag Adapter Part Number: 48282 for Eureka | 48282 | $4.23Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 06 | Not Available | Sanitaire Bag Adapter | 54174-1 | Not Available |
| 07 | Not Available | Sanitaire Hardware Pkg-Comm Upright | 49461A | Not Available |

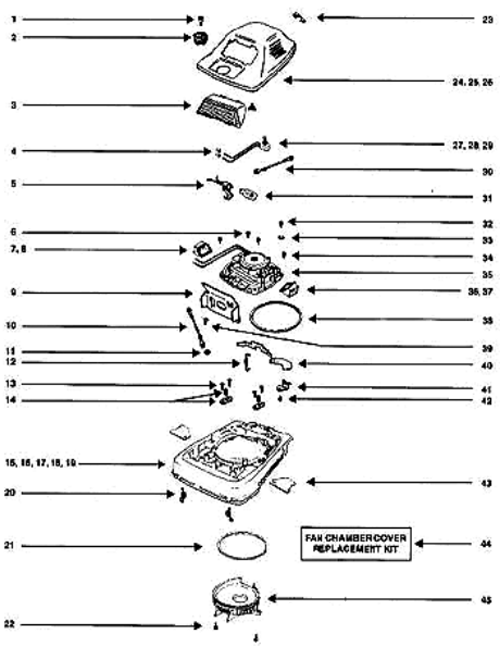

| # | Part image | Description | SKU | Price |
| 01 |  | Screw, Shoulder Adjustment Knob Part Number: 53143 for Eureka | 53143 | $3.59Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Knob, Black Height Adjustment C2000 Series Part Number: 380532 for Eureka | 380532 | $6.83Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 03 | Not Available | Sanitaire Lens & Housing Assembly | 76290-1 | Not Available |
| 04 | Not Available | Sanitaire Wire Nuts/Pkg 10 | 53214-1 | Not Available |
| 05 | Not Available | Sanitaire Headlamp Socket Assembly | 37514 | Not Available |
| 06 |  | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 07 | Not Available | Sanitaire Duct Assembly (R) | 56379-1SV | Not Available |
| 08 | Not Available | Sanitaire Tape - Foam | 49052-3 | Not Available |
| 09 | Not Available | Sanitaire FNLA | FNLA | Not Available |
| 10 | Not Available | Sanitaire Wire & Terminal Assembly | 54177 | Not Available |
| 11 | Not Available | Sanitaire Nuts - Package 10 | 53213-3 | Not Available |
| 12 |  | Spring, Metal Foot Pedal For Most Uprights Part Number: 53097 for Eureka | 53097 | $2.00Add to cart |
| 13 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 14 | Not Available | Sanitaire Clamps&Screws-Pkg 6 | 53140 | Not Available |
| 15 |  | Base, 16" Red Hex End Brushroll Less Fan Cover Part Number: 535004 for Eureka | 535004 | $71.72Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 16 | Not Available | Sanitaire Cam (Right) | 24964A-1 | Not Available |
| 17 | Not Available | Sanitaire Cam (Left) | 24965A-1 | Not Available |
| 18 | Not Available | Sanitaire Rivets-Pkg 10 | 53118 | Not Available |
| 19 |  | Washer, Metal Upper Cord Hook Part Number: 53133 for Eureka | 53133 | $3.94Read more |
| 20 | No Image | COVER, POWER WAND HANDLE DC22 SCARLET Part Number: 913531-17 for Dyson | 91353117 | $24.74Read more |
| 21 |  | Gasket, Motor/Base Uprights eureka sanitaire oreck bissell commercial machines | E-30517 | $4.99Add to cart |
| 22 |  | Screw, Motor Mount Eureka/Sanitaire 10Pk Part Number: 5323814 for Eureka | 5323814 | $5.47Read more |
| 23 |  | Bushing, Strain Relief SC899E-1/E-2/E-3/SC899F Part Number: 531224 for Eureka | 531224 | $3.00Read more |
| 24 |  | Hood, Chrome W/Headlight Santitare SC888D/SC899E-1 Part Number: 540981 for Eureka | 540981 | $68.36Read more |
| 25 | Not Available | Sanitaire Decal | 55754 | Not Available |
| 26 | Not Available | Sanitaire FNLA | FNLA | Not Available |
| 27 |  | Switch, Metal Push Button SC886/887/888/889/899 | E-36409-13 | $10.99Add to cart |
| 28 | Not Available | Sanitaire Nut - Switch | 55446 | Not Available |
| 29 | Not Available | Sanitaire FNLA | FNLA | Not Available |
| 30 | Not Available | Sanitaire Wire Assembly (Grounding) | 54173-1 | Not Available |
| 31 |  | Bulb, Headlight Victory Part Number: 48815 for Eureka | 48815 | $4.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 32 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 33 | No Image | Clamp, 3/10 UPT Cable 5Pk Part Number: 53160 for Eureka | 53160 | $4.00Read more |
| 34 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 35 | Not Available | Sanitaire Mtr 1 Sp 6.5 | 54352-3 | Not Available |
| 36 | Not Available | Sanitaire Duct Assembly (L) | 56380-1SV | Not Available |
| 37 | Not Available | Sanitaire Tape - Foam | 49052-3 | Not Available |
| 38 | | Gasket, Motor/Base Uprights eureka sanitaire oreck bissell commercial machines | E-30517 | $4.99Add to cart |
| 40 |  | Pedal, Gray/Metal Foot Eureka/Sani Uprt/Commercial Part Number: 24834A5 for Eureka | 24834A5 | $7.44Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 41 | Not Available | Sanitaire Spring-Adapt Retainer | 37034 | Not Available |
| 42 | No Image | Nut, Hex Part Number: 532134 for Eureka | 532134 | $6.35Read more |
| 43 |  | Cover, Gray Wheel C2000/1400/1900/C4000 Series Part Number: 36263 for Eureka | 36263 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 44 |  | Kit, Fan Cover Repair SC886/SC887/SC888 Wide Track | E-52334 | $21.99Add to cart |
| 45 |  | Cover, Clear Plastic Fan Chamber SC887/SC888/SC889 Part Number: 137701 for Eureka | 137701 | $20.23Add to cart Product is special order please allow 2-4 weeks for delivery. |

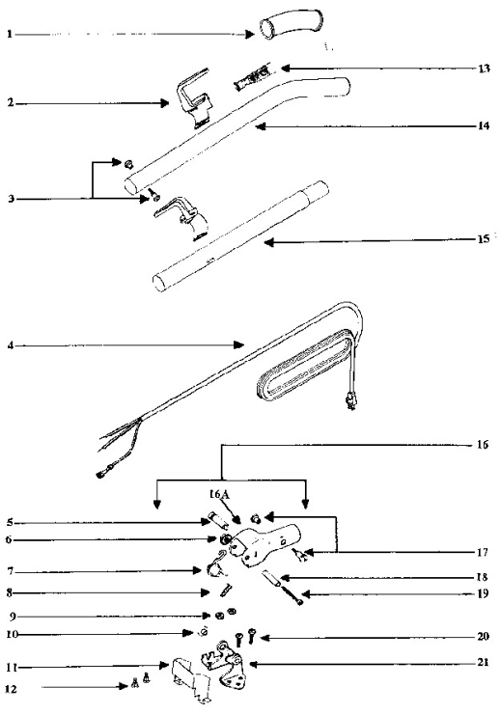

| # | Part image | Description | SKU | Price |
| 01 |  | Sanitaire Handle Grip White/Gray | 3529322 | $5.99Add to cart |
| 02 | No Image | Cord Hook Set for Sanitaire, Eureka, and Bissell Commercial Vacuums - Grey | E535745 | $5.99Add to cart |
| 03 | Not Available | Sanitaire Handle Screw Assembly Package | 53198-1 | Not Available |
| 04 | Not Available | Sanitaire Cord & Terminal Assembly-Fb-5 | 52370-12 | Not Available |
| 05 | Not Available | Sanitaire Pin - Handle Support | 41064F | Not Available |
| 06 | Not Available | Sanitaire Lk Nut Pkg/5Per | 53833-3 | Not Available |
| 07 |  | Latch, Recovery Tank SpotBot 1200 Serie Part Number: 203-6649 for Bissell | 2036649 | $4.72Read more |
| 08 | Not Available | Sanitaire Cotter Pins - Package 10 | 53232-2 | Not Available |
| 09 | Not Available | Sanitaire Nuts - Package 10 | 53213-5 | Not Available |
| 10 | Not Available | Sanitaire Bushings-Pkg5 | 53098 | Not Available |
| 11 |  | Shield, Handle Socket C2194A/B C4046B/D/E/F/F-1 Part Number: 36439 for Eureka | 36439 | $4.08Read more |
| 12 |  | Bolt, Handle Bracket Eur/Sanitaire Uprights Part Number: 53145 for Eureka | 53145 | $1.06Read more |
| 13 | Not Available | Sanitaire Spring - Strain Relief Pk | 38495 | Not Available |
| 14 | No Image | Sanitaire Upper Handle for SC899 | WP11624 | $18.00Read more |
| 15 | No Image | Lower Handle for Sanitaire SC899 | WP11625 | $18.00Read more |
| 16 |  | Spring Loaded Handle Socket Assembly for BG101 OR101 | WP10609 | $30.00Read more |
| 16a | Not Available | Sanitaire Socket - Handle | 25238-23 | Not Available |
| 17 | Not Available | Sanitaire Handle Screw Assembly Package | 53198-1 | Not Available |
| 18 | Not Available | Sanitaire Spacer - Handle Support | 53099 | Not Available |
| 19 | Not Available | Sanitaire Screws - Package 10 | 53217-7 | Not Available |
| 20 | | Screw, Rear Axle Retainer Clip Sanitaire/2000 Ser Part Number: 53238-13 for Eureka | 5323813 | $13.11Read more |
| 21 | Not Available | Sanitaire Bracket & Bushing Assembly | 36521A | Not Available |

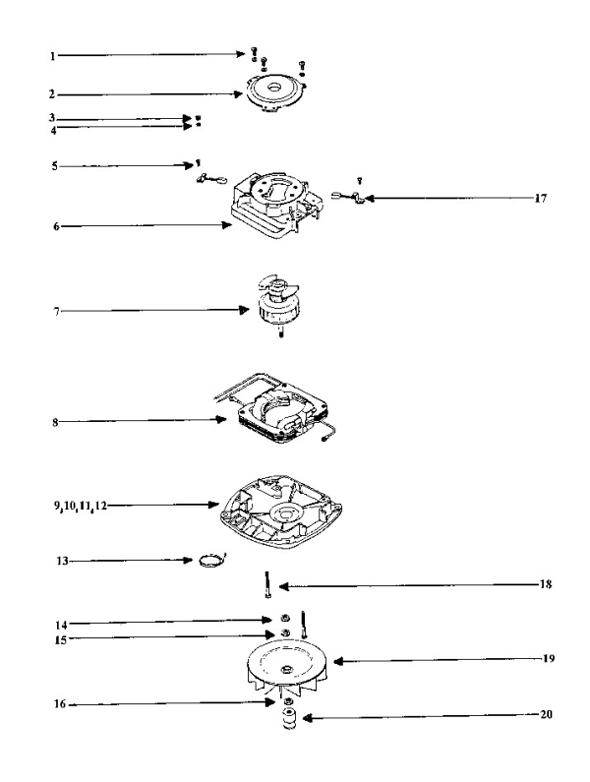

| # | Part image | Description | SKU | Price |
| 1 | No Image | SCREW, BEARING PLATE SANITAIRE 10 PK Part Number: 53138 for Eureka | 53138 | $4.46Read more |
| 2 | Not Available | Sanitaire Retainer - Upper Bearing | 20217E | Not Available |
| 3 | No Image | Nut, Hex Part Number: 532134 for Eureka | 532134 | $6.35Read more |
| 4 | Not Available | Sanitaire Lk Wshrs-Pkg10 | 53222-3 | Not Available |
| 5 | Not Available | Sanitaire Screws - Package 10 | 53219-2 | Not Available |
| 6 | Not Available | Sanitaire Motor Cover Assy - Label (Nla) | 54396 | Not Available |
| 7 | Not Available | Sanitaire Armature Kit | 15942-1 | Not Available |
| 8 | Not Available | Sanitaire Field Assy (Nla) | 53441-2 | Not Available |
| 9 | Not Available | Sanitaire Motor Base Assy | 54169-1 | Not Available |
| 10 | Not Available | Sanitaire Bearing Retainer Assy-W/L | 42875 | Not Available |
| 11 |  | Bearing, Rear 1CB-LGII/G3/G4/G5/G6/UG/DE Part Number: 115589 for Kirby | 115589 | $11.47Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 12 | Not Available | Sanitaire Rivets-Pkg10 | 53187-1 | Not Available |
| 13 | Not Available | Sanitaire Tie - Cable (Purchased) | 56802-2 | Not Available |
| 14 |  | Washer, Steel C2000/1400/1900/C4046 Series Part Number: 531881 for Eureka | 531881 | $13.36Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 15 |  | Fiber Washer, Fan For Uprights W/12988/12988-1 Fans sanitaire and eureka commercial | E49017 | $1.00Add to cart |
| 16 | | Fiber Washer, Fan For Uprights W/12988/12988-1 Fans sanitaire and eureka commercial | E49017 | $1.00Add to cart |
| 17 | Not Available | Sanitaire Motor Brush Assy (Nla) 30478 (Use Motor change kit | 30478 (Use Motor change kit instead) | Not Available |
| 18 | No Image | PIGTAIL, MACHINE END CSS350 Part Number: 555-3142 for Bissell | 5553142 | $0.82Read more |
| 19 |  | Sanitaire commercial Fan, Clear Plastic Blower Hi Profile C2094D/SC888G | E12988 | $14.99Add to cart |
| 20 | Not Available | Sanitaire Pulley - Motor Drive | 37012-2 | Not Available |

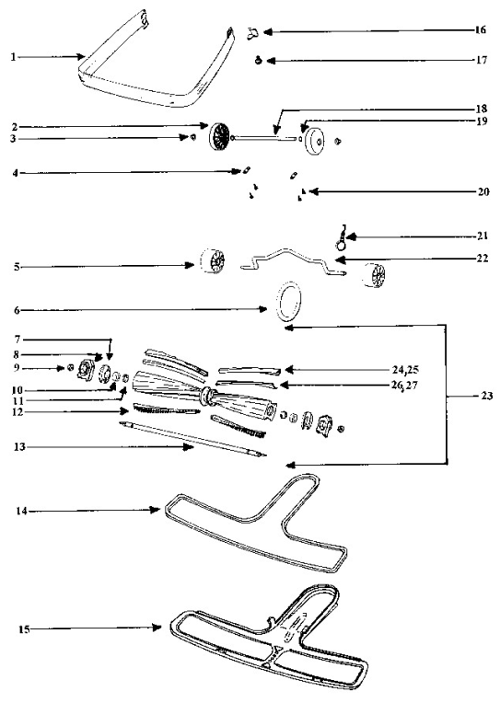

| # | Part image | Description | SKU | Price |
| 01 |  | Bumper, 37"x .75" Wide Clear Wrap Sanitaire/Eureka Part Number: 285042 for Eureka | 285042 | $9.99Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 |  | Wheel, Rear C2000/S600/SC800 Series Part Number: 26242119N for Eureka | 26242119N | $4.98Read more |
| 03 |  | Push Nut, Metal Rear Wheel C2094/C2132/C4046 Ser Part Number: 53121 for Eureka | 53121 | $0.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 04 |  | Clamp, Axle Most Uprights Part Number: 53201 for Eureka | 53201 | $0.70Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 |  | Wheel, Blk Front C2000/6400/1400 & Most Sanitaires Part Number: 35859A1 for Eureka | 35859A1 | $3.53Read more |
| 06 | Not Available | Sanitaire Belt Pkg Assembly (Upright) | 52100B | Not Available |
| 07 | Not Available | Sanitaire Cap - Disturbulator | 26058A | Not Available |
| 08 |  | Cover, Black Pliable Rubber End Cap Part Number: 26059A for Eureka | 26059A | $1.93Add to cart |
| 09 |  | Lock Nut, End Cap VGI/VGII 10Pk Part Number: 53158 for Eureka | 53158 | $9.61Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Bearing, For VGI Brushroll SC888/SC9150/SC899 Part Number: 53114 for Eureka | 53114 | $8.19Read more |
| 11 | Not Available | Sanitaire Package - Tolerance Ring | 53115 | Not Available |
| 12 |  | Brush Strip, 16 Inch Vgi Pair Black Part Number: 52264 for Eureka | 52264 | $19.34Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Sanitaire Shaft - Disturbulator | 36517 | Not Available |
| 14 | Not Available | Sanitaire Tape - Foam | 46538-2 | Not Available |
| 15 |  | Bottom Plate, Double Slot/Front Tabs/Wide Track Part Number: 25672A for Eureka | 25672A | $32.42Read more |
| 16 |  | Clip, Bumper Guard-Wide Track Part Number: 25666SAN for Eureka | 25666SAN | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 17 | Not Available | Sanitaire Screw Package | 53238-10 | Not Available |
| 18 |  | Axle, Rear For Outside Rear Wheels S647/661 Series Part Number: 37183 for Eureka | 37183 | $8.77Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 19 |  | CYCLONE ASSY, DC25 PINK Part Number: 915531-10 for Dyson | 91553110 | $66.90Read more |
| 20 |  | Screw, Clamp SC888E/8284 Express 10Pk Part Number: 5323811 for Eureka | 5323811 | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 |  | Spring, Handle Release Bravo Models Ea Part Number: 530762 for Eureka | 530762 | $1.39Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 22 |  | Axle, Metal Front C2000/6400/1400 & Most Sanitaire Part Number: 35947A for Eureka | 35947A | $9.77Read more |
| 23 |  | Brushroll, 16 In Hex End W/Ball Bearings VGI SC899 Part Number: 53273 for Eureka | 53273 | $81.54Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 24 |  | Beater Bar, Long SC899D/SC899E/SC899F Part Number: 25670A for Eureka | 25670A | $20.63Read more |
| 25 |  | Beater Bar, Short SC899D/E/F Series Part Number: 25671A for Eureka | 25671A | $18.25Read more |
| 26 | Not Available | Sanitaire Support - Beater Bar | 35895-4 | Not Available |
| 27 | Not Available | Sanitaire Support - Beater Bar | 35895-3 | Not Available |
