Schematic and parts list for: Sanitaire Model: SP5816A
This is a list of parts and a diagram and schematic for: Sanitaire Model: SP5816A
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: SP5816A
Popular Supplies

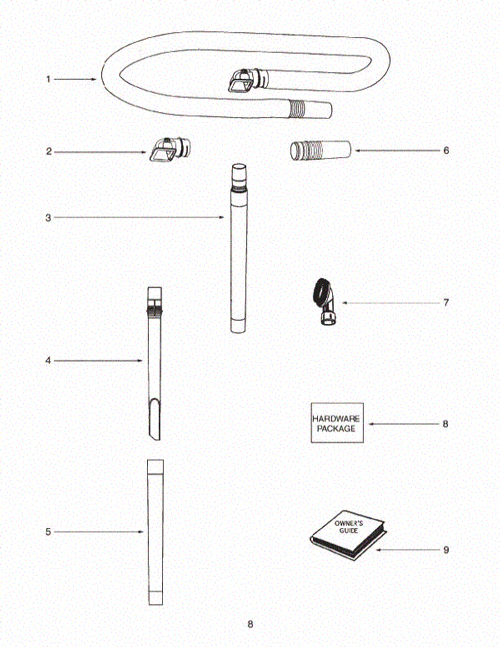

| # | Part image | Description | SKU | Price |
| XX |  | Cover, Red Plastic Back Handle Fork 2CB Part Number: 174576 for Kirby | 174576 | $33.44Read more |
| 01 |  | Hose, Attach W/Adaptor/Coupling Litespeed 5811A Part Number: 618654 for Eureka | 618654 | $50.80Read more |
| 02 |  | Adapter, Hose 5800/2900/SC5713/SC5815 Series Part Number: 71725313N for Eureka | 71725313N | $9.69Read more |
| 03 | Not Available | Sanitaire Nesting Wand Assembly Includes Items 4 & 5 | 71492A | Not Available |
| 04 | Not Available | Sanitaire Crevice Wand | 71956A-355N | Not Available |
| 05 | Not Available | Sanitaire Wand - Outer | 71973-119N | Not Available |
| 06 |  | Coupling, Hose 2900/3200/5800 Series Upright Part Number: 70559A119N for Eureka | 70559A119N | $11.79Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | Adapter Wand Lower Bissell repair part number: 1609902 | 1609902 | $2.97Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 | Not Available | Sanitaire Hardware Package | 72322 | Not Available |

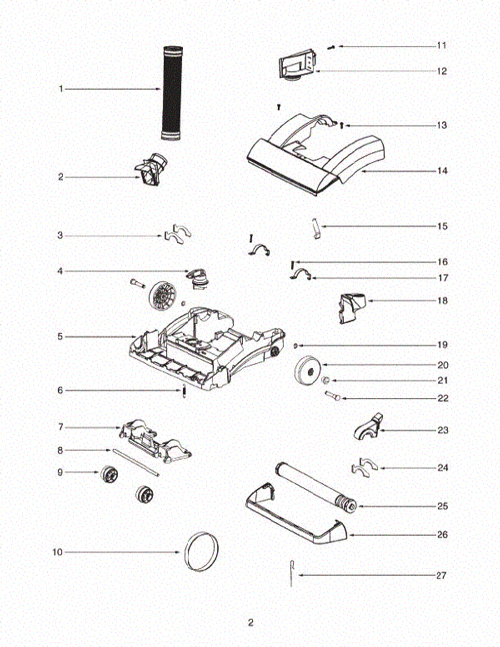

| # | Part image | Description | SKU | Price |
| XX |  | Knob, Gray Height Adjustment SC5713/SC5815 Series Part Number: 71448355N for Eureka | 71448355N | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 01 |  | Hose, Lower 5873 Part Number: 72001A for Eureka | 72001A | $28.49Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 02 | Not Available | Sanitaire Part Sold On Base Hose Only. | FNLA | Not Available |
| 03 | Not Available | Sanitaire Felt - Base | 73153 | Not Available |
| 04 | | Knob, Gray Height Adjustment SC5713/SC5815 Series Part Number: 71448355N for Eureka | 71448355N | $7.25Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Sanitaire Base Assembly - Packaged Includes Items 3,4,6,7,8,9,15,18,19,20,21,22,26,& 27 | 61877-10 | Not Available |
| 06 |  | Spring, Wheel Retainer Ht Adjustment Victory 10Pk Part Number: 54943 for Eureka | 54943 | $12.31Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 07 |  | Carriage, Front Wheel 5812A/5855AN/5857AZ Part Number: 71446A119N for Eureka | 71446A119N | $14.00Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 08 |  | Axle, Front SC5713/SC5815/SC5845 Uprights Part Number: 71478 for Eureka | 71478 | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 09 |  | Wheel, Front 5191/5847AV Part Number: 39173A119N for Eureka | 39173A119N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 |  | Eureka Ext U Royal/Dirt Devil Style 20 Belt, Bravo Worldvac Powerline Eureka Type U Flat Royal dirt devil type 20 | 1JZ0900000 | $5.99Add to cart |
| 11 | Not Available | Sanitaire Screw Package Of 10 | 53238-27 | Not Available |
| 12 | Not Available | Sanitaire Part Sold On Base Hose Only. | FNLA | Not Available |
| 13 |  | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 14 | Not Available | Sanitaire Hood Assembly - Packaged | 61878-25 | Not Available |
| 15 |  | SPRING, HANDLE RELEASE 2903 Part Number: 71574 for Eureka | 71574 | $5.30Read more |
| 16 | Not Available | Sanitaire Screw Package Of 10 | 53238-27 | Not Available |
| 17 | No Image | Clamp, Motor Part Number: 71487 for Eureka | 71487 | $8.52Read more |
| 18 |  | Pedal, Gray Foot Handle Release SC-5845 Part Number: 71457355N for Eureka | 71457355N | $7.25Read more |
| 19 |  | Ring, Retaining Wheels EL6988/EL7020/EL7070/EL4300 Part Number: 54432-2 for Eureka | 544322 | $4.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 |  | Wheel, Rear SC5713/SC5815/SC5845/SC5816 Part Number: 725121 for Eureka | 725121 | $11.58Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 21 | Not Available | Sanitaire Bushing - Axle | 73432 | Not Available |
| 22 |  | Axle, Rear 4458A/4468A/4499A/2903A/2905A Part Number: 38590A for Eureka | 38590A | $8.22Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 23 |  | Cover, Off-Wht Plastic Belt Cap 5700-5800 Series Part Number: 71741A for Eureka | 71741A | $6.49Read more |
| 24 |  | Belt Cap, White Felt SC5713/SC5815/SP5816 Part Number: 73152 for Eureka | 73152 | $5.44Read more |
| 25 | Not Available | Sanitaire Brushroll Assembly - Cart | 62228-3 | Not Available |
| 26 | Not Available | Sanitaire Part Sold On Hood Only. | FNLA | Not Available |
| 27 |  | Axle, Rear 68C7 Upright/12B1 PowerForce Helix Part Number: 203-8063 for Bissell | 2038063 | $4.75Add to cart Product is special order please allow 2-4 weeks for delivery. |

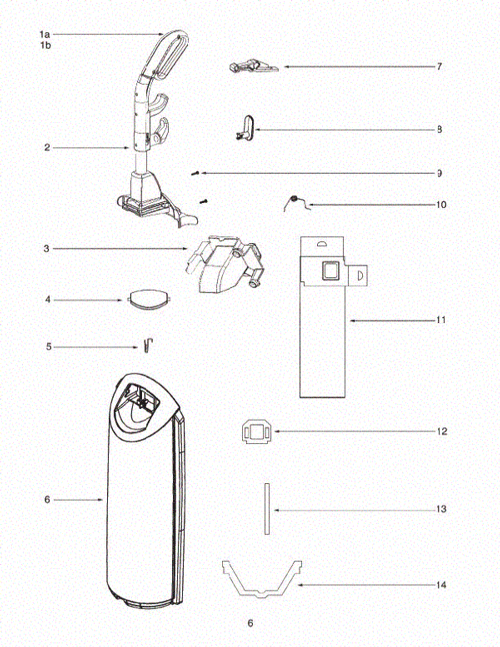

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Grip - Left Handle | 15596-355N | Not Available |
| 01B | Not Available | Sanitaire Grip - Right Handle | 15597-355N | Not Available |
| 02 | Not Available | Sanitaire Upper Handle Assembly | 73175-1SV | Not Available |
| 03 | No Image | ADAPTOR, CLIP Part Number: 71746119N for Eureka | 71746119N | $7.47Read more |
| 04 | No Image | Latch, Bag Cover SC5815 71830-355N Part Number: 71830308N for Eureka | 71830308N | $5.98Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 05 | Not Available | Sanitaire Spring - Torsion | 71852 | Not Available |
| 06 | Not Available | Sanitaire Bag Cover Assembly - Packged | 61880-9 | Not Available |
| 07 | Not Available | Sanitaire Bag-In-Place Arm | 71747-119N | Not Available |
| 08 |  | Cord Hook, Upper C4571A/C4910A/C5712A/EP9110A Part Number: 28316355N for Eureka | 28316355N | $7.25Read more |
| 09 | | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 10 | Not Available | Sanitaire Spring - Torsion | 71748 | Not Available |
| 11 |  | aftermarket Eureka Type LS Sanitaire Vacuum Bags, LiteSpeed Upright, Bagged, Boss Signature Genesis, Refurb Powerline Limited, Sanitaire Commercial Vacuum Cleaners, Series 5700 & 5800, 62123 61820A, SC5815A, SC5713A | 836301003156 | $8.95Add to cart |
| 12 | No Image | ADAPTOR, GASKET SC5815 UPRIGHT Part Number: 71854 for Eureka | 71854 | $5.98Read more |
| 13 | Not Available | Sanitaire Gasket - Bag Cover | 71512 | Not Available |
| 14 | Not Available | Sanitaire Gasket - Lower Bag | 71765A | Not Available |

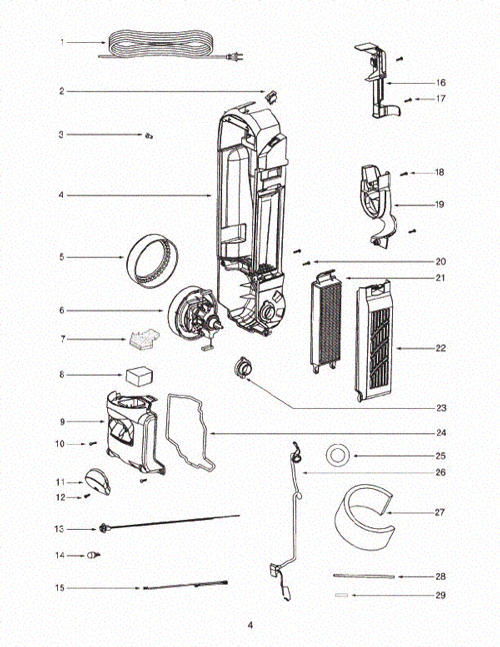

| # | Part image | Description | SKU | Price |
| 01 | Not Available | Sanitaire Supply Cord & Terminal As | 39585-4 | Not Available |
| 02 | Not Available | Sanitaire Switch - Rocker | 39455-1 | Not Available |
| 03 |  | Wire Nuts, 5Pk Part Number: 60192-1 for Eureka | 601921 | $5.98Read more |
| 04 | Not Available | Sanitaire Rear Housing Assembly Includes Item #24. | 71744 | Not Available |
| 05 | No Image | GASKET, MOTOR 5815 Part Number: 71649 for Eureka | 71649 | $5.98Read more |
| 06 | Not Available | Sanitaire Motor Assembly - Packaged | 62393 | Not Available |
| 07 | No Image | SCREEN, MOTOR SC5815 Part Number: 71851119N for Eureka | 71851119N | $6.49Read more |
| 08 |  | Filter, Secondary Foam 5740/5840/5843/5844/5846 Part Number: 71480 for Eureka | 71480 | $3.97Read more |
| 09 | Not Available | Sanitaire Motor Cover Assembly - Packaged Includes Item 8. | 61879-4 | Not Available |
| 10 | Not Available | Sanitaire Screw Package Of 10 | 53238-27 | Not Available |
| 11 | Not Available | Sanitaire Lens - Headlamp | 71460-313N | Not Available |
| 12 | | Screw, SC5845/4390A/SP5035A 10Pk Part Number: 5323844 for Eureka | 5323844 | $7.14Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 13 | Not Available | Sanitaire Socket & Terminal Assembly | 70701-2 | Not Available |
| 14 | Not Available | Sanitaire Lamp - Headlight | 57940-3 | Not Available |
| 15 |  | THERMOSTAT, 4870 Part Number: 39252-1 for Eureka | 392521 | $10.76Read more |
| 16 | No Image | COVER, SWITCH 5740A 5840 Part Number: 72127 for Eureka | 72127 | $10.79Read more |
| 17 | Not Available | Sanitaire Screw Package Of 10 | 53238-27 | Not Available |
| 18 | Not Available | Sanitaire Screw Package Of 10 | 53238-27 | Not Available |
| 19 |  | Tool Pack, Lower 5800 Series Part Number: 71455119N for Eureka | 71455119N | $11.29Add to cart Product is special order please allow 2-4 weeks for delivery. |
| 20 | Not Available | Sanitaire Screw Package Of 10 | 53238-27 | Not Available |
| 21 | Not Available | Sanitaire Washable Hepa Filter - Pack | 61840 | Not Available |
| 22 | Not Available | Sanitaire Filter Cover | 72006-7 | Not Available |
| 23 | Not Available | Sanitaire Bushing - Motor Support | 74779 | Not Available |
| 24 | No Image | GASKET, MOTOR COVER 5845 Part Number: 71484 for Eureka | 71484 | $5.09Read more |
| 25 | Not Available | Sanitaire Gasket - Motor Hub | 71969-1 | Not Available |
| 26 | No Image | UPHOLSTERY TOOL, FITALL FOR JET PACK 1 1/4" Part Number: 14-1714-65 for Fitall | 14171465 | $0.88Read more |
| 27 | No Image | FOAM, SOUND Part Number: 722241 for Eureka | 722241 | $4.63Read more |
| 28 | Not Available | Sanitaire Tube - Flexible | 70651-1 | Not Available |
| 29 | Not Available | Sanitaire Plug | 72167 | Not Available |
