Schematic and parts list for: Shop-Vac Model: 12S200Atest

Schematic and parts list for: Shop-Vac Model: 12S200A

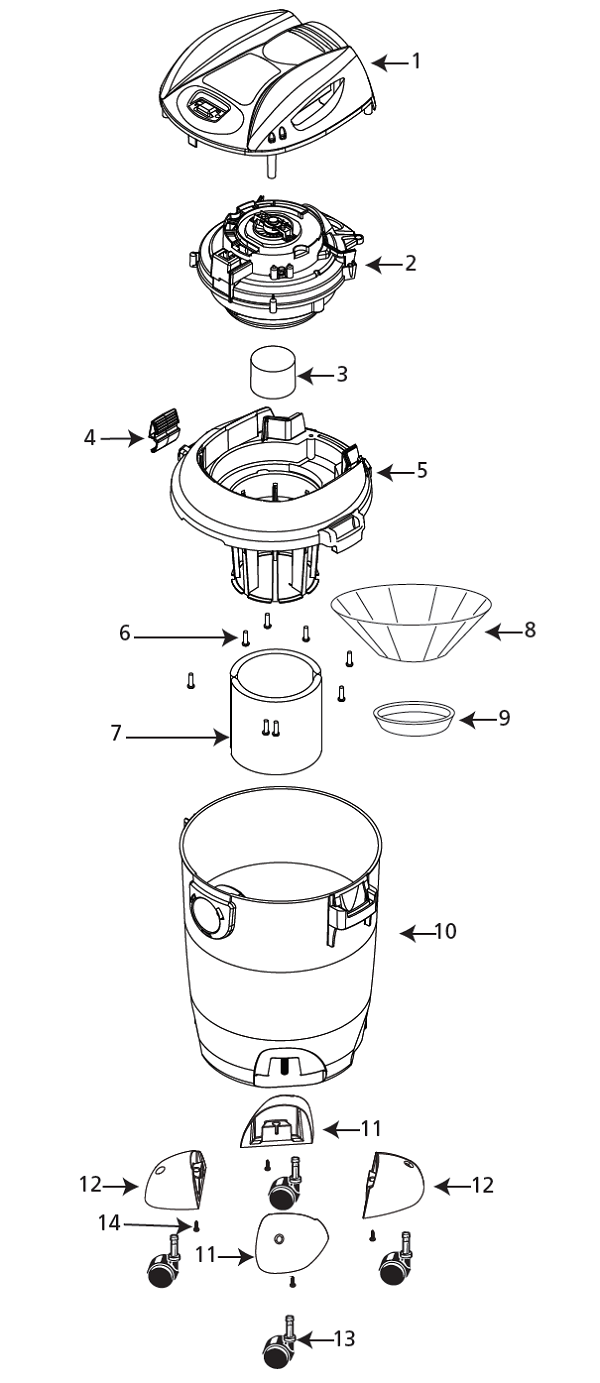

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 12S200A

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: 12S200A (6 Gal, 2.5 HP, Quiet Series, Red / Black)

Popular Supplies


Product is special order please allow 2-4 weeks for delivery.


# Part image Description SKU Price
01Not AvailableShop-Vac Motor Cover SV-1944706Not Available
02Not AvailableShop-Vac Power Unit Assembly SV-8121497Not Available
03Not AvailableShop-Vac Float SV-3545000Not Available
04Not AvailableShop-Vac Lid Latch SV-7444500Not Available
05Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944781Not Available
06Not AvailableShop-Vac Screw 10 x " Trilobe, Twin Lead SV-1517699Not Available
07Product ThumbnailFilter, Foam Sleeve Wet/Dry Type R Ea Part Number: 90585-00 for Shop Vac

More Product Details

9058500

$12.31Add to cart

Product is special order please allow 2-4 weeks for delivery.
08Product ThumbnailFilter, DVC ShopVc Flat/Dry P/U W/ Ring Typ T 3Pk Part Number: FI-372A for Shop Vac Replacement

More Product Details

FI372A

$7.44Add to cart

Product is special order please allow 2-4 weeks for delivery.
09Not AvailableShop-Vac Filter Ring SV-3006500Not Available
10Not AvailableShop-Vac Tank Assembly SV-1944701Not Available
11Not AvailableShop-Vac Caster Foot A SV-7433100Not Available
12Not AvailableShop-Vac Caster Foot B SV-7433110Not Available
13Not AvailableShop-Vac Caster SV-6774200Not Available
14Not AvailableShop-Vac Screw 10 x ' SL Hex Head SV-1503999Not Available
