Schematic and parts list for: Shop-Vac Model: 16LHT650C
This is a list of parts and a diagram and schematic for: Shop-Vac Model: 16LHT650C
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

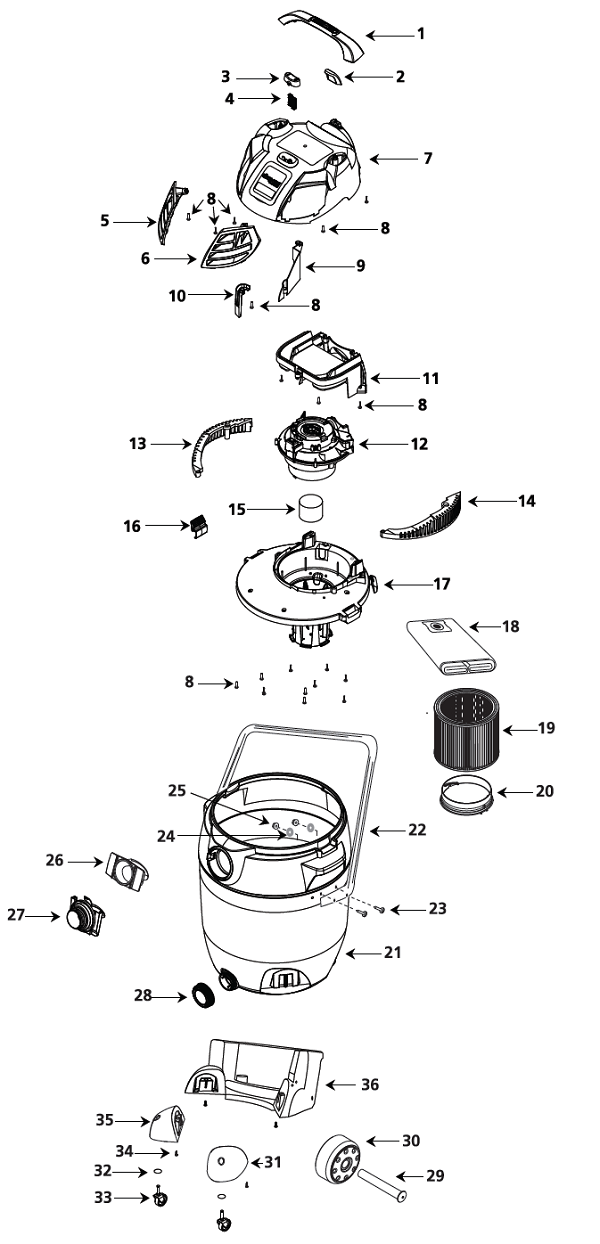

Parts for: 16LHT650C (16 plastic, 16 Stainless & 20 gallon plastic 6.5 HP Contractor)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Handle | SV-1944874 | Not Available |
| 02 | Not Available | Shop-Vac Cord Hook | SV-3856431 | Not Available |
| 03 | Not Available | Shop-Vac Switch Rocker | SV-8230400 | Not Available |
| 04 | Not Available | Shop-Vac Switch Button Extension | SV-7414251 | Not Available |
| 05 | Not Available | Shop-Vac Grill - Right | SV-6460231 | Not Available |
| 06 | Not Available | Shop-Vac Grill - Left | SV-6460221 | Not Available |
| 07 | Not Available | Shop-Vac Outer Motor Cover Assembly | SV-1944873 | Not Available |
| 08 | Not Available | Shop-Vac Screw 10 x 3/4" Trilobe, Twin Lead | SV-1517699 | Not Available |
| 09 | Not Available | Shop-Vac Air Rib | SV-3720200 | Not Available |
| 10 | Not Available | Shop-Vac Assembly Boss | SV-3544100 | Not Available |
| 11 | Not Available | Shop-Vac Inner Motor Cover Assembly | SV-1944875 | Not Available |
| 12 | Not Available | Shop-Vac Power Unit Assembly | SV-8136697 | Not Available |
| 13 | Not Available | Shop-Vac Louver - Right | SV-6460251 | Not Available |
| 14 | Not Available | Shop-Vac Louver - Left | SV-6460241 | Not Available |
| 15 | Not Available | Shop-Vac Float | SV-3545000 | Not Available |
| 16 | Not Available | Shop-Vac Lid Latch | SV-7444506 | Not Available |
| 17 | Not Available | Shop-Vac Lid Cage & Latch Assembly | SV-3544011 | Not Available |
| 18 | Not Available | Shop-Vac Disposable Filter Bag | SV-9066311 | Not Available |
| 19 | Not Available | Shop-Vac Cartridge Filter | SV-9030411 | Not Available |
| 20 | Not Available | Shop-Vac Filter Retainer | SV-3008000 | Not Available |
| 21 | Not Available | Shop-Vac Tank Assembly | SV-7398797 | Not Available |
| 22 | Not Available | Shop-Vac Carriage Handle | SV-2088000 | Not Available |
| 23 | Not Available | Shop-Vac Screw Mach 1/4" - 2- x 3/4" SLT TRUS | SV-0810899 | Not Available |
| 24 | Not Available | Shop-Vac Sealing Washer | SV-0701299 | Not Available |
| 25 | Not Available | Shop-Vac 1/4" - 20 Locknut - Heavy Hex HD | SV-1304599 | Not Available |
| 26 | Not Available | Shop-Vac 2 1/2" Inlet Deflector | SV-7413100 | Not Available |
| 27 | Not Available | Shop-Vac 2 1/2" - 3 1/2" Inlet Adapter | SV-2178497 | Not Available |
| 28 | Not Available | Shop-Vac Drain Cover | SV-7446806 | Not Available |
| 29 | Not Available | Shop-Vac Axel | SV-7410901 | Not Available |
| 30 | Not Available | Shop-Vac Rear Wheel | SV-7418200 | Not Available |
| 31 | Not Available | Shop-Vac Caster Foot A | SV-7431336 | Not Available |
| 32 | Not Available | Shop-Vac Caster Foot B | SV-7431356 | Not Available |
| 33 | Not Available | Shop-Vac Caster | SV-6773900 | Not Available |
| 34 | Not Available | Shop-Vac Screw 10 x 3/4" SL Hex Head | SV-1503999 | Not Available |
| 35 | Not Available | Shop-Vac Flat Washer | SV-0704399 | Not Available |
| 36 | Not Available | Shop-Vac Rear Dolly/Basket | SV-7417605 | Not Available |
