Schematic and parts list for: Shop-Vac Model: 2015A
This is a list of parts and a diagram and schematic for: Shop-Vac Model: 2015A

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: 2015A (1 Gal, 1.0 HP, Red or Black with 18ft Power Cord)

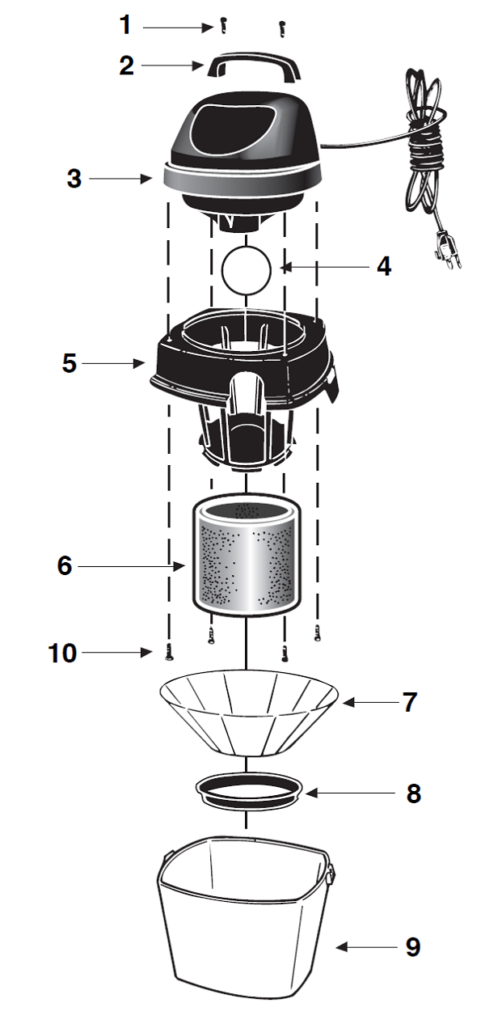

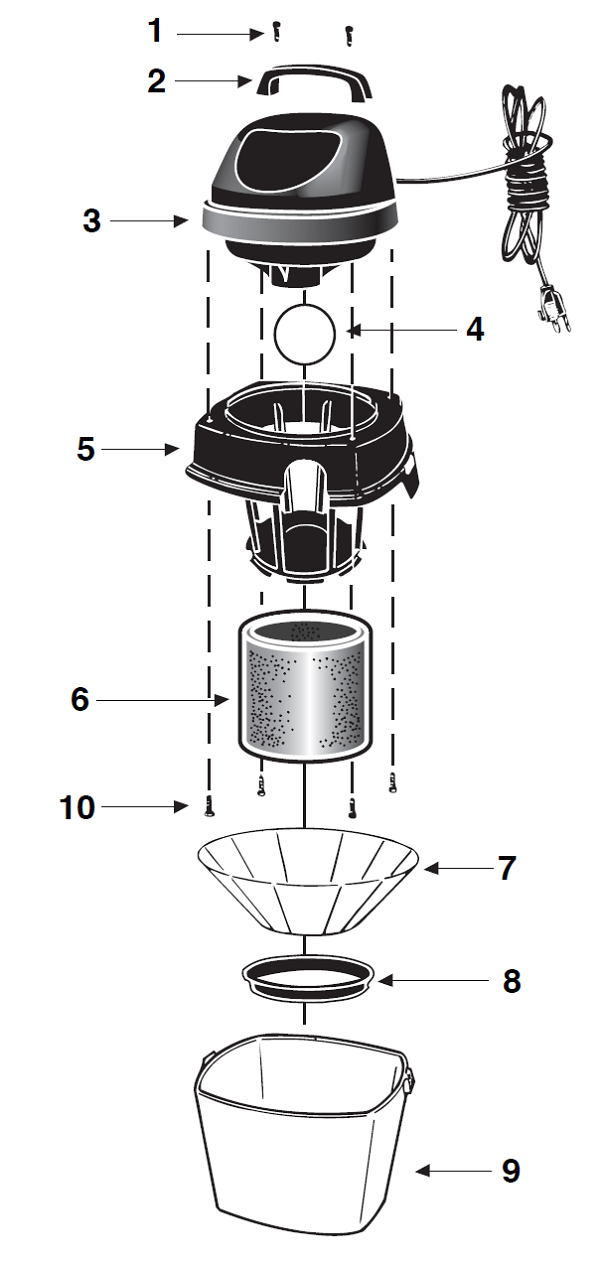

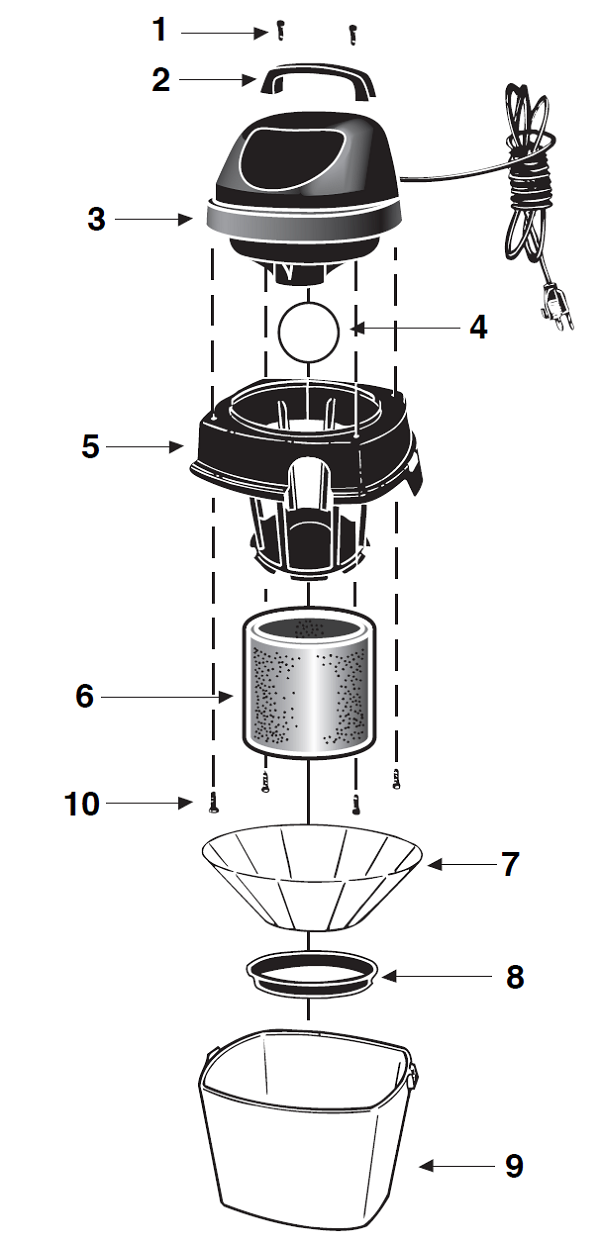

Schematic PreviewSchematic Preview

# Part image Description SKU Price
01Not AvailableShop-Vac Hex Head Screw #10 x 3/4" Type AB SV-1503999Not Available
02Not AvailableShop-Vac Handle SV-2410007Not Available
03Not AvailableShop-Vac Power Unit Assembly SV-8103997Not Available
04Not AvailableShop-Vac Ball Float SV-0081100Not Available
05Not AvailableShop-Vac Ball Float SV-3180502Not Available
06Not AvailableShop-Vac Foam Sleeve SV-9058500Not Available
07Not AvailableShop-Vac Reusable Dry Filter SV-9010700Not Available
08Not AvailableShop-Vac Filter Ring SV-3006500Not Available
09Not AvailableShop-Vac Tank SV-3150007Not Available
10Not AvailableShop-Vac Screw #10 x 3/4' Type AB SV-1516599Not Available



# Part image Description SKU Price
01Not AvailableShop-Vac Hex Head Screw #10 x 3/4" Type AB SV-1503999Not Available
02Not AvailableShop-Vac Handle SV-2410007Not Available
03Not AvailableShop-Vac Power Unit Assembly SV-8104097Not Available
04Not AvailableShop-Vac Ball Float SV-0081100Not Available
05Not AvailableShop-Vac Lid Cage Assembly SV-3180502Not Available
06Not AvailableShop-Vac Foam Sleeve SV-9058500Not Available
07Not AvailableShop-Vac Reusable Dry Filter SV-9010700Not Available
08Not AvailableShop-Vac Filter Ring SV-3006500Not Available
09Not AvailableShop-Vac Tank SV-3150007Not Available
10Not AvailableShop-Vac Screw #10 x 3/4' Type AB SV-1516599Not Available
