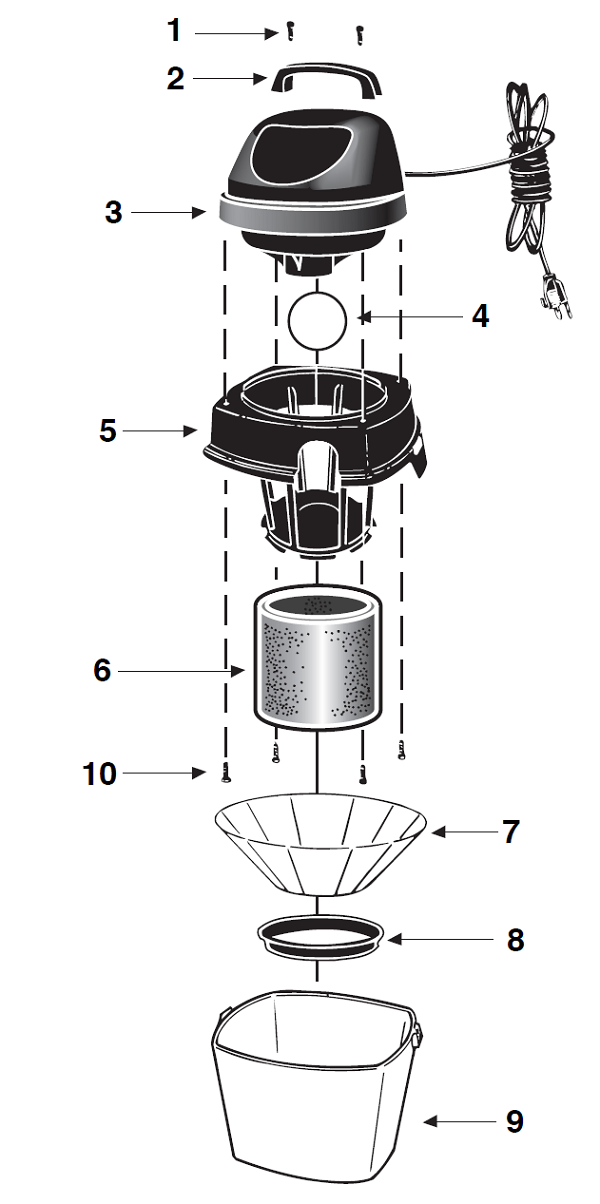

Schematic and parts list for: Shop-Vac Model: 2E200
This is a list of parts and a diagram and schematic for: Shop-Vac Model: 2E200
Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE
Parts for: 2E200 (1 Gal, 1.0 HP, Black 1 Gal, 1.0 HP, Black)
| # | Part image | Description | SKU | Price |
| 01 | Not Available | Shop-Vac Hex Head Screw #10 x 3/4" Type AB | SV-1503999 | Not Available |
| 02 | Not Available | Shop-Vac Handle | SV-2410007 | Not Available |
| 03 | Not Available | Shop-Vac Power Unit Assembly | SV-8104097 | Not Available |
| 04 | Not Available | Shop-Vac Ball Float | SV-0081100 | Not Available |
| 05 | Not Available | Shop-Vac Lid Cage Assembly | SV-3180502 | Not Available |
| 06 | Not Available | Shop-Vac Foam Sleeve | SV-9058500 | Not Available |
| 07 | Not Available | Shop-Vac Reusable Dry Filter | SV-9010700 | Not Available |
| 08 | Not Available | Shop-Vac Filter Ring | SV-3006500 | Not Available |
| 09 | Not Available | Shop-Vac Tank | SV-3150007 | Not Available |
| 10 | Not Available | Shop-Vac Screw #10 x 3/4' Type AB | SV-1516599 | Not Available |
