Schematic and parts list for: Shop-Vac Model: 84M200

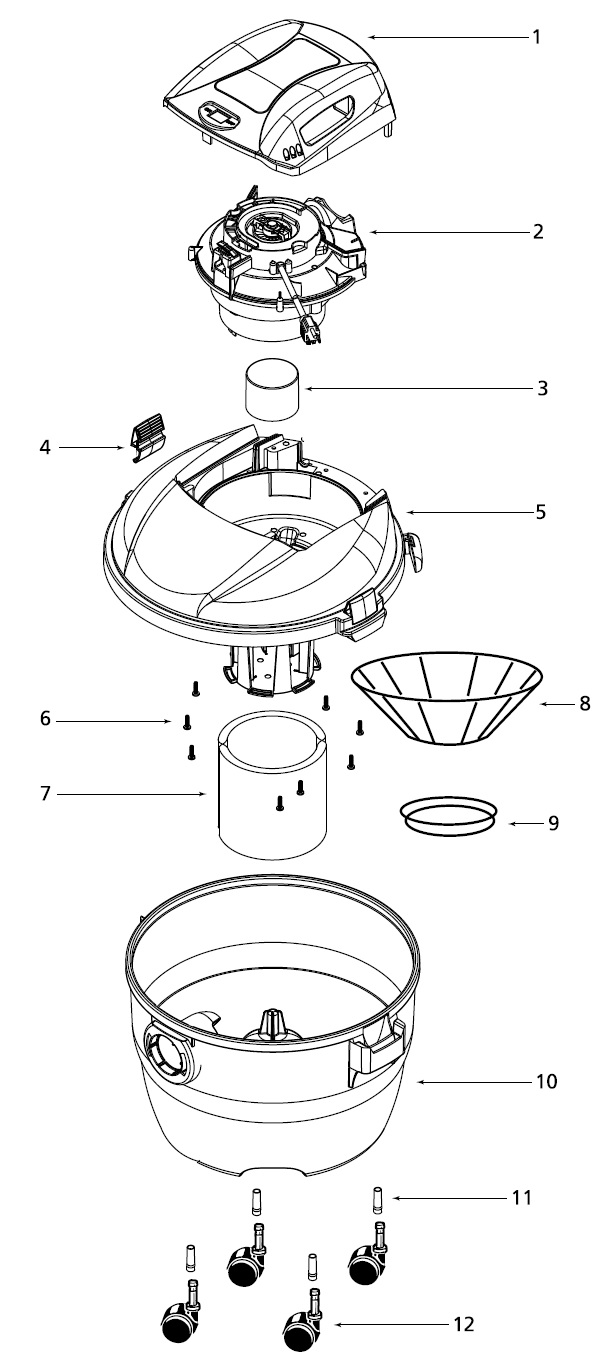

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 84M200

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: 84M200 (5 Gal, 2.0 HP, Red or Black)


# Part image Description SKU Price
01Not AvailableShop-Vac Motor Cover SV-3740002Not Available
02Not AvailableShop-Vac Power Unit Assembly SV-8130097Not Available
03Not AvailableShop-Vac Float SV-3545000Not Available
04Not AvailableShop-Vac Lid Latch SV-7444503Not Available
05Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944290Not Available
06Not AvailableShop-Vac Screw 10 x 3/4" Trilobe T25 Hd SV-1516599Not Available
07Not AvailableShop-Vac Foam Sleeve SV-9058500Not Available
08Not AvailableShop-Vac Reusable Dry Filter SV-9010700Not Available
09Not AvailableShop-Vac Filter Ring SV-3006500Not Available
10Not AvailableShop-Vac Tank Assembly SV-1091597Not Available
11Not AvailableShop-Vac Retainer SV-8565500Not Available
12Not AvailableShop-Vac Caster SV-6774200Not Available
