Schematic and parts list for: Shop-Vac Model: 85L400test

Schematic and parts list for: Shop-Vac Model: 85L400

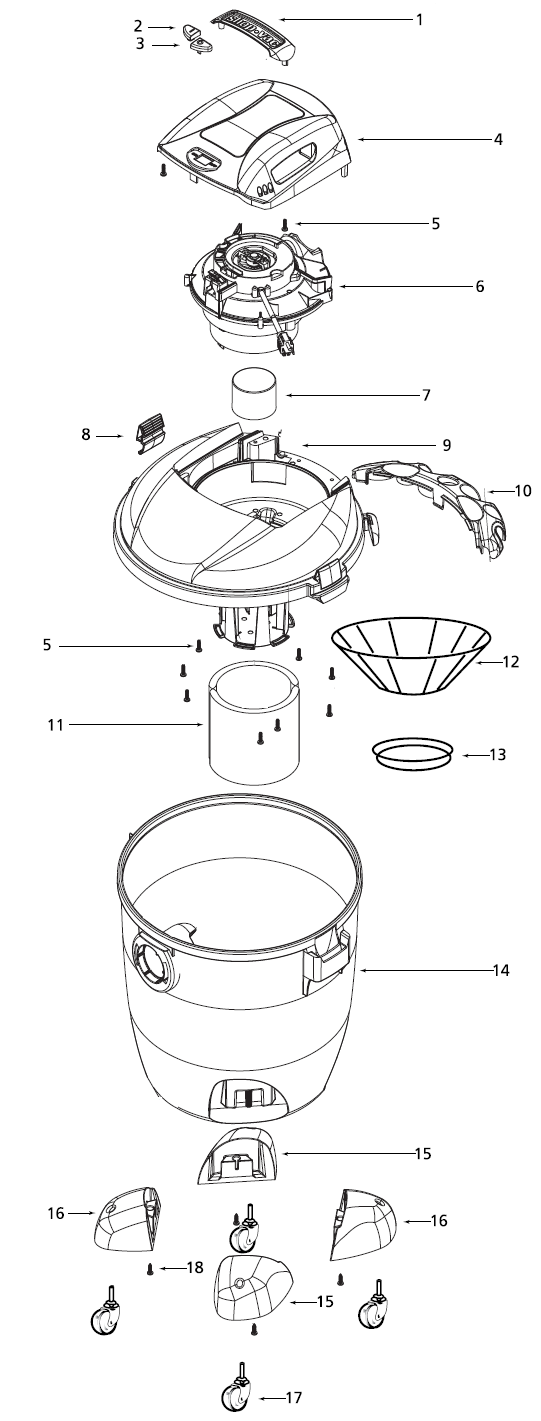

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 85L400

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: 85L400 (10 Gal, 4.0 HP, Gray)


# Part image Description SKU Price
01Not AvailableShop-Vac Handle SV-3751000Not Available
02Not AvailableShop-Vac Switch Button - I SV-7414200Not Available
03Not AvailableShop-Vac Switch Button - O SV-7414210Not Available
04Not AvailableShop-Vac Motor Cover Assembly SV-1944110Not Available
05Not AvailableShop-Vac Screw 10 x 3/4" Trilobe T25 Head SV-1516599Not Available
06Not AvailableShop-Vac Power Unit Assembly SV-8132997Not Available
07Not AvailableShop-Vac Float SV-3545000Not Available
08Not AvailableShop-Vac Lid Latch SV-7444500Not Available
09Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944123Not Available
10Not AvailableShop-Vac Tool Holder SV-8412000Not Available
11Not AvailableShop-Vac Foam Sleeve SV-9058500Not Available
12Not AvailableShop-Vac Reusable Dry Filter SV-9010700Not Available
13Not AvailableShop-Vac Mounting Ring SV-3006500Not Available
14Not AvailableShop-Vac Tank Assembly SV-1023897Not Available
15Not AvailableShop-Vac Caster Foot A SV-8568000Not Available
16Not AvailableShop-Vac Caster Foot B SV-8568010Not Available
17Not AvailableShop-Vac Caster SV-6771200Not Available
18Not AvailableShop-Vac Screw 10 x 3/4" SL Hex Head SV-1503999Not Available
