Schematic and parts list for: Shop-Vac Model: 86L550

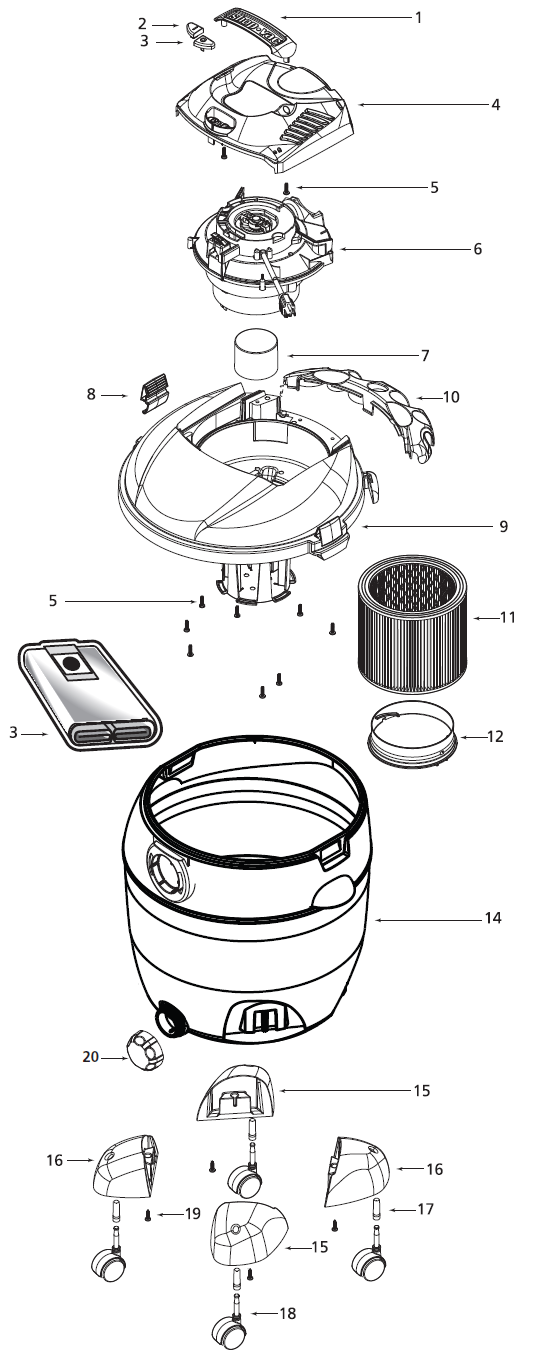

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 86L550

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: 86L550 (16 Gal, 5.5 HP, Black)


# Part image Description SKU Price
01Not AvailableShop-Vac Handle SV-3751003Not Available
02Not AvailableShop-Vac Switch Button I SV-7414201Not Available
03Not AvailableShop-Vac Switch Button O SV-7414211Not Available
04Not AvailableShop-Vac Motor Cover Assembly SV-1944090Not Available
05Not AvailableShop-Vac Screw 10 x 3/4" Trilobe T25 Head SV-1516599Not Available
06Not AvailableShop-Vac Power Unit Assembly SV-8132497Not Available
07Not AvailableShop-Vac Float SV-3545000Not Available
08Not AvailableShop-Vac Lid Latch SV-7444503Not Available
09Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944204Not Available
10Not AvailableShop-Vac Tool Holder SV-8412000Not Available
11Not AvailableShop-Vac Cartridge Filter SV-9030400Not Available
12Not AvailableShop-Vac Filter Retainer SV-3008000Not Available
13Not AvailableShop-Vac Collection Bag SV-9066300Not Available
14Not AvailableShop-Vac Tank Assembly SV-7363097Not Available
15Not AvailableShop-Vac Caster Foot A SV-7431331Not Available
16Not AvailableShop-Vac Caster Foot B SV-7431351Not Available
17Not AvailableShop-Vac Retainer SV-8565500Not Available
18Not AvailableShop-Vac Caster SV-6774200Not Available
19Not AvailableShop-Vac Retainer SV-1503999Not Available
20Not AvailableShop-Vac Drain Cover SV-7413625Not Available
