Schematic and parts list for: Shop-Vac Model: 86L650C

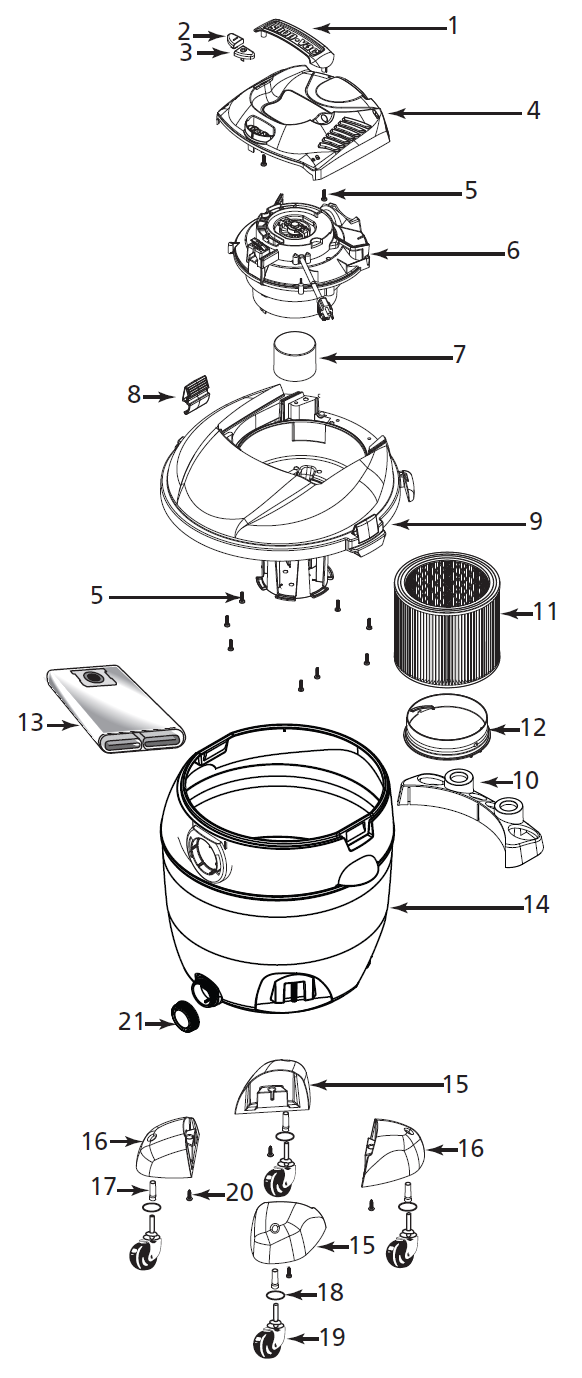

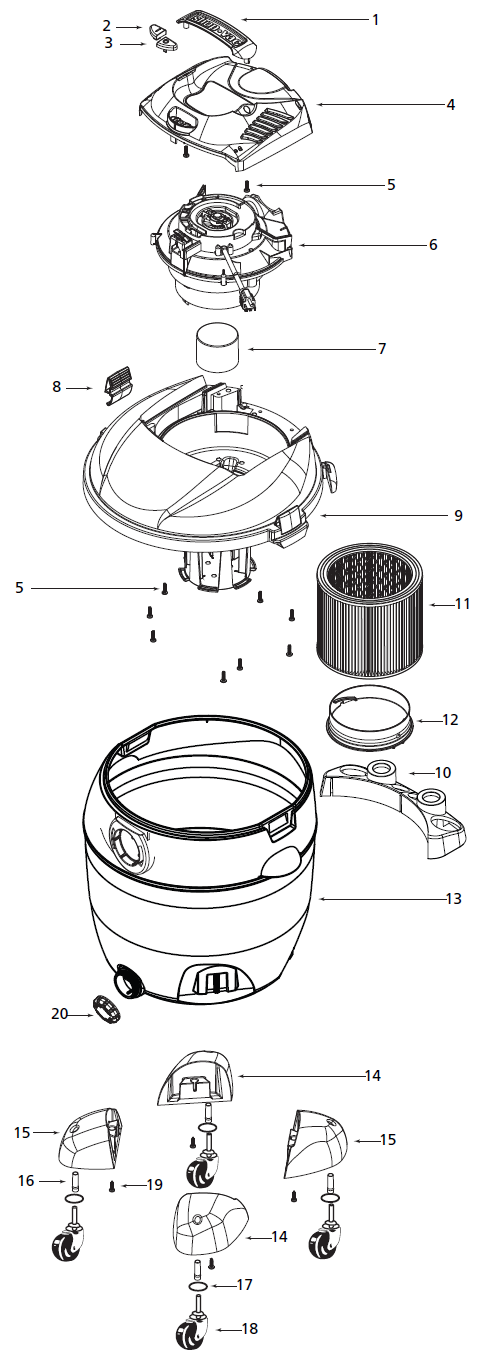

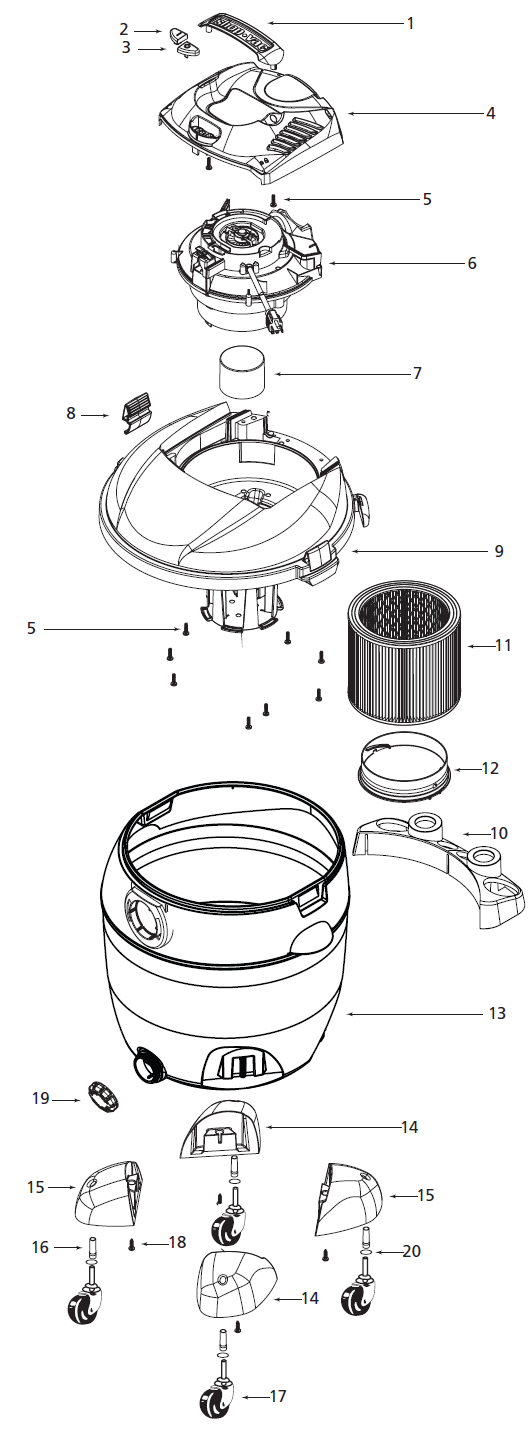

This is a list of parts and a diagram and schematic for: Shop-Vac Model: 86L650C

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: 86L650C (16 Gal, 6.5 HP)

Popular Supplies

Product is special order please allow 2-4 weeks for delivery.

Product is special order please allow 2-4 weeks for delivery.

# Part image Description SKU Price
01Not AvailableShop-Vac Handle SV-3751010Not Available
02Not AvailableShop-Vac Switch Button I SV-7414200Not Available
03Not AvailableShop-Vac Switch Button O SV-7414210Not Available
04Not AvailableShop-Vac Motor Cover Assembly SV-1944090Not Available
05Not AvailableShop-Vac Screw 10 x " Trilobe, Twin Lead SV-1517699Not Available
06Not AvailableShop-Vac Power Unit Assembly SV-8135597Not Available
07Not AvailableShop-Vac Float SV-3545000Not Available
08Not AvailableShop-Vac Lid latch SV-7444500Not Available
09Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944739Not Available
10Not AvailableShop-Vac Tool Holder SV-8411300Not Available
11Product ThumbnailFilter, Pleated Cart Type U Wet/Dry 6"x7-1/2" Part Number: 90304-00 for Shop Vac

More Product Details

9030400

$32.10Add to cart

Product is special order please allow 2-4 weeks for delivery.
12Not AvailableShop-Vac Filter Retainer SV-3008000Not Available
13Product ThumbnailPaper Bag, 15-22 Gal All Around Dust Collectn 3 Pk Part Number: 906-63-00 for Shop Vac

More Product Details

9066300

$31.70Read more

14Not AvailableShop-Vac Tank Assembly SV-7365497Not Available
15Not AvailableShop-Vac Caster Foot A SV-7431300Not Available
16Not AvailableShop-Vac Caster Foot B SV-7431310Not Available
17Not AvailableShop-Vac Retainer SV-8565700Not Available
18Not AvailableShop-Vac Flatwasher SV-0704399Not Available
19Not AvailableShop-Vac Caster SV-6773900Not Available
20Not AvailableShop-Vac Screw 10 x " SL Hex Head SV-1503999Not Available
21Not AvailableShop-Vac Drain Cover SV-7446800Not Available



# Part image Description SKU Price
01Not AvailableShop-Vac Handle SV-3751000Not Available
02Not AvailableShop-Vac Switch Button - I SV-7414200Not Available
03Not AvailableShop-Vac Switch Button - O SV-7414210Not Available
04Not AvailableShop-Vac Motor Cover Assembly SV-1944090Not Available
05Not AvailableShop-Vac Screw 10 x 3/4" Trilobe SV-1517699Not Available
06Not AvailableShop-Vac Power Unit Assembly SV-8135597Not Available
07Not AvailableShop-Vac Float SV-3545000Not Available
08Not AvailableShop-Vac Lid Latch SV-7444500Not Available
09Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944120Not Available
10Not AvailableShop-Vac Tool Holder SV-9013100Not Available
11Not AvailableShop-Vac Cartridge Filter SV-9030400Not Available
12Not AvailableShop-Vac Filter Retainer SV-3008000Not Available
13Not AvailableShop-Vac Tank Assembly SV-7363097Not Available
14Not AvailableShop-Vac Caster Foot A SV-7431300Not Available
15Not AvailableShop-Vac Caster Foot B SV-7431310Not Available
16Not AvailableShop-Vac Retainer SV-8565700Not Available
17Not AvailableShop-Vac Caster SV-6773900Not Available
18Not AvailableShop-Vac Screw 10 x 3/4" SL Hex Head SV-1503999Not Available
19Not AvailableShop-Vac Drain Cover SV-7446800Not Available
20Not AvailableShop-Vac Flatwasher SV-0704399Not Available



# Part image Description SKU Price
01Not AvailableShop-Vac Handle SV-3751010Not Available
02Not AvailableShop-Vac Switch Button I SV-7414200Not Available
03Not AvailableShop-Vac Switch Button O SV-7414210Not Available
04Not AvailableShop-Vac Motor Cover Assembly SV-1944090Not Available
05Not AvailableShop-Vac Screw 10 x " Trilobe, Twin Lead SV-1517699Not Available
06Not AvailableShop-Vac Power Unit Assembly SV-8135597Not Available
07Not AvailableShop-Vac Float SV-3545000Not Available
08Not AvailableShop-Vac Lid latch SV-7444500Not Available
09Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944739Not Available
10Product ThumbnailFilter, Pleated Cart Type U Wet/Dry 6"x7-1/2" Part Number: 90304-00 for Shop Vac

More Product Details

9030400

$32.10Add to cart

Product is special order please allow 2-4 weeks for delivery.
11Not AvailableShop-Vac Filter Retainer SV-3008000Not Available
12Product ThumbnailPaper Bag, 15-22 Gal All Around Dust Collectn 3 Pk Part Number: 906-63-00 for Shop Vac

More Product Details

9066300

$31.70Read more

13Not AvailableShop-Vac Tank Assembly SV-7365997Not Available
14Not AvailableShop-Vac Caster Foot A SV-7431300Not Available
15Not AvailableShop-Vac Caster Foot B SV-7431310Not Available
16Not AvailableShop-Vac Rear Dolly/Basket SV-7417310Not Available
17Not AvailableShop-Vac Retainer SV-8565700Not Available
18Not AvailableShop-Vac Flatwasher SV-0704399Not Available
19Not AvailableShop-Vac Caster SV-6773900Not Available
20Not AvailableShop-Vac Screw 10 x " SL Hex Head SV-1503999Not Available
21Not AvailableShop-Vac Drain Cover SV-7446800Not Available



# Part image Description SKU Price
01Not AvailableShop-Vac Handle SV-3751000Not Available
02Not AvailableShop-Vac Switch Button - I SV-7414200Not Available
03Not AvailableShop-Vac Switch Button - O SV-7414210Not Available
04Not AvailableShop-Vac Motor Cover Assembly SV-1944090Not Available
05Not AvailableShop-Vac Screw 10 x 3/4" Trilobe SV-1517699Not Available
06Not AvailableShop-Vac Power Unit Assembly SV-8135597Not Available
07Not AvailableShop-Vac Float SV-3545000Not Available
08Not AvailableShop-Vac Lid Latch SV-7444500Not Available
09Not AvailableShop-Vac Lid Cage and Latch Assembly SV-1944536Not Available
10Not AvailableShop-Vac Tool Holder SV-9013100Not Available
11Not AvailableShop-Vac Cartridge Filter SV-9030400Not Available
12Not AvailableShop-Vac Filter Retainer SV-3008000Not Available
13Not AvailableShop-Vac Tank Assembly SV-7365997Not Available
14Not AvailableShop-Vac Caster Foot A SV-7431300Not Available
15Not AvailableShop-Vac Caster Foot B SV-7431310Not Available
16Not AvailableShop-Vac Retainer SV-8565700Not Available
17Not AvailableShop-Vac Flatwasher SV-0704399Not Available
18Not AvailableShop-Vac Caster SV-6773900Not Available
19Not AvailableShop-Vac Screw 10 x 3/4" SL Hex Head SV-1503999Not Available
20Not AvailableShop-Vac Drain Cover SV-7446800Not Available
