Schematic and parts list for: Shop-Vac Model: H87S650C

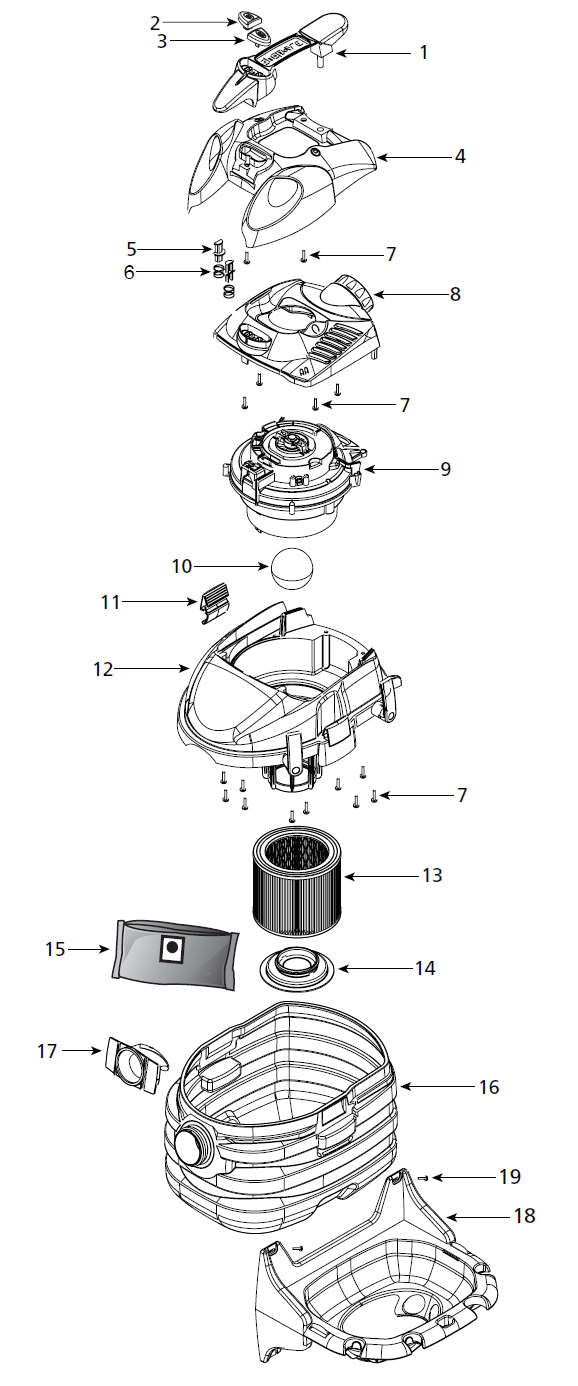

This is a list of parts and a diagram and schematic for: Shop-Vac Model: H87S650C

Vacuums R Us & Sewing Too provides vacuum cleaner and carpet cleaner parts and accessories for vacuum cleaner repair purposes. We are committed to delivering high-quality components, but it is important to note that all appliance repairs involve risks, and we cannot guarantee the outcome of your repair. When using our vacuum parts for repairs, you accept the terms and conditions HERE

Parts for: H87S650C (5 Gal, 6.5 HP, Black)


# Part image Description SKU Price
01Not AvailableShop-Vac Handle SV-3549021Not Available
02Not AvailableShop-Vac Switch Button - On SV-7414205Not Available
03Not AvailableShop-Vac Switch Button - Off SV-7414215Not Available
04Not AvailableShop-Vac Outer Motor Cover Assembly SV-1944470Not Available
05Not AvailableShop-Vac Switch Button Extension SV-7414250Not Available
06Not AvailableShop-Vac Spring SV-2802899Not Available
07Not AvailableShop-Vac Screw 10 x 3/4" Trilobe SV-1517699Not Available
08Not AvailableShop-Vac Inner Motor Cover Assembly SV-1944533Not Available
09Not AvailableShop-Vac Power Unit Assembly SV-8138797Not Available
10Not AvailableShop-Vac Float SV-0081100Not Available
11Not AvailableShop-Vac Lid Latch SV-7444500Not Available
12Not AvailableShop-Vac Lid Cage & Latch Assembly SV-1944534Not Available
13Product ThumbnailFilter, Pleated Sml Ultra Web Cart. Wet/Dry Part Number: 9039700 for Shop Vac

More Product Details

9039700

$37.46Read more

14Not AvailableShop-Vac Filter Retainer SV-3183000Not Available
15Not AvailableShop-Vac Collection Filter Bag SV-9067100Not Available
16Not AvailableShop-Vac Tank Assembly SV-1092397Not Available
17Not AvailableShop-Vac Inlet Deflector SV-7413100Not Available
18Not AvailableShop-Vac Wall Bracket & Tool Holder SV-3755420Not Available
19Not AvailableShop-Vac Hardware Package SV-4904096Not Available
